IP68 RFID Access Control Keypad WiFi Tuya Smart – 2000 Users

Smart Aluminum RFID Access Control Keypad with WiFi & Tuya App

Upgrade your entry points with the Asia-Teco IP68 Waterproof RFID Access Control Keypad — a robust, smart-home-ready security solution built from premium aluminum alloy with silver-plated metal keys. Whether you're securing a home, office, warehouse, or gate, this standalone keypad delivers flexible access management for up to 2,000 users, all controllable from your smartphone via the Tuya App.

Key Features

• IP68 Waterproof Rating: Fully sealed against dust and water immersion — built to withstand harsh outdoor environments.

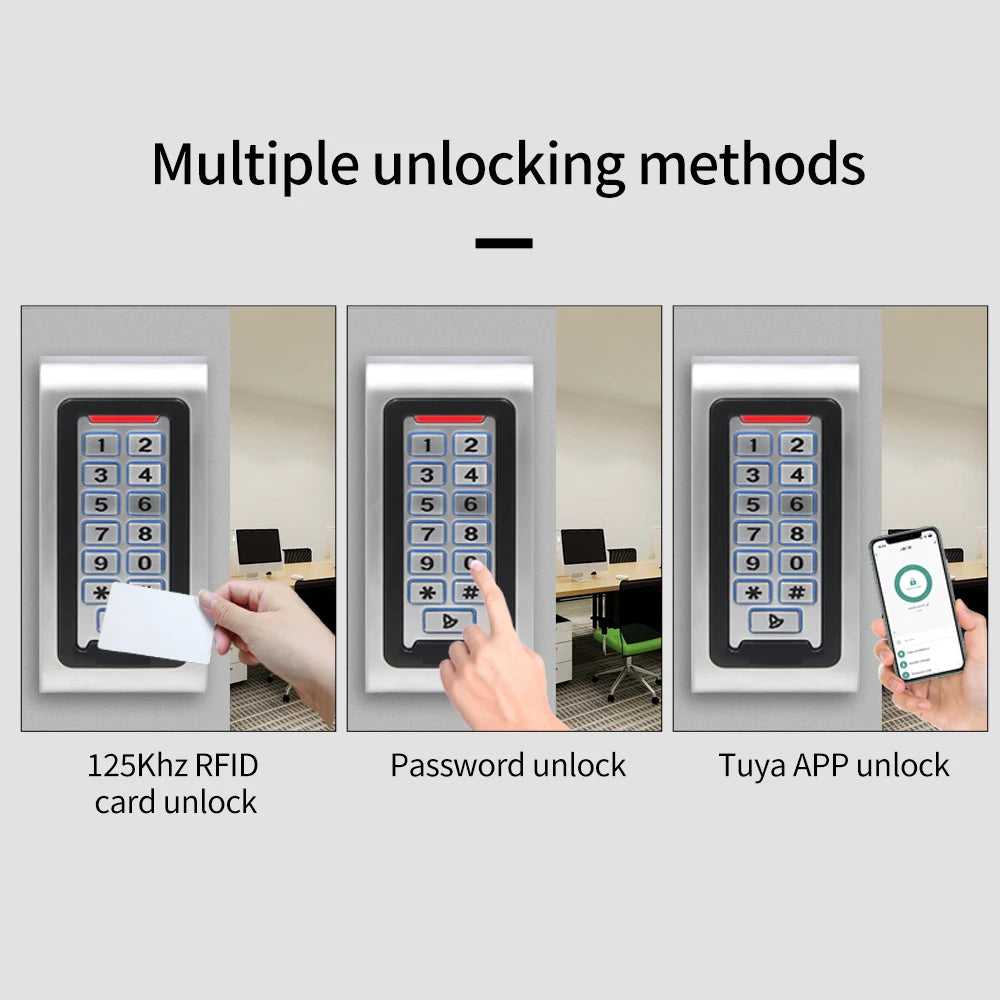

• Multiple Unlock Modes: Tuya App, 125KHz RFID card, PIN password, card + password combination, or temporary password — choose whatever works best for each user.
• 2,000 User Capacity: Store up to 2,000 RFID card credentials and 2,000 independent PIN codes simultaneously.

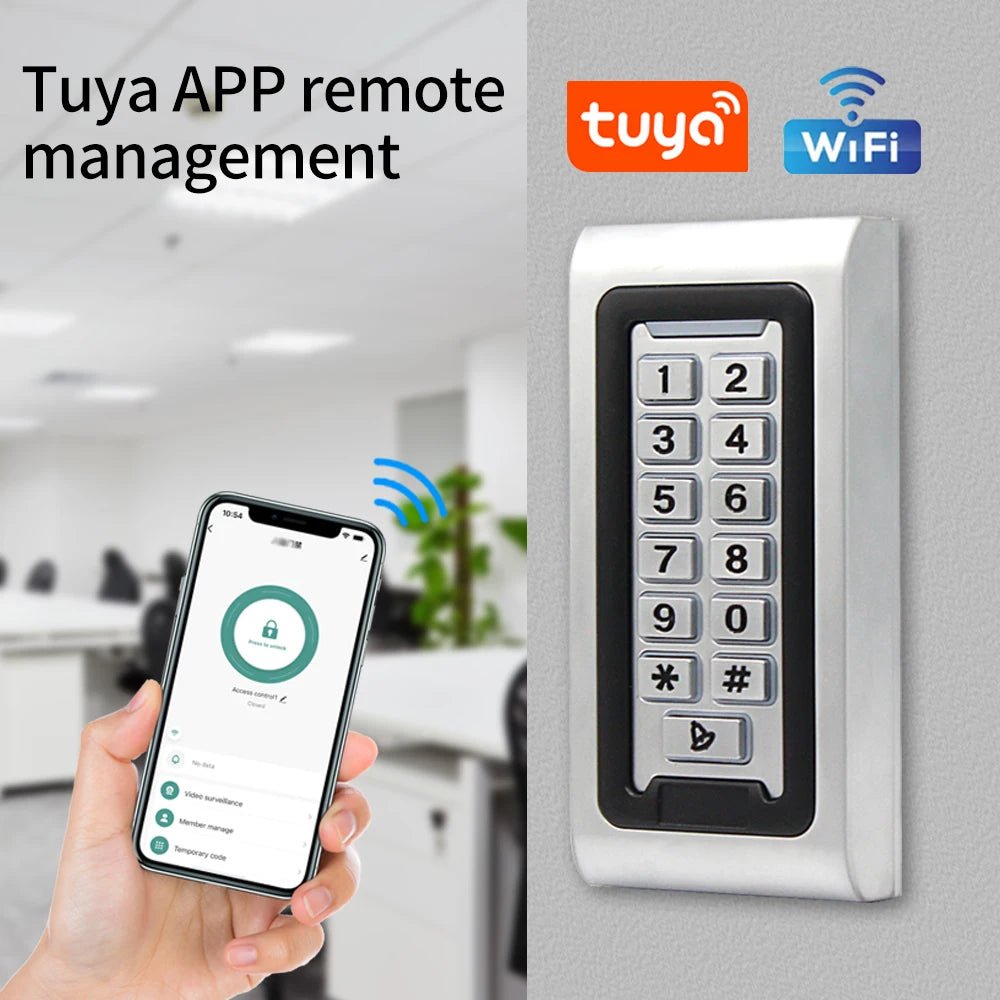

• WiFi & Tuya Smart Home Integration: Remotely manage access, issue temporary passwords, and monitor entry events from anywhere using the free Tuya App.
• Lightning-Fast Identification: Card recognition in under 0.1 seconds for seamless, smooth entry.

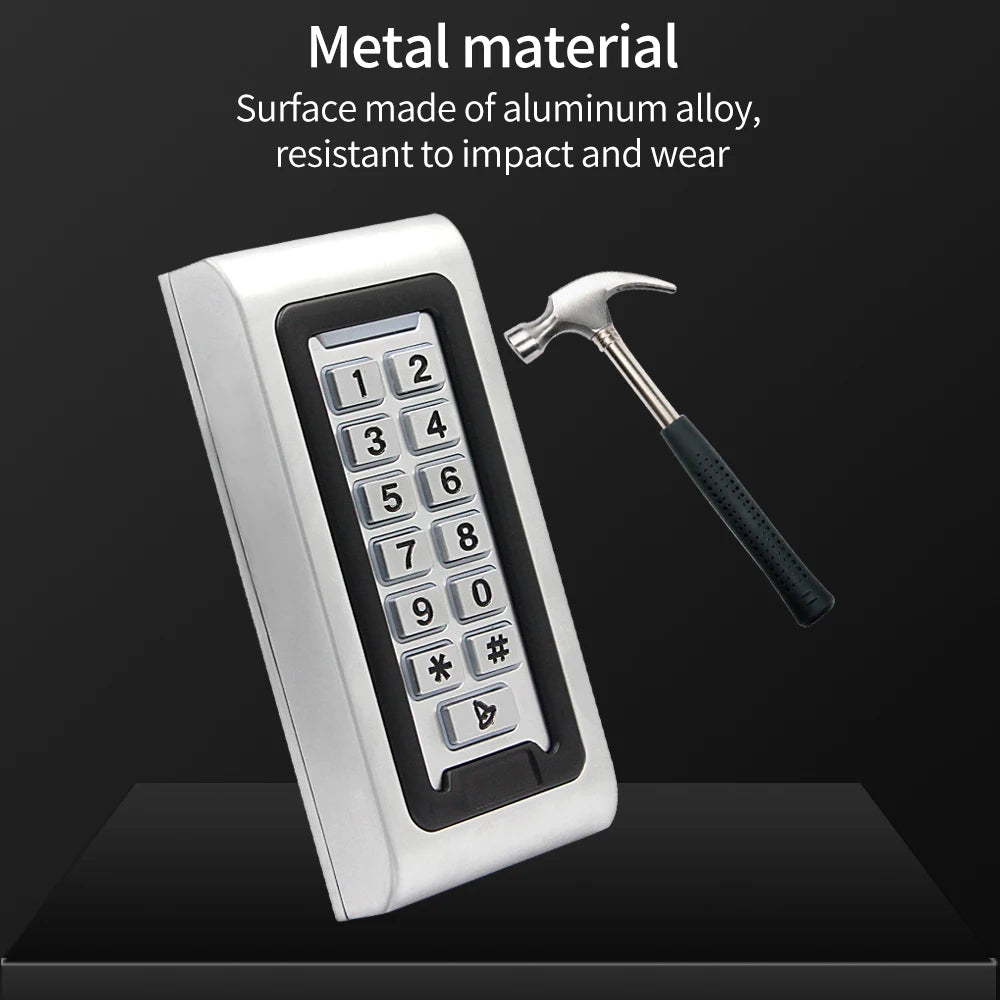

• Aluminum Alloy Construction: Durable metal shell and metal keypad buttons for long-lasting performance in demanding conditions.
• Wiegand 26/34 Input & Output: Connect additional card readers or integrate with existing access control systems.
• Programmable Relay Output: Adjustable lock release time (1–255 seconds), NO/NC output, secure/normal mode — compatible with most electric strikes and magnetic locks.
• 3 User Privilege Levels: Normal user, secure user, and master user for organized access hierarchies.
• Advanced Alarm & Monitoring: Built-in tamper alarm, door ajar alert, forced-entry detection, internal buzzer, programmable siren, and dual status LEDs.
• Ultra-Low Power Consumption: Standby current under 50 mA; operates on 12V DC.
• Wide Operating Temperature: Reliable performance from -25°C to +55°C (-13°F to 131°F).
• Code Search Feature: Easily locate and manage existing user codes for effortless administration.

Technical Specifications

What's in the Box?

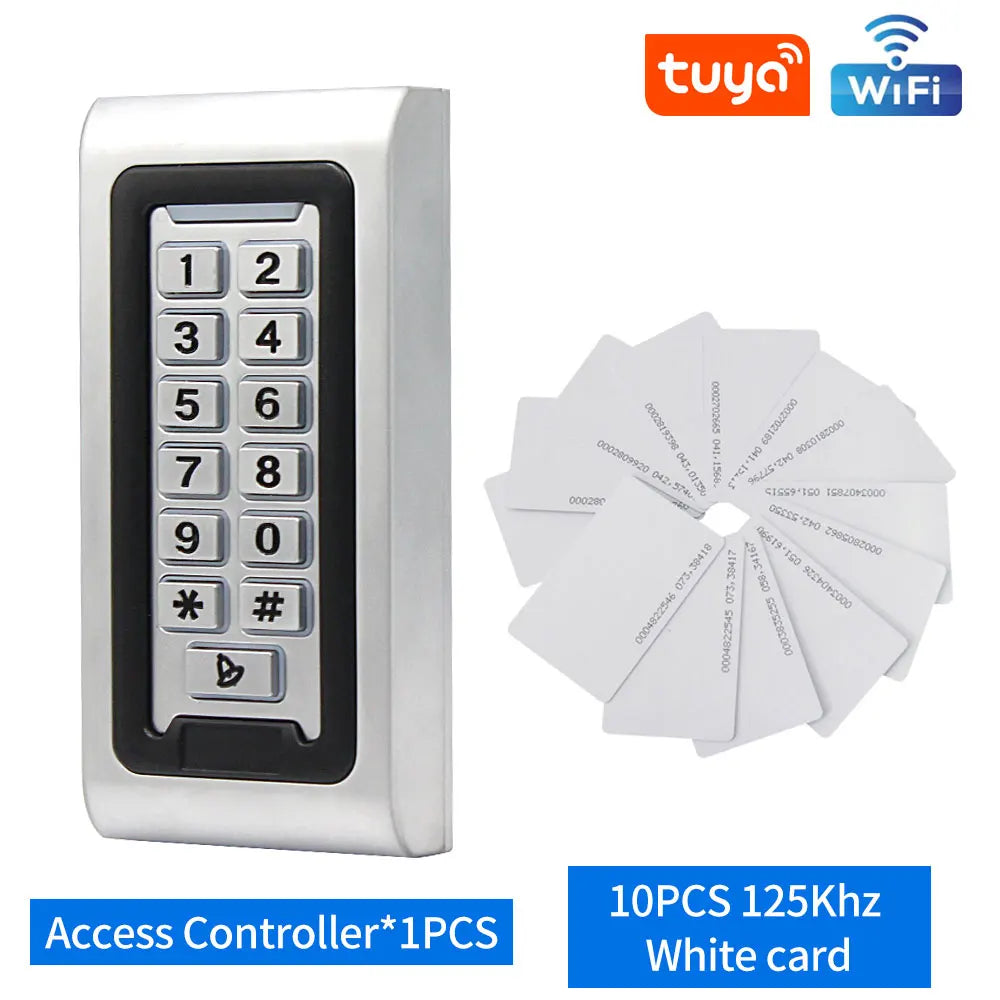

• 1 × Asia-Teco RFID Access Control Keypad (S601EM-W-Wifi.e)
• Installation hardware and wiring guide

Resources & Standards

For best practices on physical access control security for homes and businesses, refer to the guidance published by the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does this RFID access control keypad work with the Tuya Smart App?

A: Yes — the keypad features built-in WiFi and is fully compatible with the Tuya Smart platform. You can add users, issue temporary passwords, and view access logs remotely through the Tuya App on iOS or Android.

Q: What types of RFID cards does this keypad support?

A: The keypad natively supports 125KHz EM RFID cards. An optional 13.56MHz MF (Mifare) card configuration is also available if you need a higher-frequency card system.

Q: Is this keypad suitable for outdoor installation?

A: Absolutely. With an IP68 waterproof rating and an operating temperature range of -25°C to +55°C, this keypad is engineered to perform reliably in outdoor environments including rain, dust, and extreme temperatures.

Q: How many users can be stored on this access control keypad?

A: The keypad supports up to 2,000 RFID card credentials and 2,000 individual PIN codes, making it ideal for medium to large access control deployments such as offices, apartment buildings, and commercial facilities.

Q: Can this keypad be integrated with an existing access control system?

A: Yes. The Wiegand 26/34 input and output ports allow you to connect it to most standard access controllers or to use it as a standalone card reader within a broader security infrastructure.
