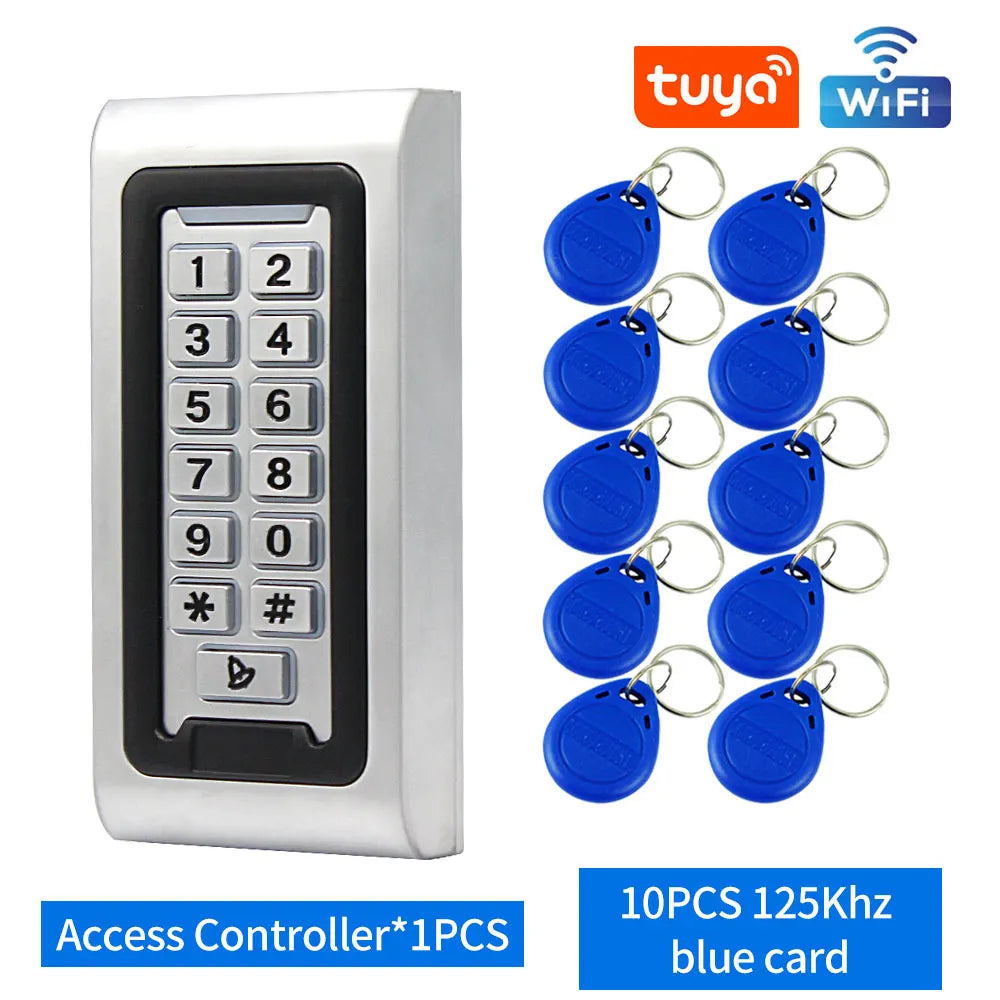

IP68 Waterproof RFID Keypad Access Controller – WiFi Tuya
IP68 Waterproof RFID Keypad Access Controller – WiFi Tuya
IP68 Waterproof RFID Access Control Keypad with Metal Keys, WiFi & Tuya App – 2000 Users
Take full command of who enters your space with the Asia-Teco IP68 Waterproof Standalone RFID Access Control Keypad. Built from rugged aluminum alloy with metal key buttons, this sleek silver-finish controller is engineered for both indoor and outdoor installations — rain, dust, and extreme temperatures simply don't stand a chance. Manage up to 2,000 users effortlessly from your phone via the Tuya Smart App or directly at the keypad.
Why Choose This Access Controller?
- IP68 Waterproof Rating — fully protected against dust ingress and continuous water submersion; ideal for gates, garages, warehouses, and exterior doors.
- Multiple Unlock Methods — Tuya App, 125 kHz RFID card, PIN password, card + password combined unlock, or temporary password for visitors.
- Massive 2,000-User Capacity — store up to 2,000 card credentials and 2,000 unique PIN codes simultaneously.
- Lightning-Fast Identification — card read time under 0.1 seconds; total system response under 1 second.
- WiFi + Tuya Smart Platform — remotely grant or revoke access, issue temporary codes, and monitor entry logs from anywhere via the Tuya app.
- Aluminum Alloy + Metal Key Buttons — silver-plated, fashion-forward design that resists corrosion and physical tampering.
- Wiegand 26/34 Input & Output — connects seamlessly to third-party controllers or functions as a standalone card reader.
- Ultra-Low Power Consumption — standby current under 50 mA; runs on 12 V DC with up to 2 A lock relay output.
- Advanced Security Modes — Normal Mode and Secure Mode; three user levels (Normal, Secure, Master); programmable lock release time (1–255 s adjustable).
- Built-In Alarm & Bell Functions — internal buzzer, tamper alarm, door-ajar alert, forced-door detection, shunt, and door monitor output.
- Wide Operating Temperature — performs reliably from –25 °C to +55 °C (–13 °F to 131 °F).
- Dual-LED Status Interface — two programmable LEDs for instant visual feedback on system status.
Full Specifications
| Model | S601EM-W-WiFi.e |
| Dimensions | 120 × 56 × 18 mm |
| Working Voltage | 12 V DC |
| Lock Open Current | 2 A |
| Standby Current | < 50 mA |
| Card Frequency | 125 kHz (EM) |
| User Capacity | 2,000 cards / 2,000 passwords |
| Identify Speed | < 0.1 s (card); < 1 s (system) |
| Wiegand Protocol | Input / Output (W26 / W34) |
| Relay Output | NO / NC |
| Operating Temperature | –25 °C to +55 °C |
| Waterproof Grade | IP68 |
| Smart Platform | Tuya |
| Shell Material | Aluminum alloy, silver-plated |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × IP68 RFID Access Control Keypad (Model S601EM-W-WiFi.e)
- Installation hardware & wiring accessories
Learn More About Access Control Security
For guidance on best practices for electronic access control systems in residential and commercial settings, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources.
Frequently Asked Questions
Q: Is this RFID access control keypad truly waterproof for outdoor use?
A: Yes. The keypad carries an IP68 waterproof rating, meaning it is fully protected against dust and can withstand continuous immersion in water. Combined with its aluminum alloy shell and metal key buttons, it is an excellent choice for outdoor gates, garage doors, building entrances, and any exposed installation where weather resistance is critical.
Q: What unlock methods does this access controller support?
A: The controller supports five unlock methods: Tuya Smart App (via WiFi), 125 kHz RFID card swipe, PIN password entry, card + password combined unlock, and temporary password issuance for guests or contractors — all manageable remotely through the Tuya app.
Q: How many users can this keypad store, and can I manage them remotely?
A: The system stores up to 2,000 RFID card credentials and 2,000 PIN passwords simultaneously. Through the Tuya Smart App over WiFi, you can add or remove users, issue temporary codes, and review access logs from anywhere at any time — no need to be on-site.
Q: Does this keypad work with third-party access control panels?
A: Yes. The keypad supports Wiegand 26/34 input and output, allowing it to integrate with most third-party access control panels. It can also operate in standalone mode without any additional controller.

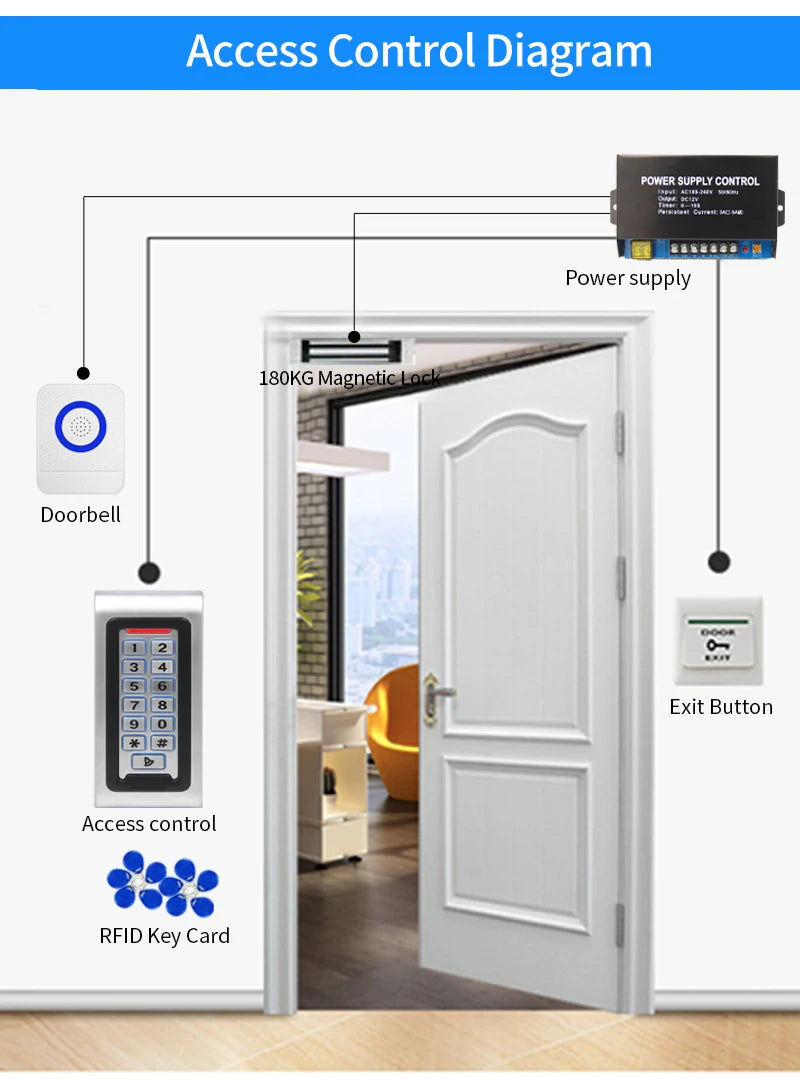

Q: What is the operating voltage, and can it drive an electric strike or magnetic lock?
A: The keypad operates on 12 V DC and provides a relay output with up to 2 A drive current, supporting both NO (Normally Open) and NC (Normally Closed) configurations. The lock release time is fully programmable from 1 to 255 seconds to match your specific lock hardware.
