Outdoor IP68 Waterproof RFID Access Control Keypad – 5000 User Capacity

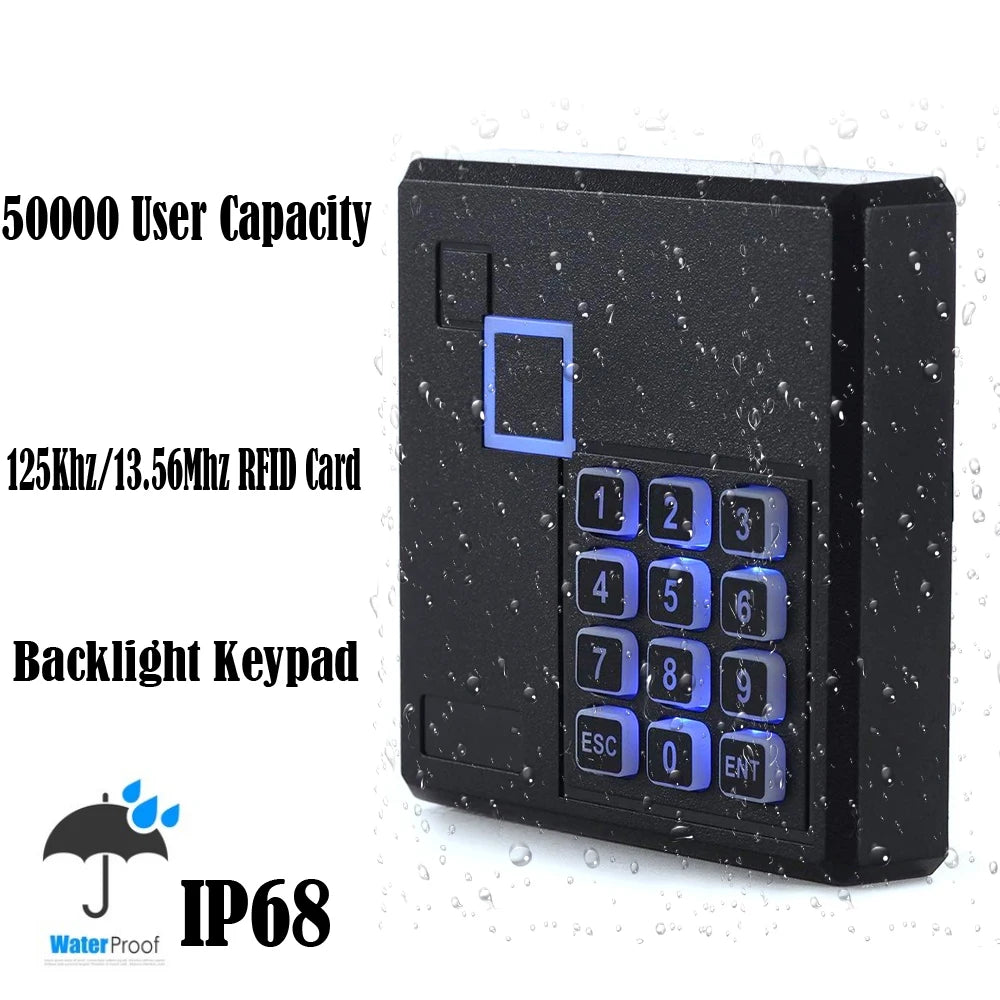

Take full control of who enters your property with this rugged, outdoor-rated RFID access control keypad. Designed for demanding environments, the Asia-Teco D2-1 combines a touch keypad with 125KHz EM4100/TK4100 card reading technology, giving you two flexible ways to grant or restrict entry. With storage for up to 5,000 users and a certified IP68 waterproof rating, this system is built to perform reliably whether it's mounted at a gate, office entrance, warehouse door, or any outdoor location exposed to rain, dust, and extreme temperatures. Made in Mainland China.
Why Choose This Access Control Keypad?
- IP68 Waterproof Protection – Fully sealed against dust and continuous water submersion, making it ideal for outdoor and harsh-environment installation.
- Dual Access Methods – Supports both RFID card swipe (EM4100/TK4100 compatible) and PIN password entry for maximum flexibility.
- Large 5,000-User Capacity – Perfect for small businesses, apartment complexes, offices, schools, and more.
- 125KHz Card Reading – Reliable, industry-standard frequency with a card reading range of 0–10 cm.
- Blue Backlit Keypad – Clearly visible in low-light and nighttime conditions for easy after-dark access.
- Wide Operating Temperature – Functions from -20°C to 70°C (-4°F to 158°F), handling both freezing winters and hot summers without issue.
- Adjustable Door Open Time – Configurable from 0 to 255 seconds to suit any lock or gate system.
- Low Power Consumption – Operates at DC 12V with a working current of ≤30mA, keeping energy costs minimal.
- Durable ABS Housing – High-quality ABS plastic construction ensures long-term toughness and weather resistance.
- Compact Form Factor – Standard 86×86×18mm footprint fits most single-gang wall boxes for a clean, professional installation.
Full Technical Specifications
| Model | Asia-Teco D2-1 |
| User Capacity | 5,000 users |
| Card Type | EM4100 / TK4100 (125KHz EM-compatible) |
| Card Reading Distance | 0–10 cm |
| Working Frequency | 125KHz |
| Identification Methods | RFID Card, PIN Password |
| Backlight | Blue LED |
| Waterproof Rating | IP68 |
| Working Voltage | DC 12V |
| Working Current | ≤ 30mA |
| Door Open Time | 0–255 seconds (adjustable) |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 20%–90% |
| Material | High-quality ABS |

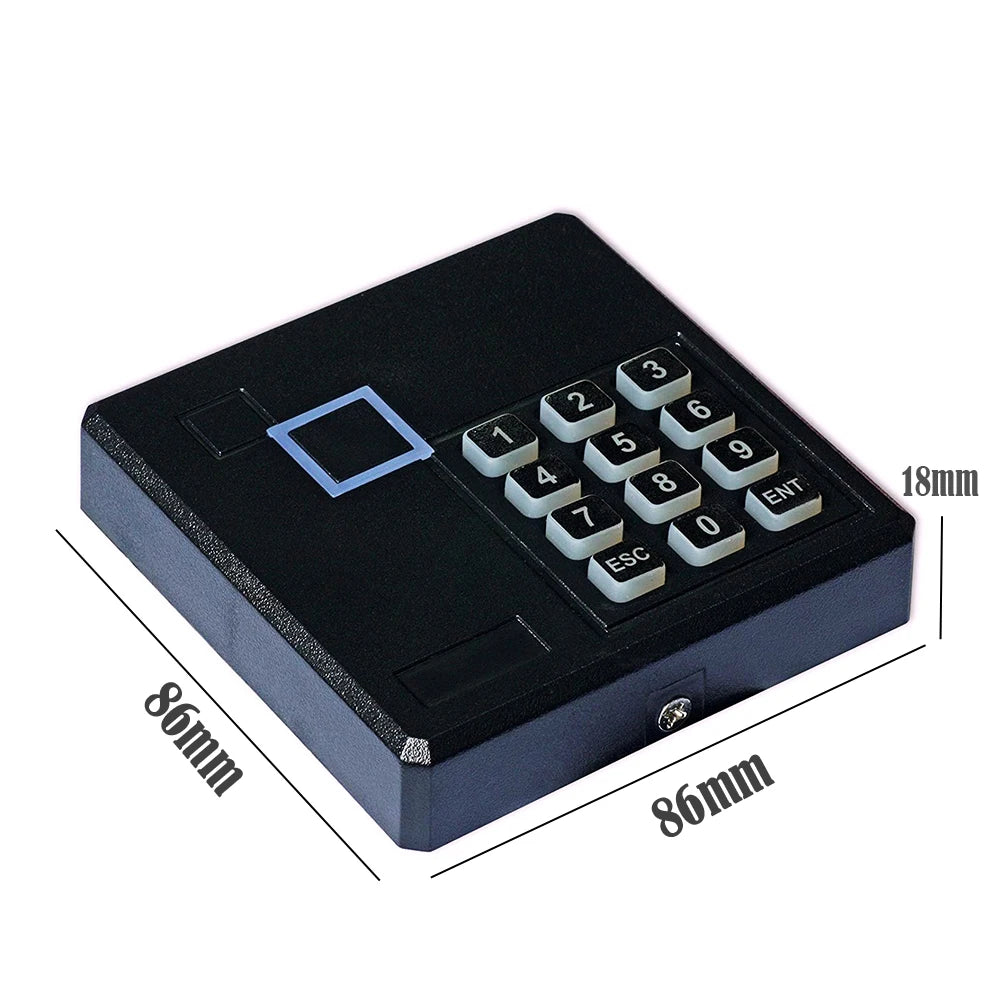

| Dimensions | 86 × 86 × 18 mm |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Residential gates, garage doors, and entryways
- Office and commercial building access points
- Warehouses, storage facilities, and industrial sites
- Schools, gyms, and multi-tenant buildings
- Any outdoor location requiring durable, weather-resistant access control
For more information on electronic access control standards and best practices, visit the NIST Identity & Access Management resource center.
Frequently Asked Questions
Q: Is this RFID access control keypad truly suitable for outdoor use?
A: Yes. The Asia-Teco D2-1 carries an IP68 waterproof rating, the highest standard for solid and liquid ingress protection, meaning it is fully protected against dust and can withstand continuous water submersion. It also operates across a wide temperature range of -20°C to 70°C, making it a reliable choice for outdoor gates, building entrances, and exposed wall installations in virtually any climate.
Q: What type of key cards are compatible with this keypad?
A: This system works with standard 125KHz EM4100 and TK4100 format cards and key fobs — the most common and widely available RFID credentials. Any EM-compatible card at 125KHz frequency will work. The card reading range is 0–10 cm.
Q: How many users can be stored in this access control system?
A: The keypad supports up to 5,000 individual users, each assignable by RFID card or PIN password. This makes it well suited not just for small homes, but also for mid-sized offices, apartment complexes, schools, and commercial facilities.
Q: Can I use a password instead of an RFID card to open the door?
A: Absolutely. The D2-1 supports both RFID card identification and PIN password entry, giving you or your users the flexibility to choose the most convenient access method. Both modes can be used simultaneously on the same system.
Q: What power supply does this keypad require?
A: The unit runs on DC 12V with a working current of ≤30mA. A standard 12V DC power adapter or access control power supply (sold separately) is required for installation.
