LUCKING DOOR IP68 Waterproof RFID Access Control Keypad – 2000 Users | Zinc Alloy | Wiegand 26

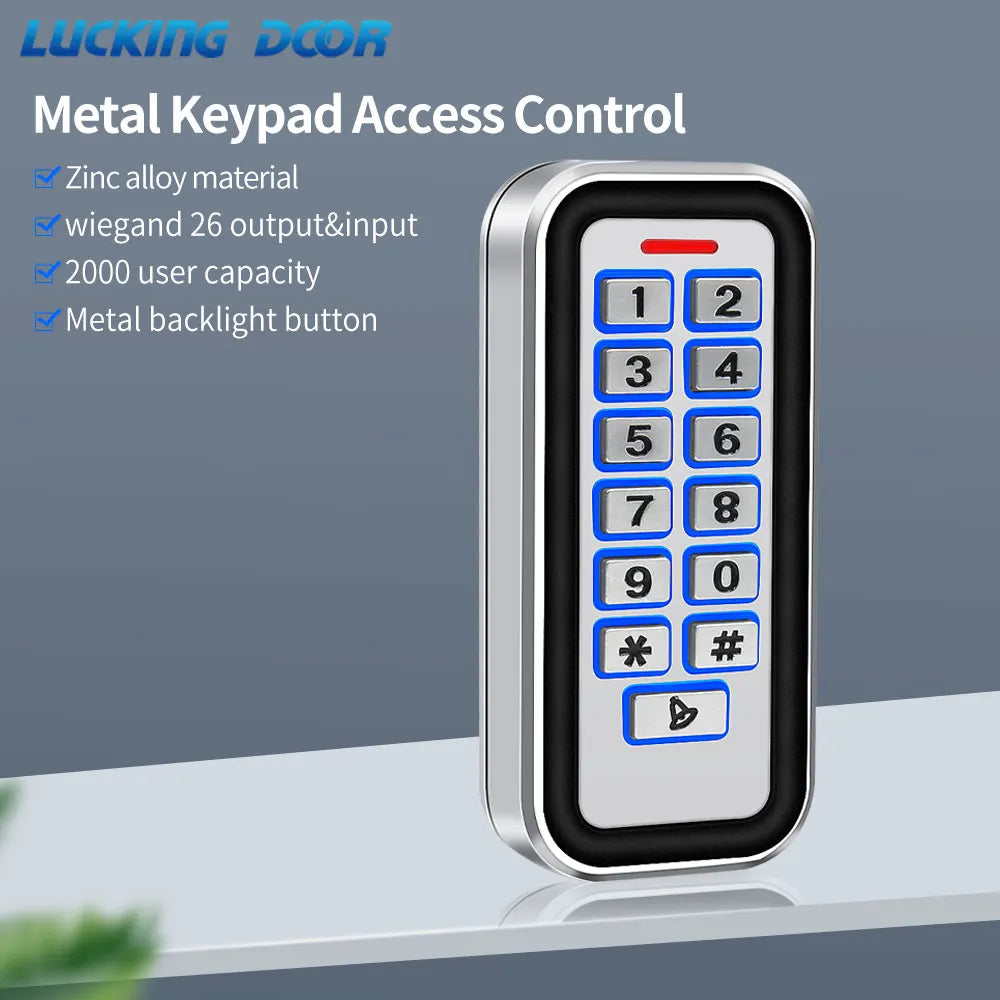

Take full control of who enters your property with the LUCKING DOOR H1401-EM Standalone Access Control Keypad. Built from heavy-duty zinc alloy with a fully potted, IP65/IP68-rated waterproof enclosure, this rugged unit is engineered to perform flawlessly indoors and outdoors — rain, dust, and vandalism are no match for its anti-tamper construction. Whether you're securing a home, office, warehouse, factory, lab, or commercial facility, this keypad delivers fast, reliable, and flexible access management for up to 2,000 users.
Made in China.
Key Features
- IP65/IP68 Waterproof: Fully potted electronics resist water ingress — ideal for exposed outdoor installations.
- Zinc Alloy Anti-Vandal Housing: Electroplated, ultra-durable case available in bright or matt silver finish.
- 2,000 User Capacity: Supports Card-only, 4-digit PIN-only, or Card + PIN authentication modes.
- 125 kHz RFID EM Card Reader: Built-in reader with 3–6 cm card reading range for quick, contactless entry.
- Wiegand 26-Bit I/O: Functions as a standalone controller OR as a Wiegand output keypad/card reader for integration with third-party systems.
- Backlit Keypad: Illuminated keys ensure easy use in low-light conditions.
- Adjustable Relay Timer: Door relay output time configurable from 0–99 seconds.
- Ultra-Fast Response: Processes up to 2,000 users in under 20 ms.
- Very Low Power Draw: Idle current of just 25 ±5 mA; active current under 60 mA at DC 12V.
- Lock Output Protection: Short-circuit protection on lock output (max 1A) safeguards your hardware.
- Status LEDs + Buzzer: Red, yellow, and green LED indicators plus built-in buzzer provide clear operational feedback.
- Easy Keypad Programming: Full configuration directly from the keypad — no PC or software required.
- CE & FCC Certified: Meets international electromagnetic compatibility standards.
Technical Specifications
| Model | H1401-EM |
| Operating Voltage | DC 12V |
| Idle Current | 25 ±5 mA |
| Active Current | <60 mA |
| Lock Output Load | Max 1A |
| User Capacity | 2,000 |
| Card Frequency | 125 kHz (EM Card) |
| Card Reading Range | 3–6 cm |
| Wiegand Interface | Wiegand 26-bit Input & Output |
| Door Relay Timer | 0–99 seconds (adjustable) |
| Operating Temperature | -45°C ~ 60°C |
| Operating Humidity | 10%–90% RH |
| Waterproof Rating | IP65 / IP68 |
| Housing Material | Zinc Alloy (Electroplated) |
| Certification | CE, FCC |
| Country of Origin | Made in China |
Ideal Applications
This access control keypad is the perfect fit for a wide range of entry points:
- Residential homes & apartments
- Small shops & retail stores
- Offices & commercial buildings
- Warehouses & factories
- Laboratories & server rooms
- Banks & high-security facilities
- Parking gates & garages
For general guidance on physical access control and building security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can this RFID access control keypad be used as a standalone unit without a separate controller?

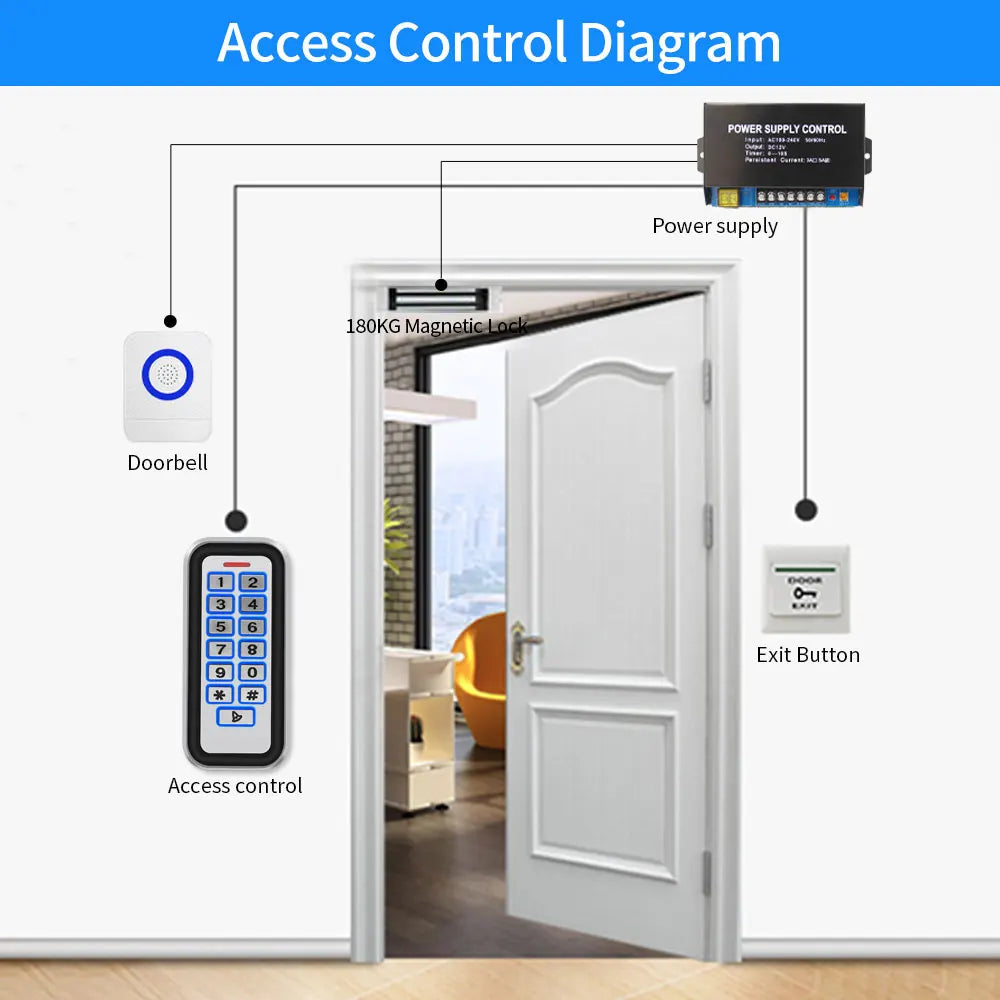

A: Yes! The LUCKING DOOR H1401-EM is a fully standalone access controller for single-door applications. It stores up to 2,000 users and manages door relay output, alarm timing, and door open time entirely on its own — no external controller or PC is needed. It can also operate as a Wiegand 26-bit output keypad or card reader when integrated into a larger access control system.
Q: What card types does this 125 kHz RFID keypad support?
A: This unit supports standard 125 kHz EM cards (EM4100/EM4200 and compatible formats). Cards must be presented within 3–6 cm of the reader face for reliable detection. It does NOT support 13.56 MHz MIFARE or HID iCLASS cards.
Q: Is this keypad truly waterproof for outdoor installation?
A: Yes. The electronics are fully potted (encapsulated in resin), achieving an IP65/IP68 waterproof rating. This means it is protected against dust ingress and can withstand sustained water immersion, making it fully suitable for exposed outdoor installations in rain or high-humidity environments.
Q: How do I program users onto the keypad?
A: All programming is performed directly from the keypad itself — no software, laptop, or USB connection is required. You can add or delete users in Card, PIN, or Card+PIN mode, and adjust door relay time (0–99 seconds), alarm time, and door open time through straightforward on-device key sequences.
Q: What is the Wiegand 26-bit input used for on this unit?
A: The Wiegand 26-bit input port allows you to connect an additional external reader (such as a fingerprint scanner or a long-range RFID reader) to the keypad, which then acts as the controller. The Wiegand output port lets the keypad send credential data to a separate third-party access controller, giving you maximum installation flexibility.
