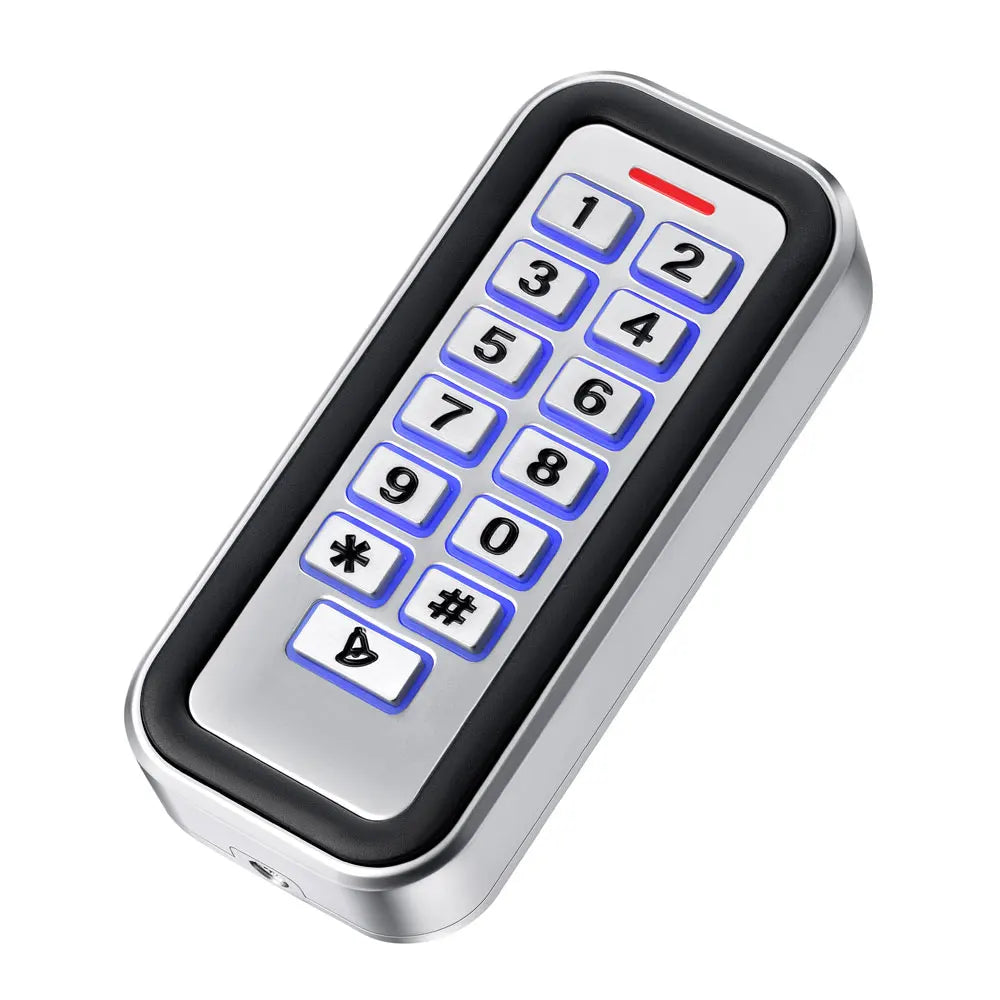

Asia-Teco Standalone Metal Access Control Keypad – IP68 Waterproof, 2000 Users
Take full control of who enters your property with the Asia-Teco 12V Standalone RFID Access Control Keypad. Built from heavy-duty zinc alloy with a fully potted, waterproof IP68-rated enclosure, this compact yet powerful unit is engineered for demanding indoor and outdoor environments — from residential gates to commercial facilities such as factories, warehouses, laboratories, banks, and secure installations.
Why Choose This Access Control Keypad?
Whether you need a self-contained door controller or a Wiegand output reader to integrate into a larger security system, this unit delivers exceptional flexibility. It supports up to 2,000 users and allows three authentication modes: Card only, 4-digit PIN only, or Card + PIN combined — giving you the freedom to tailor security levels to each user or zone.
Key Features
- IP68 Waterproof: Fully potted electronics meet IP65/IP68 standards — completely protected against dust and sustained water immersion.
- Anti-Vandal Zinc Alloy Housing: Electroplated zinc alloy case available in bright silver or matt silver finish — tough, tamper-resistant, and built to last.
- 2,000 User Capacity: Supports Card, 4-digit PIN, or Card + PIN authentication for up to 2,000 individual users.
- Dual Frequency Card Support: Compatible with 125KHz EM cards and 13.56MHz Mifare cards — works with most standard access cards and fobs.
- Wiegand 26 Input & Output: Connect an external reader via Wiegand 26 input, or output to a separate controller — seamlessly integrates into existing systems.
- Backlit Keypad: Illuminated keys for easy use in low-light conditions.
- Fast Processing: Authentication speed under 20ms even with a full 2,000-user database.
- Ultra-Low Power Consumption: Draws just 30mA — ideal for battery-backup and energy-conscious installations.
- Lock Output Short Circuit Protection: Built-in protection safeguards connected lock hardware.
- Adjustable Timers: Customize door output time, alarm time, and door-open time directly from the keypad.
- Full Keypad Programming: No PC or software needed — program everything on-device with ease.
- Built-In Buzzer & LED Indicators: Red, yellow, and green LEDs plus audible buzzer provide clear real-time status feedback.
- Fail-Safe Security Mode: Defaults to a safe state in the event of a power interruption.
- CE & FCC Certified: Meets international electromagnetic compliance standards.
Technical Specifications
| Model | H1401-EM / H1401-EM-W |
| Operating Voltage | 12V DC |
| User Capacity | 2,000 |
| Card Frequency | 125KHz EM / 13.56MHz Mifare |
| Waterproof Rating | IP65 / IP68 |
| Housing Material | Zinc Alloy (Electroplated) |
| Current Draw | 30mA |
| Processing Speed | <20ms (2,000 users) |
| Wiegand | 26-bit Input & Output |
| Security Mode | Fail Safe |
| Certifications | CE, FCC |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Residential gates, garages, and front doors
- Small shops and retail premises
- Commercial offices and co-working spaces
- Factories, warehouses, and industrial facilities
- Laboratories and research centers
- Banks, data centers, and high-security environments
Security Best Practices for Access Control
For guidance on physical access control and building security standards, refer to the U.S. Consumer Product Safety Commission (CPSC) and the NIST Cybersecurity resources for best practices around physical and electronic security systems.
Frequently Asked Questions
Q: Is this RFID keypad suitable for outdoor installation in all weather conditions?
A: Yes. The Asia-Teco access control keypad is rated IP65/IP68, meaning the fully potted electronics are completely sealed against dust and water immersion. The heavy-duty zinc alloy housing is also anti-vandal, making it an excellent choice for exposed outdoor locations including gates, fences, and building entrances in all climates.
Q: What types of cards and credentials does this keypad support?
A: This keypad supports two card frequencies: 125KHz EM cards (the most common RFID access card standard) and 13.56MHz Mifare cards. In addition to card-only entry, users can authenticate with a 4-digit PIN or a combined Card + PIN method for added security. Up to 2,000 unique users can be stored directly on the device.
Q: Can this unit be integrated into an existing access control system via Wiegand?
A: Absolutely. The unit features both Wiegand 26 input (to accept credentials from an external reader) and Wiegand 26 output (to send credentials to an external controller). This makes it highly versatile — use it as a fully standalone controller or as a reader/keypad within a larger networked security system.
Q: Does it require any special software to program?
A: No special software or computer is required. All programming — including adding/deleting users, setting access modes, and adjusting door output, alarm, and door-open timers — is done entirely via the built-in backlit keypad. This makes installation and management quick and straightforward.
Q: What happens to the lock if there is a power failure?
A: This unit operates in Fail Safe mode, which means it defaults to a predetermined safe state during a power interruption, ensuring consistent and predictable behavior for your connected lock hardware in the event of any power issue.
