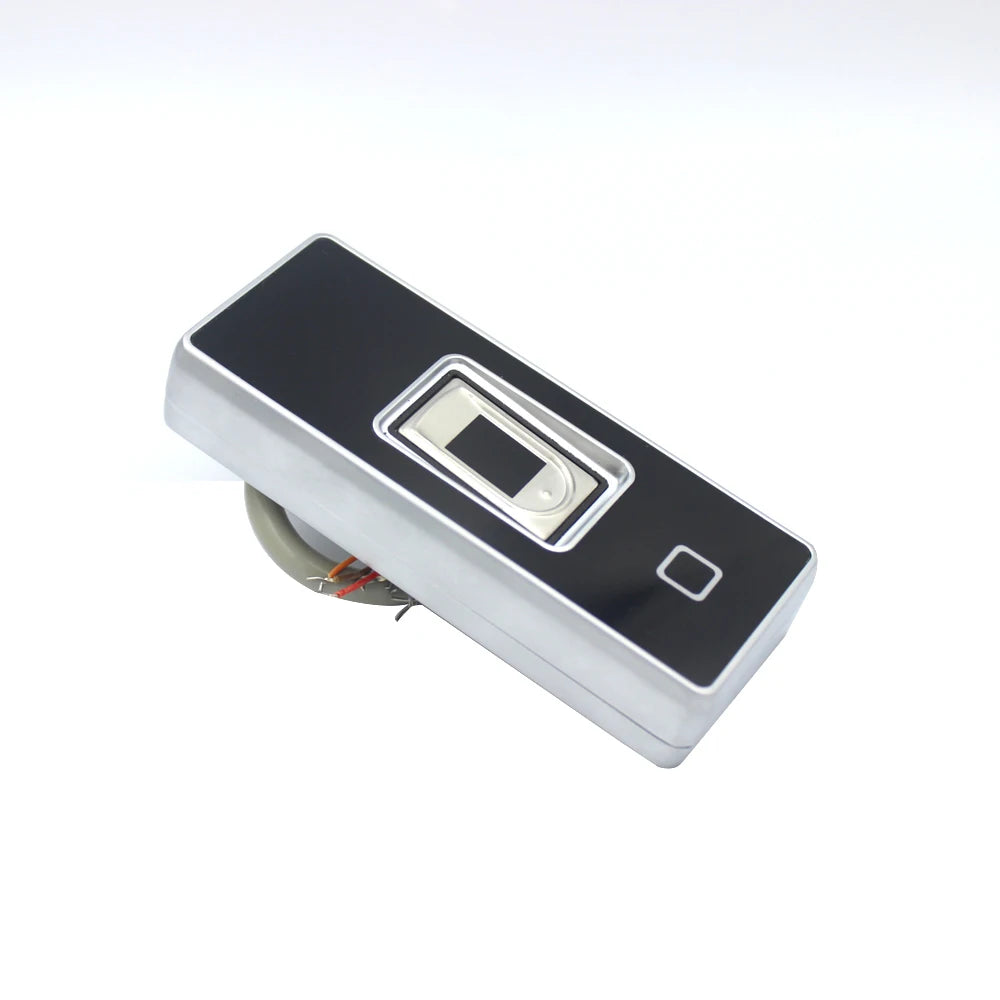

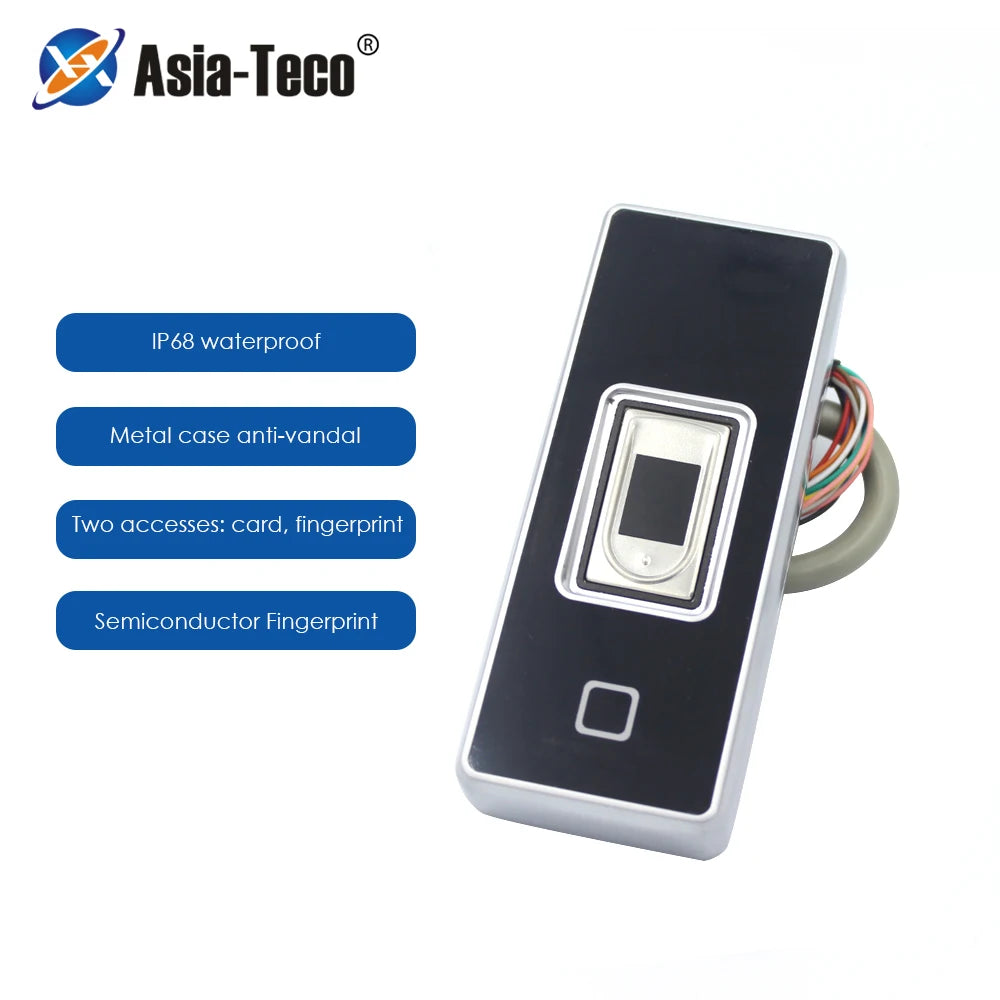

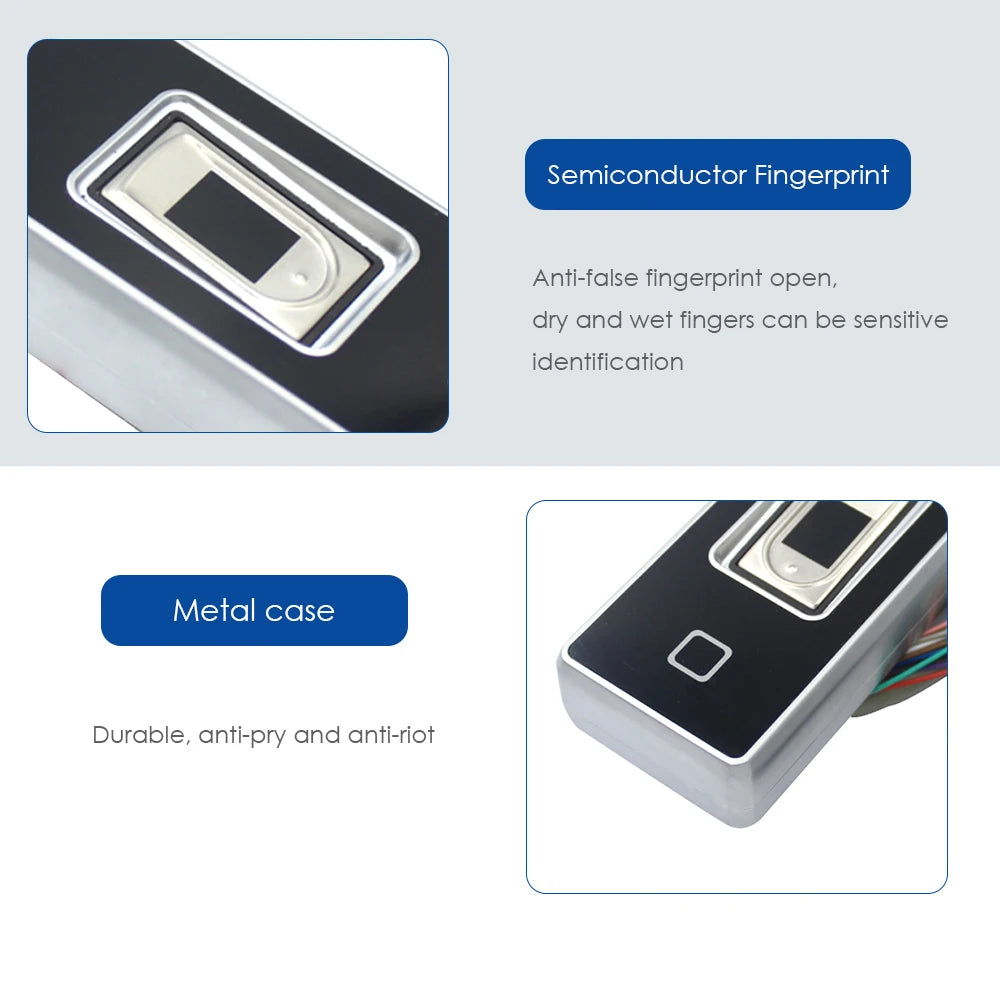

IP68 Waterproof Metal Fingerprint & RFID Standalone Access Controller
Take full control of who enters your space with this heavy-duty, IP68-rated metal access control unit. Supporting up to 500 RFID cards and 200 fingerprints, this standalone controller combines biometric fingerprint scanning with 125KHz RFID card reading — delivering fast, reliable, keyless entry for offices, warehouses, server rooms, gates, and more.
Built from a rugged metal housing and rated IP68 for full waterproof protection, it stands up to rain, dust, and harsh outdoor conditions. With sub-1-second recognition speed and a wide operating temperature range of -20°C to 50°C, this unit performs consistently whether mounted indoors or outdoors.
Key Features
- Dual Access Methods: Fingerprint biometric or 125KHz RFID (EM/ID) card — flexible access for any user
- Large Capacity: Stores up to 200 fingerprints and 500 RFID cards
- IP68 Waterproof Rating: Fully sealed metal housing for reliable outdoor and indoor use
- Wiegand 26 Output: WG26 interface for easy integration with third-party access control panels and systems
- Fast Recognition: Under 1 second recognition speed for smooth, uninterrupted entry flow
- Adjustable Door Opening Time: Configurable from 0–99 seconds to suit any door hardware
- Adjustable Alarm Output: Alarm duration configurable from 0–3 minutes
- Wide Temperature Range: Operates reliably from -20°C to 50°C (-4°F to 122°F)
- Compact Form Factor: Slim 111 × 45 × 20mm profile fits standard door frames and access panels
- Low Voltage Operation: Powered by DC 12V for simple, standard wiring
Full Specifications
| Power Supply | DC 12V |
| Fingerprint Capacity | 200 |
| Card Capacity | 500 |
| Card Type | EM / ID Card (125KHz RFID) |
| Access Methods | Fingerprint, RFID Card |
| Wiegand Output | WG26 |
| Recognition Speed | < 1 Second |
| RFID Reading Range | 3–6 cm |
| Working Frequency | 125 KHz |
| Alarm Output Time | 0–3 min (Adjustable) |
| Door Opening Time | 0–99 sec (Adjustable) |
| Operating Temperature | -20°C to 50°C |
| Working Humidity | 20%–90% |
| Housing Material | Metal |
| Dimensions | 111 × 45 × 20 mm |
| Waterproof Rating | IP68 |
| Model Number | SB-F6EM-W |
| Country of Origin | Made in China |
Ideal Applications
- Office buildings and corporate entrances
- Warehouses, storage facilities, and server rooms
- Residential gates, garages, and secure entry points
- Schools, gyms, and community facilities
- Any environment requiring reliable, keyless access management
Learn More About Access Control Standards
For guidance on physical security best practices and electronic access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for safety standards, and NIST Cybersecurity Resources for information on secure system integration.
Frequently Asked Questions
Q: What is the difference between fingerprint and RFID card access on this controller?
A: This standalone access controller supports both biometric fingerprint scanning and 125KHz RFID (EM/ID) card reading. Fingerprint access uses your unique biometric data stored on the device (up to 200 fingerprints), while RFID card access uses proximity cards or key fobs (up to 500 cards). Both methods provide keyless entry, and users can be enrolled for either or both access types depending on your security requirements.
Q: Is this access controller suitable for outdoor installation?
A: Yes. The unit carries an IP68 waterproof rating, meaning it is fully protected against dust ingress and can withstand continuous water submersion — making it well suited for outdoor gates, building entrances, and other exposed environments. It also operates reliably across a wide temperature range from -20°C to 50°C (-4°F to 122°F).
Q: What does Wiegand 26 (WG26) output mean, and why does it matter?
A: Wiegand 26 (WG26) is a widely used industry-standard communication protocol for access control hardware. The WG26 output on this controller allows it to connect to most third-party access control panels, door controllers, and management systems that accept Wiegand input — making integration flexible and straightforward without proprietary lock-in.
Q: How many users can this access controller support?
A: This standalone controller supports up to 200 fingerprint users and up to 500 RFID card users, making it a practical solution for small to mid-sized facilities such as offices, warehouses, and residential properties.
Q: What power supply does this unit require?
A: The controller operates on a standard DC 12V power supply, which is commonly available and compatible with most access control power adaptors and door strike/magnetic lock setups.
