IP68 Waterproof Metal Exit Button Switch | NO NC COM 12V 24V
IP68 Waterproof Metal Exit Button Switch | NO NC COM 12V 24V

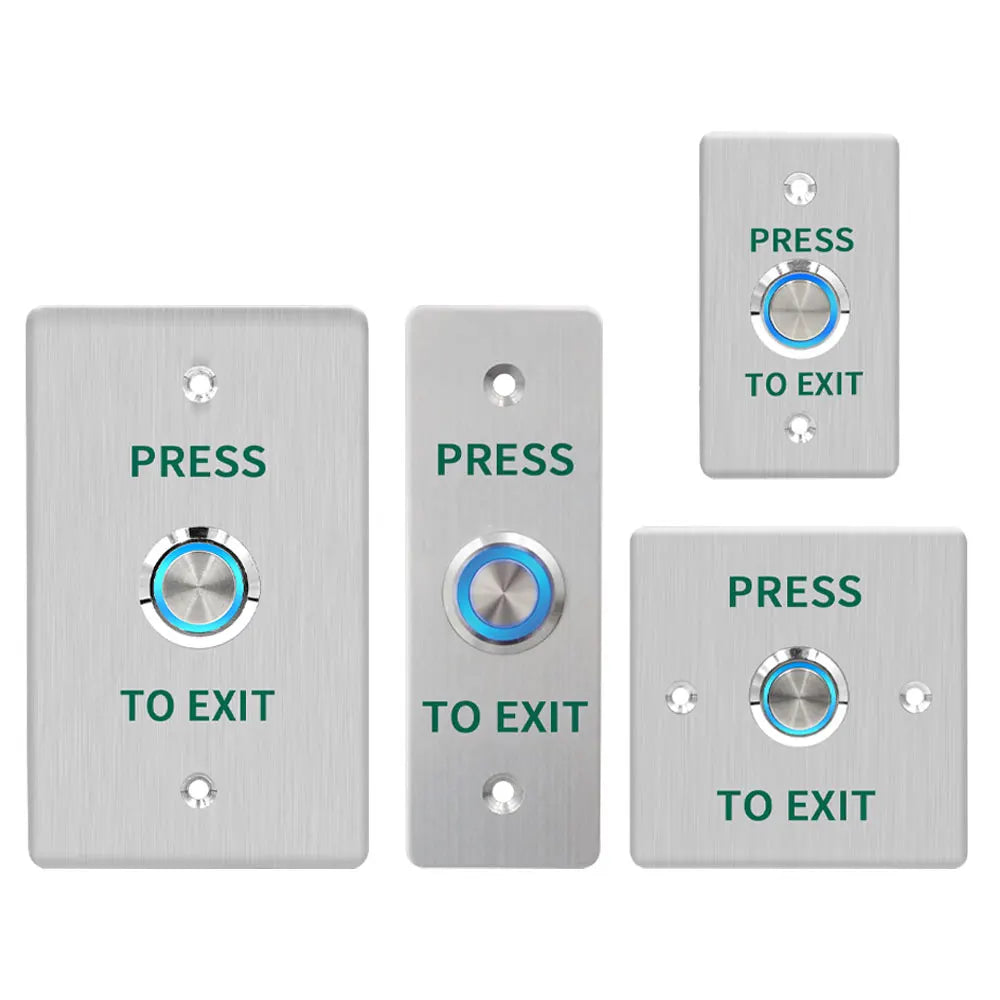

IP68 Waterproof Outdoor Metal Exit Button Release Switch
Keep your access control system running smoothly with this heavy-duty IP68 Waterproof Metal Exit Button Release Switch from Asia-Teco. Built for demanding outdoor and indoor environments, this stainless steel door release button is engineered for commercial and residential security installations alike — from banks and government buildings to offices, retail stores, and homes.
Why Choose This Exit Button Switch?
- IP68 Waterproof Rating — Fully sealed against dust and continuous water immersion, making it ideal for outdoor entryways, covered porches, and high-humidity environments.

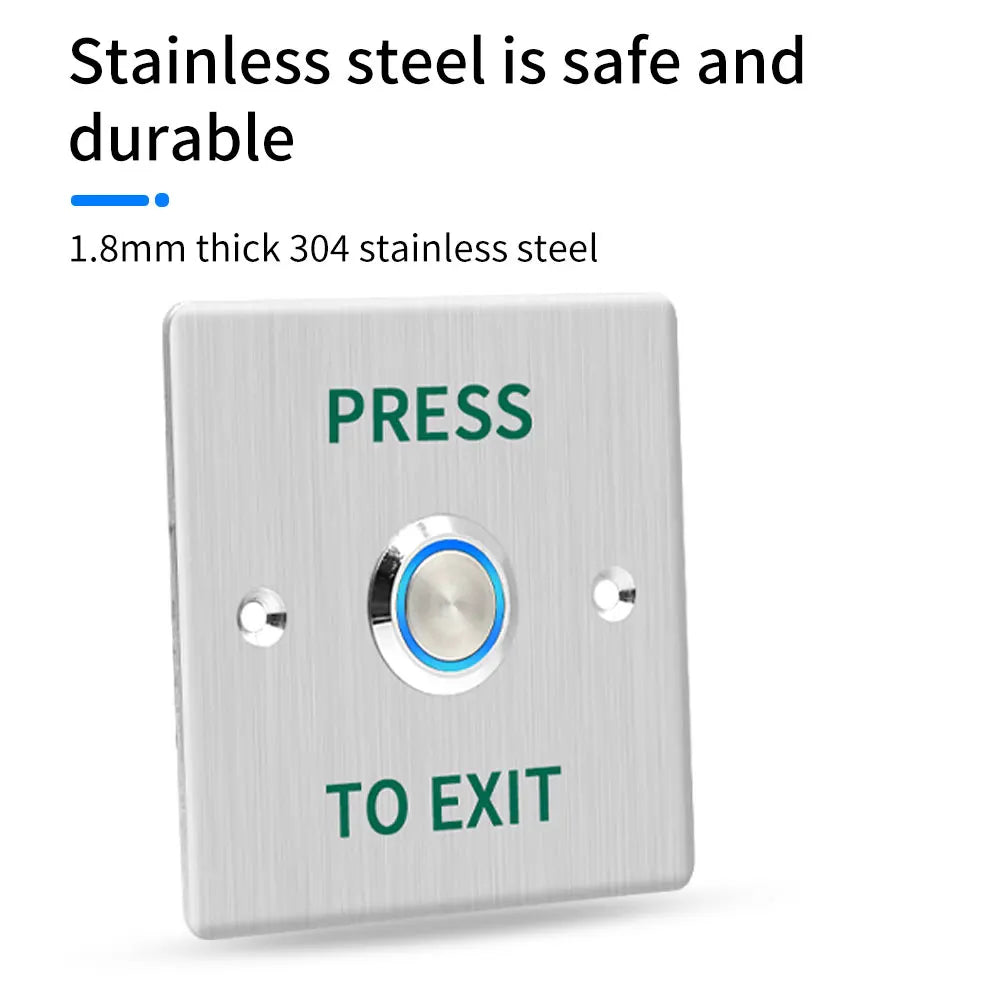

- Rugged 304 Stainless Steel Panel — 1.8mm thick brushed stainless steel panel delivers lasting durability and an elegant, professional appearance.
- Universal NO/NC/COM Output — Three-contact output is compatible with virtually all electric door lock types, including electromagnetic locks, electric strikes, and bolt locks.
- DIY Customizable Pattern — Personalize the button face with your own logo, symbol, or text for a branded or tailored look.
- Blue LED Indicator — Built-in blue LED lamp provides clear visual confirmation that the button is powered and ready.
- 1,000,000 Cycle Tested — Rated for over one million press cycles, ensuring long-term reliability in high-traffic applications.
- Wide Voltage Compatibility — Operates on DC 12V or DC 24V power supplies, suiting a broad range of access control panels.
Complete Specifications
| Brand | Asia-Teco |
| Models | S403W, S503W, S703W, S863W |
| Waterproof Rating | IP68 |
| Panel Material | 1.8mm thick 304 Stainless Steel |
| LED Indicator | Blue |
| Output Contact | NO / NC / COM |
| Power Supply | DC 12V or DC 24V |
| Contact Rating | 12–24V, 3A |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Operating Humidity | 0–95% (non-condensing) |
| Dimensions (W×H×D) | 86×86mm / 86×50mm / 115×70mm / 115×40mm × 40mm depth |
| Cycle Life | 1,000,000 cycles |
| Country of Origin | Made in Mainland China |
Ideal Applications
This exit release button is one of the most widely used components in modern access control systems. It is suited for:
- Public authority buildings and government offices
- Banks and financial institutions
- Large, medium, and small enterprises
- Department stores and retail spaces
- Residential entrances and apartment complexes
Installation & Compatibility
With its standard NO/NC/COM wiring terminals, this exit button integrates seamlessly with most access control panels and door lock controllers. Simply connect to your existing 12V or 24V DC power supply. The surface-mount form factor and included mounting hardware make installation quick and straightforward for both professionals and DIY enthusiasts.
For more information on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is this exit button switch suitable for outdoor installation?
A: Yes. This exit button carries an IP68 waterproof rating, the highest level of ingress protection for consumer hardware, making it fully suitable for outdoor use in rain, humidity, and dusty environments.
Q: What types of door locks is this switch compatible with?
A: Thanks to its three-contact NO/NC/COM output, this exit release switch is compatible with virtually all electric door lock systems, including electromagnetic locks, electric strike locks, and electric bolt locks operating on DC 12V or DC 24V.
Q: Can I customize the button panel with my own logo or design?
A: Yes. This switch supports DIY pattern customization, allowing you to add your own logo, text, or graphic to the stainless steel panel face — perfect for branded commercial installations.
Q: What is the rated lifespan of this exit button?
A: This button has been tested to withstand over 1,000,000 press cycles, ensuring reliable, long-term performance even in high-traffic environments such as offices, banks, or multi-tenant buildings.
