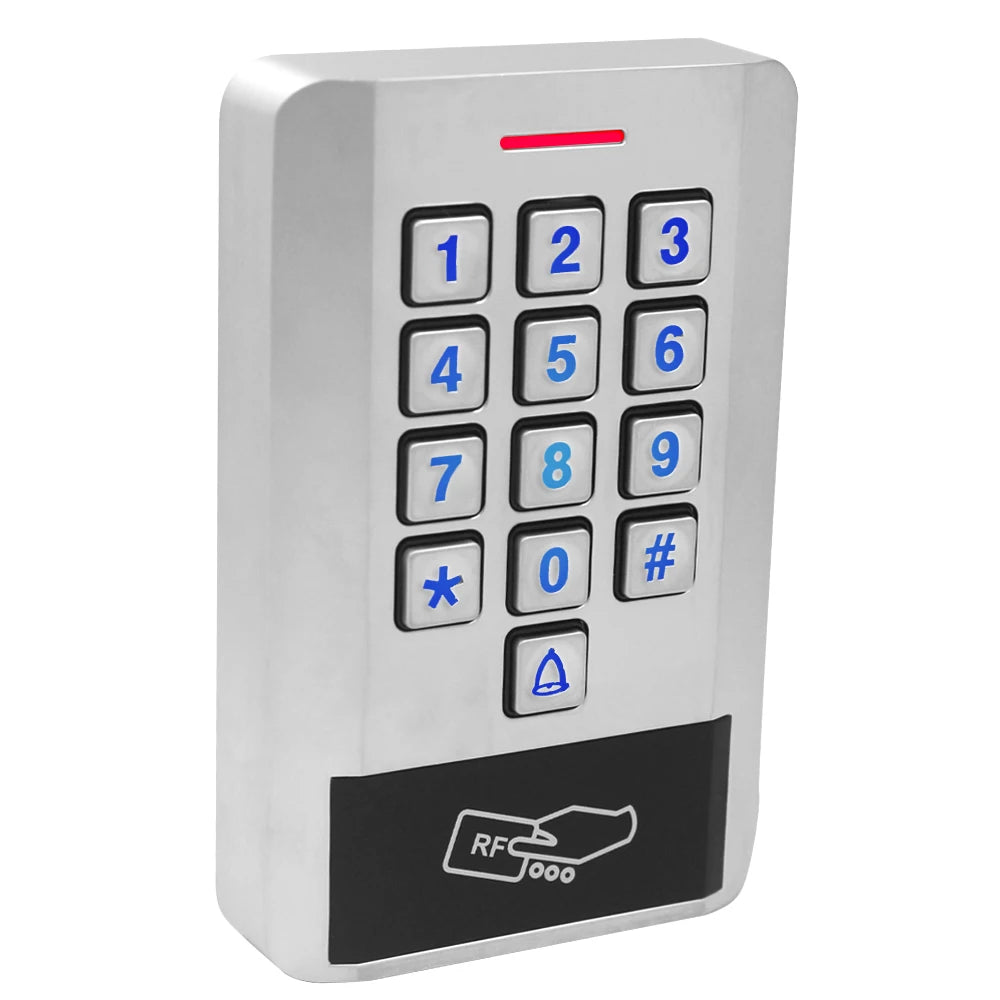

Asia-Teco M2-F Standalone RFID Door Access Controller

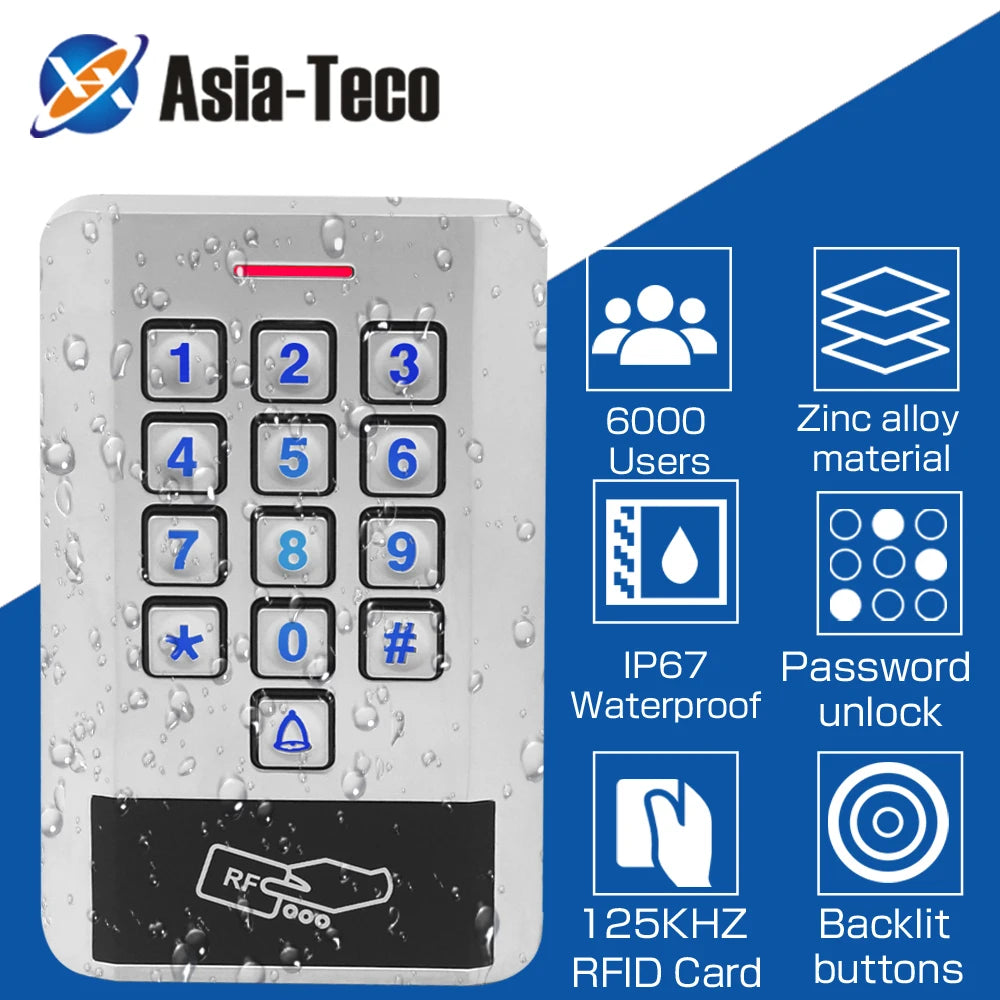

Take full control of who enters your property with the Asia-Teco M2-F Standalone Access Controller — a rugged, feature-packed keypad designed for homes, offices, warehouses, factories, laboratories, banks, and beyond. Built from heavy-duty zinc alloy with an IP68 waterproof rating, this unit handles everything from harsh outdoor weather to demanding industrial environments with ease.
Why Choose the M2-F Access Controller?

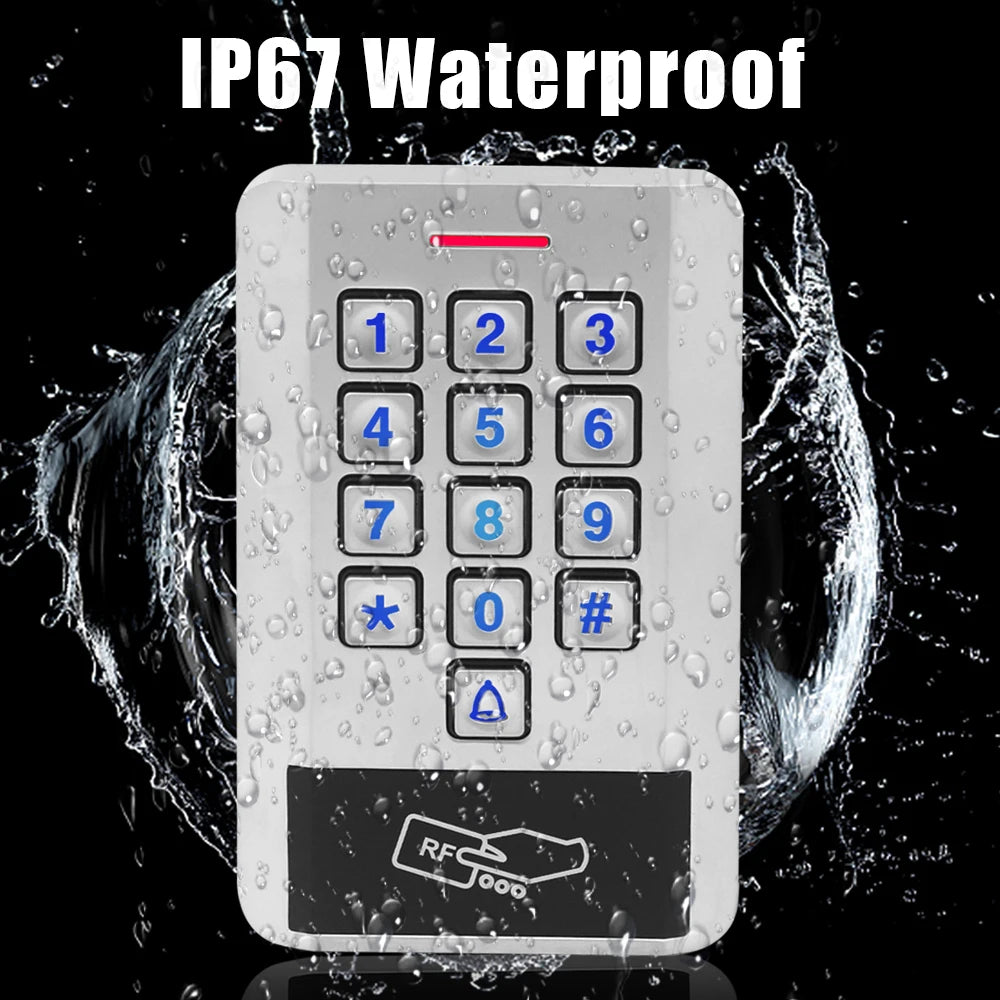

- IP68 Waterproof Protection — Fully sealed against dust and water ingress, rated for outdoor and extreme-condition use.
- 6,000 User Capacity — Supports up to 6,000 individual users via Card, PIN, or Card + PIN authentication.
- 125KHz RFID Technology — Fast, reliable card reading at 5–8 cm distance with a response time under 20ms.
- Anti-Vandal Zinc Alloy Case — Electroplated metal housing resists physical tampering and everyday wear.
- Backlit Keypad — Illuminated keys for clear, comfortable use in low-light conditions.
- Wiegand 26-Bit Interface — Connects seamlessly to an external reader for expanded system flexibility.
- Fully Keypad-Programmable — No PC or software required; program all settings directly from the keypad.
- Adjustable Relay Timing — Door relay time adjustable from 0–99 seconds to suit your exact setup.
- Built-In Anti-Tamper LDR — Light-dependent resistor triggers an alert if the unit is forcibly removed.
- Ultra-Low Power Draw — Only 30mA in standby, keeping running costs minimal.
- Status Indicators — Red, yellow, and green LEDs plus a built-in buzzer provide clear, instant feedback.
- Lock Output Short-Circuit Protection — Safeguards your connected electric lock from electrical faults.
Technical Specifications
| Operating Voltage | DC 12V |
| User Capacity | 6,000 Users |
| Card Reading Distance | 5 – 8 cm |
| Standby Current | <30mA |
| Active Current | <60mA |
| Lock Output Load | <3A |
| Alarm Output Load | <20A |
| Operating Temperature | -45°C to 60°C |
| Operating Humidity | 10% – 90% RH |
| Waterproof Rating | IP68 |
| Wiegand Interface | Wiegand 26-Bit |
| Compatible Cards | EM Standard 125KHz (Note: does not support HID, Cobra, APCIK, or similar encrypted cards) |
| Wiring Connections | Electric Lock, Exit Button, External Alarm, External Reader |
| Security Mode | Fail Safe with Signal |
| Country of Origin | Made in China |
Ideal Applications
The M2-F is engineered for single-door access control across a wide range of settings: residential entryways, retail shops, office buildings, warehouses, laboratories, industrial facilities, banks, and secure storage areas. Its standalone design means zero reliance on a networked PC — perfect for locations where simplicity and reliability are paramount.
For authoritative guidance on physical security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many users can the Asia-Teco M2-F access controller support?
A: The M2-F supports up to 6,000 individual users. Each user can be assigned Card-only, PIN-only, or combined Card + PIN access for added security flexibility.
Q: Is the M2-F keypad suitable for outdoor installation?
A: Yes. The M2-F is rated IP68 waterproof and operates across an extreme temperature range of -45°C to 60°C, making it fully suitable for exposed outdoor environments including rain, humidity, and dust-heavy areas.
Q: What type of RFID cards does this access controller support?
A: The M2-F reads standard 125KHz EM-format proximity cards. Please note it is not compatible with some encrypted card formats such as HID, Cobra, or APCIK cards.
Q: Can the M2-F be integrated with an existing access control system?
A: Yes. The unit features a Wiegand 26-bit input, allowing it to connect to an external card reader and integrate with compatible access control systems. It also supports connections to an electric lock, exit button, and external alarm.
Q: Do I need a computer or special software to program the M2-F?
A: No. The M2-F is fully programmable directly from its backlit keypad — no PC, proprietary software, or network connection required, making setup and management straightforward.
