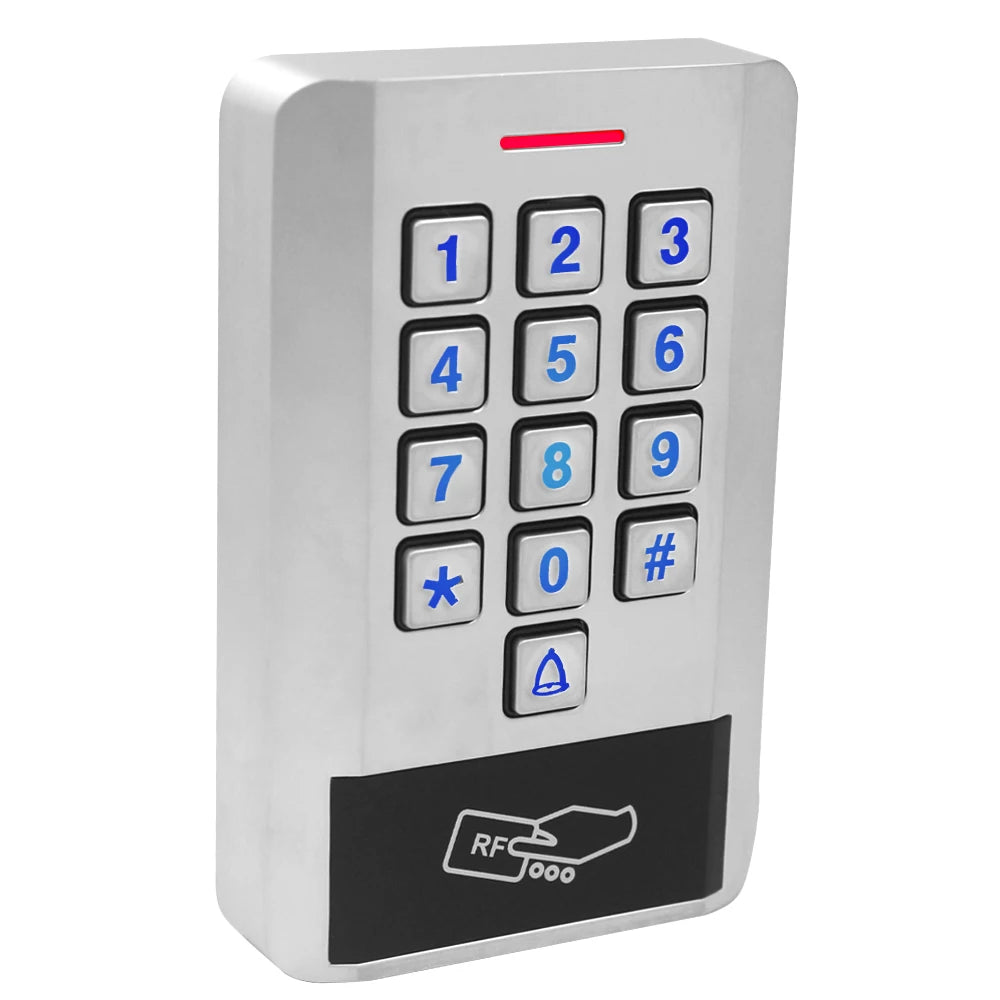

IP68 Waterproof RFID Keypad Standalone Access Control System
Secure any door with this rugged, feature-packed standalone access controller. Built from heavy-duty zinc alloy with IP68 waterproofing, this unit supports up to 6,000 users via RFID card, PIN code, or Card + PIN combination — making it ideal for shops, warehouses, laboratories, offices, banks, factories, and residential gates.
Key Features
- IP68 Waterproof Rating — fully protected against dust and continuous water immersion; suitable for harsh outdoor environments
- Zinc Alloy Anti-Vandal Housing — electroplated kirsite metal case built to withstand physical tampering
- 6,000 User Capacity — supports Card-only, PIN-only, or Card + PIN access modes
- 125 KHz RFID Frequency — compatible with standard EM format cards and fobs
- Wiegand 26 Input — easily connects to an external reader for expanded configurations
- Backlit Keypad — illuminated keys for convenient low-light or nighttime use
- Full Keypad Programming — configure all settings directly from the keypad; no PC or software required
- Adjustable Relay Timer — door output time adjustable from 0 to 99 seconds
- Ultra-Low Power Consumption — less than 30mA in standby; less than 60mA when active
- Fast Response — card read and verification in under 20ms
- Lock Output Short-Circuit Protection — built-in protection safeguards your electric lock
- Built-in Buzzer & LED Indicators — red, yellow, and green LEDs display real-time operational status
- Built-in LDR Anti-Tamper — light-dependent resistor triggers an alarm if the unit is forcibly removed
- Wide Operating Temperature — functions reliably from -45°C to 60°C (-49°F to 140°F)
Technical Specifications
| Operating Voltage | DC 12V |
| User Capacity | 6,000 users |
| RFID Frequency | 125 KHz |
| Card Reading Distance | 5–8 cm |
| Standby Current | <30mA |
| Active Current | <60mA |
| Lock Output Load | <3A |
| Alarm Output Load | <20A |
| Operating Temperature | -45°C to 60°C |
| Operating Humidity | 10%–90% RH |
| Waterproof Rating | IP68 |
| Door Relay Time | 0–99 seconds (adjustable) |
| Wiegand Interface | Wiegand 26-bit |
| Compatible Cards | EM standard cards (not compatible with HID, Cobra, APCIK encrypted cards) |
| Security Mode | Fail Safe with Signal |
| Model | M2-F |
| Country of Origin | Made in China |

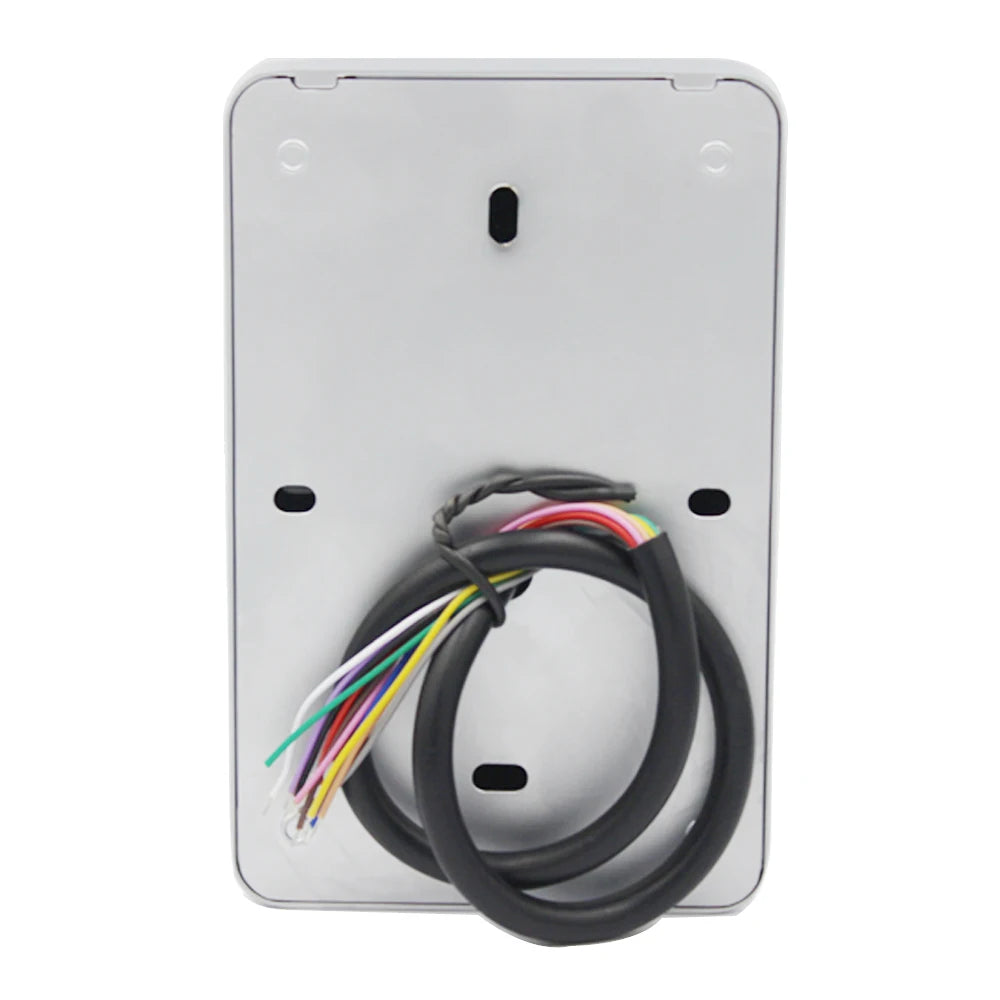

Wiring & Compatibility
The Wiegand 26 interface allows this controller to connect seamlessly to external card readers. Wiring connections include: Electric Lock, Exit Button, External Alarm, and External Reader — offering flexible integration into your existing security setup.
For more information on best practices for electronic access control security, visit the Cybersecurity and Infrastructure Security Agency (CISA) or review physical security guidance at NIST Identity & Access Management.
Frequently Asked Questions
Q: What types of access credentials does this RFID keypad controller support?
A: This standalone access controller supports three modes: RFID card only, PIN code only, or a combined Card + PIN mode for added security. It is compatible with standard 125 KHz EM format cards and fobs. Note that encrypted card formats such as HID, Cobra, and APCIK are not supported.
Q: Can this unit be installed outdoors?
A: Yes. The controller is rated IP68, meaning it is fully protected against dust ingress and sustained water immersion. Its zinc alloy anti-vandal housing and wide operating temperature range of -45°C to 60°C make it well-suited for outdoor gate, door, and entry point installations.
Q: How many users can be programmed into this access controller?
A: The system supports up to 6,000 individual users. All user management and settings can be configured directly from the backlit keypad — no PC, software, or internet connection is required.
Q: What is the Wiegand 26 input used for?
A: The Wiegand 26 (WG26) input allows you to connect an external card reader to this controller, expanding the read range or enabling remote-reader configurations. This makes the system highly flexible for larger installations where the keypad and reader need to be in different locations.
Q: Does this controller require a separate power supply?
A: Yes, the unit operates on DC 12V. A compatible DC 12V power supply (not included) is required for operation. Power consumption is very low — under 30mA in standby and under 60mA when active — making it energy-efficient for always-on installations.
