Stainless Steel IP67 Waterproof Door Exit Push Button for Access Control Systems
Upgrade your access control setup with this rugged, elegant stainless steel door exit push button switch. Engineered with a sleek touch panel design and IP65/IP67 waterproof protection, this door release button is built to perform reliably in demanding indoor and outdoor environments — from office lobbies and banks to residential entryways and department stores.
Why Choose This Door Release Button?
- IP65 / IP67 Waterproof Rating: Fully protected against dust ingress and powerful water jets, ensuring lasting performance even in wet or exposed locations.
- Premium Stainless Steel Panel: The brushed metal finish delivers a professional, modern appearance that complements any door or wall surface.
- 1,000,000 Cycle Tested: Rated for over one million press cycles, this switch is built to withstand continuous, high-traffic use without degradation.
- Universal NO/NC/COM Output: Three-contact output (Normally Open, Normally Close, Common) makes it compatible with virtually all electric locks, magnetic locks, and access control systems.
- Fail-Safe Security Mode: Designed with a fail-safe configuration for consistent and dependable operation.
- Wide Operating Range: Functions reliably across temperatures from -10°C to +55°C (14°F to 131°F) and humidity levels up to 95% (non-condensing).

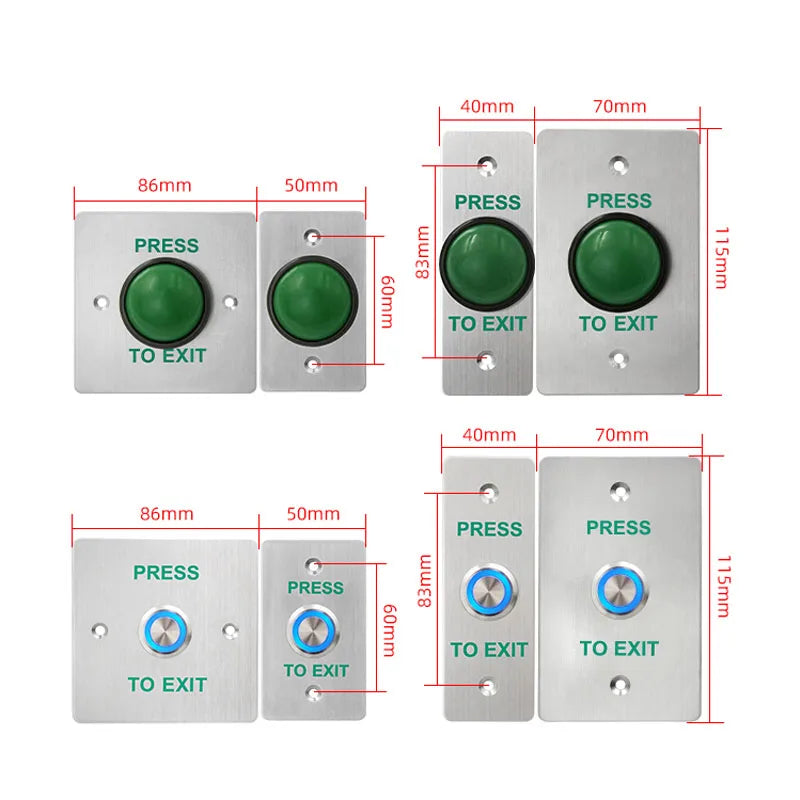

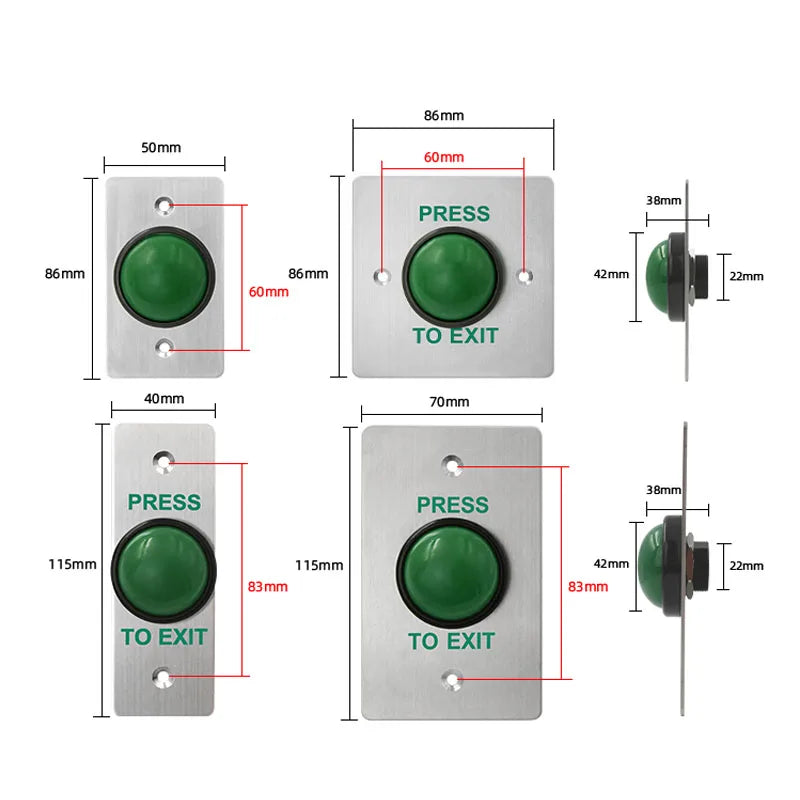

- Multiple Size Options: Available in 115×40mm, 115×70mm, 86×50mm, and 86×86mm formats to fit standard wall boxes and custom installations.
- CE Certified: Meets CE safety and compliance standards for peace of mind.
Technical Specifications
| Model | XM-E06 |
| Input Voltage | DC 12V (Customizable 24V) |
| Contact Rating | 3A @ 36V DC Max |
| Output Contact | NO / NC / COM |
| Waterproof Rating | IP65 / IP67 |
| Security Mode | Fail Safe |
| Dimensions | 115×70×29mm / 115×40×29mm / 86×50×29mm / 86×86×29mm |
| Weight | 0.15 kg |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0–95% (non-condensing) |
| Certification | CE |
| Country of Origin | Made in China |
Ideal Applications
This push-to-exit button is the go-to solution for a wide range of access control installations:
- Office buildings and corporate facilities
- Banks and financial institutions
- Retail stores and department stores
- Schools, hospitals, and public authorities
- Residential apartment buildings and gated communities
Learn More About Access Control Standards
For industry guidance on electronic access control and security system safety, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What does the IP67 waterproof rating mean for this door exit button?
A: An IP67 rating means the stainless steel door exit push button is fully protected against dust and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it suitable for outdoor entrances and wet environments.
Q: Is this push-to-exit button compatible with my existing electric or magnetic lock?
A: Yes. The button features a three-contact output (NO/NC/COM) with a contact rating of 3A at up to 36V DC, making it compatible with virtually all standard electric locks, magnetic locks, and door access control systems operating on 12V or 24V DC.
Q: What size options are available for this door release switch?
A: This door exit push button is available in four size formats: 115×40mm, 115×70mm, 86×50mm, and 86×86mm, allowing it to fit standard electrical wall boxes as well as custom panel cutouts.
Q: Can this button be used outdoors?
A: Absolutely. With an IP65/IP67 waterproof rating, a wide operating temperature range of -10°C to +55°C, and a durable stainless steel panel, this switch is fully suited for outdoor installations including building entrances, gates, and covered walkways.
