IP67 RFID Metal Keypad Access Control Reader – 1500 Users, 125KHz

LUCKING DOOR SK606 – IP67 Waterproof RFID Metal Keypad Access Control System

Secure your commercial or industrial entrance with the LUCKING DOOR SK606 Standalone RFID Metal Keypad Reader. Built from rugged zinc alloy with an IP67 waterproof rating, this sleek access controller supports up to 1,500 users and offers three flexible entry modes — PIN code, 125KHz EM/RFID card, or card + PIN combination — making it an ideal fit for offices, warehouses, apartment buildings, and industrial facilities.

Key Features

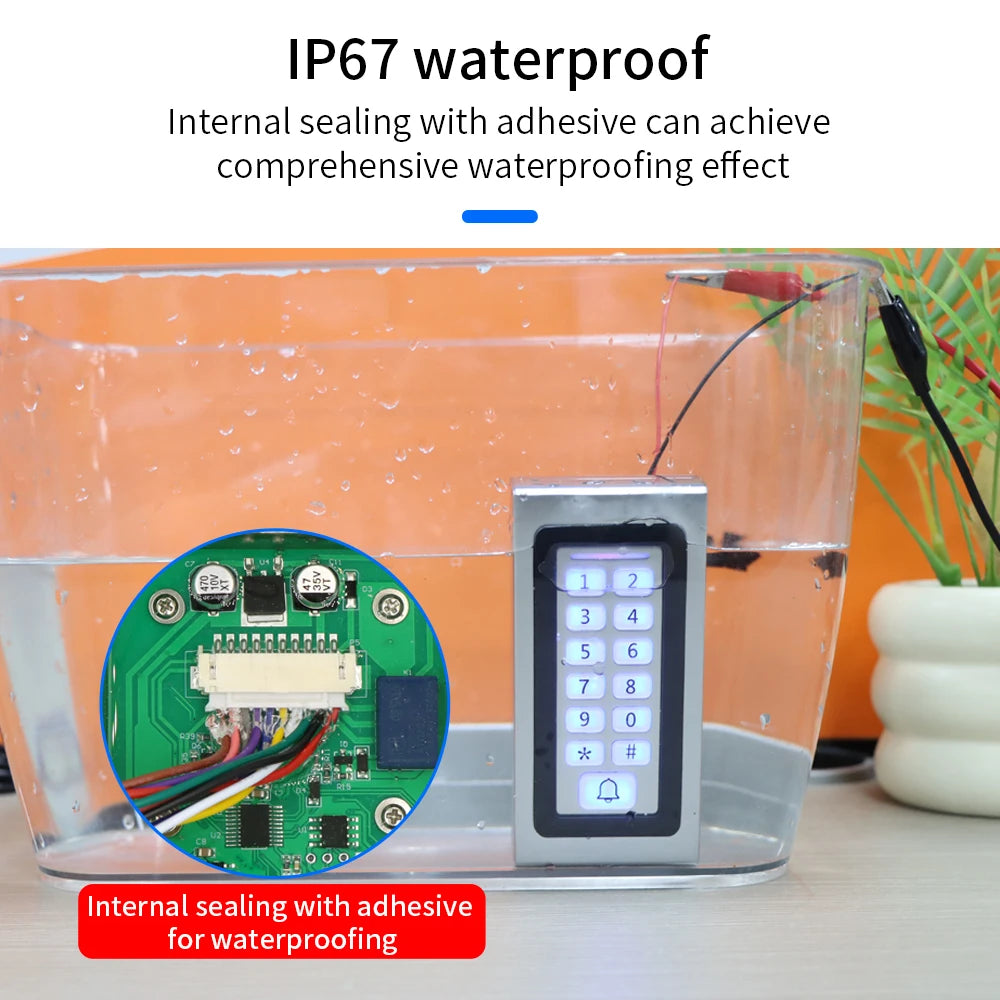

• IP67 Waterproof & Dustproof – Fully sealed zinc alloy housing withstands harsh indoor and outdoor environments
• 1,500 User Capacity – Manage a large number of authorized users with easy card enrollment and deletion
• 3 Entry Modes – Password Only / 125KHz EM Card Only / Password + Card for layered access security
• Backlit Crystal Keypad – Three backlight modes (normally on, normally off, or auto) for low-light environments
• Wiegand Input & Output – Compatible with a wide range of access control panels and expanders
• Built-in Bell Button – Connect to an external doorbell or chime with ease
• Lock Relay Output – Supports both NO (Normally Open) and NC (Normally Closed) lock configurations
• 8 Auxiliary Modes – Including door ajar alert, forced door alarm, shunt, door monitor, normal/secure modes
• 3 User Levels – Normal user, secure user, and master user for granular access management
• Internal Buzzer & Dual Status LEDs – Instant audio-visual feedback for programming and operation
• Programmable Lock Release Time – Customize how long the lock stays open per access event
• CE & FCC Certified – Meets international electrical and safety standards

Technical Specifications

Who Is This For?

The SK606 is designed for commercial and industrial applications — including office buildings, factories, storage facilities, server rooms, and multi-tenant residential entrances — anywhere you need reliable, weather-resistant access control without compromising on security or convenience.

Installation & Compatibility

The SK606 connects easily to most electric strikes, magnetic locks, and access control panels via standard Wiegand interface. Its NO/NC relay output ensures broad compatibility with existing door hardware. For guidance on best practices in electronic access control, refer to resources published by the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What types of cards are compatible with the LUCKING DOOR SK606 RFID keypad reader?

A: The SK606 is compatible with standard 125KHz EM/RFID proximity cards and key fobs using ASK modulation. It does not support 13.56MHz Mifare cards. Up to 1,500 cards or PIN codes can be stored in the system.

Q: Is the SK606 keypad reader suitable for outdoor installation?

A: Yes. The SK606 carries an IP67 waterproof and dustproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water. Its zinc alloy housing also provides excellent impact and weather resistance, making it well-suited for outdoor entrances, gates, and industrial doors.

Q: Can the SK606 work as a standalone unit or does it require a separate access controller?

A: The SK606 is a fully standalone access controller — no additional control panel is required. It manages user enrollment, entry modes, and lock relay output on its own. It also supports Wiegand input/output if you wish to integrate it into a larger access control system.

Q: How do I add or delete users on the SK606?

A: User management is performed directly on the keypad using the master user code. You can add new RFID cards or PIN codes and delete existing ones at any time. The system supports three user levels: normal user, secure user, and master user, giving you flexible control over who has access and what level of permissions they hold.
