IP67 Waterproof RFID Access Control Reader – 15,000 Users
IP67 Waterproof RFID Access Control Reader – 15,000 Users
IP67 Waterproof RFID Card Access Control System – 13.56MHz | 15,000 Users

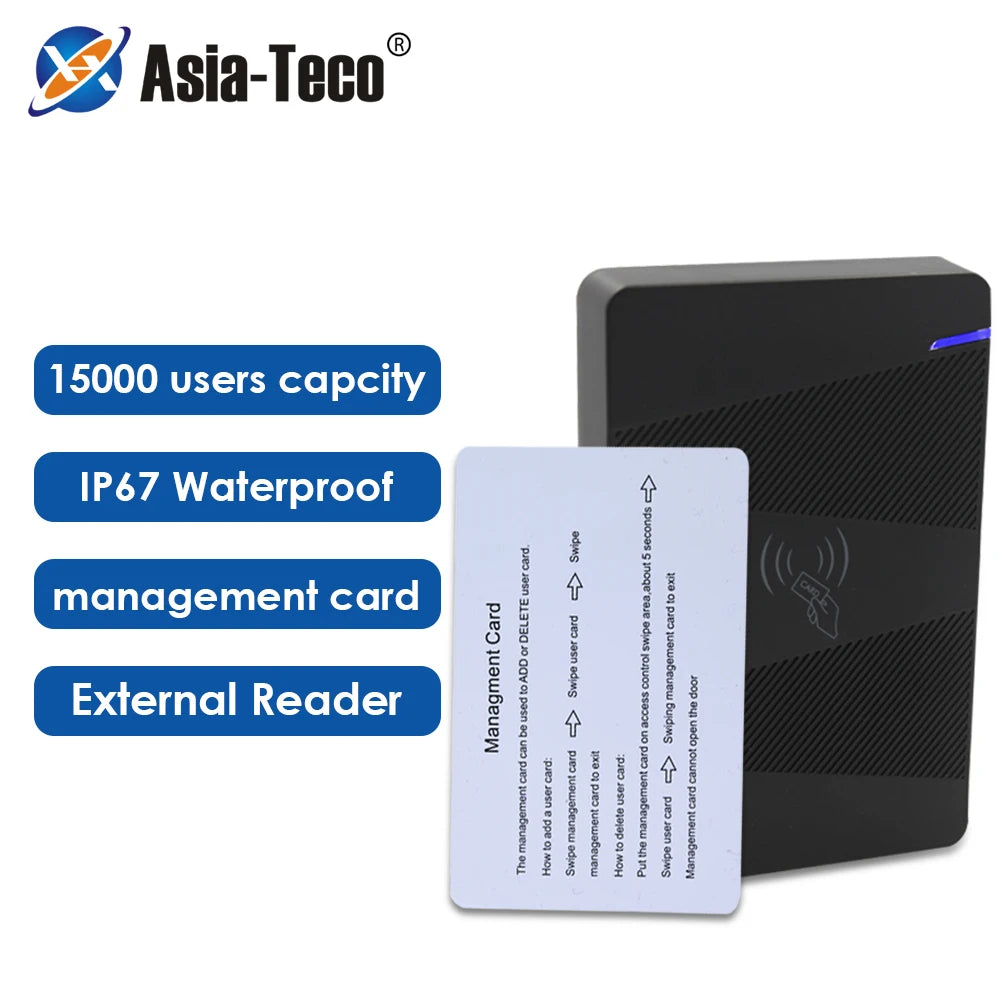

Secure your entry points with this rugged, IP67-rated waterproof RFID access control reader. Designed for demanding outdoor environments, the Asia-Teco H2C/H2D operates at 13.56MHz (Mifare IC card compatible) and supports up to 15,000 registered users — making it ideal for offices, apartment buildings, warehouses, schools, and gated facilities. Card-only access keeps operation simple and secure, with no keypad required.
Made in Mainland China.
Key Features

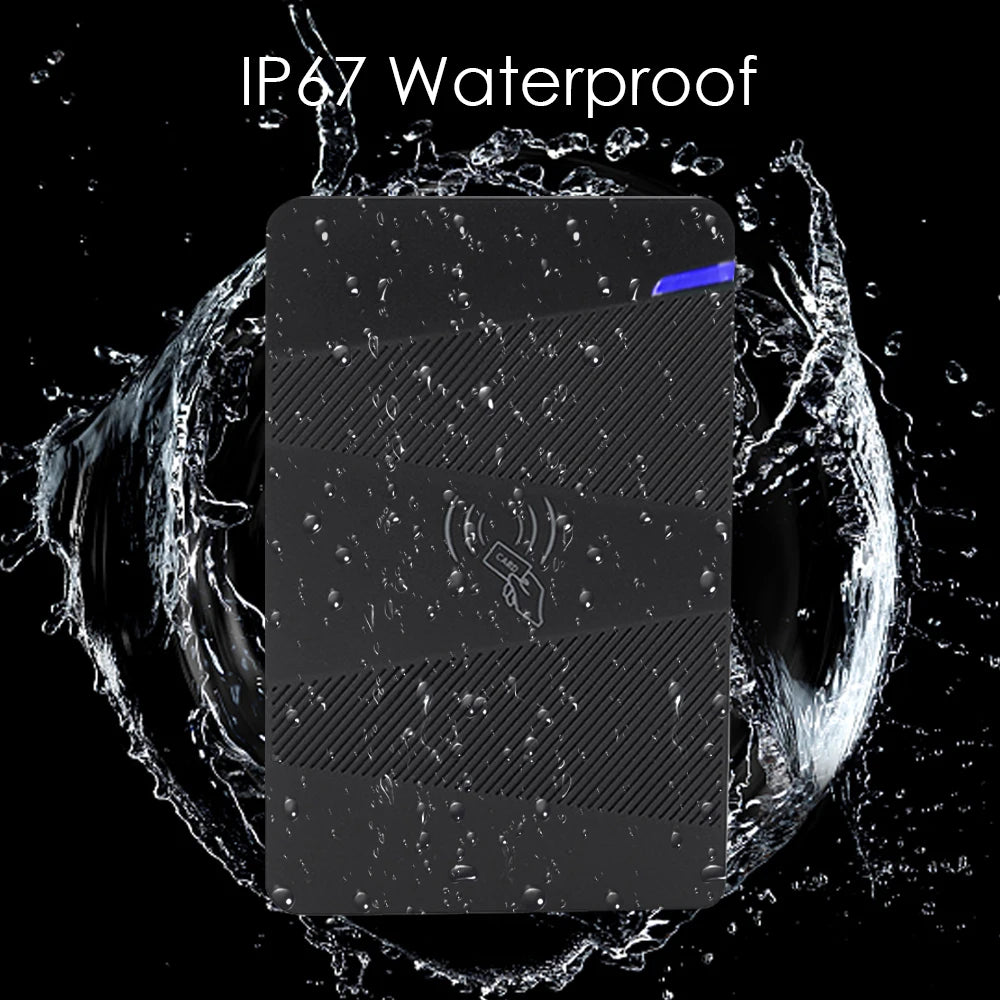

- IP67 Waterproof Rating — fully protected against dust and temporary immersion; built to handle rain, humidity, and outdoor exposure
- 13.56MHz Mifare IC Card Technology — fast, reliable contactless card reading
- 15,000 User Capacity — scales effortlessly for small offices to large commercial facilities

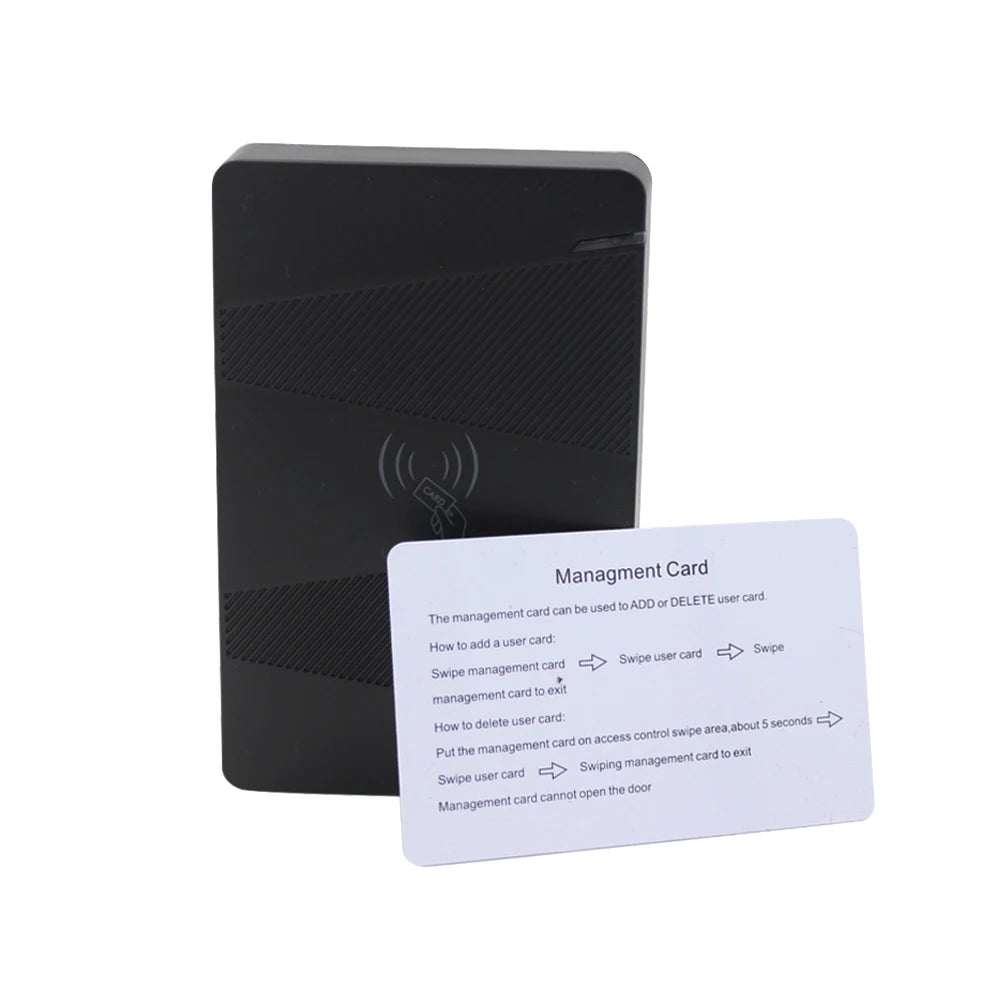

- Card-Only Access Mode — straightforward, no-keypad entry for streamlined access management
- Fail-Safe Security Mode — with signal control for added peace of mind
- External Reader Support — can connect to an additional reader for entry/exit monitoring

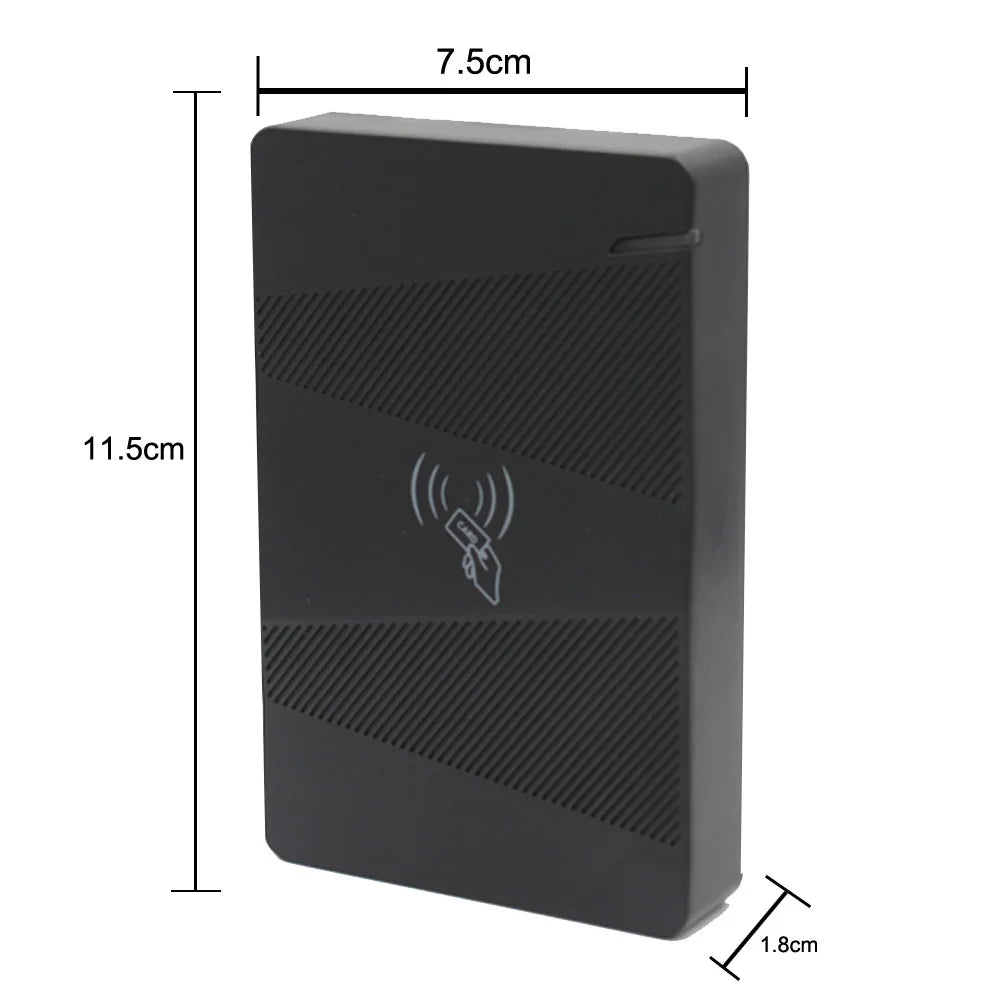

- Compact Design — 117mm × 76mm × 18mm; unobtrusive and easy to mount
- Low Power Consumption — DC 12V power input, draws less than 100mA
Technical Specifications
| Specification | Detail |
|---|---|
| Model | H2C / H2D |
| Card Frequency | 13.56MHz (Mifare IC) |
| Power Supply | DC 12V |
| Current Draw | < 100mA |
| User Capacity | 15,000 users |
| Access Method | Card only (no keypad) |
| Security Mode | Fail Safe with Signal |
| Waterproof Rating | IP67 |
| Dimensions | 117mm × 76mm × 18mm |
| External Reader | Supported |
| Origin | Mainland China |
Who Is This For?
This access control system is well-suited for property managers, business owners, facility security teams, and residential building administrators who need a durable, high-capacity card reader that can withstand the elements year-round. The no-keypad design reduces wear and makes management simple.
For guidance on electronic physical security standards and best practices, visit the NIST Cybersecurity & Physical Security Resource Center.
Frequently Asked Questions
Q: What type of cards does this RFID access control reader support?
A: This reader operates at 13.56MHz and is compatible with Mifare IC cards (MF cards). It does not support 125kHz EM-format cards — be sure your cards match the 13.56MHz frequency for reliable operation.
Q: Can this access control system be used outdoors in harsh weather conditions?
A: Yes. The reader carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary submersion in water. It is designed specifically for outdoor installation and performs reliably in rain, humidity, and extreme temperature fluctuations.
Q: How many users can be registered on this system?
A: The system supports up to 15,000 unique registered users, making it suitable for everything from small businesses to large commercial or residential complexes.
Q: Does this unit require a keypad, and can a second reader be added?
A: No keypad is included or required — access is granted via card only. However, the system does support connection to an additional external reader, allowing you to monitor or control entry and exit at a single door from both sides.
Q: What power supply does this access control reader need?
A: The unit runs on a standard DC 12V power supply and draws less than 100mA, keeping energy consumption very low during continuous operation.
