IP67 Waterproof RFID Access Control Reader 1000 Users | DC 12V
IP67 Waterproof RFID Access Control Reader 1000 Users | DC 12V

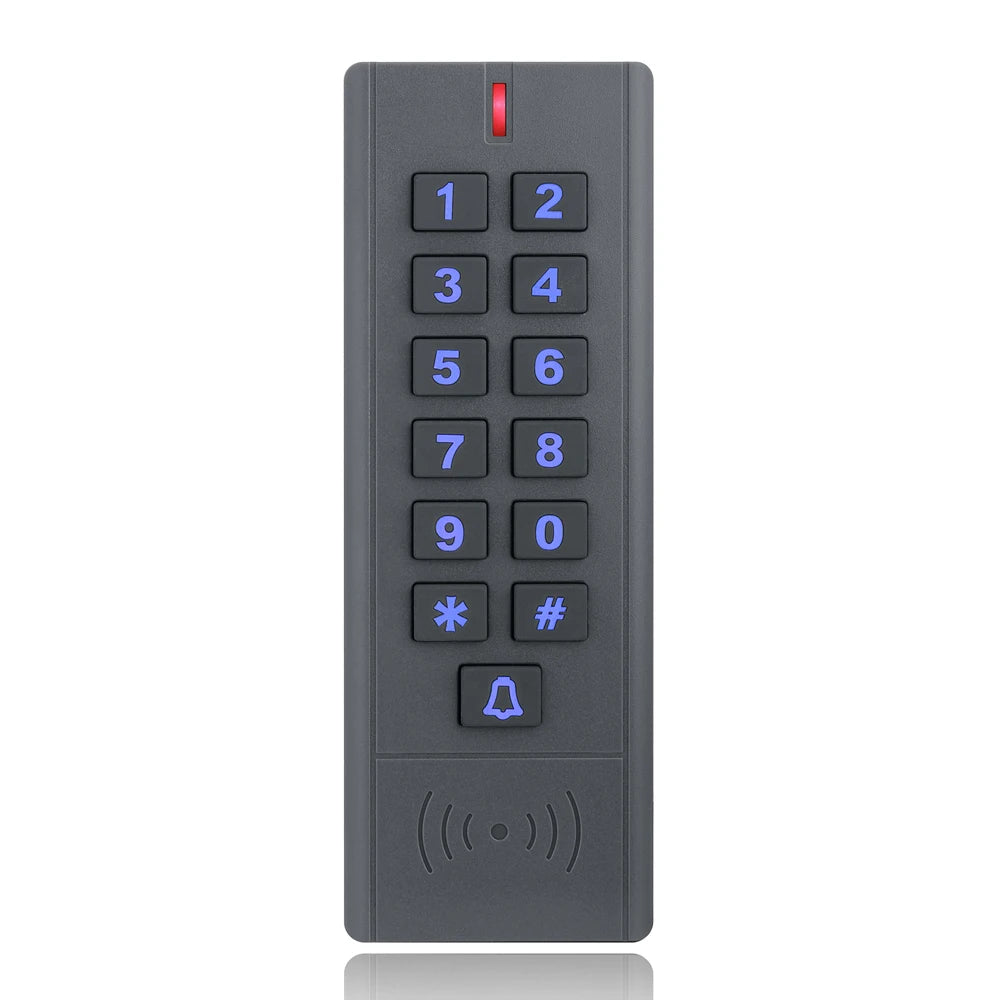

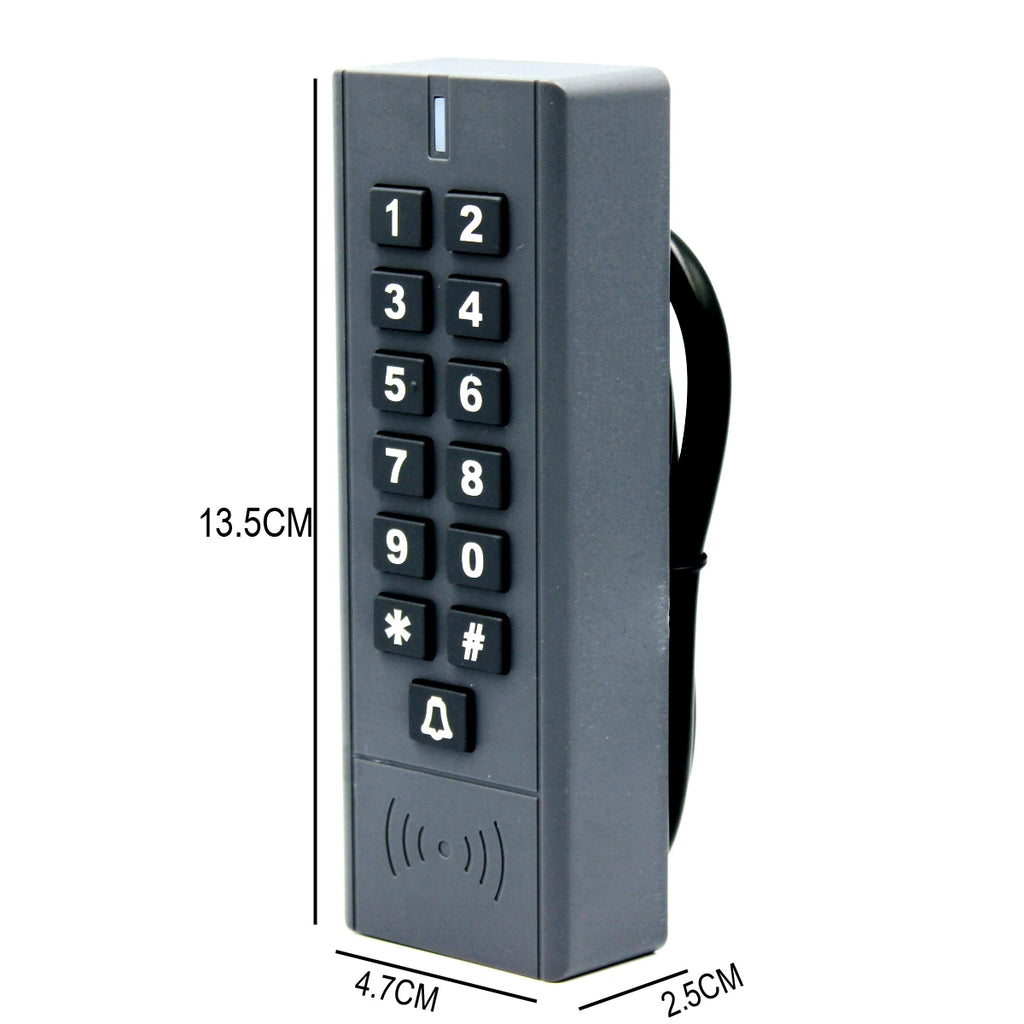

Asia-Teco A9-S-EM Waterproof RFID Door Access Control System
Take command of who enters your space with the Asia-Teco A9-S-EM RFID Access Control Reader. Engineered for both indoor and outdoor installations, this standalone 125 kHz proximity card reader supports up to 1,000 users and combines card, PIN code, or card + code entry modes — all in a sleek, backlit silver-finish enclosure rated IP67 for dust and water resistance.
Made in Mainland China.
Key Features
- IP67 Waterproof Rating — Fully protected against dust ingress and temporary water immersion; ideal for outdoor gates, doors, and entry points exposed to the elements.
- 1,000 User Capacity — Store up to 1,000 proximity cards and 1,000 PIN codes for scalable access management in offices, warehouses, apartment buildings, and more.
- Three Access Modes — Card only, PIN code only, or combined card + PIN for an added layer of verification.
- Administrator Card Management — Use the included administrator card to enroll or delete user cards quickly and conveniently — no PC software required.
- Continuous Card Enrollment — Register multiple cards in rapid succession without interruption, saving you valuable setup time.
- User-Resettable PIN Codes — Each authorized user can update their own private PIN for enhanced personal security.
- Lost Card Deletion via Keypad — Instantly revoke access for lost or stolen cards directly from the keypad, keeping your entry point secure.
- Short-Circuit Protection — Built-in relay and alarm output short-circuit protection activates within 0.1 ms to safeguard connected hardware.
- Low Power Consumption — Static current draw under 30 mA; operates on a standard DC 12V supply for easy integration into existing security setups.
- Backlit Keypad with LED Status Indicators — Yellow and green LED indicators display real-time operating status for at-a-glance monitoring, even in low-light conditions.
- Fail Safe Security Mode — Designed to default to a safe state in the event of a power interruption.

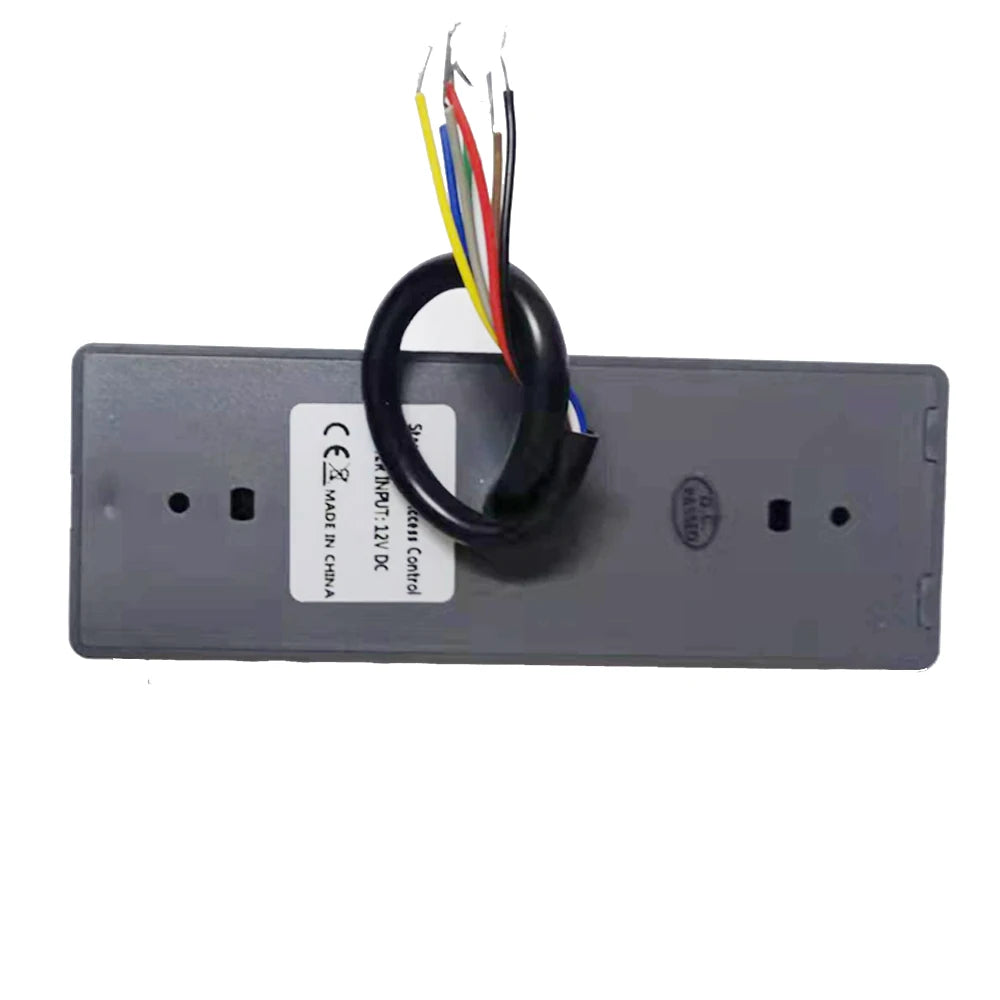

- Easy Installation & Programming — Straightforward wiring and intuitive on-device programming get your system up and running fast. (Note: This A9-S-EM model does not include Wiegand input/output.)
Technical Specifications
| Brand | Asia-Teco |
| Model | A9-S-EM |
| Operating Voltage | DC 12V |
| Frequency | 125 kHz (EM card) |
| User Capacity | 1,000 cards / 1,000 PIN codes |
| Access Modes | Card / Code / Card + Code |
| Waterproof Rating | IP67 |
| Static Current | < 30 mA |
| Security Mode | Fail Safe |
| Wiegand I/O | Not available on this model |
| Finish | Silver (backlit keypad) |
| Origin | Mainland China |
Who Is This For?
The A9-S-EM is an excellent choice for small to mid-sized installations including office buildings, apartment complexes, storage facilities, garages, schools, and any outdoor gate or entryway where a reliable, weather-resistant standalone access controller is needed. Its simple card-based management means you don't need a network connection or dedicated software to operate it day-to-day.
For more information on physical access control best practices and security standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the Asia-Teco A9-S-EM RFID access control reader support Wiegand output?
A: No — the A9-S-EM is a standalone model and does not include Wiegand input or output. If you require Wiegand integration with a third-party controller or panel, please check our other RFID access control models that specifically list Wiegand support.
Q: What type of RFID cards does the A9-S-EM use?
A: It operates on 125 kHz EM-format proximity cards and key fobs — one of the most widely available card standards. You can enroll up to 1,000 cards and 1,000 PIN codes in the system's memory.
Q: Is the A9-S-EM suitable for outdoor installation?
A: Yes. With an IP67 waterproof rating, the device is fully protected against dust and can withstand temporary immersion in water, making it well-suited for outdoor gates, building entrances, and other exposed locations.
Q: How do I add or remove user cards?
A: User cards are managed using the included administrator card. Simply present the admin card to the reader, then scan the card(s) you wish to enroll or delete. Continuous enrollment mode allows you to add multiple cards in one session. Lost cards can also be revoked directly via the keypad without needing the physical card.
Q: What power supply does this access control device require?
A: The A9-S-EM requires a DC 12V power supply. Its static current draw is less than 30 mA, making it energy-efficient and compatible with most standard 12V security system power supplies.
