IP67 Waterproof RFID Metal Access Control Kit – 125KHz Stand-Alone Door Entry System (S601)

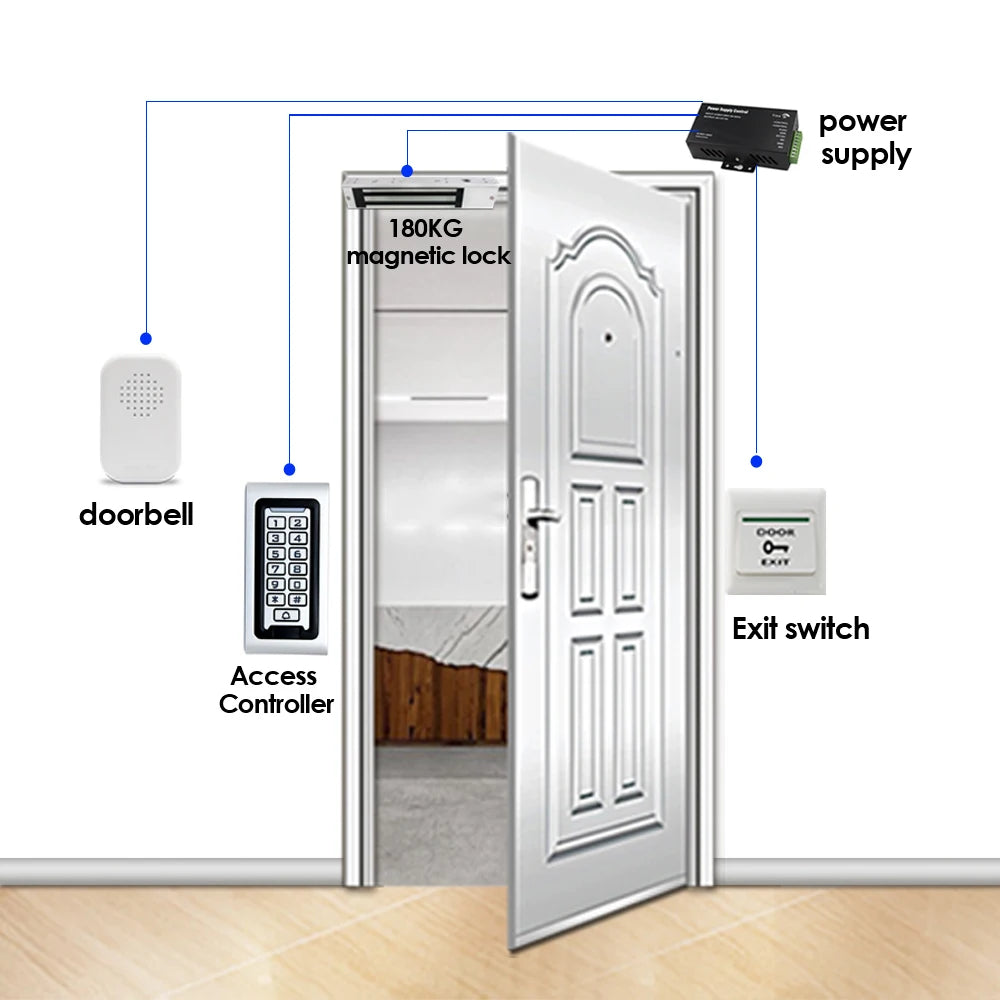

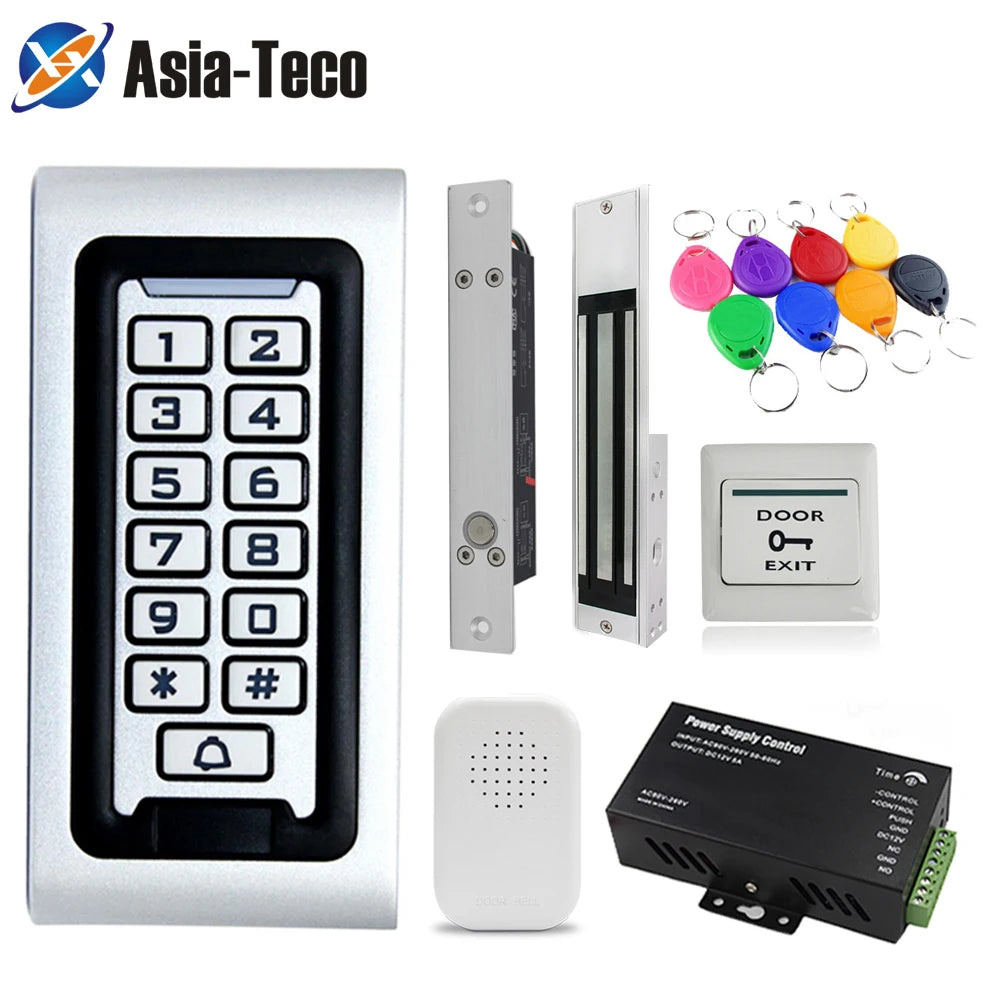

Secure your home, office, or commercial space with this all-in-one IP67 waterproof RFID access control kit. Featuring a rugged metal-cased keypad, 125KHz proximity card reader, magnetic electric lock, power supply, RFID keyfobs, exit button, and doorbell, this complete kit delivers professional-grade door security right out of the box. Compatible with wooden, metal, glass, and stainless steel doors — available in multiple configurations to suit your exact door type.
Made in Mainland China.
Why Choose the S601 Access Control Kit?

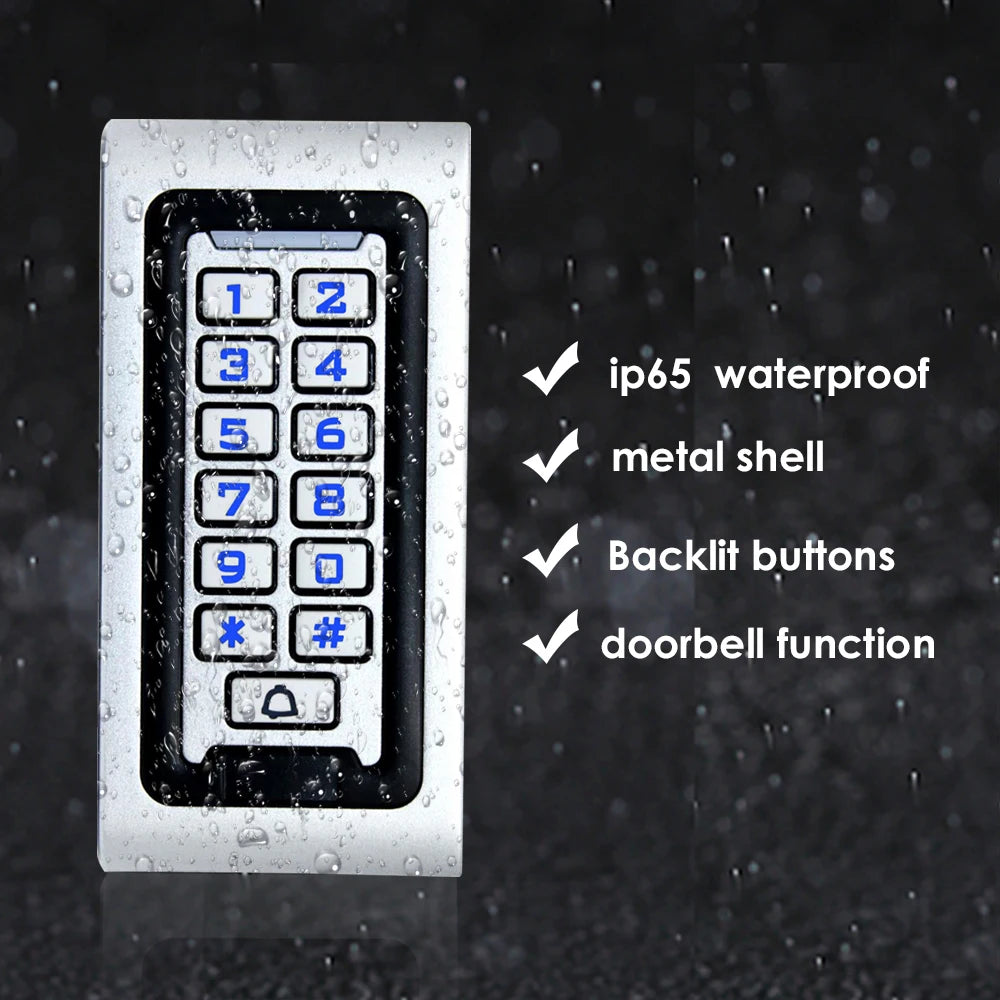

- IP67 Waterproof Rating – Fully protected against dust and water immersion; ideal for indoor and outdoor entryways.
- Durable Metal Housing – Vandal-resistant metal case ensures long-lasting performance in high-traffic areas.
- Supports Up to 1,000 Users – Easily add or delete card credentials to manage large teams or households.

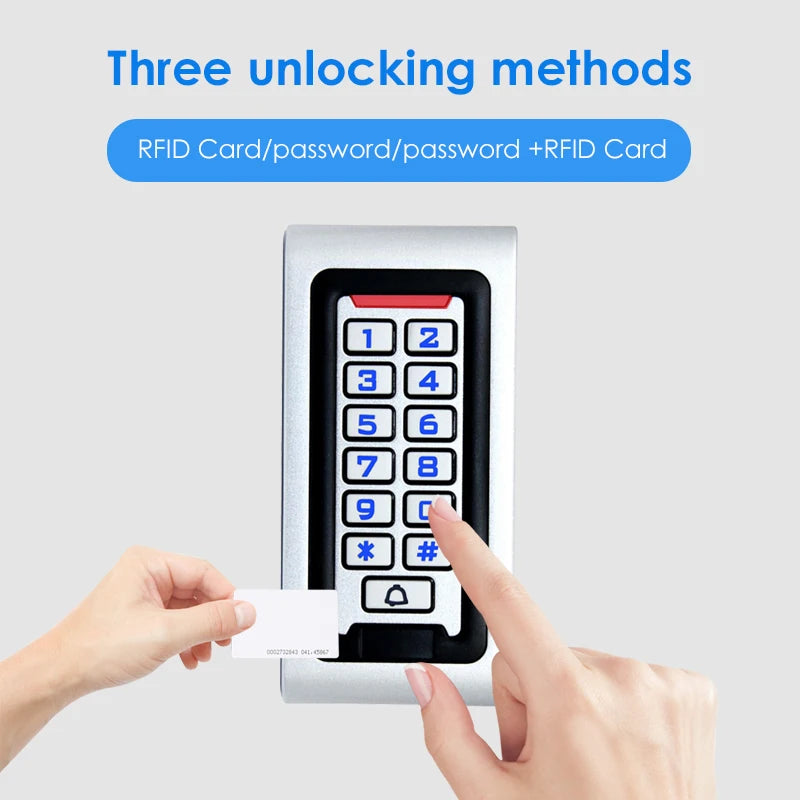

- Three Flexible Entry Modes – Password Only, RFID Card Only, or Password + RFID Card combined for enhanced security.
- Built-In 125KHz Proximity Reader – Fast, reliable ASK-modulated card reading with 2–10 cm induction range.
- Silicone Backlit Keypad – Comfortable, tactile number keys with backlight for easy use day or night.
- Built-In Doorbell Button – Connects to an external bell for convenient visitor notification.
- Alarm & Tamper Protection – Internal buzzer, case tamper, forced-door alarm, and programmable siren time keep your entry point monitored.
- NO/NC Relay Output – Compatible with a wide range of electric locks in both Fail-Safe (NC) and Fail-Secure modes.
- 3 User Access Levels – Normal User, Secure User, and Master User for flexible permission management.
- CE & FCC Certified – Meets international safety and electromagnetic compliance standards.
Kit Configurations Available
| Kit | Best For | Includes |
|---|---|---|
| Kit 1 | Wooden & Metal Doors (no bracket needed) | Keypad + Power Supply + Electric Strike Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 2 | Doors requiring ZL Bracket | Keypad + Power Supply + 180KG Magnetic Lock + ZL Bracket + Exit Button + Doorbell + 10 Keyfobs |
| Kit 3 | 180KG Magnetic Lock (no bracket) | Keypad + Power Supply + 180KG Magnetic Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 4 | Frameless Glass Doors (U Bracket) | Keypad + Power Supply + 180KG Magnetic Lock + U Bracket + Doorbell + Exit Button + 10 Keyfobs |
| Kit 5 | Built-In Install for Glass Doors | Keypad + Power Supply + Electric Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
| Kit 6 | Wooden, Metal & Stainless Steel Doors (no bracket) | Keypad + Power Supply + Electric Drop Bolt Lock + Doorbell + Exit Button + 10 Keyfobs |
Technical Specifications
Access Controller
- Housing: Metal case, IP67 waterproof
- Keypad: Silicone backlit numeric keys
- Card reader frequency: 125KHz (ASK modulation)
- User capacity: 1,000
- Entry modes: Password / Card / Password + Card
- Operation modes: Normal Mode, Secure Mode
- User levels: Normal, Secure, Master
- Relay output: NO/NC (Fail-Safe NC default)
- Auxiliary modes: 8 (door ajar, forced door, shunt, door monitor, normal/secure)
- Certifications: CE, FCC

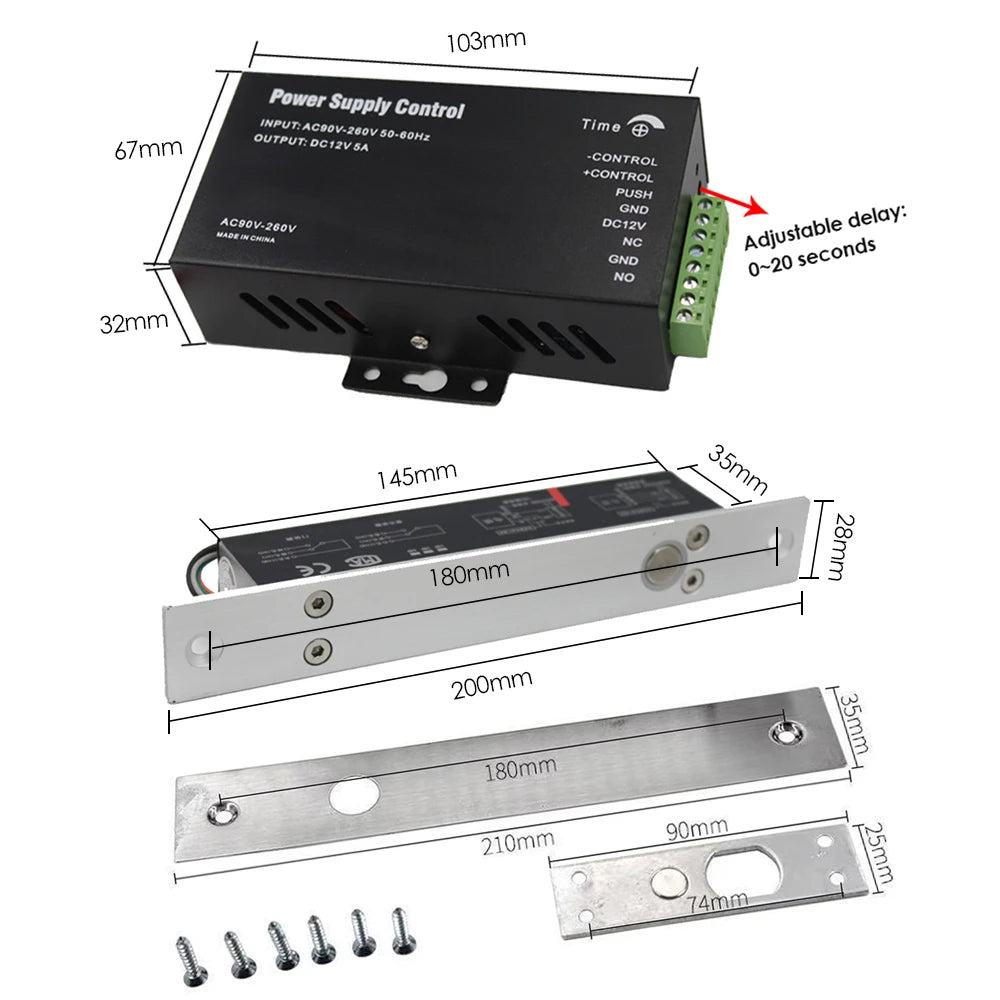

Power Supply
- AC Input: 90V–260V | DC Output: 12V / 5A
- Rated power: 42W | Working current: 3.5A
- Adjustable delay: 0–20 seconds
- Size: 103 × 67 × 32 mm

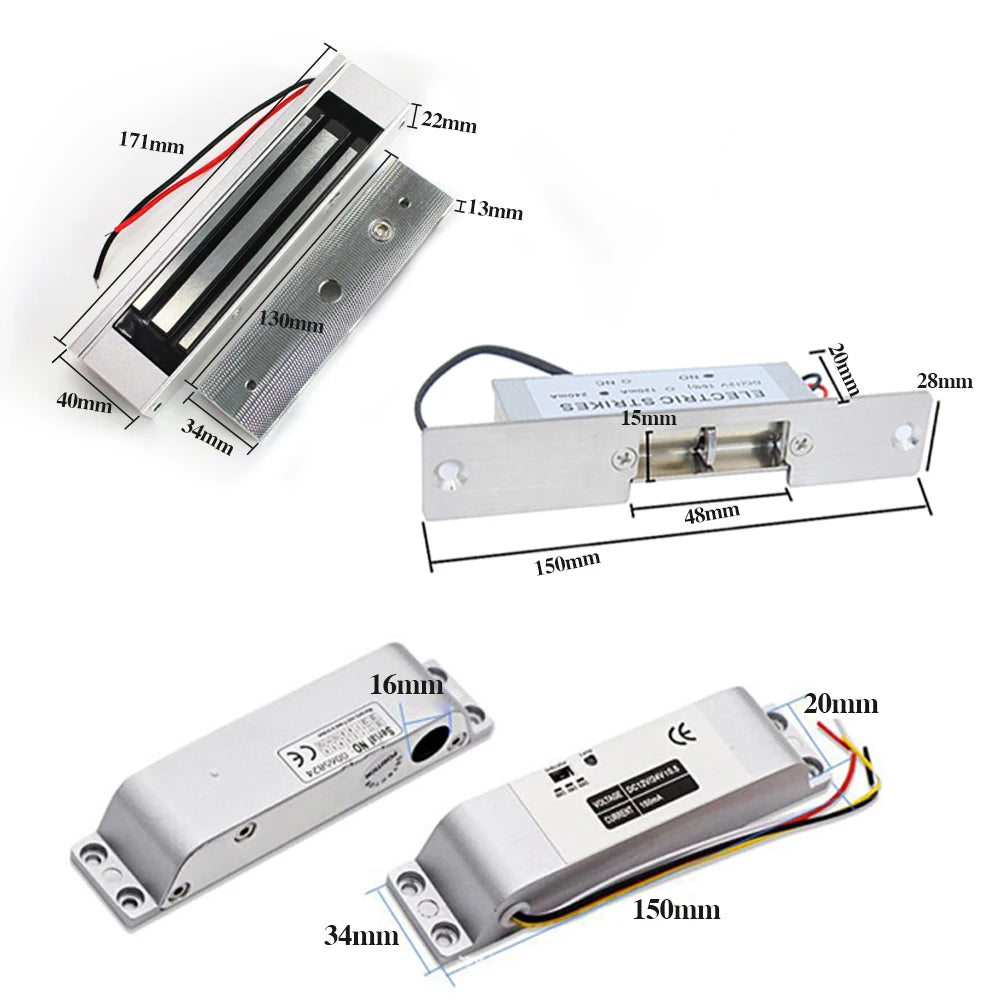

Electric Lock (Bolt)
- Time delay: 0, 3, 6 seconds (adjustable)
- Start-state current: 1.1A | Working-state current: 0.14A
- NC feedback signal included
- Compatible with glass, wooden, metal, and security doors

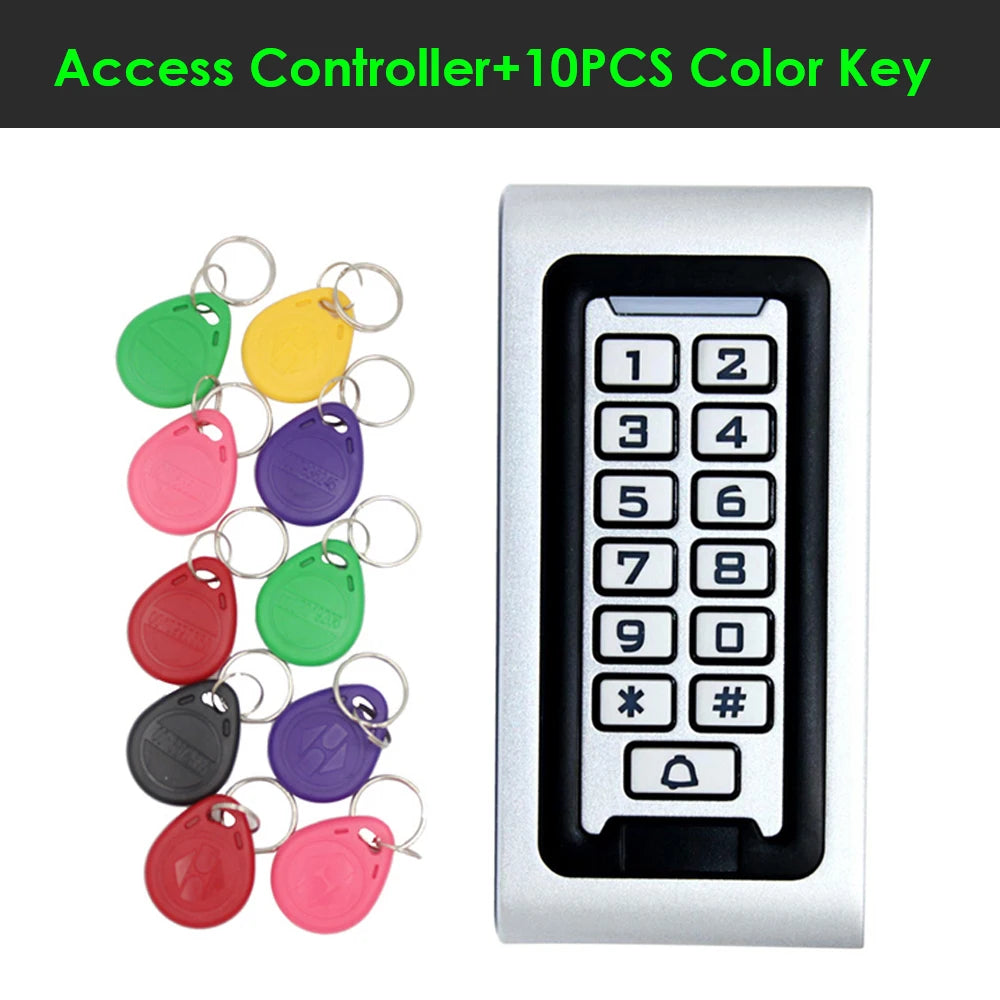

RFID Keyfobs (×10)
- Working frequency: 125KHz
- Induction distance: 2–10 cm
- Diameter: 65 mm
Exit Button
- Material: PC flame-retardant
- Size: 86 × 86 mm
Doorbell
- Material: ABS flame-retardant
- Power: DC 12V
- Size: 80 × 50 × 20 mm
For guidance on best practices for electronic door access systems and building security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What door types is the S601 RFID access control kit compatible with?
A: The S601 kit is available in six configurations to suit wooden doors, metal doors, stainless steel doors, and glass doors (both framed and frameless). If you are unsure which kit matches your door type, contact us with a photo of your door for personalized guidance.
Q: How many users can be programmed into the S601 access controller?
A: The S601 supports up to 1,000 individual users. You can freely add or delete RFID card credentials and PIN codes at any time to keep your user list up to date.
Q: Does the system work if the power goes out?
A: The S601 operates in Fail-Safe (NC) mode by default, meaning the electric lock releases if power is interrupted — ensuring safe egress. The included power supply (90V–260V AC input, DC 12V/5A output) is compatible with IBA battery backup accessories for continuous operation during outages.
Q: What entry methods does the S601 access control keypad support?
A: The keypad supports three entry modes: PIN code only, 125KHz RFID card/keyfob only, or a combined PIN + card method for added security. You can choose the mode that best fits your security requirements.
Q: Is the S601 keypad suitable for outdoor installation?
A: Yes. The S601 features an IP67-rated waterproof metal housing, making it well-suited for outdoor entryways exposed to rain, dust, and varying weather conditions.
