IP67 Waterproof Biometric Fingerprint & RFID Keypad Access Control System — 5000 Users
Take command of who enters your home, office, garage, or facility with this advanced standalone access control system from Asia-Teco. Combining biometric fingerprint recognition, 125KHz RFID card/keyfob reading, and a backlit touch keypad into one rugged, fully sealed unit, this controller gives you three flexible ways to grant or restrict access — all without the need for a connected PC or network.
Made in Mainland China.
Key Features

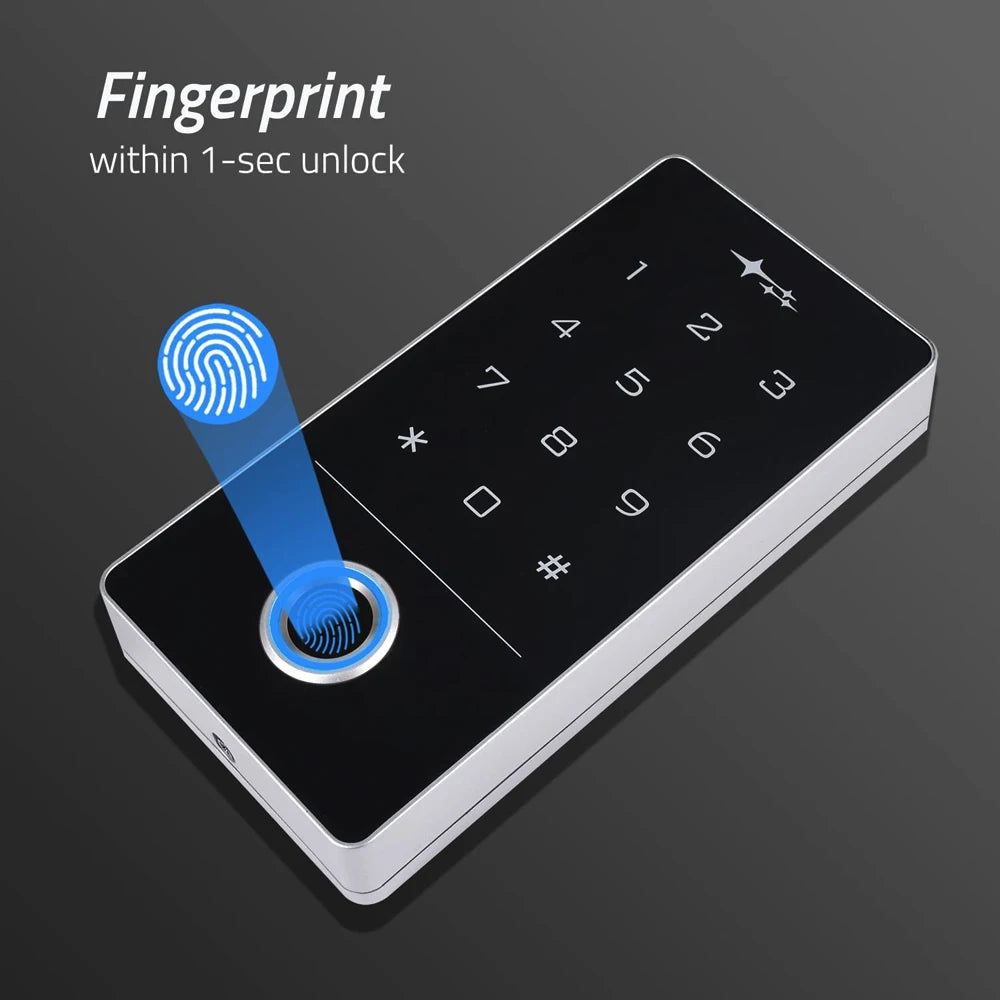

- Triple Unlock Methods: Fingerprint scan, RFID card/keyfob swipe, or PIN code entry — supports up to 5,000 users and 300 stored fingerprints. Includes 5 x ID key fobs.

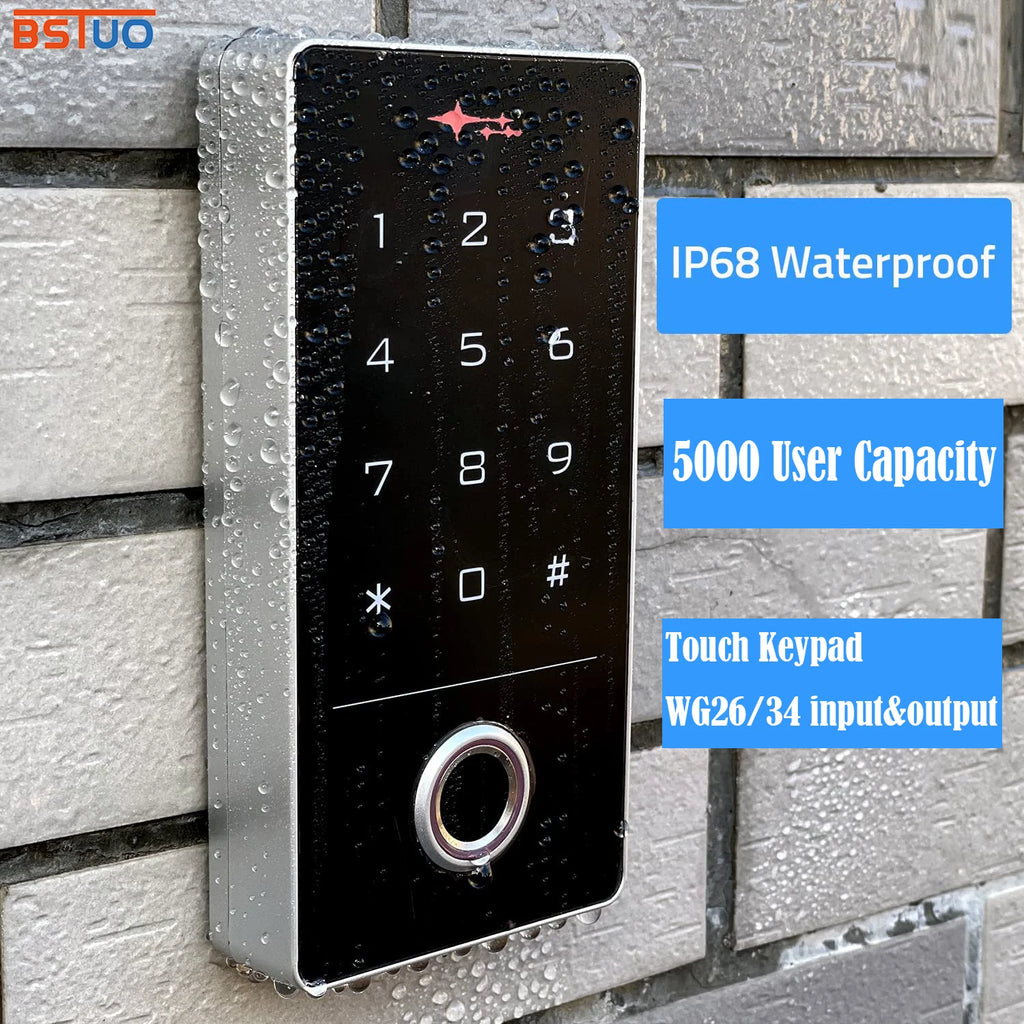

- IP67 Weatherproof Construction: The mainboard is fully encapsulated in epoxy resin, making the unit resistant to dust, rain, and vandalism — safe for both indoor and outdoor mounting.
- Acrylic Touch Keypad with Backlight: Blue LED backlight ensures digits are clearly visible even in complete darkness. LED indicators display current operating status at a glance.
- Wiegand 26/34 Input & Output: Seamlessly integrates as a standalone controller or as a card reader connected to a larger access control system.
- Fully Programmable from the Keypad: No PC or software required. Add, delete, and manage users directly from the device.
- Wide Operating Temperature Range: Functions reliably from -35°C to +55°C (-31°F to 131°F), making it suitable for extreme environments.
- Broad Application: Ideal for apartments, offices, hotel doors, school campuses, garages, gates, car parks, and restricted access areas.
Technical Specifications
| Model | TF1AS-EM-W |
| Input Voltage | DC 12V |
| Working Current | <100mA |
| Quiescent Current | ≤30mA |
| Electric Lock Output | ≤1A |
| RFID Frequency | 125KHz |
| Card Reading Distance | 0–7 cm |
| User Capacity | 5,000 users |
| Fingerprint Capacity | 300 fingerprints |
| Wiegand | WG26/34 input & output |

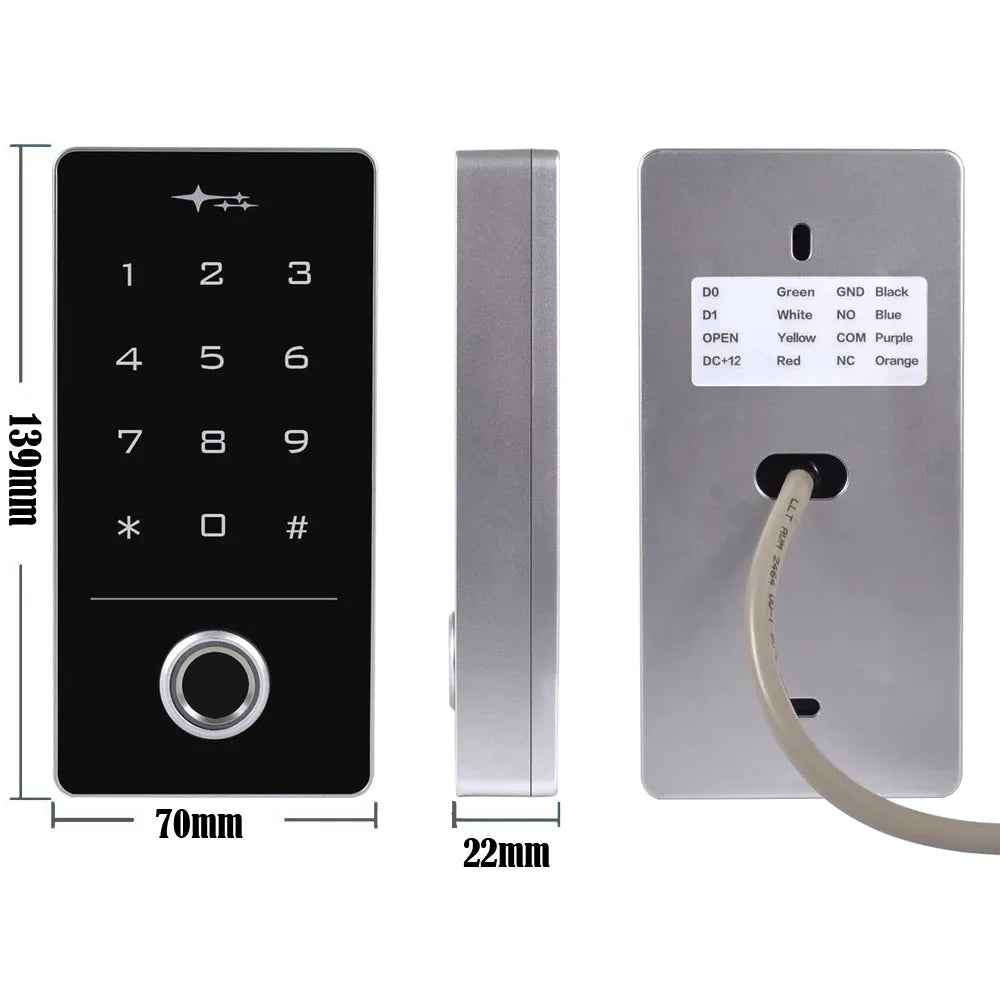

| Ports | NO / NC / COM / D0 / D1 |
| Waterproof Rating | IP67 |
| Operating Temperature | -35°C to +55°C |
| Material | Plastic shell, Acrylic panel |
| Touch Keypad & Backlight | Yes |
| Security Mode | Fail Safe with Signal |
What's in the Box
- 1 × IP67 Fingerprint & RFID Access Controller
- 5 × ID Key Fobs (125KHz)
- Installation hardware & wiring guide
Learn More About Physical Access Control Standards
For guidance on security systems and best practices for access control, visit the NIST Physical Access Control resource.
Frequently Asked Questions
Q: Can this fingerprint access control system work outdoors in rain or extreme temperatures?
A: Yes. The unit carries an IP67 waterproof rating with a fully epoxy-encapsulated mainboard, protecting it against dust and water immersion. Its operating range of -35°C to +55°C makes it suitable for harsh outdoor environments including garages, building entrances, and gate systems.
Q: How many users and fingerprints can this standalone access controller store?
A: The system supports up to 5,000 total users and can store up to 300 fingerprint templates. Users beyond the fingerprint limit can still be granted access via 125KHz RFID card/keyfob or PIN code.
Q: Does this access control system require a computer or special software to program?
A: No. The entire system is programmable directly from the touch keypad — no PC, app, or dedicated software is needed. It can operate as a fully standalone unit or be wired into a larger system using its Wiegand 26/34 input/output interface.
Q: What types of doors and entry points is this system compatible with?

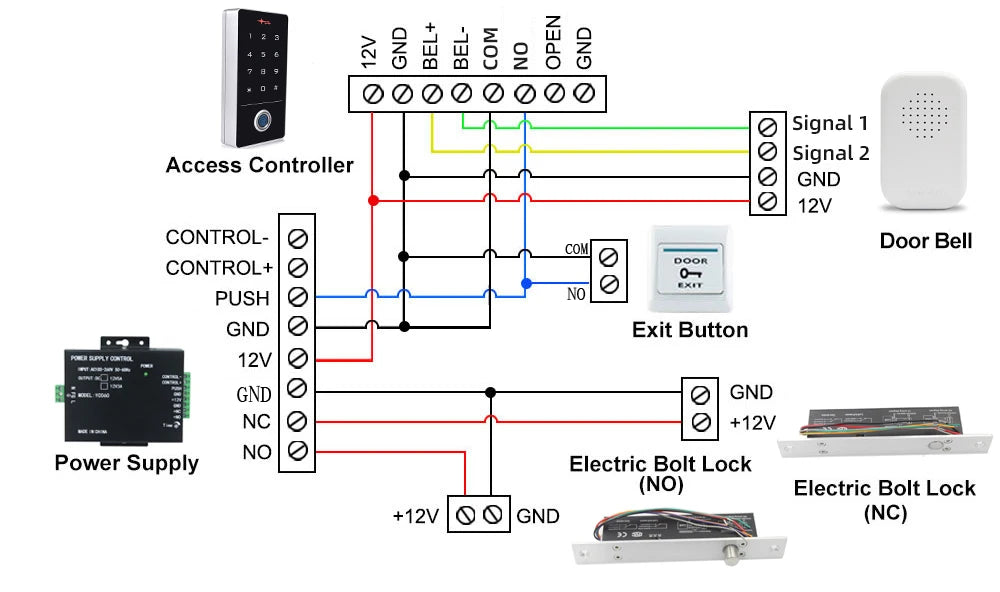

A: This controller is compatible with electric locks, magnetic locks, and electric strike locks (up to 1A output). It is widely used on apartment doors, office entries, hotel rooms, school gates, garages, car park barriers, and restricted-area doors — both indoors and outdoors.
