IP67 Fingerprint Access Control System – TTLock NFC & RFID
IP67 Fingerprint Access Control System – TTLock NFC & RFID

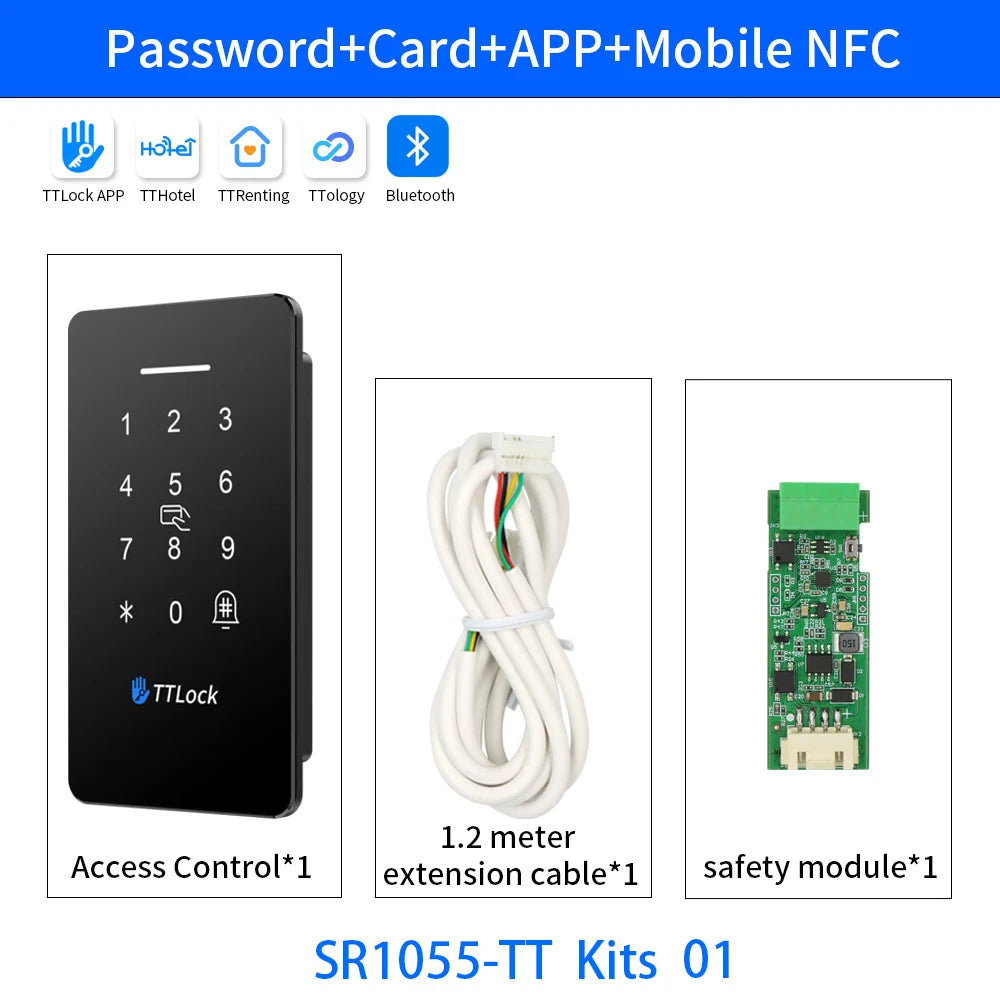

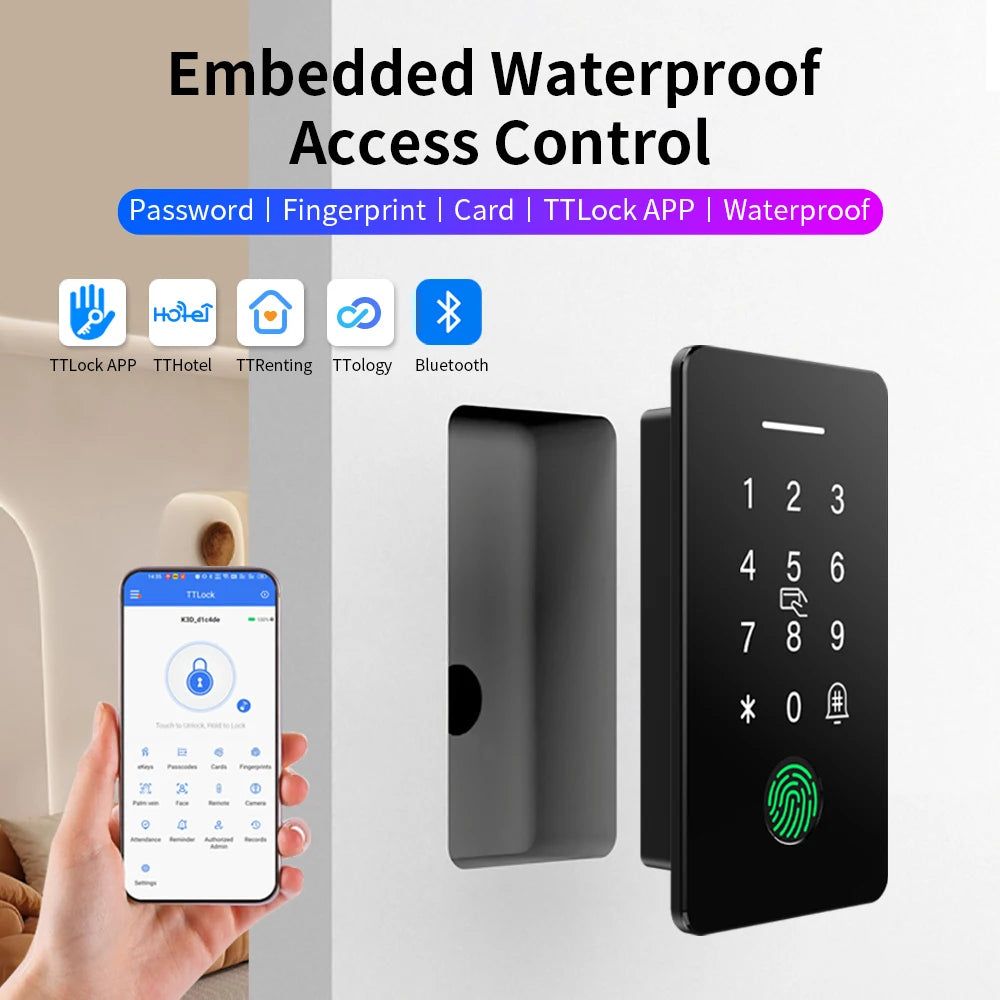

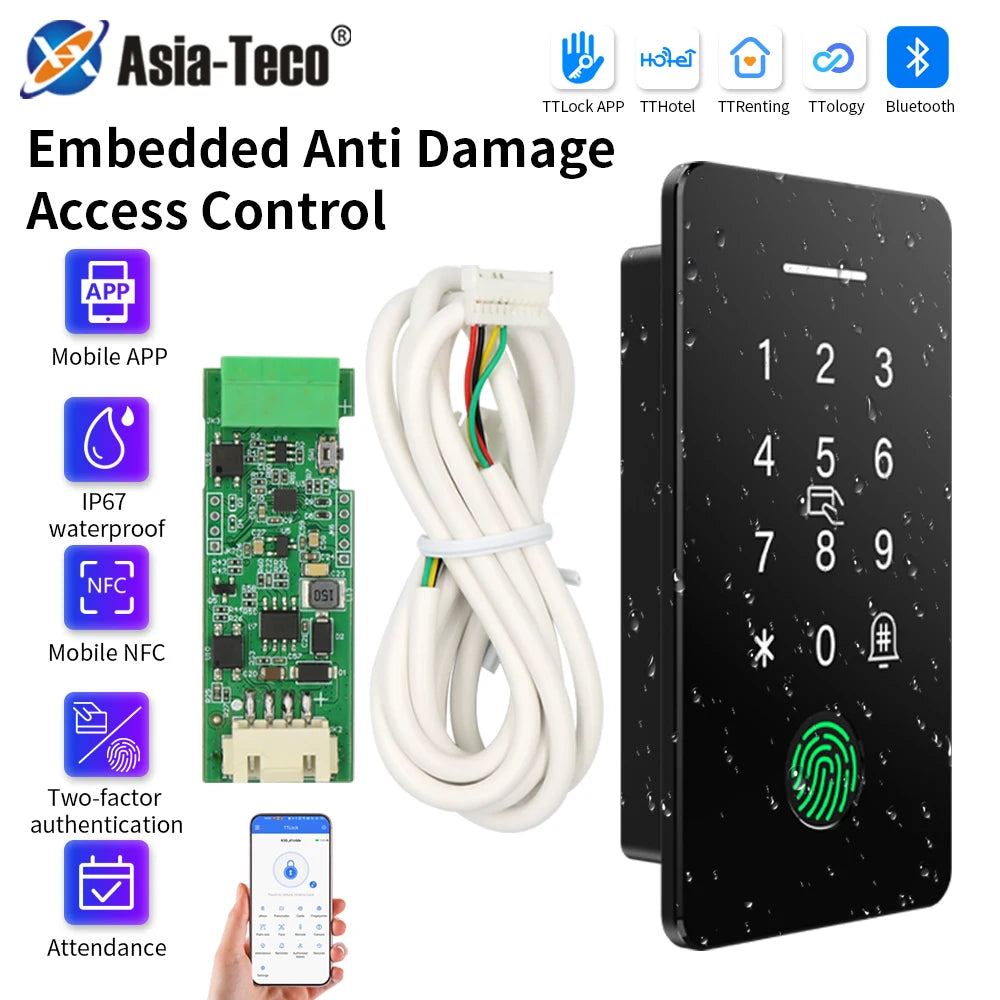

Asia-Teco SR1055 Embedded Access Control System with TTLock App
Take security to the next level with the Asia-Teco SR1055 Embedded Access Control System — a smart, multi-method entry solution built for demanding indoor and outdoor environments. With an IP67 waterproof rating, this unit withstands harsh weather, making it ideal for banks, government facilities, offices, warehouses, and any high-security location.
Multiple Unlocking Methods for Every Scenario
This versatile system supports four convenient access methods so you can choose what works best for your setup:
- TTLock Smartphone App (Android 4.3+ / iOS 7.0+) via Bluetooth 5.0 BLE
- Fingerprint Recognition (optional, semiconductor sensor) — stores up to 500 fingerprints with a false acceptance rate of <0.001%
- RFID/NFC IC Card (MIFARE M1, 13.56 MHz high-frequency) — stores up to 20,000 cards
- Password Entry — stores up to 500 passwords, including temporary codes for visitors
You can also enable dual authentication (e.g. fingerprint + password, card + password) for maximum security in sensitive environments.
Smart Attendance Management
The SR1055 doubles as an employee attendance system. Attendance logs are stored and can be exported directly through the TTLock app — no USB drive required. This streamlines HR workflows, saves time, and boosts workplace efficiency.

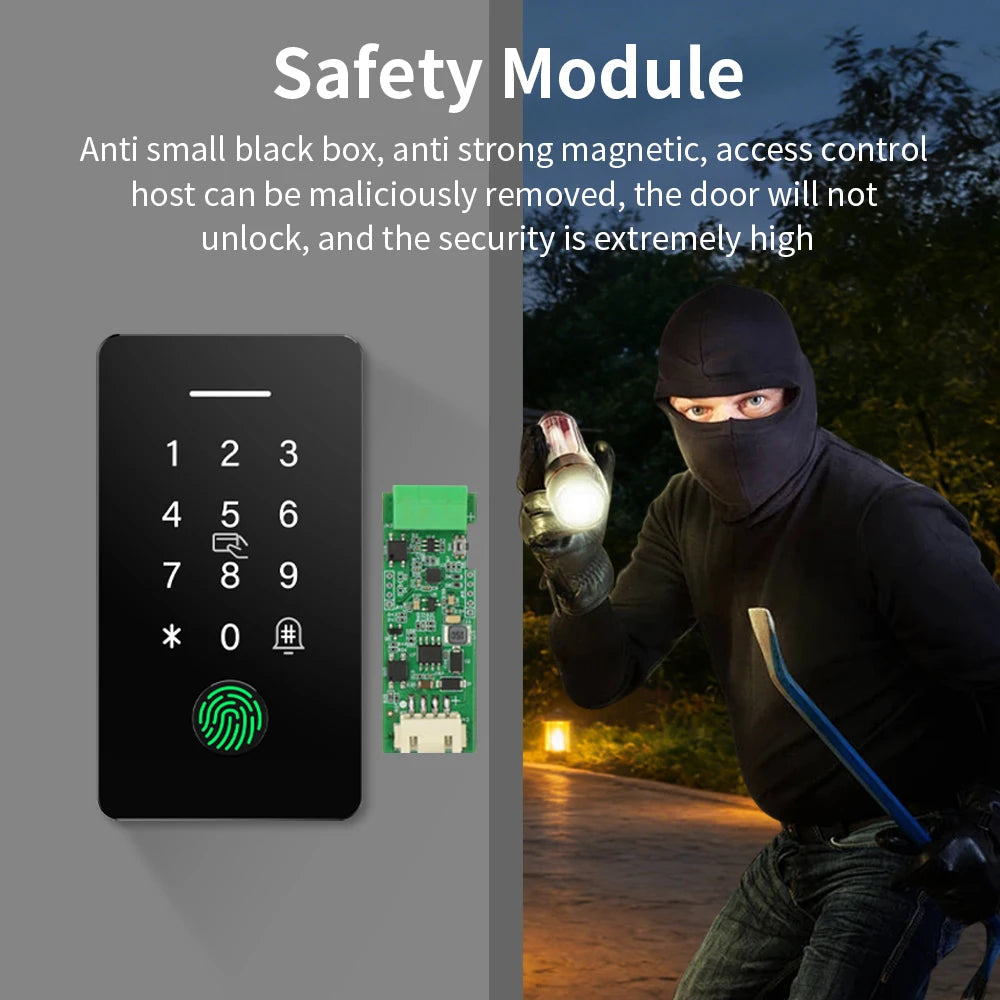

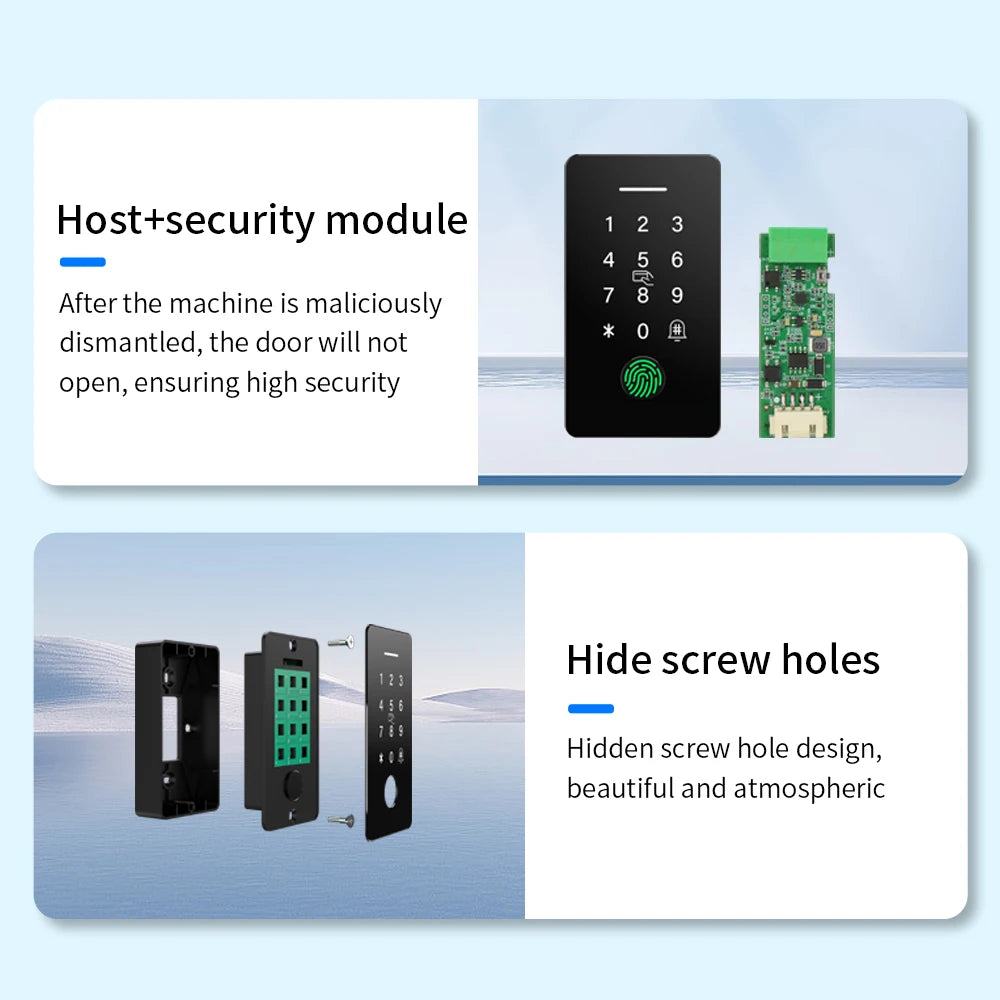

Built-In Anti-Tamper Security Module
Even if the device is physically attacked or subjected to strong magnetic interference, the integrated security module prevents unauthorized entry. The system is CE and FCC certified for reliable, compliant operation.
Key Specifications
- Model: SR1055-TT
- Brand: Asia-Teco
- Bluetooth: Bluetooth 5.0 BLE

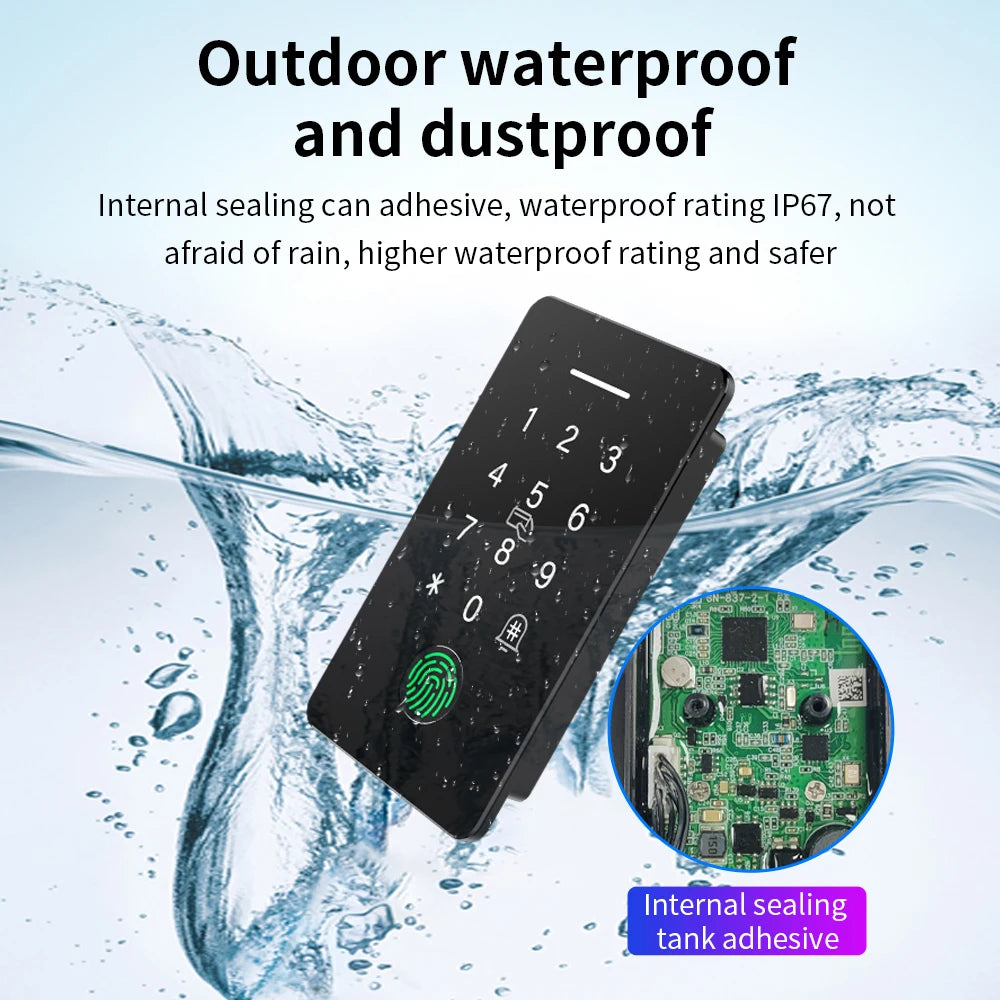

- Waterproof Rating: IP67
- Voltage Range: 12V–24V DC
- Working Current: <200mA | Standby Current: 7.4mA
- Working Temperature: -20°C to 70°C
- Fingerprint Capacity: 500 (fingerprint model)
- Card Capacity: 20,000
- Password Capacity: 500
- Card Type: MIFARE M1 (13.56 MHz NFC/IC)
- Button Type: Touch Button
- Certifications: CE, FCC
- Compatible OS: Android 4.3+ / iOS 7.0+
- Country of Origin: Made in Mainland China
Why Choose the SR1055?
- ✅ IP67 outdoor-grade waterproofing for year-round use
- ✅ Anti-tamper + anti-magnetic security module
- ✅ Flexible multi-factor authentication
- ✅ Massive storage: 20,000 cards, 500 fingerprints, 500 passwords
- ✅ Wireless app-based attendance export — no physical drives needed
- ✅ CE & FCC certified
For guidance on best practices in physical access control and security systems, visit the Cybersecurity and Infrastructure Security Agency or refer to the NIST Cybersecurity Resources for standards on access management.
Frequently Asked Questions
Q: Is the Asia-Teco SR1055 access control system suitable for outdoor installation?
A: Yes. The SR1055 features an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary submersion in water. It is designed to operate in temperatures ranging from -20°C to 70°C, making it ideal for outdoor gates, doors, and entry points in all weather conditions.
Q: What unlocking methods does the SR1055 TTLock access control system support?
A: The SR1055 supports four unlocking methods: smartphone app (TTLock via Bluetooth 5.0 BLE), NFC/RFID IC card (MIFARE M1, 13.56 MHz), numeric password (including temporary passwords), and optional fingerprint recognition. Dual-authentication modes — such as card + password or fingerprint + password — can also be activated for enhanced security.
Q: How does the attendance tracking feature work on the SR1055?
A: The SR1055 logs all access events and can be used as an employee check-in and attendance system. All attendance records are accessible and exportable directly through the TTLock app on your smartphone, eliminating the need for physical USB transfers and simplifying payroll and HR reporting.
Q: How many users can be registered on the SR1055 access control system?
A: The system supports up to 20,000 IC/NFC cards, up to 500 fingerprints (fingerprint model only), and up to 500 passwords, making it well-suited for large offices, commercial buildings, and multi-tenant facilities.
Q: What is the voltage requirement for the SR1055 embedded access control unit?
A: The SR1055 operates on a 12V–24V DC power supply with a working current of less than 200mA and a standby current of 7.4mA, making it energy-efficient for continuous 24/7 operation.
