IP67 Waterproof 125KHz RFID Access Control Reader – 2000 Users
IP67 Waterproof 125KHz RFID Access Control Reader – 2000 Users

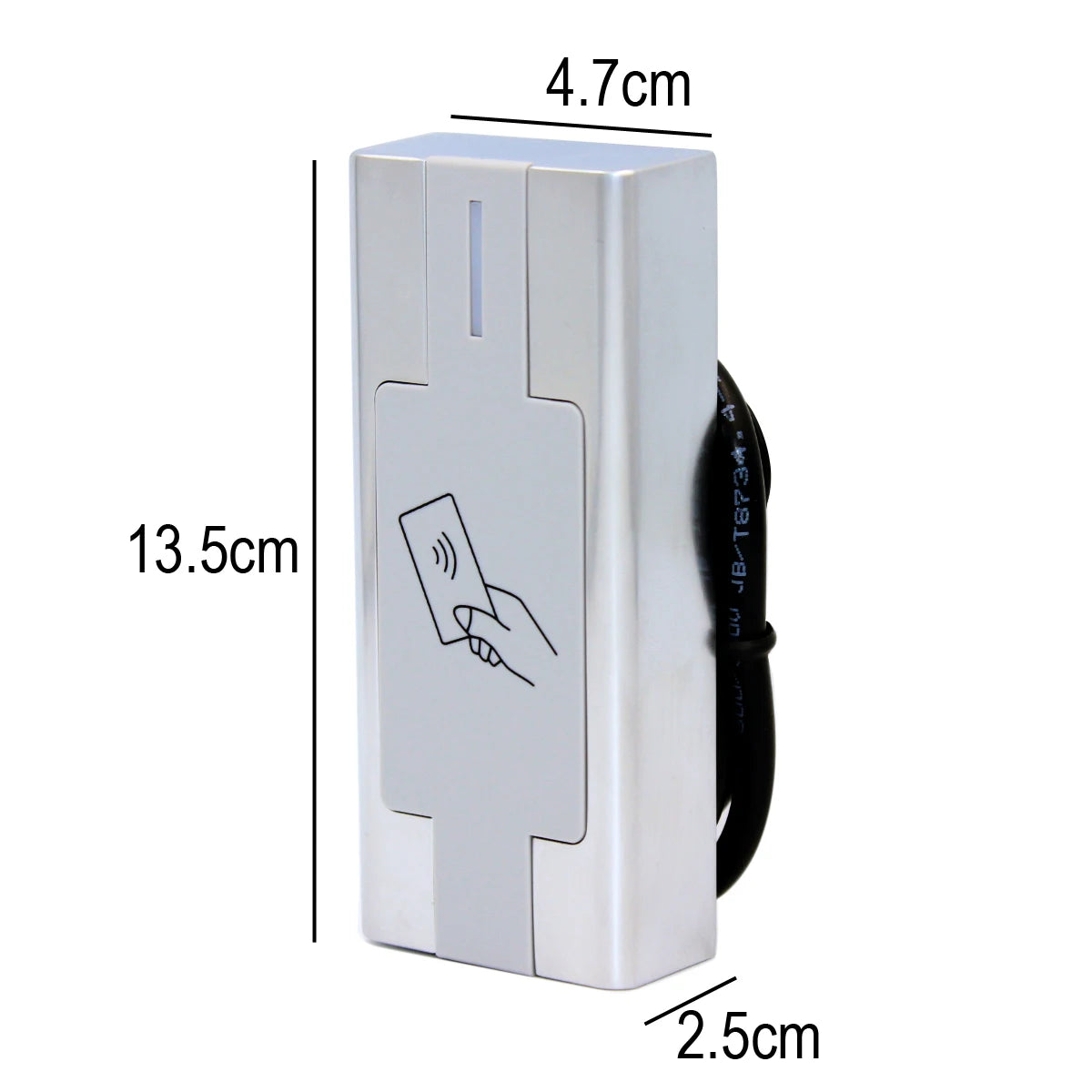

IP67 Waterproof 125KHz RFID Metal Access Control Reader – 2000 User Capacity
Secure your property with confidence using this heavy-duty IP67-rated 125KHz proximity RFID card reader. Designed for both indoor and outdoor installations, this ruggedized access control reader supports up to 2000 users and features a solid epoxy-potted housing for exceptional durability in harsh environments. Made in Mainland China.
Key Features
- 125KHz Proximity Card Reading – Compatible with standard EM cards for fast, reliable access

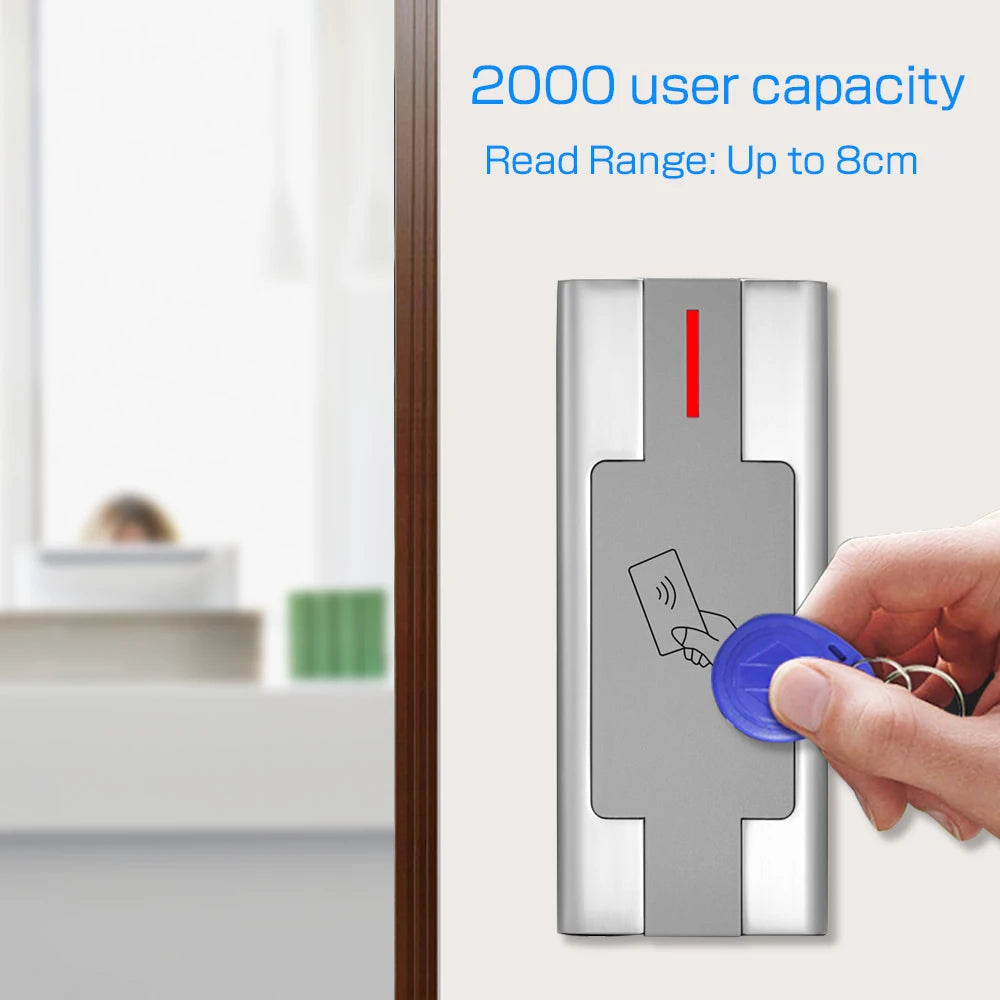

- Read Range up to 8cm – Convenient tap-and-go access without fumbling for cards
- IP67 Fully Waterproof – Sealed against dust ingress and submersion, ideal for outdoor gates, garages, and building entrances
- 2000 User Capacity – Manage access for large teams, residential complexes, or commercial facilities
- Anti-Vandal Design – Robust zinc-alloy (WM4) or ABS plastic (WP2) housing resists tampering and physical abuse

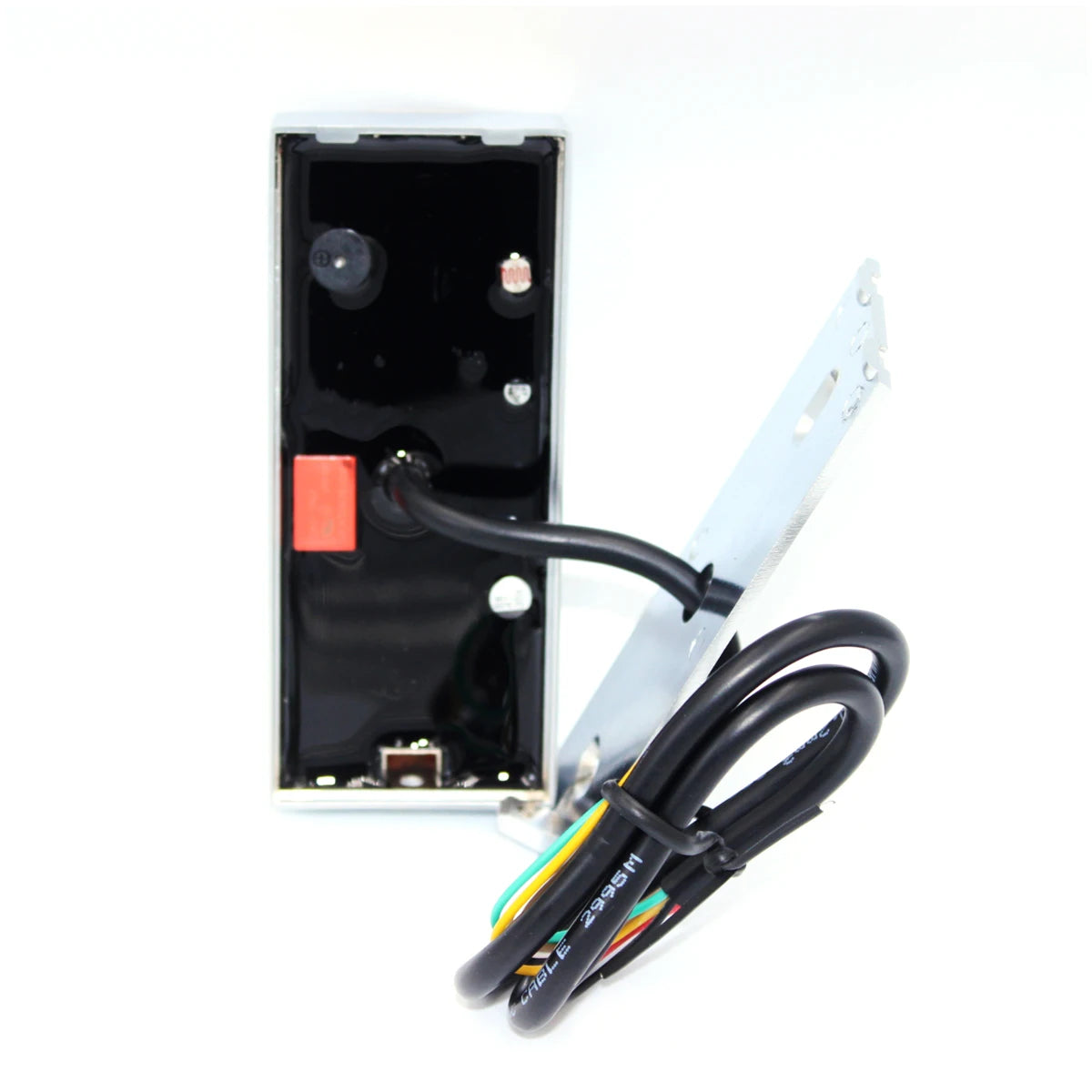

- Solid Epoxy Potted – Internal components are fully encapsulated for moisture and vibration resistance
- Very Low Power Consumption – Standby current under 30mA; operating current ≤80mA on DC 12V–24V
- Reverse Polarity Protection – Guards against wiring mistakes during installation

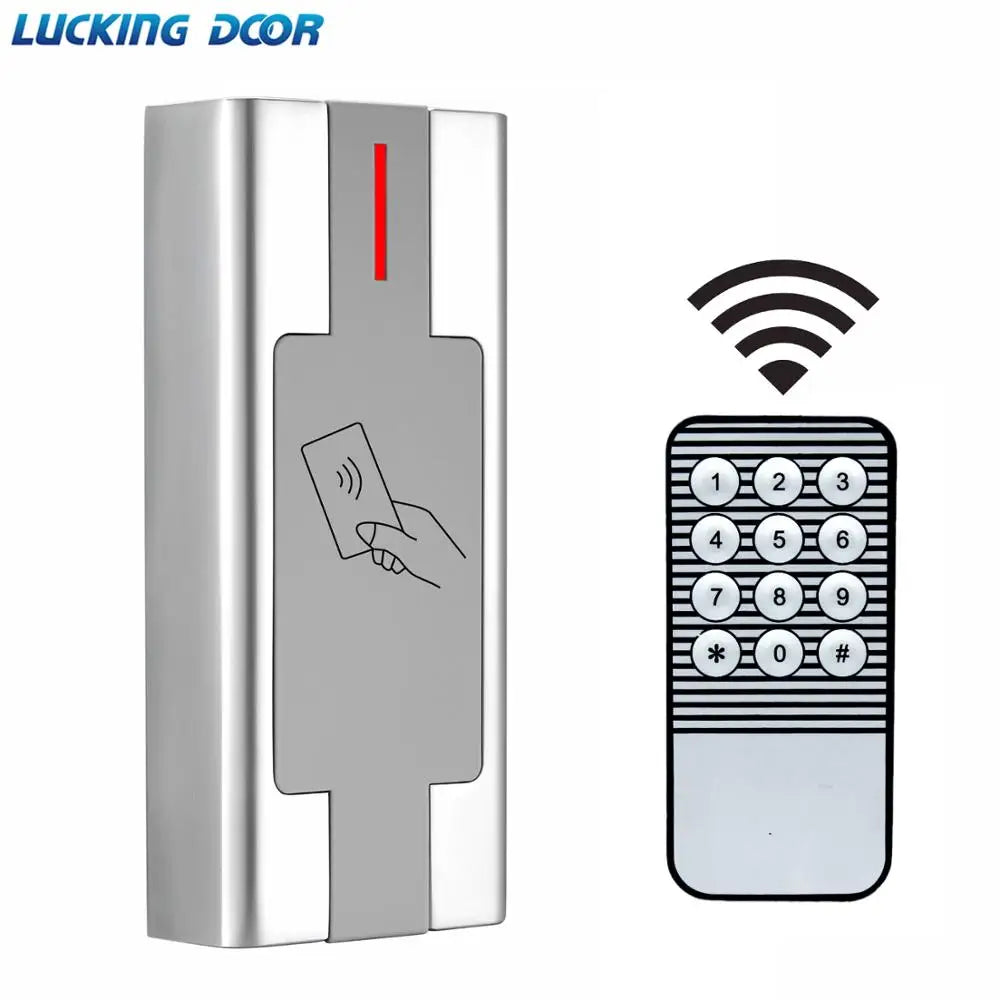

- Infrared Remote Control Programming – Conveniently program the system without physical contact; admin cards included
Technical Specifications
| Model | H2-X-EM |
| Card Frequency | 125KHz |
| Card Type | EM Card (ID) |
| Read Range | ≤ 8cm |
| User Capacity | 2000 Users |
| Operating Voltage | DC 12V – 24V |
| Working Current | ≤ 80mA |
| Standby Current | < 30mA |
| Weatherproof Rating | IP67 |
| Housing Material | Zinc-Alloy (WM4) / ABS Plastic (WP2) |
| Country of Origin | Made in China (Mainland) |
Ideal Applications
This RFID access control reader is perfectly suited for office buildings, apartment complexes, warehouses, parking facilities, school campuses, and any location requiring reliable, weather-resistant entry management. Its low power draw makes it easy to integrate into existing security systems without costly infrastructure upgrades.
For more information on physical security standards and best practices for access control systems, visit NIST Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: What card types are compatible with this 125KHz RFID access control reader?
A: This reader is designed to work with standard 125KHz EM cards (ID-type proximity cards). These are among the most widely used access cards and are readily available from most security hardware suppliers.
Q: Can this RFID reader be installed outdoors in rain or direct weather exposure?
A: Yes. The reader carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand submersion in up to 1 meter of water for 30 minutes. Its solid epoxy-potted construction and anti-vandal housing make it suitable for exterior doors, gates, and other outdoor locations.
Q: How many users can be stored in the system?
A: The system supports up to 2000 unique user cards, making it ideal for medium to large-scale access control deployments such as office buildings, apartment blocks, and warehouses.
Q: What voltage is required to power this RFID reader?
A: The reader operates on DC 12V to 24V, offering flexible compatibility with most standard access control power supplies. Its low standby current (under 30mA) also means minimal impact on your overall power budget.
Q: How is the system programmed?
A: Programming is carried out via an infrared remote control, allowing convenient, contact-free configuration. Admin cards are also included to simplify user enrollment and management.
