IP67 Waterproof RFID Access Control System Kit – Standalone Metal Keypad, Electronic Lock, Exit Button & Keyfobs
Upgrade your entrance security with this comprehensive IP67-rated RFID Access Control System Kit by Asia-Teco. Engineered for both indoor and outdoor use, this all-in-one kit features a rugged zinc alloy backlit metal keypad, an electronic lock, an exit button, a power supply, and 10 RFID keyfobs — everything you need to secure offices, residences, warehouses, and more right out of the box.
Made in Mainland China.
Why Choose This Access Control Kit?
- IP67 Weatherproof Rating – Fully protected against dust ingress and temporary water submersion, making it ideal for outdoor entrances and exposed environments.
- Zinc Alloy Anti-Vandal Keypad – Electroplated zinc alloy housing resists tampering, corrosion, and physical damage for long-lasting reliability.
- Backlit Metal Keys – Illuminated keys ensure easy use day and night, even in low-light conditions.
- 1,000 User Capacity – Supports up to 1,000 authorized users via Card, PIN, or Card + PIN authentication modes.
- Standalone Operation – No PC or additional controller required; full programming is done directly from the keypad.
- Wiegand 26 In/Out – Compatible with external readers (input) and access controllers (output) for scalable integrations.
- Fail-Secure Mode – Lock remains engaged if power is lost, keeping your premises secure at all times.
- Ultra-Fast Response – Processes credentials in under 20ms, even with up to 2,000 users stored.
- Ultra-Low Power Consumption – Operates at just 30mA standby current, reducing energy costs.
- Built-In Anti-Tamper LDR – Light-dependent resistor triggers an alarm if the unit is forcibly removed from the wall.
- Built-In Buzzer & Tri-Color LEDs – Red, yellow, and green LEDs plus an audible buzzer provide clear status feedback at a glance.
- Adjustable Timers – Customize door output time, alarm duration, and door-open monitoring time to match your workflow.
- Doorbell Support – Integrated doorbell functionality for visitor notification.
- Short-Circuit Protection – Lock output is protected against current short circuits, safeguarding connected hardware.

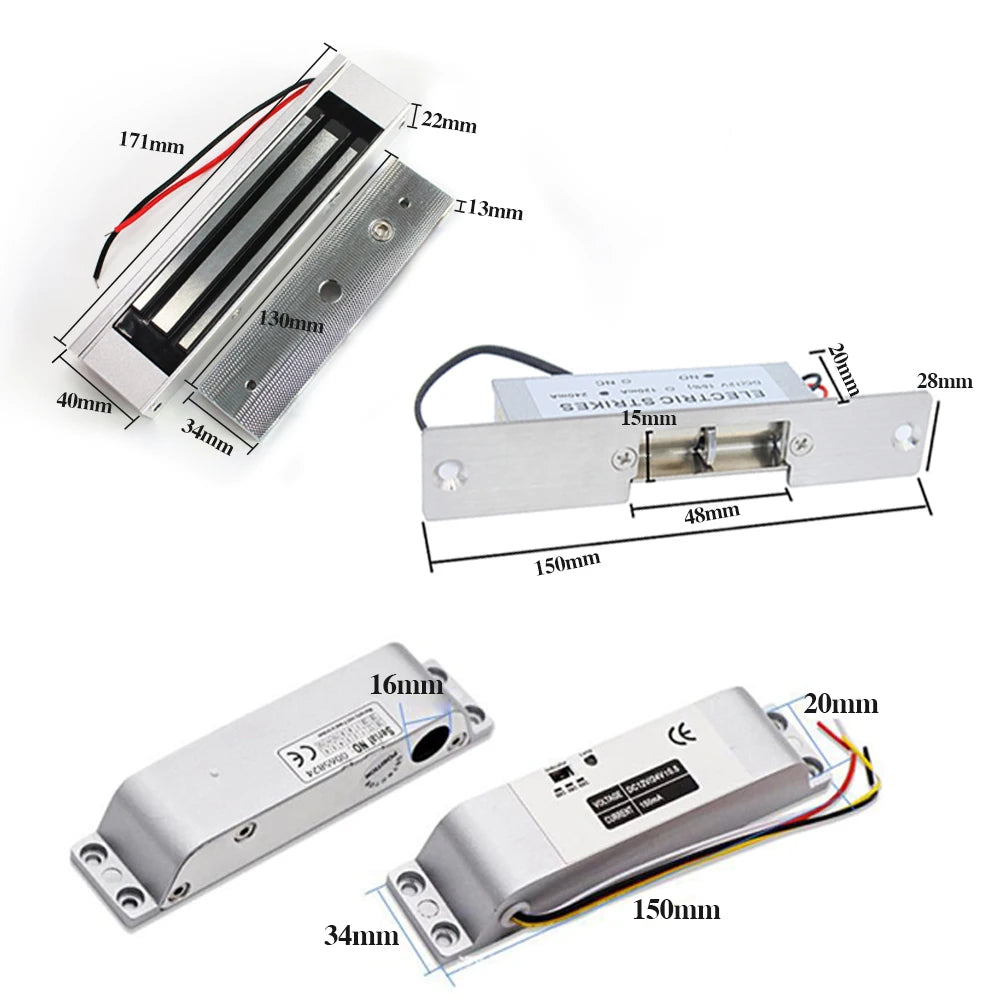

Kit Options Available
Choose the configuration that best suits your door type:

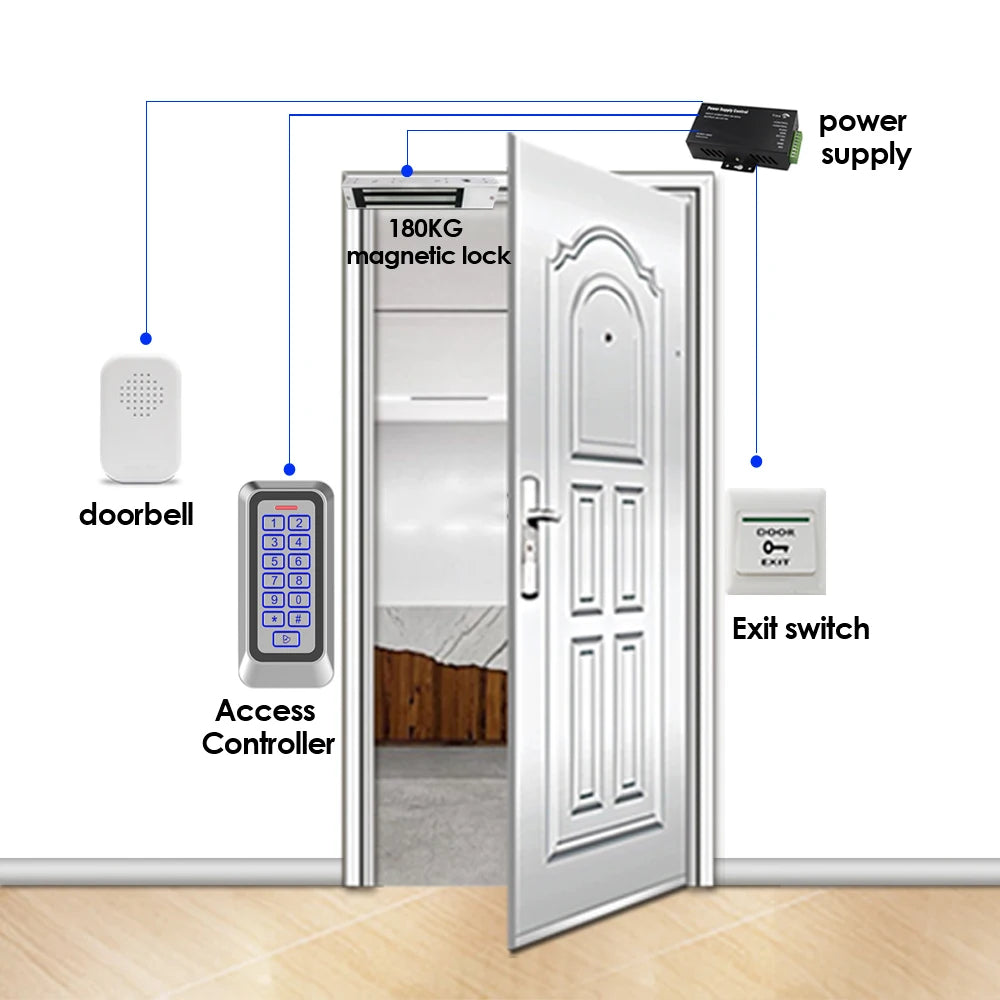

- Kit 1: Keypad + Power Supply + Electric Strike Lock + Doorbell + Exit Button + 10 Keyfobs — ideal for wooden or metal doors (no bracket needed).
- Kit 2: Keypad + Power Supply + 180KG Magnetic Lock + ZL Bracket + Exit Button + Doorbell + 10 Keyfobs — for doors requiring a ZL bracket.
- Kit 3: Keypad + Power Supply + 180KG Magnetic Lock + Exit Button + Doorbell + 10 Keyfobs — for doors where no bracket is needed.
- Kit 4: Keypad + Power Supply + 180KG Magnetic Lock + U-Bracket + Exit Button + Doorbell + 10 Keyfobs — designed for frameless glass doors.
- Kit 5: Keypad + Power Supply + Electric Lock + Exit Button + Doorbell + 10 Keyfobs — built-in install for glass doors.
- Kit 6: Keypad + Power Supply + Electric Drop Bolt Lock + Exit Button + Doorbell + 10 Keyfobs — suitable for wooden, metal, and stainless steel doors (no bracket needed).
Technical Specifications
| Brand | Asia-Teco (Model: M6-Kits) |
| Keypad Material | Zinc Alloy (Electroplated) |
| Waterproof Rating | IP67 |
| User Capacity | 1,000 users |
| Authentication Modes | Card, PIN, Card + PIN |
| Security Mode | Fail Secure |
| Wiegand Interface | Wiegand 26 (In & Out) |
| Keypad Power Consumption | 30mA (standby) |
| Processing Speed | <20ms (up to 2,000 users) |

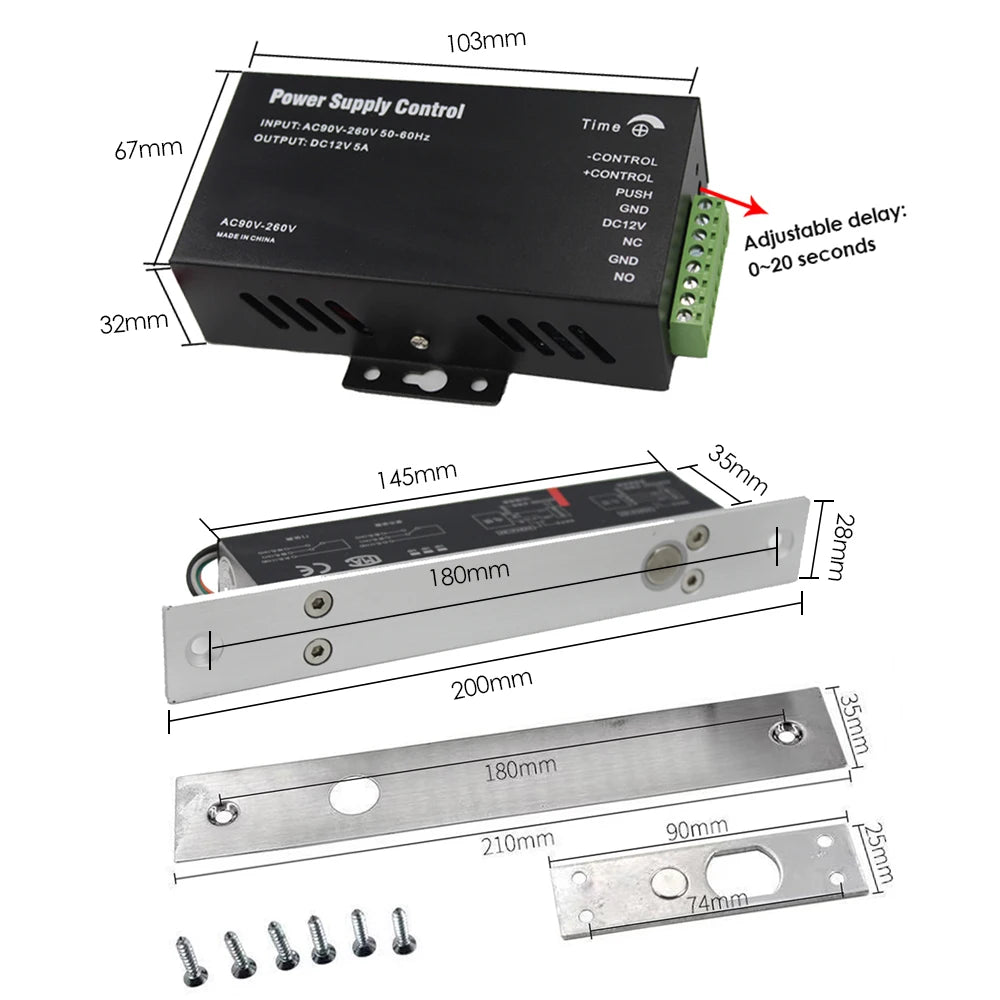

| Power Supply Input | AC 90V–260V → DC 12V / 5A |
| Power Supply Output | DC 12V, Working Current: 3.5A, Rated Power: 42W |
| Power Supply Adjustable Delay | 0–20 seconds |
| Power Supply Size | 103 × 67 × 32 mm |
| Keyfob Frequency | 125 kHz (ID card) |
| Keyfob Read Range | 2–10 cm |
| Keyfob Size | 65 mm diameter |
| Exit Button Material | PC Flame Retardant |
| Exit Button Size | 86 × 86 mm |
| Doorbell Material | ABS Flame Retardant |
| Doorbell Power | DC 12V |
| Doorbell Size | 80 × 50 × 20 mm |
| Lock Time Delay | 0, 3, or 6 seconds (adjustable) |
| Lock Start Current | 1.1A |
| Lock Working Current | 0.14A |
| Compatible Doors | Glass, Wooden, Metal, Security, Stainless Steel |
| Origin | Mainland China |
What's Included
Exact package contents vary by kit selection. Refer to the Kit Options section above for full details. All kits include the RFID Metal Keypad, Access Control Power Supply, Electronic Lock (type varies), Doorbell, Exit Button, and 10× RFID Keyfobs.
For guidance on physical security standards and best practices for access control installations, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the RFID access control keypad suitable for outdoor installation?
A: Yes. The keypad carries an IP67 waterproof rating, meaning it is fully sealed against dust and can withstand temporary water immersion. Its zinc alloy anti-vandal construction makes it an excellent choice for outdoor gates, building entrances, and exposed door frames.
Q: What access methods does this RFID access control system support?

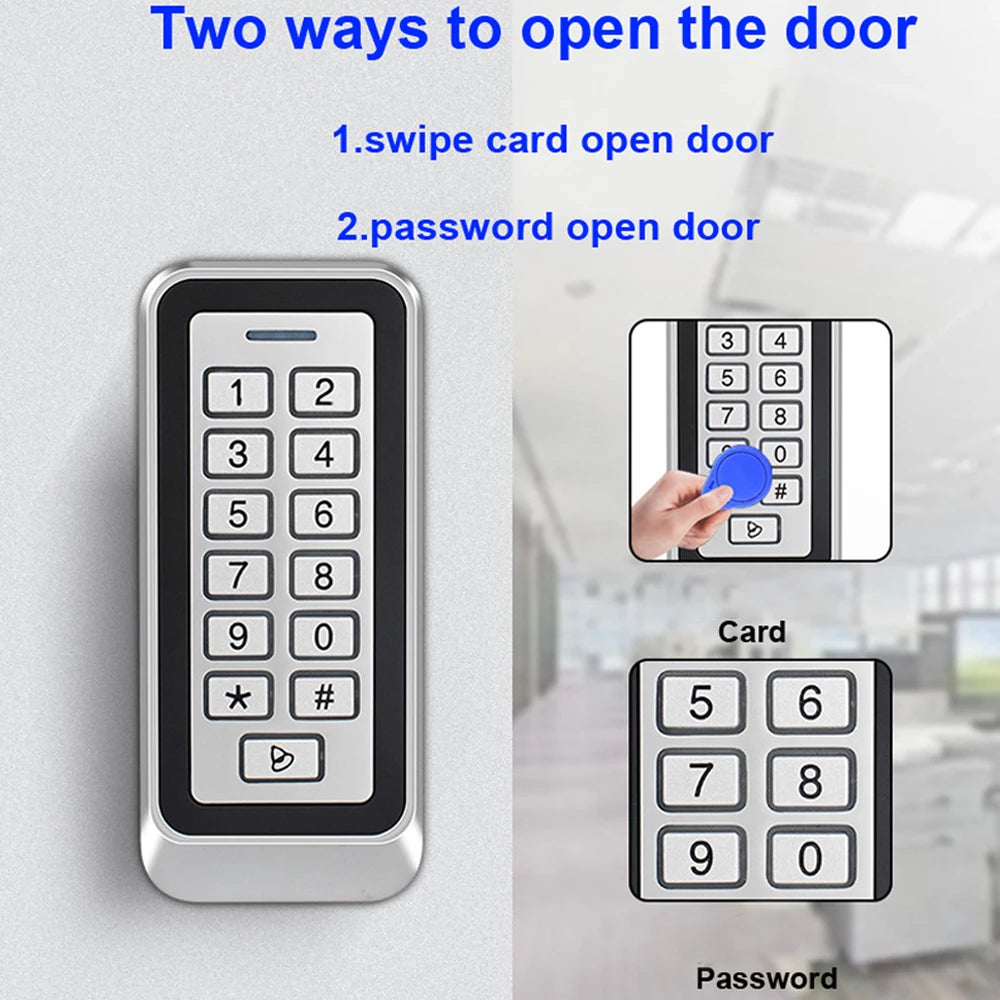

A: The system supports three authentication methods: RFID Card only, PIN code only, or a dual-verification Card + PIN mode for enhanced security. Up to 1,000 individual users can be enrolled directly from the keypad — no external software or computer is required.
Q: Can I integrate this keypad with an existing access control system?
A: Yes. The keypad features both Wiegand 26 input (to accept signals from an external RFID reader) and Wiegand 26 output (to send data to an external access controller), making it compatible with most standard access control infrastructure.
Q: Which door types are compatible with this access control kit?
A: The kit is compatible with a wide range of door types including wooden doors, metal doors, stainless steel doors, framed glass doors, and frameless glass doors. Different kit options (Kit 1 through Kit 6) include the appropriate lock type and bracket for each door configuration.
Q: What happens to the lock if power is lost?
A: The system operates in Fail-Secure mode. In the event of a power outage, the electronic lock remains in its locked (secured) state, ensuring that unauthorized access cannot occur during a power interruption.
