IP67 Outdoor RFID Keypad Access Control Kit – 3000 Users
IP67 Outdoor RFID Keypad Access Control Kit – 3000 Users
Asia-Teco IP67 Waterproof Outdoor Access Control System Kit
Secure any entrance with confidence. The Asia-Teco H2-X-EM Outdoor Access Control Kit combines a rugged IP67-rated metal keypad, a 125KHz RFID card reader, a Wiegand controller, and compatible locks into one complete, ready-to-install system. Built for demanding outdoor environments, this kit handles up to 3,000 registered users plus 10 visitor credentials — making it ideal for offices, warehouses, apartment buildings, parking facilities, and gated properties.
Made in Mainland China.
Why Choose This Access Control Kit?
- IP67 Waterproof Rating — Fully protected against dust ingress and temporary water immersion, ensuring reliable operation in rain, humidity, and extreme outdoor conditions.
- Zinc Alloy Metal Construction — Anti-vandal, anti-magnetic, and anti-explosion design stands up to physical tampering and harsh environments.
- Wide Temperature Range — Operates dependably from -40°C to +60°C (-40°F to +140°F), suitable for cold winters and hot summers alike.
- Large User Capacity — Store up to 3,000 EM card users and 10 visitor/guest users directly on the standalone controller — no PC required for day-to-day operation.
- Flexible Wiegand Interface — Supports Wiegand 26–44 bit, 56-bit, and 58-bit input/output, making it compatible with a wide range of third-party access control panels and systems.
- Multiple Authentication Modes — Use RFID card only, PIN code only, or card + PIN for multi-factor verification.
- Pulse & Toggle Output Modes — Configure the relay output to match your specific lock type and installation requirements.
- Easy Data Management — Upload and download card user data for streamlined administration across multiple entry points.
- Standalone Operation — Functions independently without an internet connection or centralized server for simple, reliable access management.
Technical Specifications
| Model | H2-X-EM Kits |
| Brand | Asia-Teco |
| Card Frequency | 125 KHz (EM Card) |
| User Capacity | 3,000 registered users + 10 visitor users |

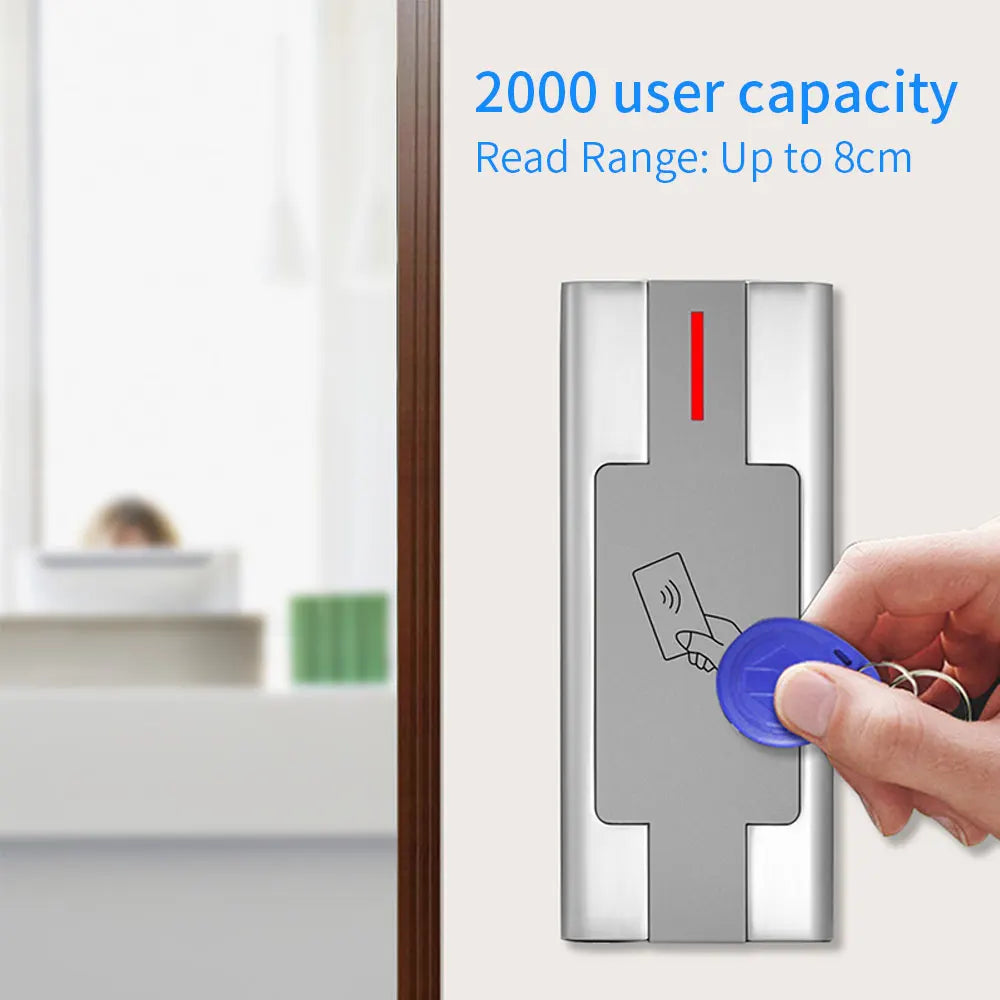

| Read Range | 30 – 80 mm |
| Operating Voltage | DC 10–24V |
| Active Current | <150 mA |
| Idle Current | <45 mA |
| Operating Temperature | -40°C to +60°C |
| Waterproof Rating | IP67 |
| Wiegand | 26–44 bit, 56 bit, 58 bit input/output; EM Wiegand 26-bit |
| Output Modes | Pulse Mode / Toggle Mode |
| Housing Material | Zinc Alloy |
| Country of Origin | Mainland China |

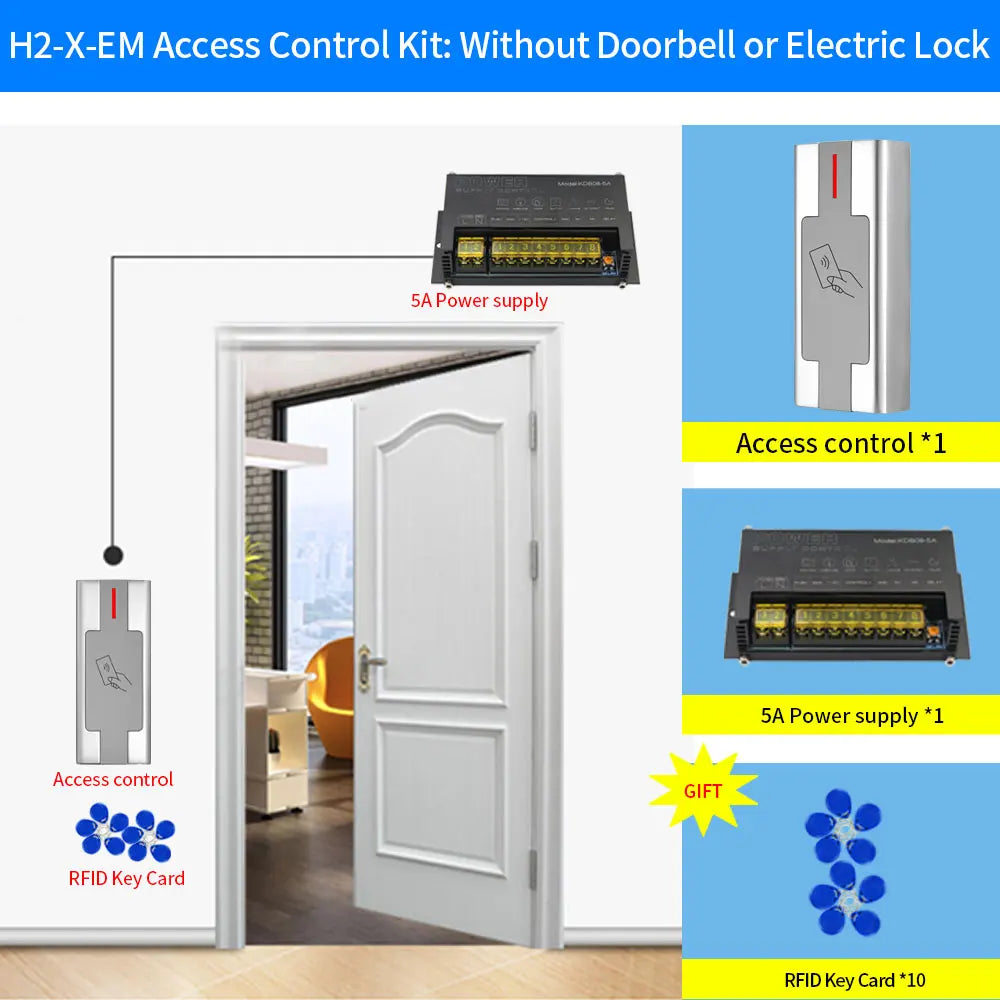

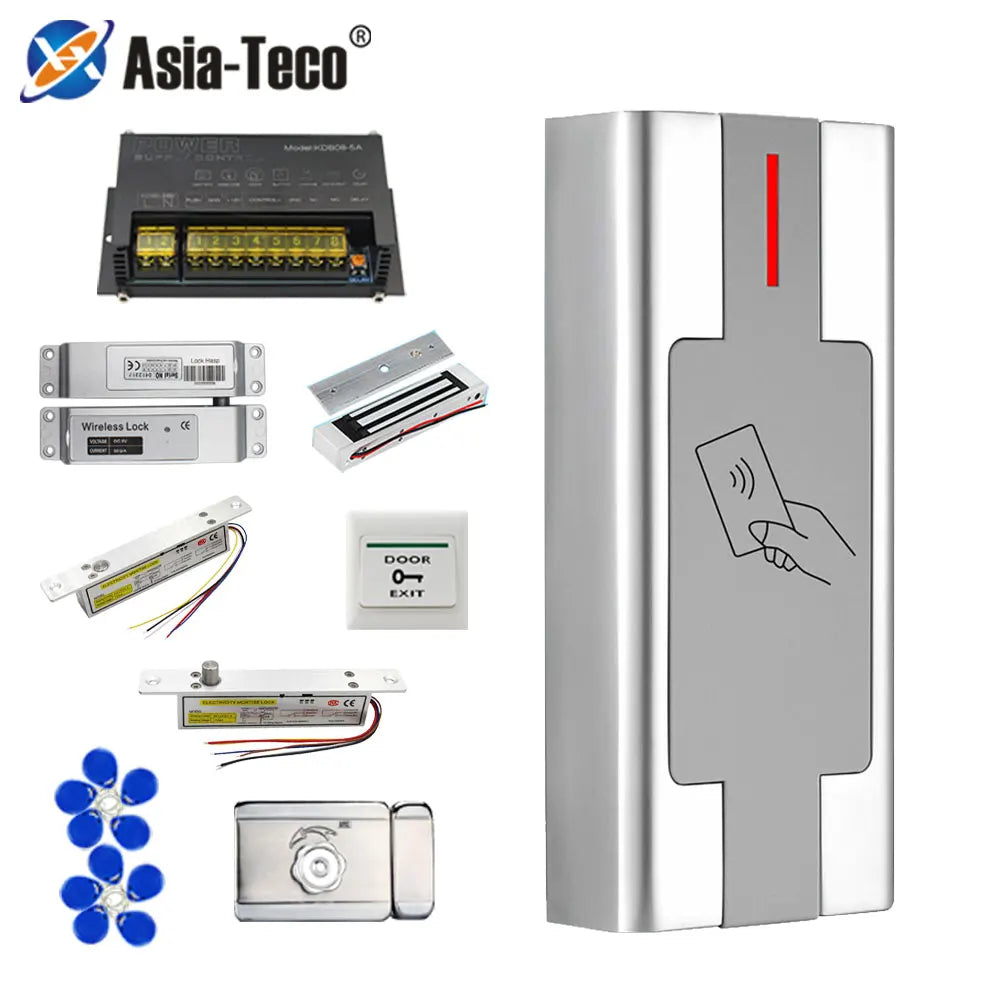

What's Included
- IP67 Metal RFID Keypad (H2-X-EM)
- Wiegand Access Controller
- Compatible Lock Hardware
- Mounting Hardware & Accessories
Ideal Applications
- Office & commercial building entrances
- Apartment complexes & residential gates
- Parking garages & vehicle barriers
- Warehouses & industrial facilities
- Schools & institutional campuses
For guidance on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Access control
Frequently Asked Questions
Q: Does this outdoor RFID access control kit require an internet connection to operate?
A: No. The Asia-Teco H2-X-EM is a fully standalone access control system. It stores all card user data (up to 3,000 users) directly on the controller and operates independently without Wi-Fi, Ethernet, or cloud connectivity. This makes it reliable even during network outages.
Q: What type of RFID cards are compatible with this keypad reader?
A: This kit is designed for 125 KHz EM-format RFID cards and key fobs. It is not compatible with 13.56 MHz MIFARE or other high-frequency card formats. Please ensure your cards match the 125 KHz EM standard before purchasing.
Q: Can I integrate this keypad with my existing access control panel using Wiegand?
A: Yes. The H2-X-EM supports Wiegand 26–44 bit, 56-bit, and 58-bit input and output, making it compatible with most standard access control panels that accept a Wiegand interface. It can also be configured to function as a standalone reader-controller without an external panel.
Q: Is this access control keypad truly waterproof for outdoor installation?
A: Yes. The keypad is rated IP67, which means it is fully protected against dust and can withstand temporary submersion in water up to 1 meter for 30 minutes. It is also built with zinc alloy metal for anti-vandal durability, making it well-suited for exposed outdoor environments.
Q: What is the operating voltage and can I power it from a standard access control power supply?
A: The system operates on DC 10–24V, which is compatible with most standard access control power supplies available on the market. The active current draw is under 150 mA, making it energy-efficient for continuous operation.
