Asia-Teco MJ03 IP67 Outdoor NFC Fingerprint Keypad | TTLock
Asia-Teco MJ03 IP67 Outdoor NFC Fingerprint Keypad | TTLock

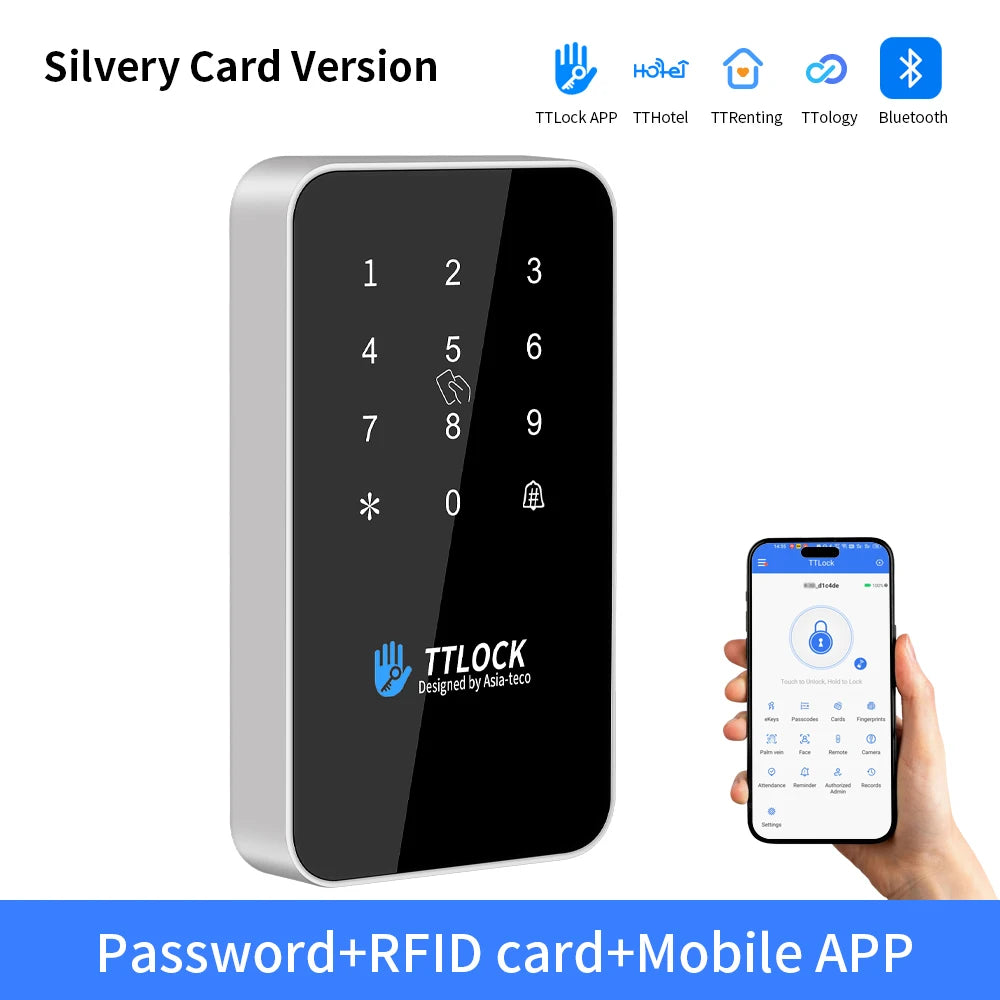

Asia-Teco MJ03 IP67 Outdoor Smart Access Controller with Fingerprint, NFC & TTLock App
Take full control of who enters your property with the Asia-Teco MJ03 Outdoor Access Controller — a weatherproof, multi-method entry system built for homes, offices, gates, and commercial entrances. Featuring IP67-rated dust and water resistance, Bluetooth 5.0 BLE, and compatibility with the TTLock app, this smart keypad delivers robust security with everyday convenience.
Unlock your door or gate using your fingerprint, a password, an NFC/IC card, or directly from the TTLock smartphone app — all in as little as 1.5 seconds. Whether you're managing access for family, staff, or guests, the MJ03 supports up to 100 fingerprints, 250 permanent and defined passwords, unlimited dynamic (one-time) passwords, and up to 1,000 IC cards.
Note: Remote management via the TTLock app requires the TTLock G2 Bluetooth Gateway (sold separately). Without the gateway, the device operates locally via Bluetooth within range of your smartphone.
Key Features

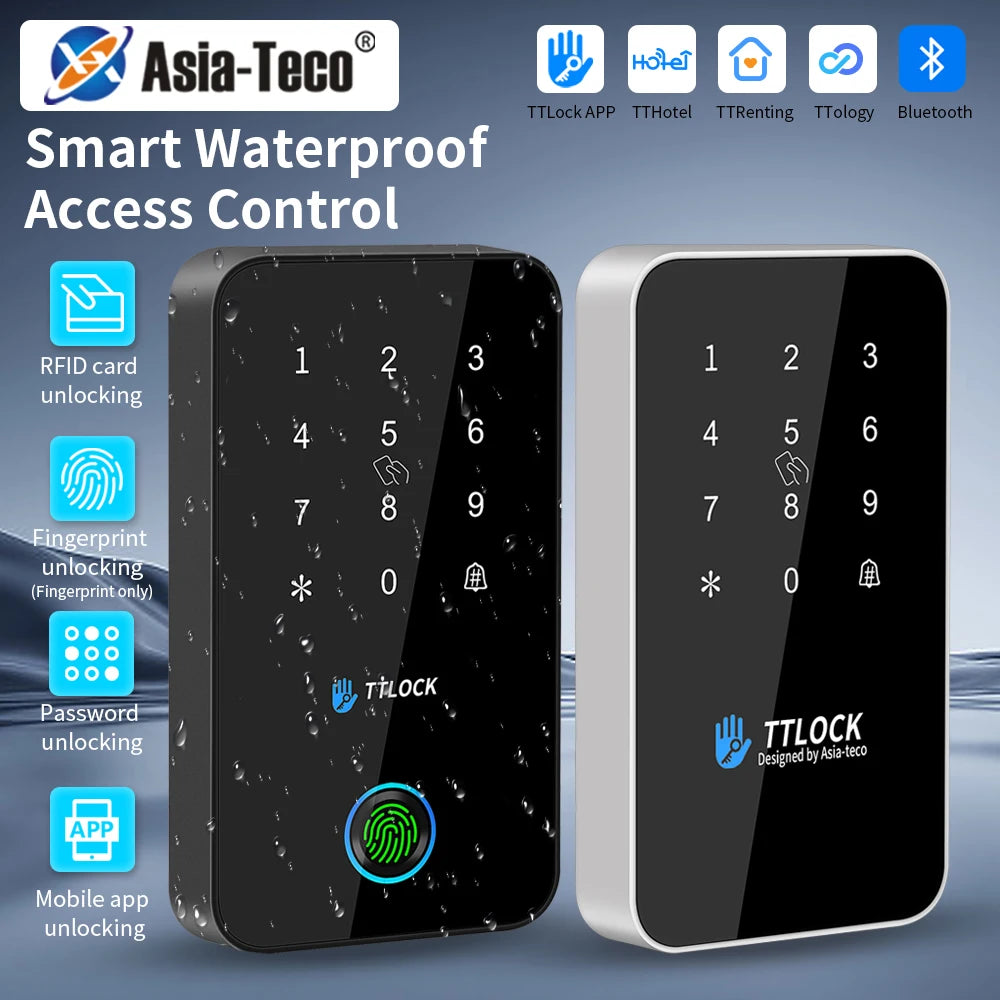

- IP67 Weatherproof Rating — fully protected against dust and water immersion, ideal for outdoor installations

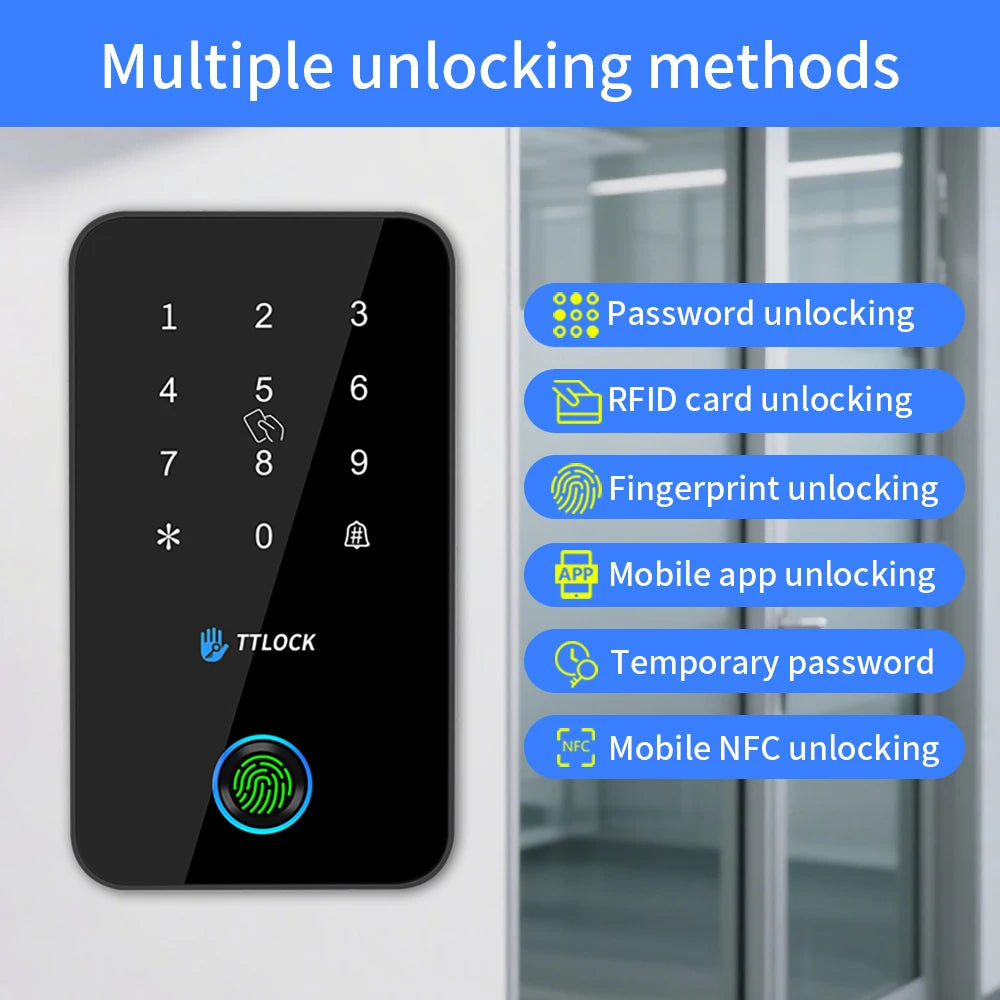

- 4-in-1 Unlock Methods — fingerprint, password, NFC/IC card (13.56 MHz MIFARE M1), and TTLock app
- Bluetooth 5.0 BLE — fast, stable wireless connectivity with low energy consumption
- Large User Capacity — 100 fingerprints, 250 passwords, 1,000 IC cards, unlimited dynamic passwords
- Capacitive Touch Keypad — smooth, responsive touch buttons with a sleek ABS + acrylic panel
- Wide Temperature Range — operates from -20°C to 70°C for year-round outdoor reliability
- TTLock App Compatible — manage users, set time-limited access, view entry logs, and more from your phone
- G2 Gateway Ready — add the optional G2 Gateway for full remote management from anywhere
- CE & FCC Certified — meets international safety and electromagnetic compliance standards
- DC 12V Power Supply — standard low-voltage wiring for easy installation
Technical Specifications
| Model | MJ03-TTLOCK |
| Bluetooth | Bluetooth 5.0 BLE |
| NFC Frequency | 13.56 MHz (MIFARE M1 Card) |

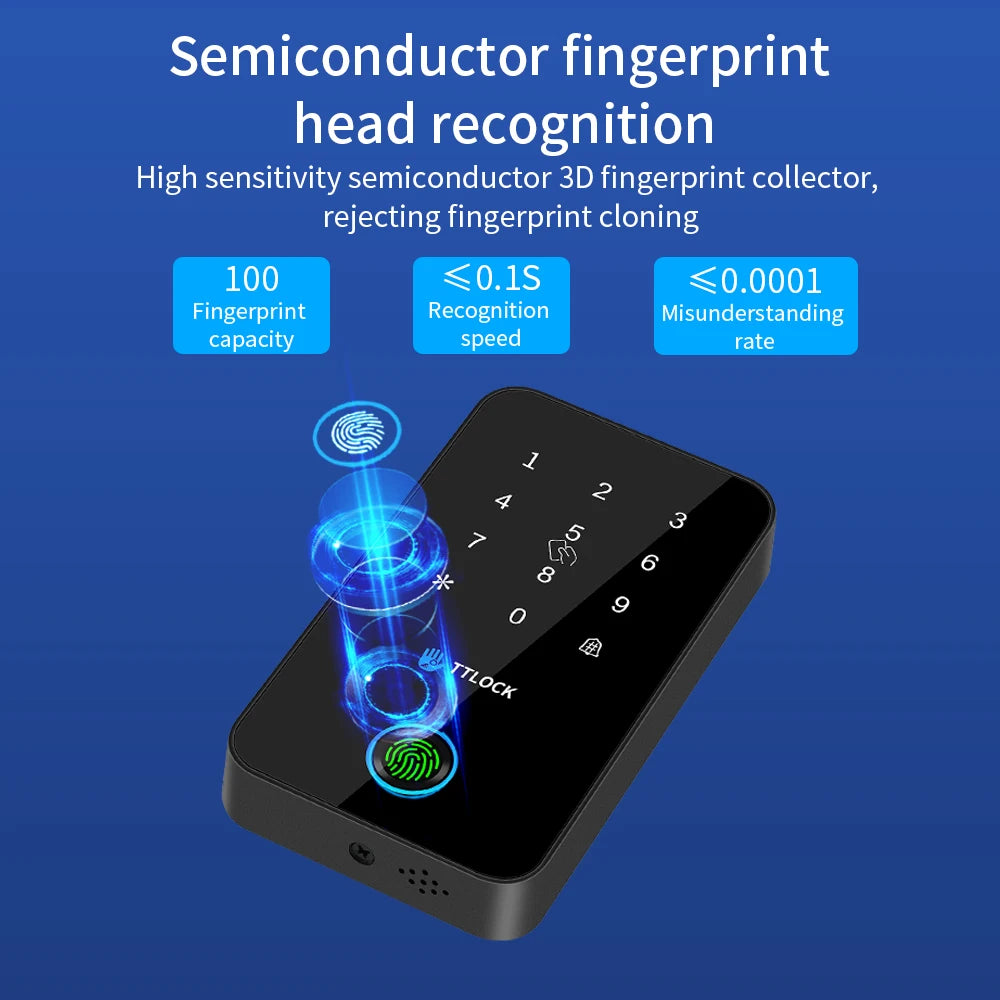

| Fingerprint Capacity | 100 |
| Password Capacity | 250 (permanent/defined) + unlimited dynamic |
| IC Card Capacity | 1,000 |
| Unlock Time | ~1.5 seconds |
| Power Supply | DC 12V |
| Standby Current | 85 mA |
| Working Current | 1 A |
| Operating Temperature | -20°C to 70°C |
| Material | ABS + Acrylic Panel |
| IP Rating | IP67 |
| Certification | CE, FCC |
| Country of Origin | Made in China |
Who Is This For?
The Asia-Teco MJ03 is ideal for residential gates, apartment buildings, office entrances, garages, warehouses, and any outdoor access point where you need reliable, contactless entry management. Its multi-user capacity and app-based management make it equally suited for small businesses and smart home setups.
For more information on electronic access control best practices and standards, visit the NIST Cybersecurity Resources.
Frequently Asked Questions
Q: Do I need the TTLock G2 Gateway to use the Asia-Teco MJ03 access controller?
A: No — the MJ03 works standalone via Bluetooth using the TTLock app on your smartphone when you're within Bluetooth range. However, if you need remote access management (e.g., unlocking or managing users from anywhere over the internet), you will need to purchase the TTLock G2 Bluetooth Gateway separately and connect it to your Wi-Fi network.
Q: What card types does the MJ03 support?
A: The MJ03 supports 13.56 MHz MIFARE M1 IC cards — the most widely used standard for access control cards and key fobs. It can store up to 1,000 registered cards simultaneously.
Q: Is the MJ03 keypad truly weatherproof for outdoor use?
A: Yes. The MJ03 carries an IP67 rating, meaning it is fully protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. It also operates reliably across a wide temperature range of -20°C to 70°C, making it suitable for most outdoor climates year-round.
Q: How many users can be registered on this access controller?
A: The MJ03 supports a generous user capacity: 100 fingerprints, 250 permanent or defined passwords, 1,000 IC cards, and unlimited dynamic (single-use) passwords — making it well-suited for both residential and small commercial environments.
Q: What power supply does the MJ03 require?
A: The MJ03 runs on a standard DC 12V power supply with a standby current of 85 mA and a working current of 1 A. It is typically wired directly to a 12V power adapter or integrated into an existing access control power system.
