IP67 Guard Tour Patrol Recorder System – Professional Security Monitoring with RFID Checkpoint Tags
Take your security patrol operations to the next level with the Z-6600T Guard Tour Patrol Recorder. Built from durable aluminum alloy and rated IP67 waterproof, this rugged device is engineered for demanding environments. With contactless 125kHz RFID reading, 80,000-record storage capacity, and free cloud software included, it delivers a complete, professional-grade guard monitoring and attendance solution right out of the box — no hidden software fees.
Made in Mainland China.
Key Features
- IP67 Waterproof Rating: Fully protected against dust and water immersion — built to perform in rain, humidity, and tough outdoor conditions.
- Contactless 125kHz RFID Technology: Non-contact reading of all standard 125kHz EM(ID) tags within 0–6 cm, with no blind spots.
- Massive 80,000-Record Storage: Log up to 80,000 patrol checkpoints before needing to transfer data — ideal for long shifts and high-frequency patrols.
- Free Cloud Software Included: Upload and manage patrol data via USB — no extra license or subscription required.

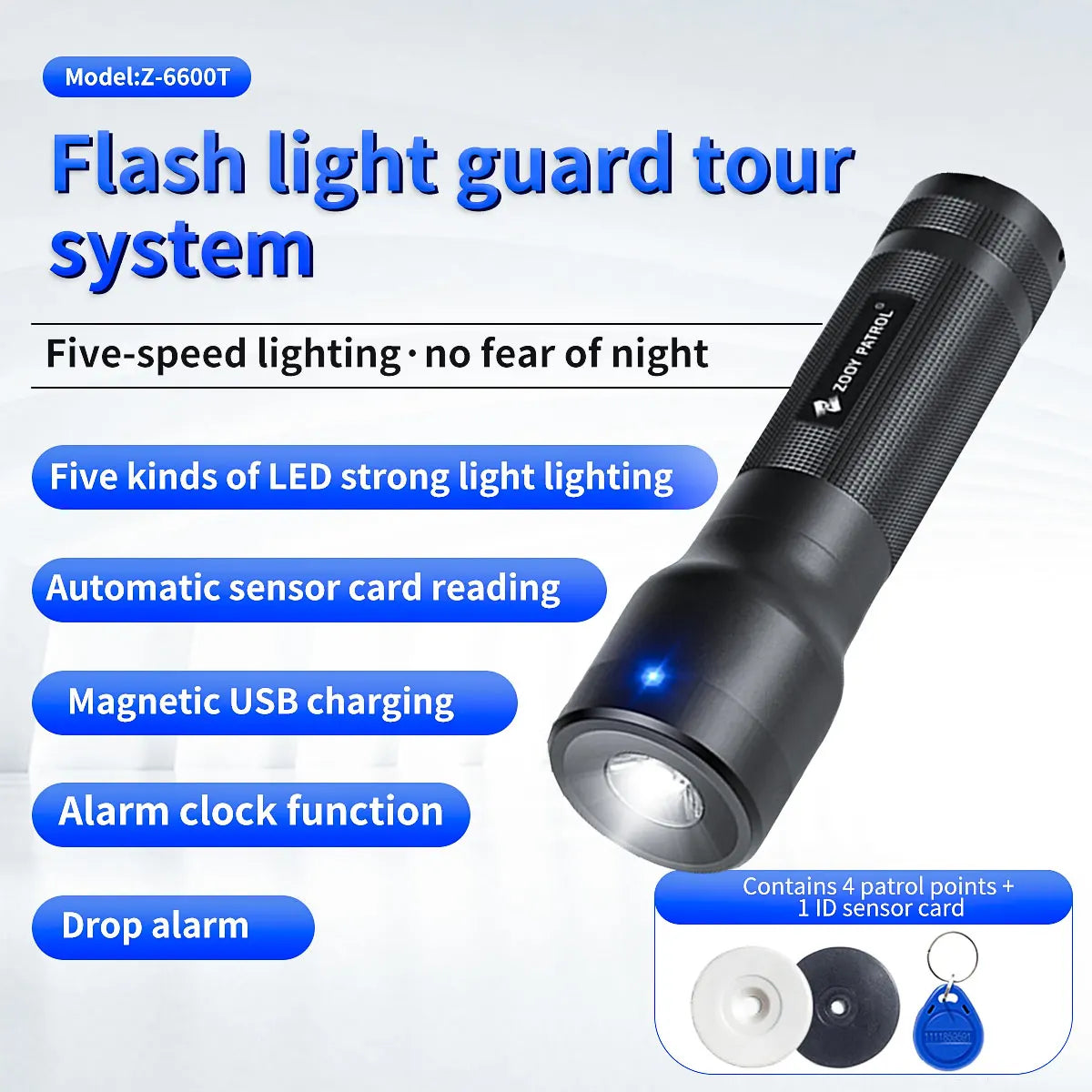

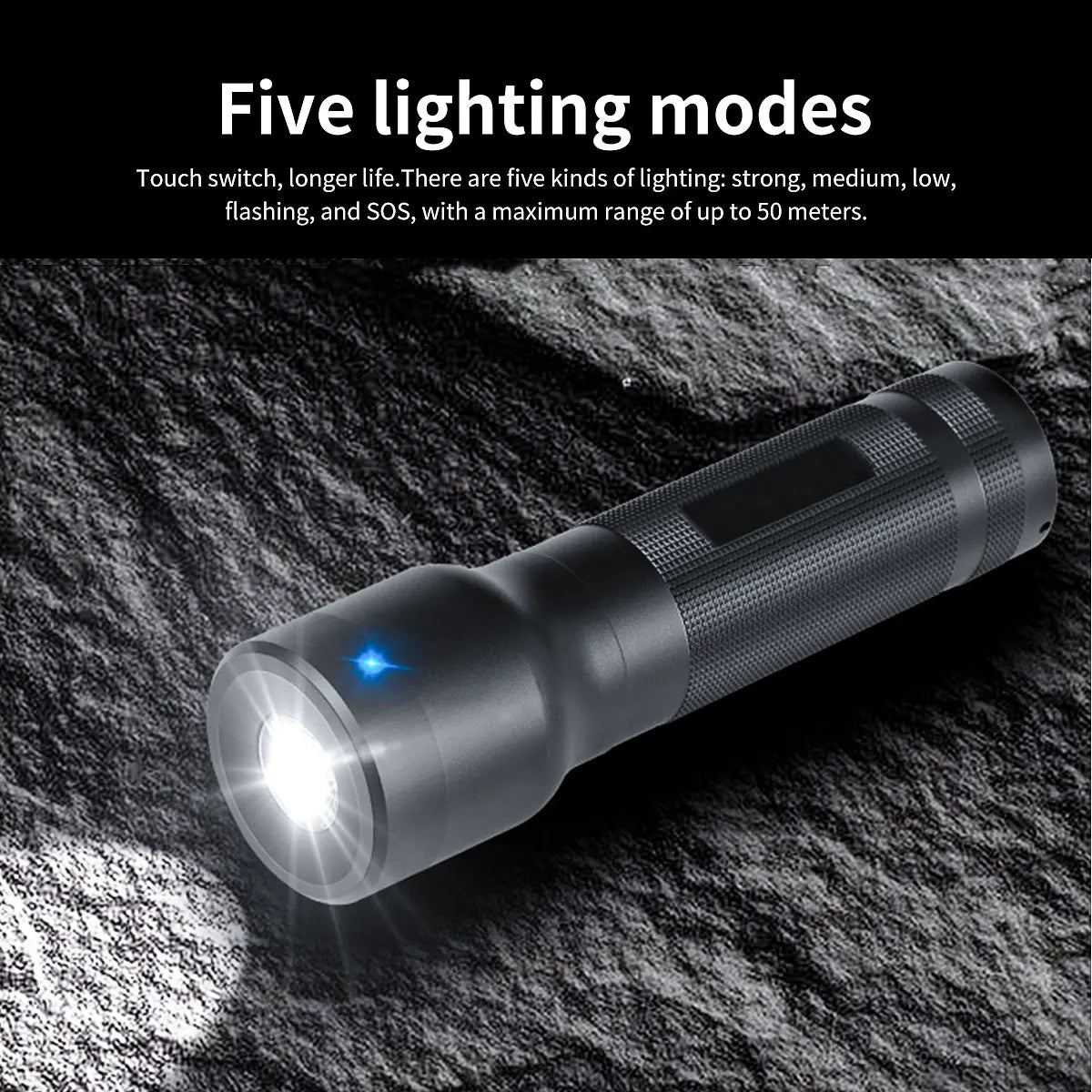

- Built-In 400-Lumen CREE LED Flashlight: Five modes — High / Medium / Low / Strobe / SOS — for enhanced visibility and emergency signaling.
- 4 RFID Checkpoint Tags Included: Start deploying immediately with four checkpoint tags right in the box.
- USB Rechargeable: Powered by a built-in 3.7V rechargeable lithium battery for convenient, cable-free charging.
- Aluminum Alloy Construction: Lightweight yet tough — weighs only 120g at L130 × φ28mm, easy to carry on any patrol.
Technical Specifications
| Model | Z-6600T |
| Reading Technology | 125kHz EM(ID) Proximity RFID |
| Material | Aluminum Alloy |
| Waterproof Grade | IP67 |
| Reader Mode | Non-contact |

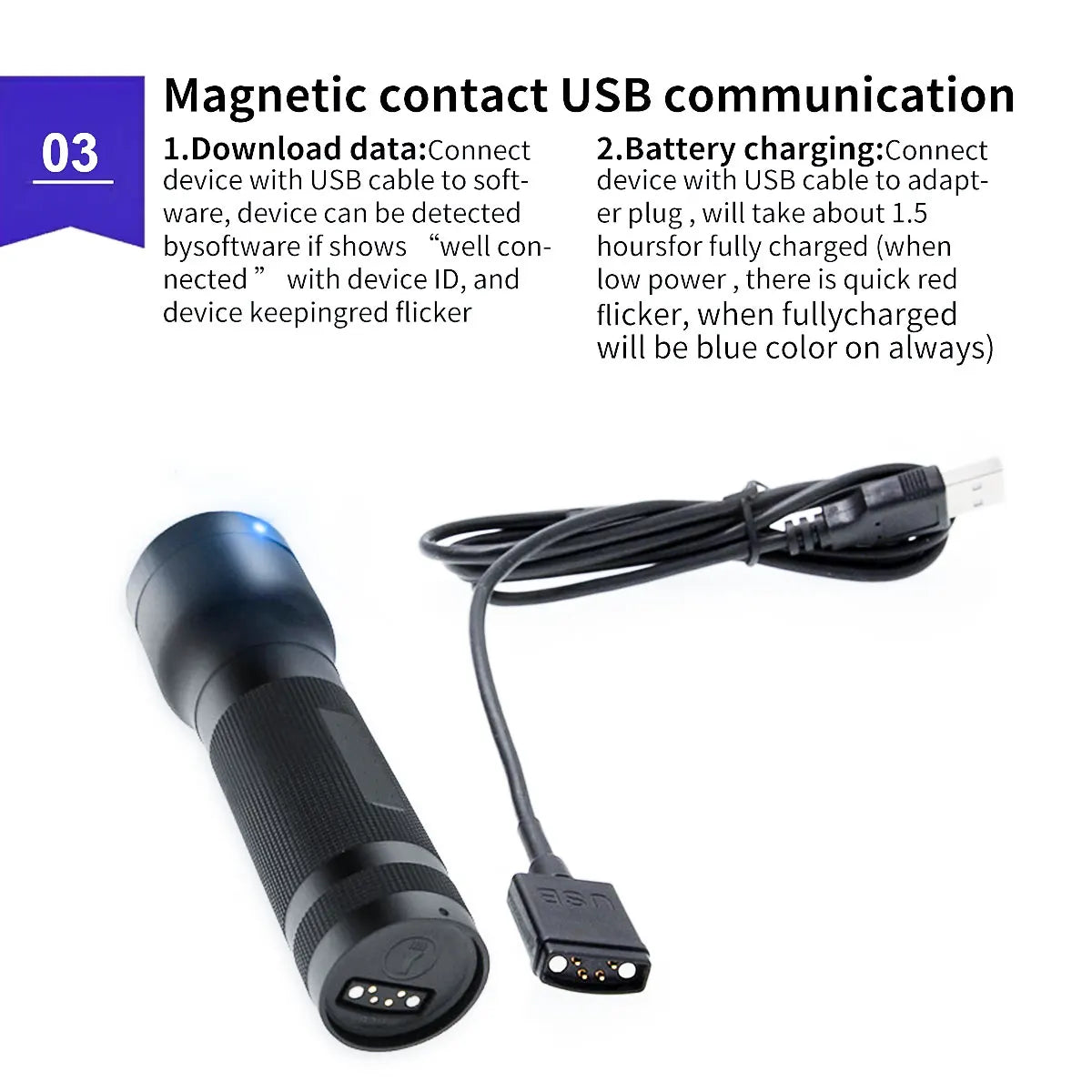

| Communication | USB Cable |
| Flashlight Modes | High / Medium / Low / Strobe / SOS (400 lumens CREE LED) |
| Storage Records | 80,000 |
| Baud Rate | 15,200 bps |
| Induction Distance | 0–6 cm (no blind spots) |
| Power Supply | 3.7V Built-in Rechargeable Lithium Battery |
| Dimensions | L130 × φ28mm |
| Net Weight | 120g |
| Country of Origin | Mainland China |
What's in the Box
- 1× Z-6600T Guard Tour Patrol Recorder
- 4× RFID Checkpoint Tags
- 1× USB Charging Cable
- Free Cloud Software (download)
Who Is This For?
This system is ideal for security companies, facility managers, property managers, warehouses, hospitals, schools, and industrial sites that need a reliable, verifiable, and tamper-evident record of guard patrols and attendance. The data-driven approach ensures accountability and simplifies reporting.
For general guidance on physical security practices and electronic access control, visit the Cybersecurity and Infrastructure Security Agency or refer to NIST's security resources for standards-aligned best practices.
Frequently Asked Questions
Q: Does the Z-6600T guard tour patrol recorder work with existing RFID checkpoint tags I already have?
A: Yes! The Z-6600T uses standard 125kHz EM(ID) proximity technology, so it is compatible with virtually all 125kHz RFID tags currently on the market — not just the 4 included checkpoint tags. This makes it easy to expand your patrol route without being locked into a proprietary tag system.
Q: Is the software truly free, and how does data transfer work?
A: Yes, the cloud-based management software is completely free with no licensing fees or ongoing subscriptions. Simply connect the patrol recorder to your computer via the included USB cable, and the software will allow you to upload, view, and export all patrol records and attendance logs instantly.
Q: What does the IP67 waterproof rating mean for daily use?
A: An IP67 rating means the device is fully protected against dust ingress and can withstand immersion in up to 1 meter of water for 30 minutes. In practice, this means the recorder can handle heavy rain, splashes, accidental drops in puddles, and dusty or dirty environments without damage — making it well-suited for both indoor and outdoor patrol use.
Q: How many patrol records can the device store before I need to upload data?
A: The Z-6600T can store up to 80,000 records internally. For most facilities, this represents weeks or even months of patrol activity before a data upload is required, giving you maximum flexibility in scheduling data management tasks.
