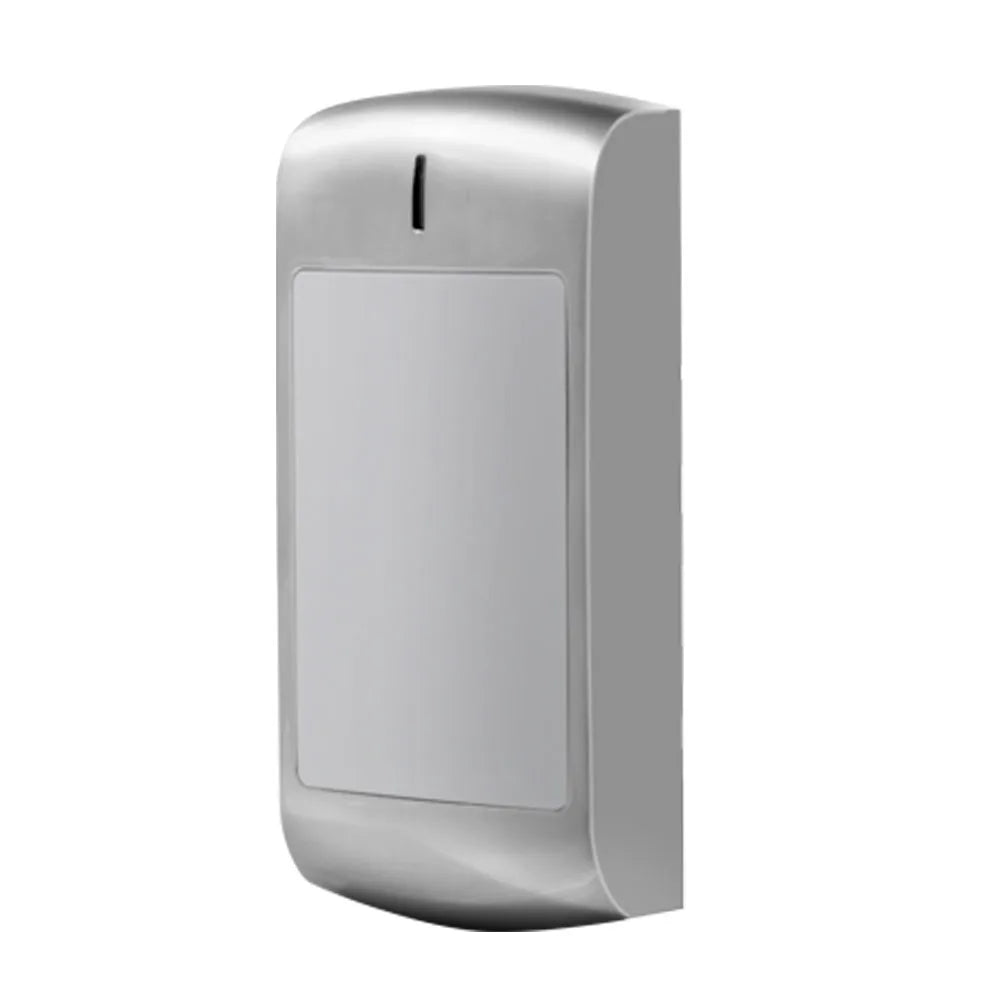

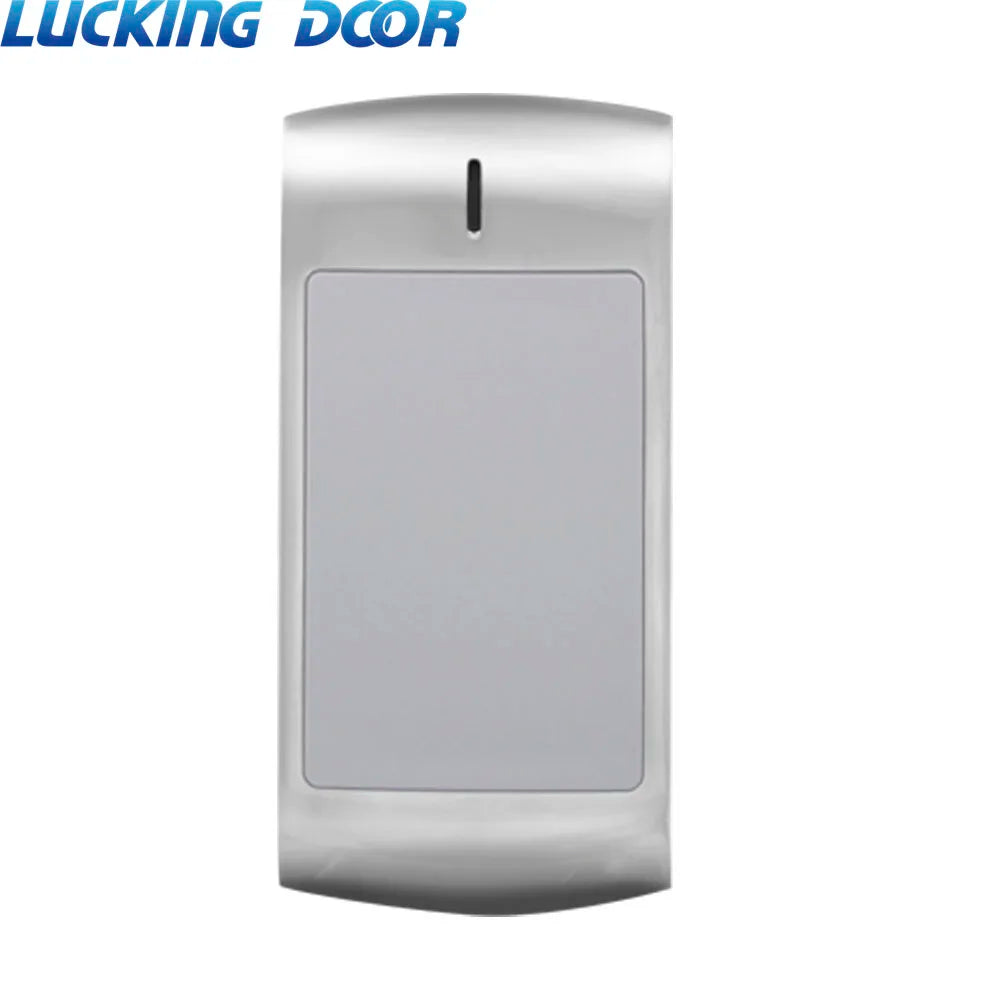

LUCKING DOOR IP66 Waterproof Dual-Frequency RFID Card Reader
Secure your entry points with the LUCKING DOOR X1-RX / X2-RX IK10 Metal Wiegand Card Reader — a ruggged, professional-grade access control reader built for both indoor and outdoor installations. Supporting both 125 KHz (EM & HID) and 13.56 MHz (NXP Mifare) card technologies simultaneously, this reader is the ideal single-device solution for modern door access systems.
Why Choose This RFID Access Control Reader?
- Dual-Frequency Reading: Reads 125 KHz HID & EM cards AND 13.56 MHz NXP Mifare, Mifare Plus, DESFire, Mifare Pro, Mifare UltraLight, and Mifare Classic 4K cards — all in one unit.
- IP66 Weatherproof Rating: Fully sealed against powerful water jets and heavy dust ingress, making it ideal for outdoor gates, parking structures, and exposed entryways.
- IK10 Anti-Vandal Metal Case: Engineered with a heavy-duty metal housing rated to IK10 impact resistance, deterring tampering and physical damage in high-traffic or vulnerable locations.
- Flexible Wiegand Output: Outputs Wiegand 26–44, 56, and 58-bit formats, ensuring compatibility with a wide range of access control panels and door lock systems.
- Wide Operating Range: Functions reliably from -40 °C to 60 °C (-40 °F to 140 °F) and in humidity levels from 10% to 98% RH — engineered for harsh environments.
- External LED & Buzzer Control: Supports external LED indicator and buzzer control for clear, customizable user feedback.
- Low Standby Current: Draws less than 25 mA in standby, keeping your system energy-efficient around the clock.
Technical Specifications
| Model | X1-RX / X2-RX |
| Operating Voltage | 9–24V DC |
| Frequency | 125 KHz & 13.56 MHz |
| Card Types Supported | 125 KHz: EM & HID cards; 13.56 MHz: NXP Mifare, Mifare Plus, DESFire, Mifare Pro, Mifare UltraLight, Mifare Classic 4K |
| Reading Distance | 3–8 cm |
| Output Format | Wiegand 26–44, 56, 58 bits |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10%–98% RH |
| Standby Current | < 25 mA |

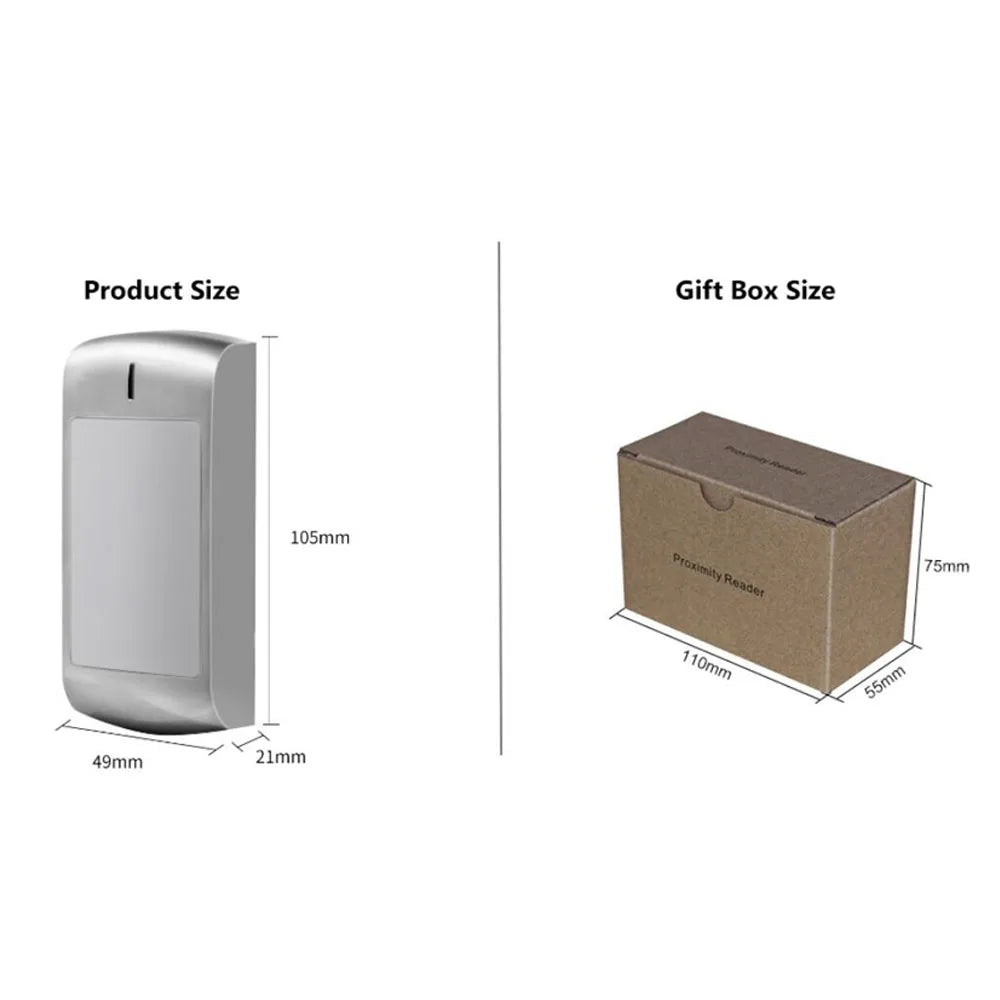

| Dimensions | 105 mm × 49 mm × 21 mm |
| Waterproof Rating | IP66 |
| Impact Rating | IK10 Anti-Vandal |
| Country of Origin | Made in Mainland China |
Ideal Use Cases
- Office building and commercial entry doors
- Outdoor gates, parking garages, and barriers
- Industrial facilities requiring harsh-environment hardware
- Residential complexes and gated communities
- Schools, hospitals, and public buildings
For general guidance on physical security and access control standards, visit the NIST Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: What card types does this RFID access control reader support?
A: This dual-frequency reader supports both 125 KHz cards (including EM and HID formats) and 13.56 MHz cards (including NXP Mifare, Mifare Plus, DESFire, Mifare Pro, Mifare UltraLight, and Mifare Classic 4K). This wide compatibility makes it suitable for most modern access control systems without requiring card replacements.
Q: Is this RFID card reader suitable for outdoor installation?
A: Yes. The reader is rated IP66 for weather resistance — meaning it is protected against powerful water jets and dust ingress — and IK10 for impact and anti-vandal protection. It operates in temperatures from -40 °C to 60 °C, making it well-suited for outdoor gates, parking structures, and exposed entry points in any climate.
Q: What Wiegand output formats does this reader support?
A: The reader supports Wiegand output formats from 26 to 44 bits, as well as 56 and 58 bits. This broad compatibility ensures it can integrate seamlessly with most major access control panels and door lock systems available on the market.
Q: What voltage does the RFID reader require?
A: The reader operates on 9–24V DC, providing flexible power supply options that make it easy to integrate into both new installations and existing access control infrastructure.
