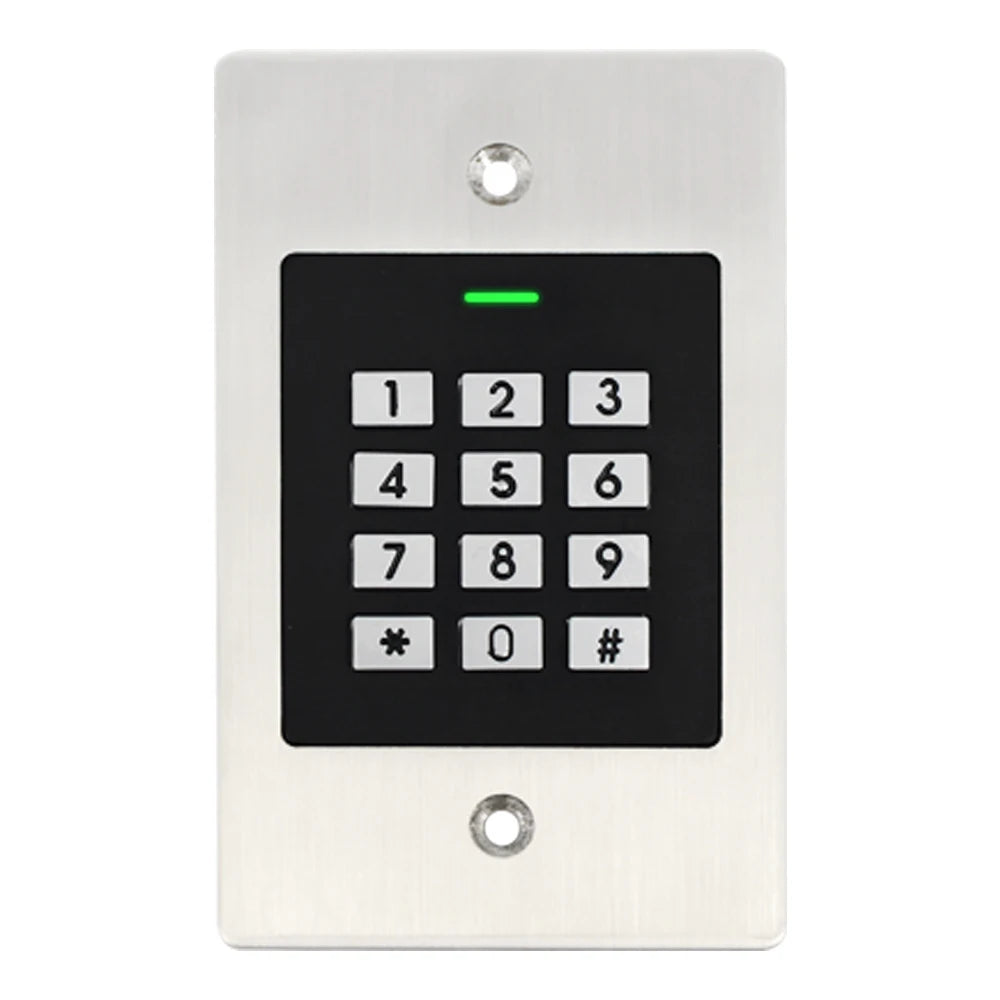

Asia-Teco EK2 – IP66 Waterproof Metal Embedded RFID Access Control System
Secure any entrance with the Asia-Teco EK2, a rugged all-in-one RFID access control unit built for demanding indoor and outdoor environments. Its stainless steel, embedded design resists tampering and withstands extreme weather, making it ideal for offices, warehouses, apartment buildings, gates, and more. Made in Mainland China.
Why Choose the EK2?
- IP66 Weatherproof Rating — fully protected against powerful water jets and dust ingress, purpose-built for outdoor installation.
- Anti-Vandal Metal Housing — heavy-duty stainless steel plate construction deters tampering and withstands harsh conditions.
- Flexible Access Modes — support for Card only, PIN only, or Card + PIN authentication to match your security requirements.
- 1,000-User Capacity — stores up to 990 normal users and 10 visitor users (cards or PINs).
- 125 KHz EM RFID Reader — reads proximity cards within 0–6 cm; compatible with standard EM-format credentials.
- Wiegand In & Out — Wiegand 26-bit output and 26/34-bit auto-identification input allow the EK2 to function as a standalone controller or as a Wiegand card reader for a third-party controller.
- 12-Key Backlit Keypad — easy PIN entry in low-light conditions.
- Adjustable Relay Output — one relay (NO/NC/Common) with 0–99 second adjustable lock output time (5-second default) and up to 2A load capacity.
- Wide Operating Range — functions from -40 °C to 60 °C (-40 °F to 140 °F) at 10%–90% RH.
- CE Certified — meets European conformity standards for safety and electromagnetic compatibility.
Full Technical Specifications
| Model | EK2 |
| User Capacity | 1,000 Cards/PINs (990 Normal + 10 Visitor) |
| Access Modes | Card, PIN, Card + PIN |
| Radio Technology | 125 KHz EM Proximity Card |
| Read Range | 0–6 cm |
| Keypad | 12 Keys |
| Wiegand Output | 26-bit |
| Wiegand Input | 26/34-bit Auto Identification |
| Relay | 1 (NO/NC/Common); 0–99 s adjustable; 2A max load |
| Operating Voltage | 12–18V DC |
| Idle / Active Current | 30 mA / 120 mA |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 10%–90% RH |
| Waterproof Rating | IP66 |
| Housing Material | Stainless Steel Plate |
| Color | Silver & Black |
| Dimensions | 115 × 70 × 25 mm |
| Unit Weight | 245 g |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office and commercial building entrances
- Residential apartment gates and doors
- Warehouses, storage facilities, and server rooms
- Parking garage pedestrian access points
- Schools, gyms, and community centers
For general guidance on physical access control security best practices, visit the Cybersecurity & Infrastructure Security Agency. For electrical installation safety standards applicable to this device, refer to OSHA Electrical Safety guidelines.
Frequently Asked Questions
Q: Can the Asia-Teco EK2 work as both a standalone controller and a Wiegand card reader?
A: Yes. The EK2 features both Wiegand input and output. It can operate as a fully standalone RFID access control unit managing up to 1,000 users on its own, or it can be connected to a third-party access control panel via its Wiegand 26-bit output, functioning purely as a card reader/keypad in that setup.
Q: What type of RFID cards are compatible with the EK2?
A: The EK2 is compatible with standard 125 KHz EM-format proximity cards and key fobs. It features an EM card reader with a read range of 0–6 cm. It does not support 13.56 MHz MIFARE or HID iCLASS cards.
Q: Is the EK2 suitable for outdoor installation in harsh climates?
A: Absolutely. The EK2 carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust. Its stainless steel anti-vandal housing and operating temperature range of -40 °C to 60 °C make it well-suited for year-round outdoor use in most climates.
Q: What locks can the EK2 control?
A: The EK2's onboard relay supports NO (normally open), NC (normally closed), and Common connections, handling up to 2 amps of lock output load. It is compatible with most electric strike locks and electromagnetic locks. The relay output time is adjustable from 0 to 99 seconds (default 5 seconds).
Q: What power supply does the EK2 require?
A: The EK2 operates on 12–18V DC. A suitable regulated power supply (not included) must be used. Idle current draw is 30 mA and active current draw is 120 mA, making it very energy-efficient.
