Asia-Teco EF4-EM IP66 Waterproof RFID Access Control Reader
Take full control of who enters your facility with the Asia-Teco EF4-EM Embedded Access Control Reader. Built for demanding indoor and outdoor environments, this stainless-steel unit supports up to 1,000 users via 125KHz RFID cards or PIN codes — all sealed inside a rugged IP66-rated metal enclosure that shrugs off rain, dust, and extreme temperatures from -30°C to 60°C.
Key Features
- IP66 Waterproof Rating — Fully protected against powerful water jets and heavy dust ingress, making it ideal for outdoor gates, parking garages, and building entrances.
- 1,000-User Capacity — Store up to 990 normal users and 10 visitor users using RFID cards or 4–6 digit PIN codes.
- 125KHz EM RFID Reader — Reads proximity cards at a range of 2–6 cm for fast, reliable access.
- Wiegand 26–44 Bit Interface — Seamlessly integrates with virtually any access control panel or controller via standard Wiegand output (factory default: WG26).

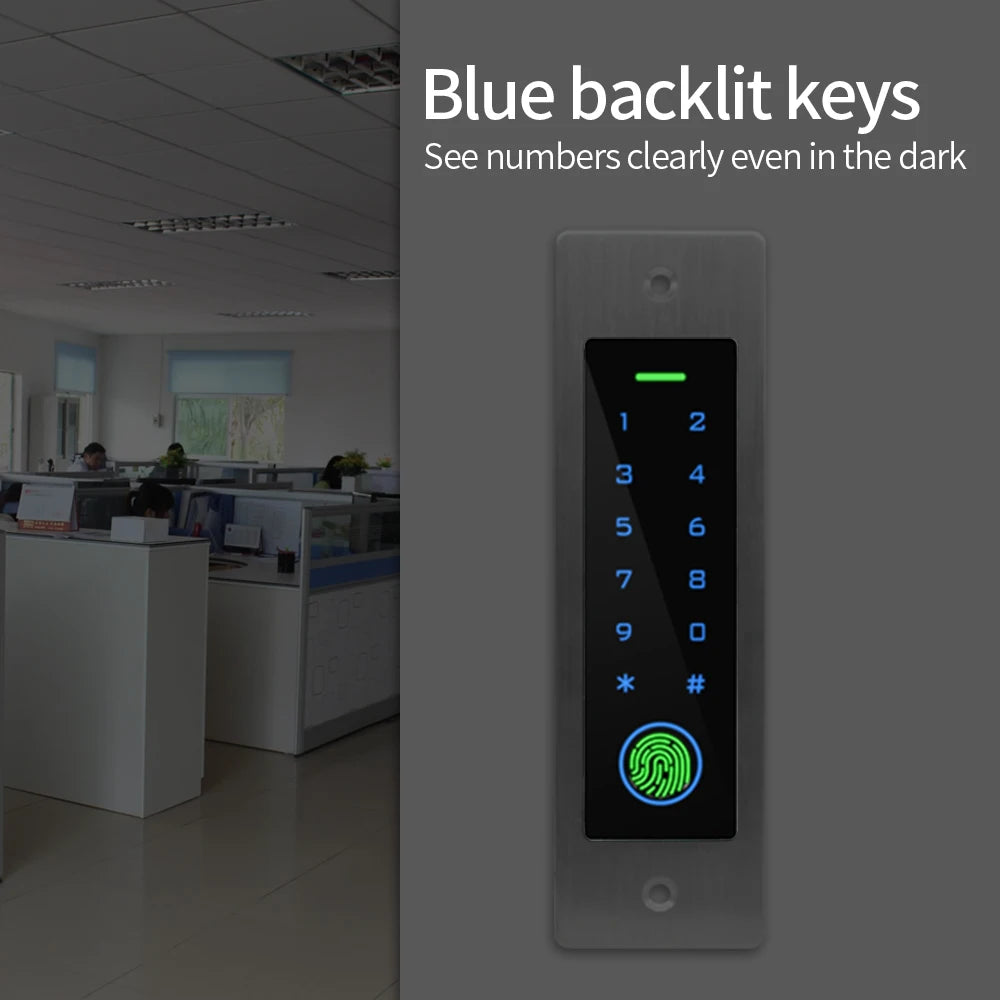

- Touch Backlit Keypad — Illuminated for easy use in low-light conditions.
- Adjustable Relay Output — Set door unlock time anywhere from 0 to 99 seconds (default: 5 seconds) to suit your door hardware.
- Fail-Safe Security Mode — Supports NO/NC/COM relay output for compatibility with electric strikes, magnetic locks, and more.

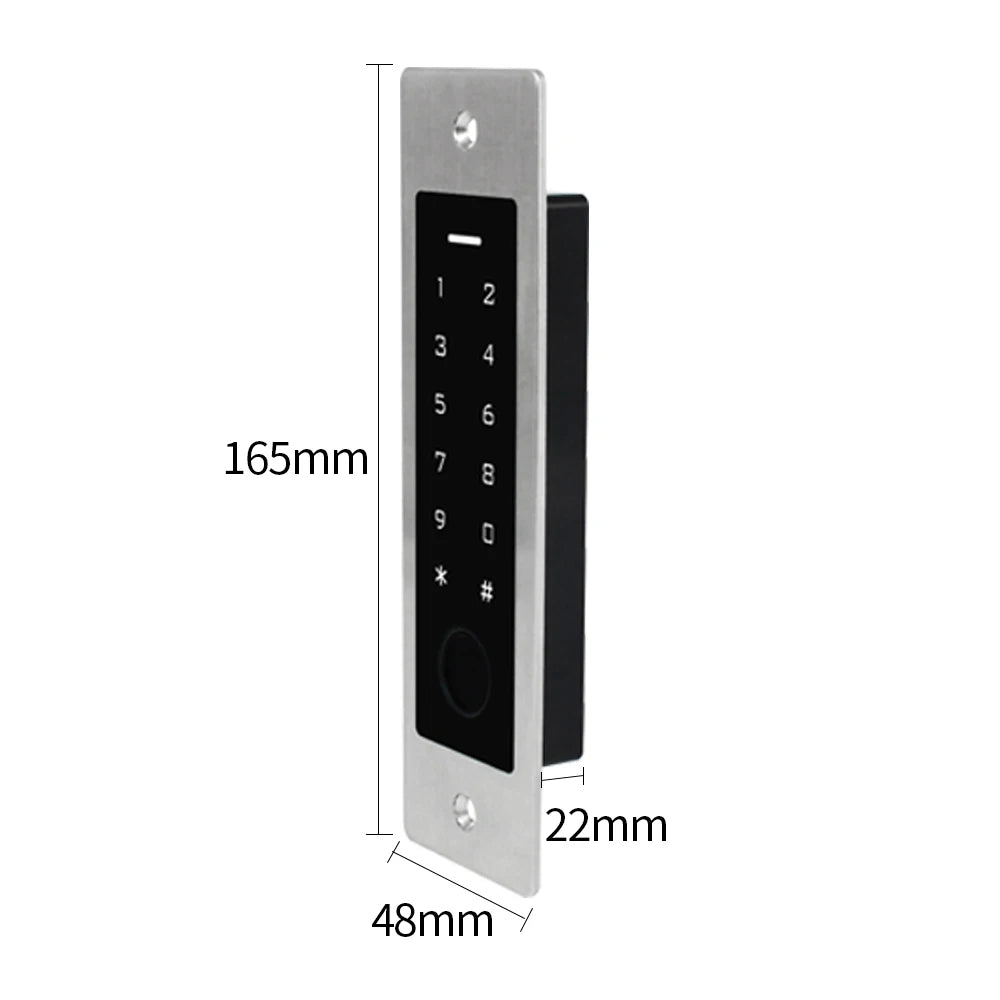

- Stainless Steel Body — Slim 165×48×22 mm profile in silver and black; embedded flush-mount design for a clean, professional look.
- Wide Operating Voltage — Accepts 12–18V DC power, drawing under 60mA at idle and under 150mA when active.
Full Specifications
| Model | EF4-EM |
| User Capacity | 1,000 (990 Normal + 10 Visitor) |
| RFID Technology | 125KHz EM Card |
| Read Range | 2–6 cm |
| Operating Voltage | 12–18V DC |
| Idle Current | <60mA |
| Active Current | <150mA |
| PIN Length | 4–6 digits |
| Wiegand Interface | WG26–44 bit input & output (default: WG26) |
| Relay Output | One relay (NO, NC, COM); 2A max load |
| Relay Time | 0–99 seconds (default: 5 sec) |
| Waterproof Grade | IP66 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | 10%–90% RH |
| Material | Stainless Steel |
| Color | Silver & Black |
| Dimensions | 165 × 48 × 22 mm |
| Weight | 138g (unit) / 198g (shipped) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × Asia-Teco EF4-EM RFID Access Control Reader
- Mounting hardware and wiring guide
Where to Use It
The EF4-EM is purpose-built for any access point where reliability matters — office buildings, warehouses, gated communities, schools, parking facilities, server rooms, and industrial sites. Its flush-mount embedded design integrates cleanly into door frames or wall panels.
For further guidance on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the Asia-Teco EF4-EM RFID reader compatible with third-party access control panels?
A: Yes. The EF4-EM features a standard Wiegand 26–44 bit output interface, which is widely supported by virtually all major access control panels and controllers on the market. Simply connect the D0/D1 Wiegand lines to your panel's reader port.
Q: Can the EF4-EM be used outdoors in harsh weather conditions?
A: Absolutely. The unit carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and heavy dust. It operates in temperatures ranging from -30°C to 60°C, making it well-suited for outdoor gates, building entrances, and exposed wall installations.
Q: How do I enroll new users or delete existing ones?
A: User enrollment is managed directly at the keypad using the built-in programming menu. You can add or remove RFID cards and PIN codes for up to 1,000 users (990 normal + 10 visitor slots) without any additional software or PC connection required.
Q: What lock types is this reader compatible with?
A: The EF4-EM includes a relay output (NO, NC, Common) with a maximum load of 2A, making it compatible with a wide range of electric strikes, magnetic locks (maglocks), and electric bolt locks. The relay output time is adjustable from 0 to 99 seconds to match your specific lock hardware.
