LUCKING DOOR Metal Embedded RFID Access Control System – IP66 Waterproof, 1000 Users

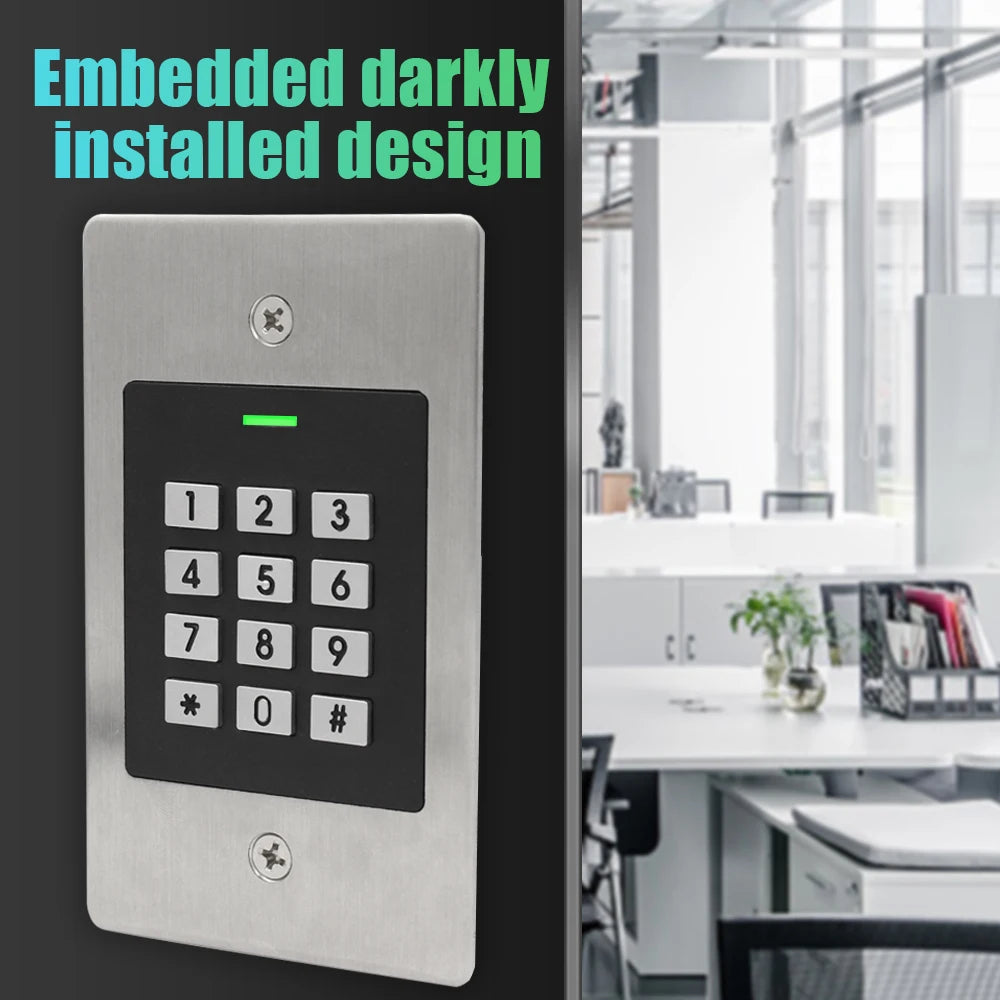

Take command of your entry points with the LUCKING DOOR EK2 All-in-One Access Control Machine. Built with a rugged stainless steel casing and an embedded flush-mount design, this standalone keypad reader offers three flexible access modes — RFID card, PIN, or card + PIN — making it ideal for offices, warehouses, server rooms, residential buildings, gates, and more. With capacity for up to 1,000 users and a true IP66 waterproof rating, it performs reliably indoors and outdoors in virtually any weather condition.
Key Features
- 3 Access Modes: RFID Card only, PIN only, or Card + PIN for flexible security configurations
- 1,000 User Capacity: Supports up to 990 normal users + 10 visitor users (cards and/or PINs)

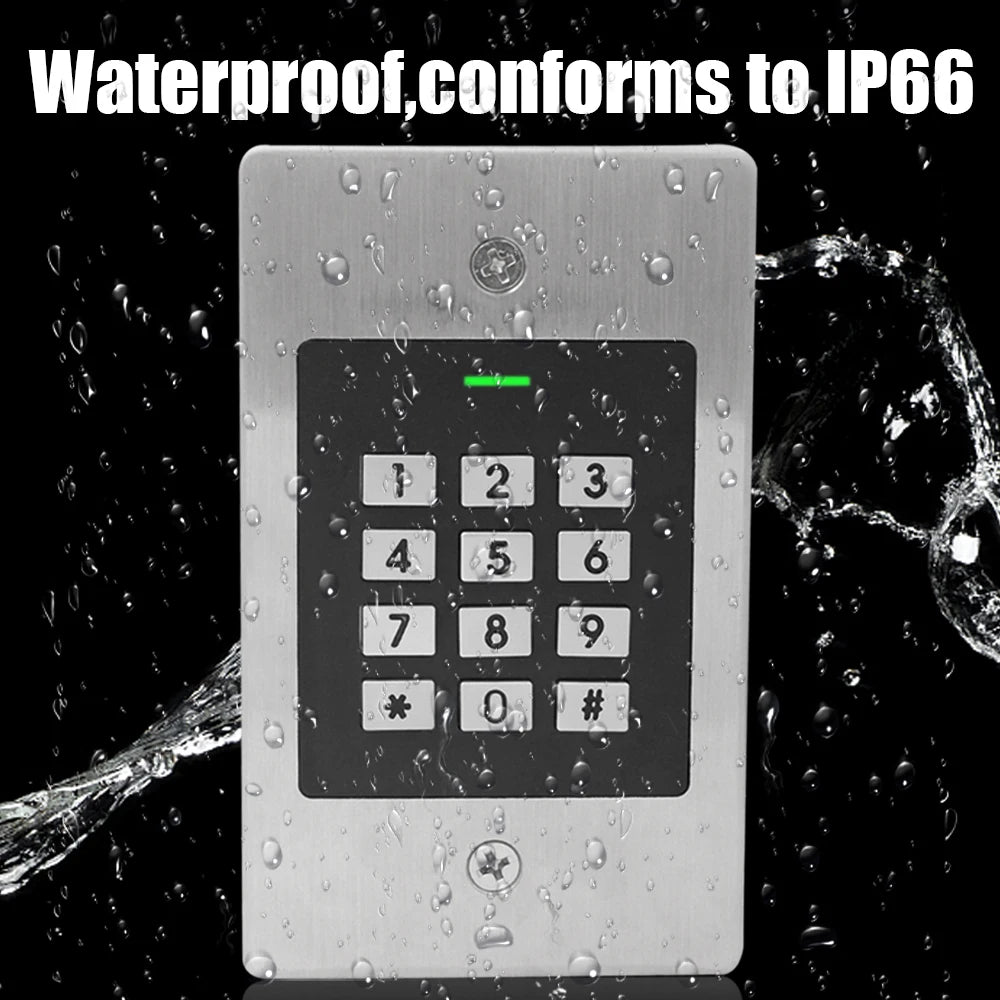

- IP66 Waterproof: Sealed against dust and heavy water jets — built for outdoor and harsh-environment use

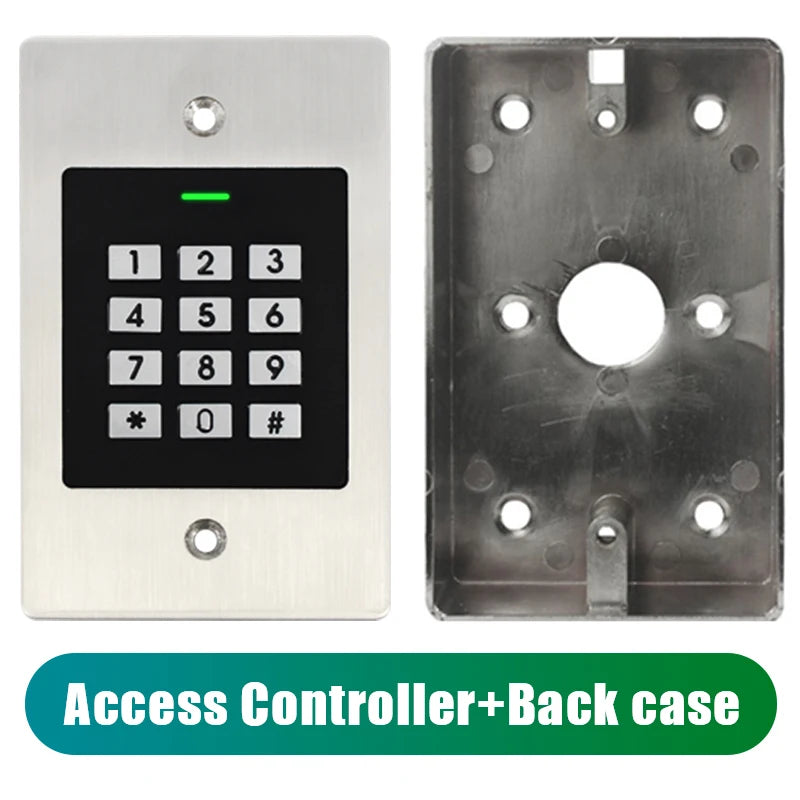

- Stainless Steel Anti-Vandal Housing: Embedded metal case resists tampering and physical impact
- 125 kHz EM Proximity Card Reader: Fast, contactless identification with a 0–6 cm read range
- Wiegand 26-bit Output / Wiegand 26 & 34-bit Input: Auto-detects input format; can function as a standalone controller or a Wiegand reader for a third-party controller
- Adjustable Relay Output: One relay (NO/NC/Common), output time adjustable from 0–99 seconds (default 5 seconds), up to 2A lock load
- Wide Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 10%–99% RH humidity tolerance
- Compact Dimensions: 115 × 70 × 25 mm — fits standard single-gang wall boxes
- Made in Mainland China
Technical Specifications
| Model | EK2 |
| User Capacity | 1,000 (990 Normal + 10 Visitor) |
| Operating Voltage | 12–18V DC |
| Idle Current | < 30mA |
| Active Current | < 150mA |
| Radio Technology | 125 kHz EM Proximity Card |
| Read Range | 0–6 cm |
| Wiegand Output | 26-bit |
| Wiegand Input | 26/34-bit (auto identification) |
| Relay | 1 × (NO/NC/Common), 0–99s adjustable, 2A max |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operating Humidity | 10%RH – 99%RH |
| Housing | Stainless Steel (Silver) |
| Dimensions | 115 × 70 × 25 mm |
| Unit Weight | 245g |
| Waterproof Rating | IP66 |
| Country of Origin | Mainland China |
Who Is This For?
This access control unit is perfectly suited for:
- Small to mid-size offices and commercial spaces
- Apartment buildings and gated residential communities
- Warehouses, server rooms, and restricted-access areas
- Outdoor gates, parking entrances, and building perimeters
- Retrofit installations where a flush-mount, embedded design is required
For more guidance on electronic access control standards and security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Can this RFID access control system work as a standalone unit without a separate controller?
A: Yes. The LUCKING DOOR EK2 is a fully standalone access control machine. It manages up to 1,000 users (card and/or PIN) and directly drives a door lock via its built-in relay — no additional controller is needed. It also supports Wiegand output if you prefer to use it as a card reader connected to a third-party access controller.
Q: What type of RFID cards are compatible with this access control keypad?
A: This system uses the 125 kHz EM proximity card standard. Standard EM4100 or compatible 125 kHz RFID keyfobs and cards work with this reader. It does NOT support 13.56 MHz Mifare or HID iCLASS cards.
Q: Is the IP66 waterproof rating sufficient for outdoor installation?
A: Yes. IP66 means the unit is fully dust-tight and protected against powerful water jets from any direction. This makes it well-suited for outdoor gate installations, covered entry points, and environments exposed to rain and humidity. Operating temperature range is -25°C to 60°C, making it suitable for most outdoor climates.
Q: How do I program users into the access control system?
A: Users can be enrolled directly via the onboard keypad. You can assign access by RFID card swipe, PIN code, or a combination of both. The relay output time is also adjustable (0–99 seconds) through the keypad menu. No PC software is required for basic programming.
