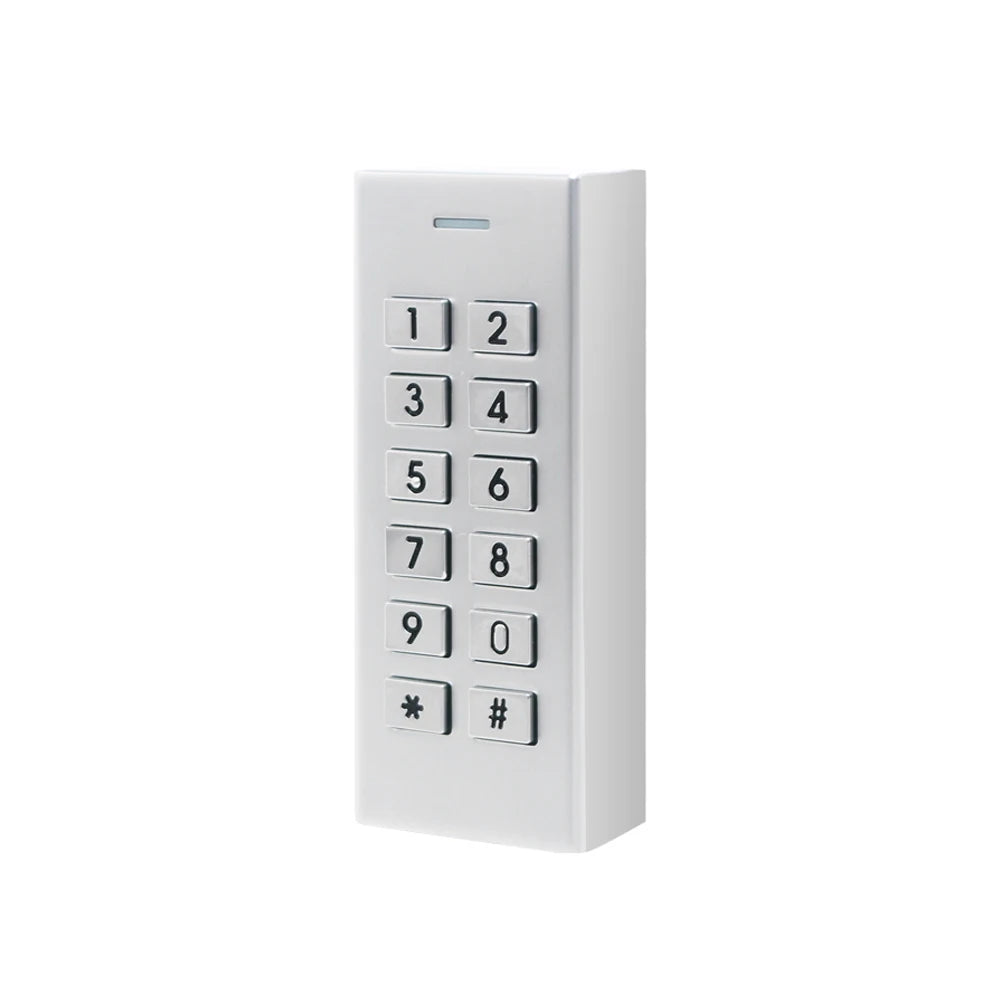

Asia-Teco Kmini — Compact PIN Keypad Access Controller
Take control of who enters your property with the Asia-Teco Kmini Standalone PIN Keypad Access Controller. This ultra-compact, zinc-alloy keypad packs serious security into a pocket-sized form factor — supporting up to 1,000 users (990 permanent + 10 visitor PINs) and built to withstand harsh outdoor environments with an IP66 waterproof rating.
Why Choose the Asia-Teco Kmini?
- 1,000 User Capacity: Manage up to 990 permanent PIN users plus 10 temporary visitor codes — ideal for offices, apartment buildings, warehouses, and gated communities.
- IP66 Weatherproof Protection: Fully sealed against dust ingress and powerful water jets, making it equally at home on an outdoor gate or an interior secure room door.
- Ultra-Compact Mini Design: At just 95 mm × 38 mm × 19 mm, this keypad fits virtually anywhere — narrow door frames, intercom panels, and tight gate posts are no problem.
- Durable Zinc-Alloy Metal Enclosure: The rugged anti-vandal housing resists tampering and physical attacks, ensuring long-term reliability in high-traffic or public-facing installations.
- Anti-Tamper Alarm: Built-in tamper detection triggers an alert if anyone attempts to remove or force the unit, adding an extra layer of deterrence.
- Flexible PIN Length: Users can set 4- to 6-digit PIN codes, balancing convenience with security to suit your organisation's requirements.

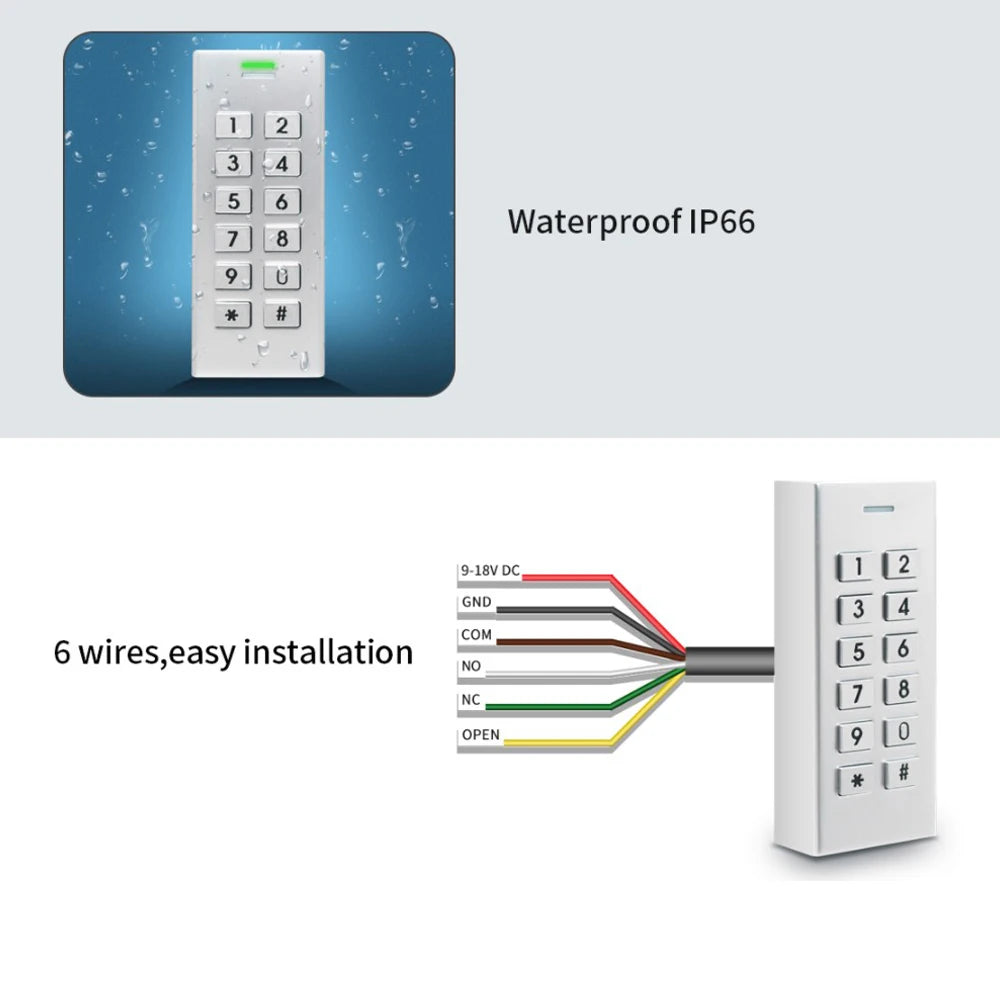

- Fail-Safe Mode with Signal: The single relay output operates in Fail Safe with Signal mode, ensuring compatibility with a wide range of electric locks, magnetic locks, and strike plates.
- Standalone Operation: No PC, server, or internet connection required — fully self-contained for simple, reliable deployment.
Product Specifications
| Brand | Asia-Teco |
| Model | Kmini |
| User Capacity | 990 PIN Users + 10 Visitor Users (1,000 total) |
| PIN Length | 4–6 Digits |
| Waterproof Rating | IP66 |
| Enclosure Material | Zinc-Alloy (Silver) |
| Dimensions | 95 mm × 38 mm × 19 mm |
| Security Mode | Fail Safe with Signal |
| Relay Output | 1 Relay |
| Country of Origin | Made in China |
Ideal Applications
- Office and commercial building entry doors
- Apartment complexes and multi-tenant properties
- Warehouse and storage facility gates
- Residential driveways, garages, and garden gates
- Server rooms and secure storage areas
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many PIN codes can the Asia-Teco Kmini keypad store?
A: The Kmini supports up to 1,000 users in total — 990 permanent PIN users and 10 temporary visitor users. This makes it suitable for everything from small offices to mid-sized apartment buildings.
Q: Is the Kmini keypad suitable for outdoor installation?
A: Yes. The keypad carries an IP66 waterproof rating, meaning it is fully protected against dust and high-pressure water jets from any direction. The zinc-alloy metal enclosure also provides anti-vandal durability, making it an excellent choice for exposed outdoor gates, fences, and building entrances.
Q: What types of door locks are compatible with this access controller?
A: The Kmini features a single relay output operating in Fail Safe with Signal mode, which is compatible with most standard electric locks, electromagnetic locks (maglocks), and electric strike plates. Always verify your lock's voltage and current requirements against the controller's relay specifications before installation.
Q: Does this keypad require a computer or internet connection to operate?
A: No. The Asia-Teco Kmini is a fully standalone access controller. All user PIN codes are programmed and stored directly on the device — no PC, cloud service, or internet connection is needed.
Q: What PIN length options are available?
A: Users can set PIN codes of 4, 5, or 6 digits, giving administrators the flexibility to choose a code length that balances ease of use with the level of security required for their site.
