IP66 Waterproof Fingerprint Smart Door Lock with Bluetooth, TTLock App, Password, RFID Card & Metal Key
Upgrade your home or business security with this advanced IP66-rated waterproof smart door lock. Featuring six convenient access methods — smartphone app, fingerprint, password, RFID card, Bluetooth, and traditional metal key — this lock delivers effortless, versatile entry for any lifestyle. Made in Mainland China with an aluminum alloy front panel and stainless steel rear panel, it's built to withstand the harshest outdoor conditions from -20°C to 70°C (-4°F to 158°F).
Six Ways to Unlock
- TTLock App (Android 4.3+ / iOS 7.0+): Control your lock from anywhere via Bluetooth or remotely via TTLock Gateway (G2 or G3, sold separately).
- Fingerprint: Semiconductor fingerprint sensor with a <0.001% false acceptance rate and <1.0% rejection rate — stores up to 100 fingerprints and unlocks in just 1.5 seconds.
- Password: Supports 4–8 digit codes with Anti-Peeping Virtual Password technology (enter random digits before or after your real code to protect your combination). Stores up to 150 custom/permanent passwords and 150 dynamic passwords.

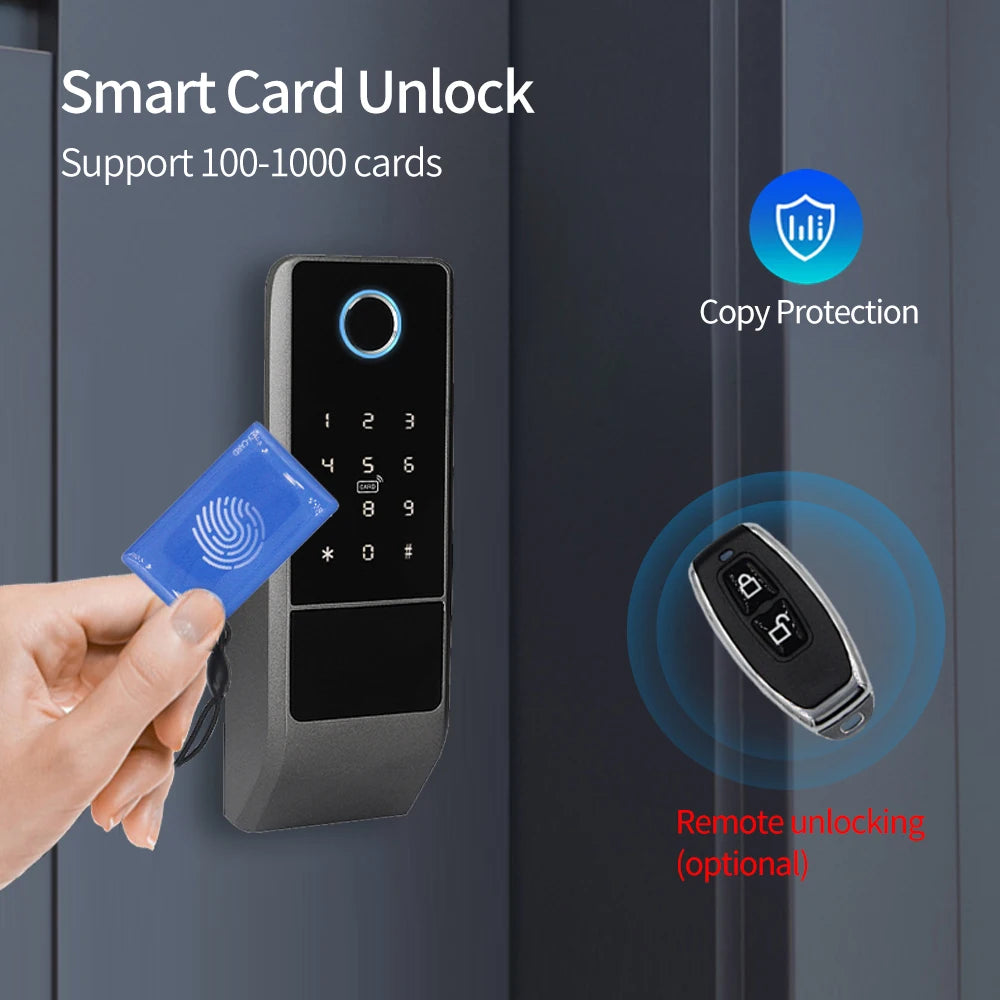

- RFID Smart Card: Compatible with MIFARE M1 cards — stores up to 200 IC cards.
- Bluetooth 4.1 BLE: Quick proximity unlock directly from your phone.

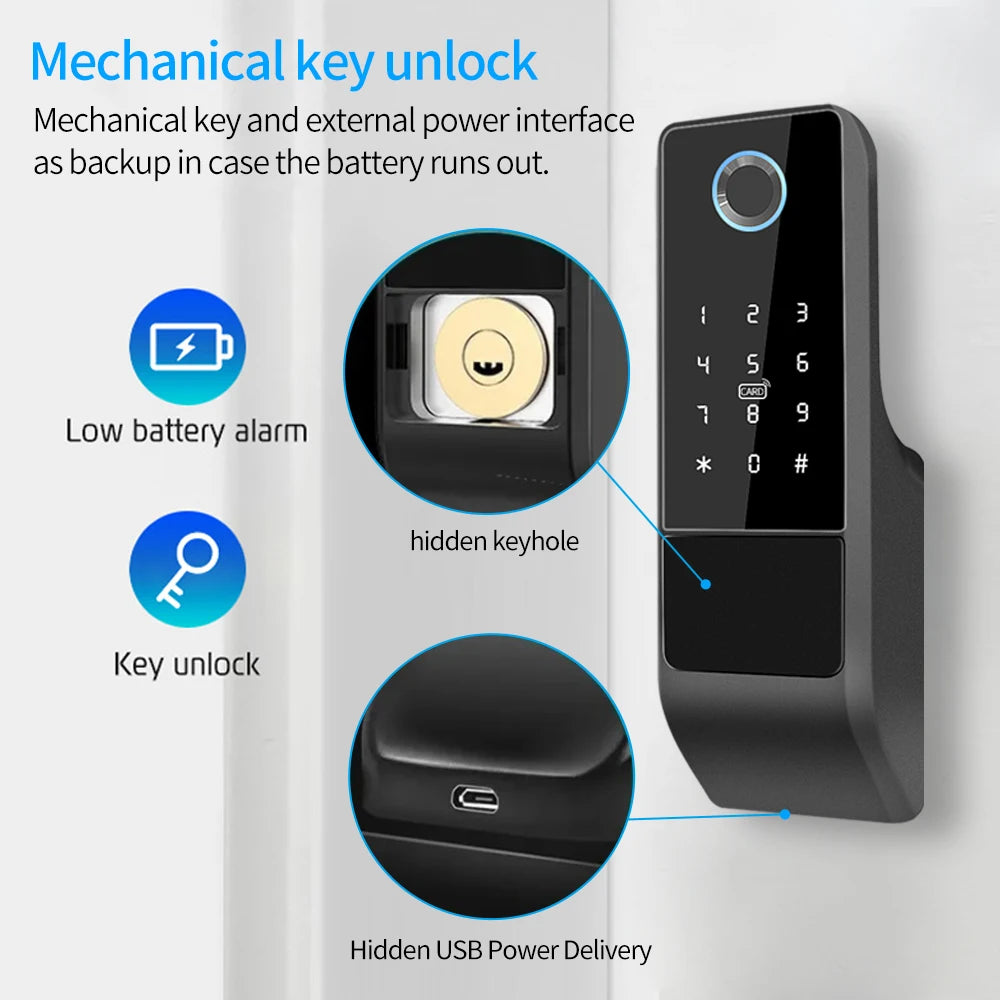

- Mechanical Key: 3 metal keys included for backup access.
TTLock App Features
- Remote access control via optional TTLock Gateway (Wi-Fi)
- Send temporary passcodes or eKeys to guests remotely
- Manage passcodes and eKeys with ease
- View real-time access logs
- Open the lock remotely or nearby via app
- Time attendance tracking support
Built for Versatility & Durability
- IP66 waterproof protection — ideal for exterior doors, gates, and exposed environments

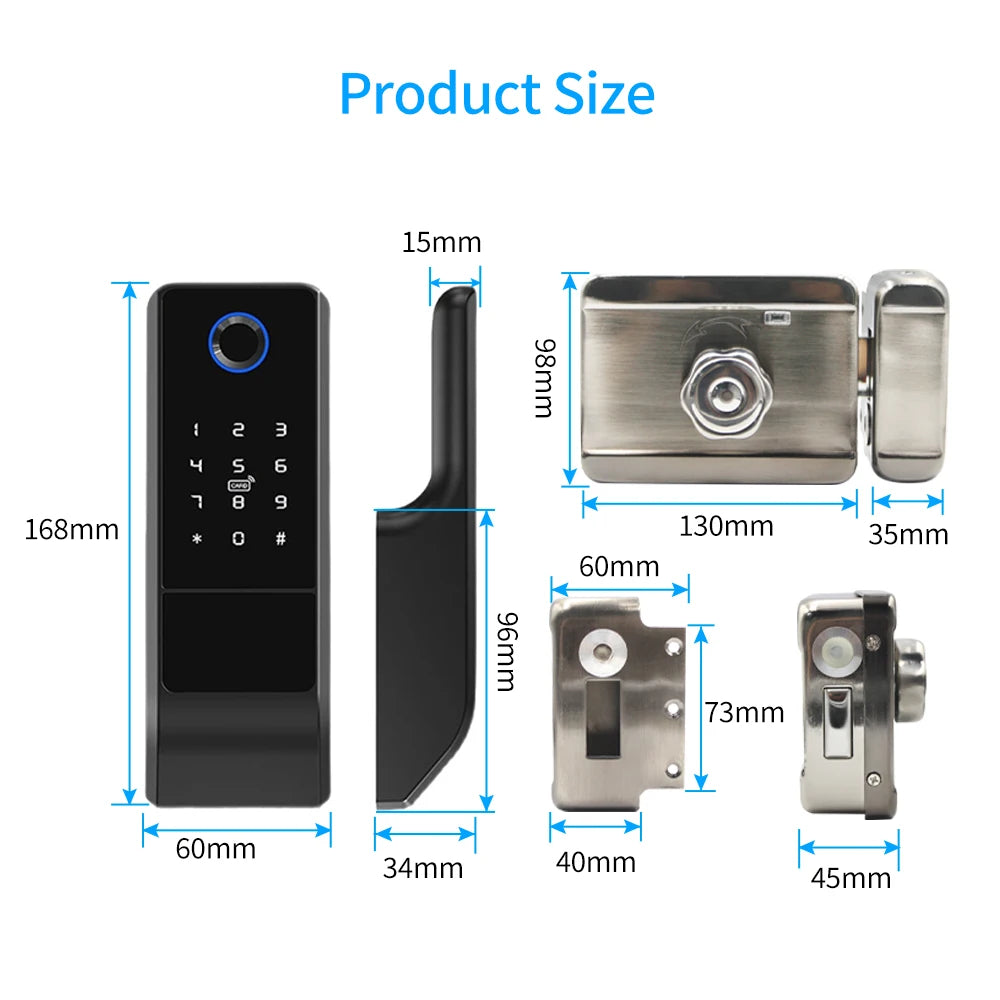

- Fits doors 30–60 mm thick (up to 70 mm with standard included hardware; contact us for doors exceeding 70 mm)
- Compatible with steel, glass, wooden, brass, and stainless steel doors
- Reversible handle — works for both left- and right-opening doors
- Brushed aluminum alloy finish for a modern, professional look
- Powered by 4 alkaline AA batteries (standby current: ~65 µA; low battery alert at 4.8V)
- Working current: <200 mA; voltage range: 4.5–9V
What's in the Box
- 1× Smart Door Lock (Model VD08)
- 3× Metal Keys
- 1× Lock Cylinder
- 2× RFID IC Cards
- Screw Accessories
- Product Manual
Note: Remote control and TTLock Gateway are sold separately. For doors thicker than 70 mm, please contact us before ordering so we can configure the correct lock cylinder and screws.
Made in Mainland China.
For general guidance on home security best practices, visit the Cybersecurity & Infrastructure Security Agency. For information on electronic lock safety standards, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this smart door lock work without Wi-Fi?
A: Yes! The lock operates via Bluetooth 4.1 BLE for nearby unlocking without any internet connection. For full remote access (unlocking from anywhere via the TTLock app), you'll need a TTLock Gateway (G2 or G3), which connects the lock to your Wi-Fi network. The gateway is sold separately.
Q: What door types and thicknesses is this lock compatible with?
A: This smart lock fits steel, glass, wooden, brass, and stainless steel doors with a thickness of 30–60 mm. Standard included hardware supports up to 70 mm. If your door exceeds 70 mm, please contact us before placing your order — we'll customize the lock cylinder and screws accordingly.
Q: How secure is the fingerprint sensor?
A: The semiconductor fingerprint sensor has an industry-leading false acceptance rate (FAR) of <0.001%, meaning the chance of an unauthorized fingerprint being accepted is extremely low. The lock stores up to 100 fingerprints and unlocks in approximately 1.5 seconds for a seamless, secure experience.
Q: What happens if the batteries run out?
A: The lock will alert you with a low battery warning when voltage drops to 4.8V so you have time to replace the 4 alkaline batteries. In an emergency, you can also use the included metal key for mechanical access, ensuring you're never locked out.
Q: Can I grant temporary access to guests or service workers?
A: Absolutely. Through the TTLock app, you can generate and send temporary passcodes or eKeys remotely to guests, housekeepers, or contractors. These temporary credentials can be set with specific time limits, giving you complete control over who has access and when.
