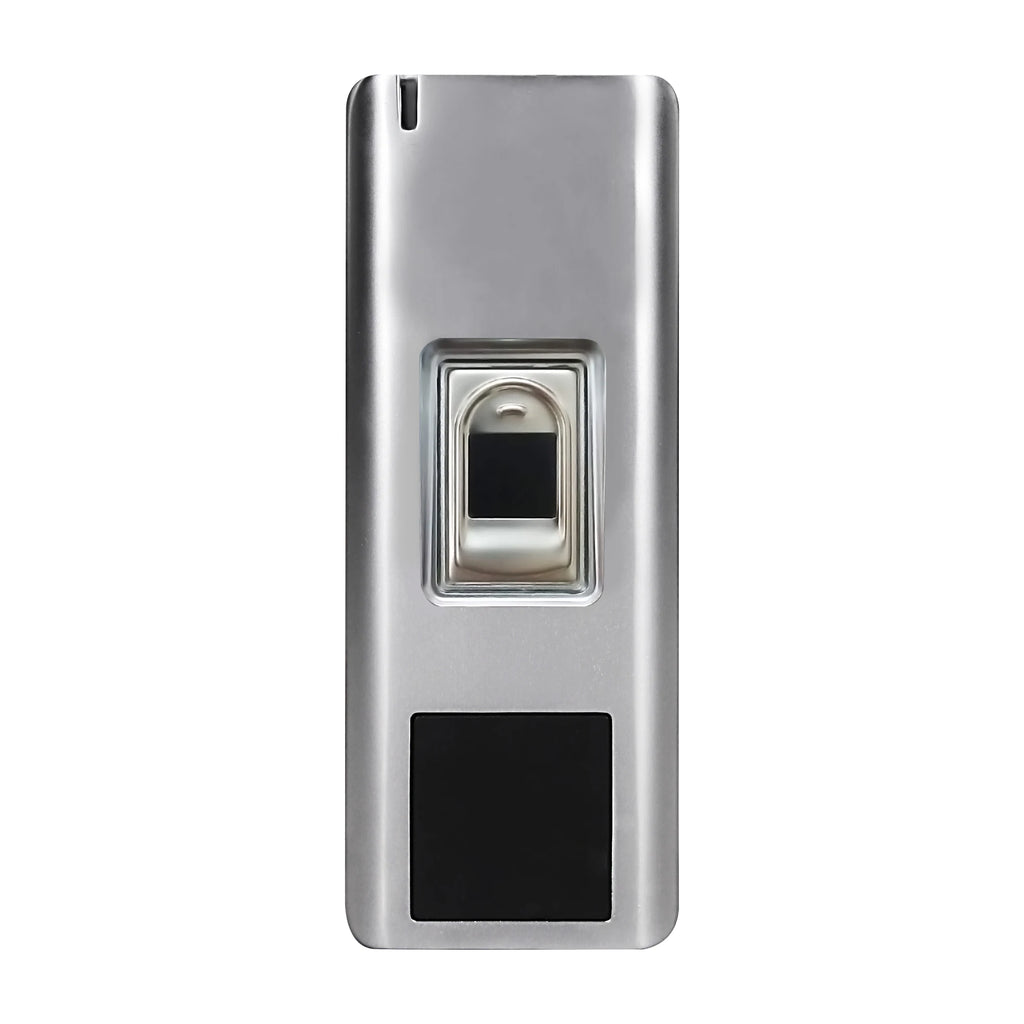

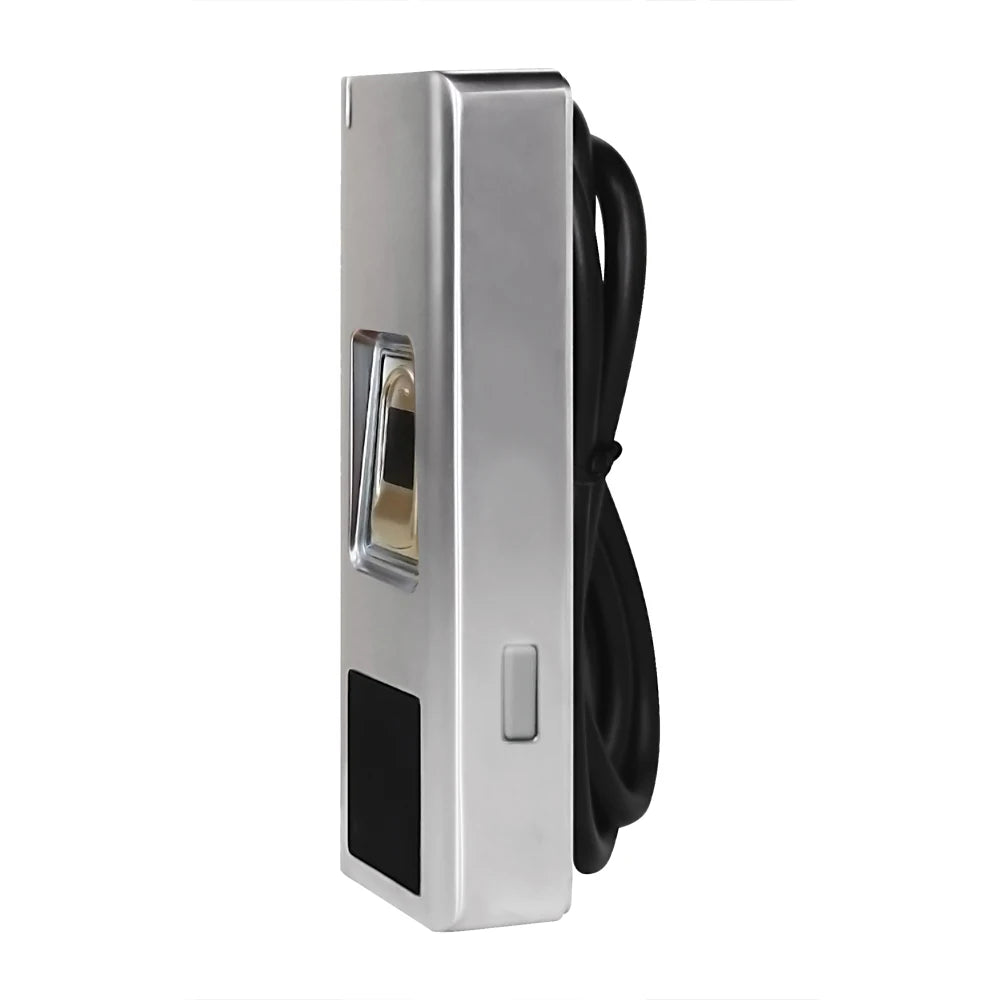

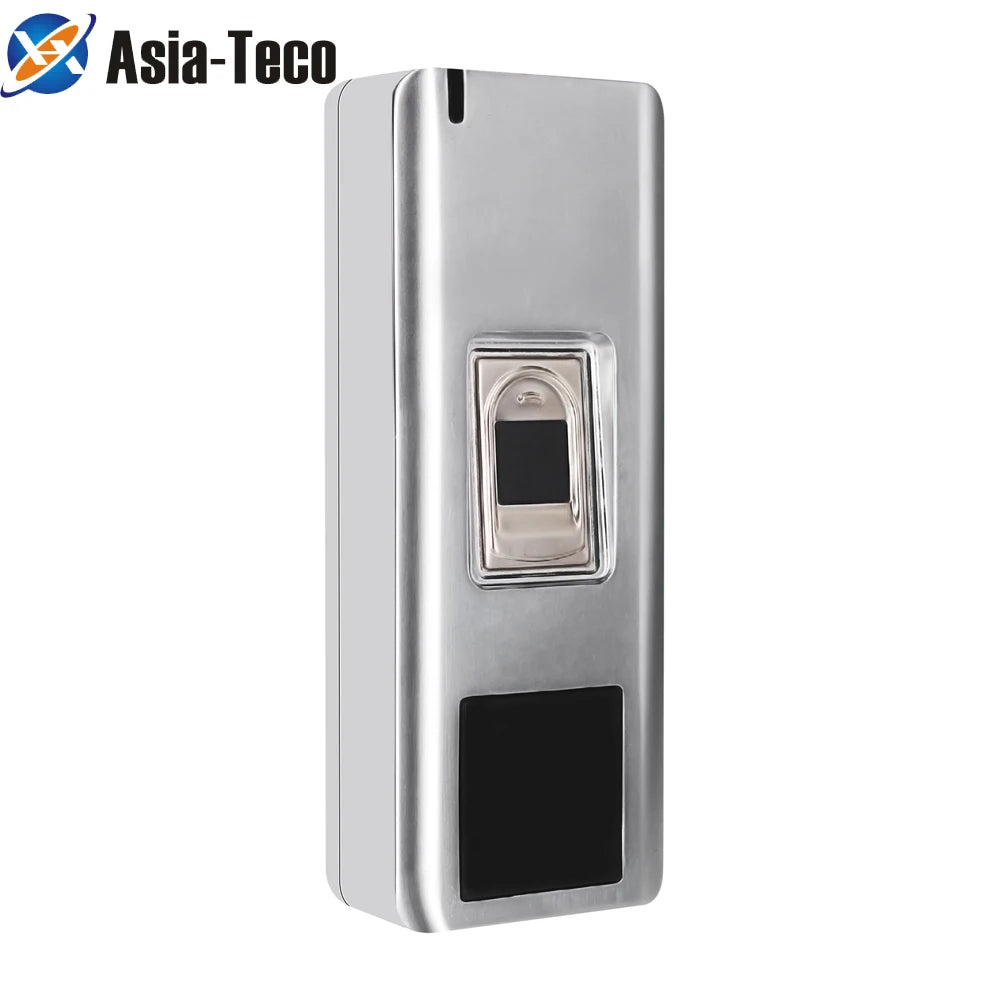

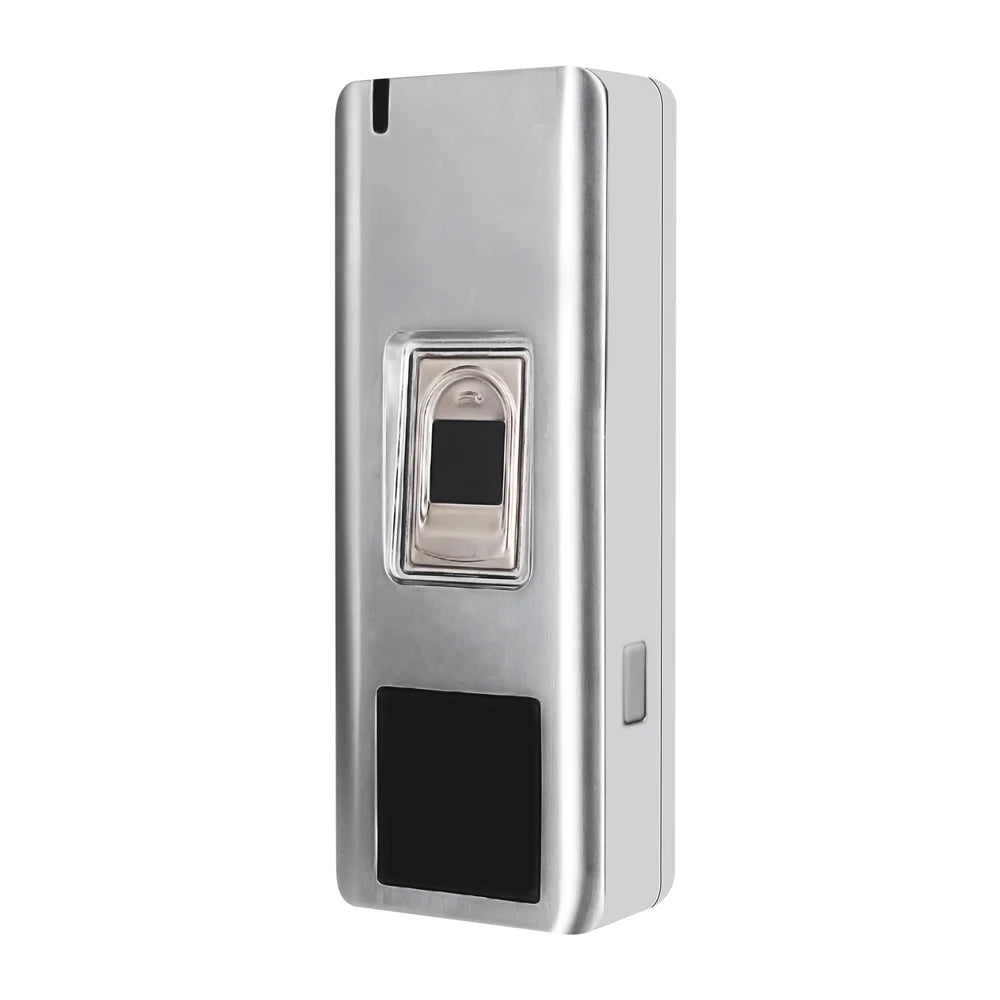

Asia-Teco SF4 — IP66 Waterproof Fingerprint & RFID Door Access Control Reader
Secure your entry points with the Asia-Teco SF4, a heavy-duty, all-in-one access control reader built for both indoor and outdoor use. Housed in an anti-vandal zinc-alloy metal case and rated IP66 weatherproof, this integrated unit combines a capacitive fingerprint sensor with a 125KHz RFID proximity card reader — giving you flexible, multi-mode authentication in a single sleek device.
Why Choose the SF4?
- 1,000-User Capacity: Supports up to 100 fingerprint users, 890 RFID card users, and 10 visitor users all in one system.
- IP66 Weatherproof Rating: Completely dust-tight and protected against powerful water jets — ideal for gates, exterior doors, and covered entry points.
- Fast Fingerprint Identification: Capacitive fingerprint module with 500 DPI resolution identifies users in under 1 second, with an ultra-low false acceptance rate (FAR <0.001%).
- Anti-Vandal Metal Construction: Durable zinc-alloy body resists tampering and physical damage.
- Multi-Color LED Status Display: Instantly communicates access granted, denied, or system alerts at a glance.
- Integrated Alarm & Buzzer Output: Built-in alarm deters unauthorized access attempts.
- Adjustable Relay Output: Configurable lock release time from 0–99 seconds (5-second default), supporting NO, NC, and Common configurations with up to 2A load.
- Wide Operating Range: Functions reliably from -30°C to 60°C (-22°F to 140°F) and in humidity from 10%RH to 99%RH.
- Low Idle Current: Draws less than 45mA at idle, keeping energy consumption minimal.
Full Specifications
| Model | SF4 |
| User Capacity | 1,000 total (100 fingerprint + 890 card + 10 visitor) |
| Operating Voltage | 12V DC |
| Idle Current | <45mA |
| Radio Technology | 125KHz EM Proximity Card |
| Card Read Range | 1–4 cm |
| Fingerprint Sensor | Capacitive, 500 DPI |
| Identification Time | <1 second |
| FAR / FRR | <0.001% / <0.01% |
| Relay Output | 1 × (NO, NC, Common) — 0–99s adjustable, 2A max |
| Wiring Connections | Relay output, exit button, alarm, door contact |
| Weather Rating | IP66 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | 10%RH – 99%RH |
| Housing Material | Zinc-Alloy (Silver) |
| Dimensions | 125 × 45 × 25 mm |
| Unit Weight | 191g |
| Country of Origin | Made in China |
Perfect Applications
The SF4 is an ideal solution for office buildings, warehouses, apartment complexes, server rooms, garages, and any exterior gate or door requiring robust, multi-factor access management. Its compact profile (125 × 45 × 25 mm) fits neatly on standard door frames and mullions.
Learn More About Access Control Standards
For guidance on physical access control security standards and best practices, visit the NIST Physical Security Resources page. For workplace security and electrical safety considerations when installing access control systems, refer to OSHA Electrical Safety.
Frequently Asked Questions
Q: Is the Asia-Teco SF4 RFID fingerprint reader suitable for outdoor installation?
A: Yes. The SF4 carries an IP66 weatherproof rating, meaning it is fully protected against dust ingress and powerful water jets. It operates reliably in temperatures from -30°C to 60°C and humidity up to 99%RH, making it well-suited for exterior gates, covered entryways, and outdoor access points.
Q: What types of credentials does the SF4 access control reader support?
A: The SF4 supports three credential types simultaneously: capacitive fingerprint (up to 100 users), 125KHz EM RFID proximity cards (up to 890 users), and visitor codes (up to 10 users), for a combined total of 1,000 users.
Q: What locks is this reader compatible with, and how do I wire it?
A: The SF4 includes one programmable relay output (NO, NC, Common) with an adjustable lock release time of 0–99 seconds and a maximum load of 2A, making it compatible with most electric strikes, magnetic locks, and electric bolt locks. Wiring connections include relay output, exit button, alarm, and door contact terminals.
Q: How quickly does the fingerprint sensor identify a user?
A: The capacitive fingerprint module identifies enrolled users in under 1 second with a false acceptance rate of less than 0.001%, ensuring fast, highly accurate entry for authorized individuals.
