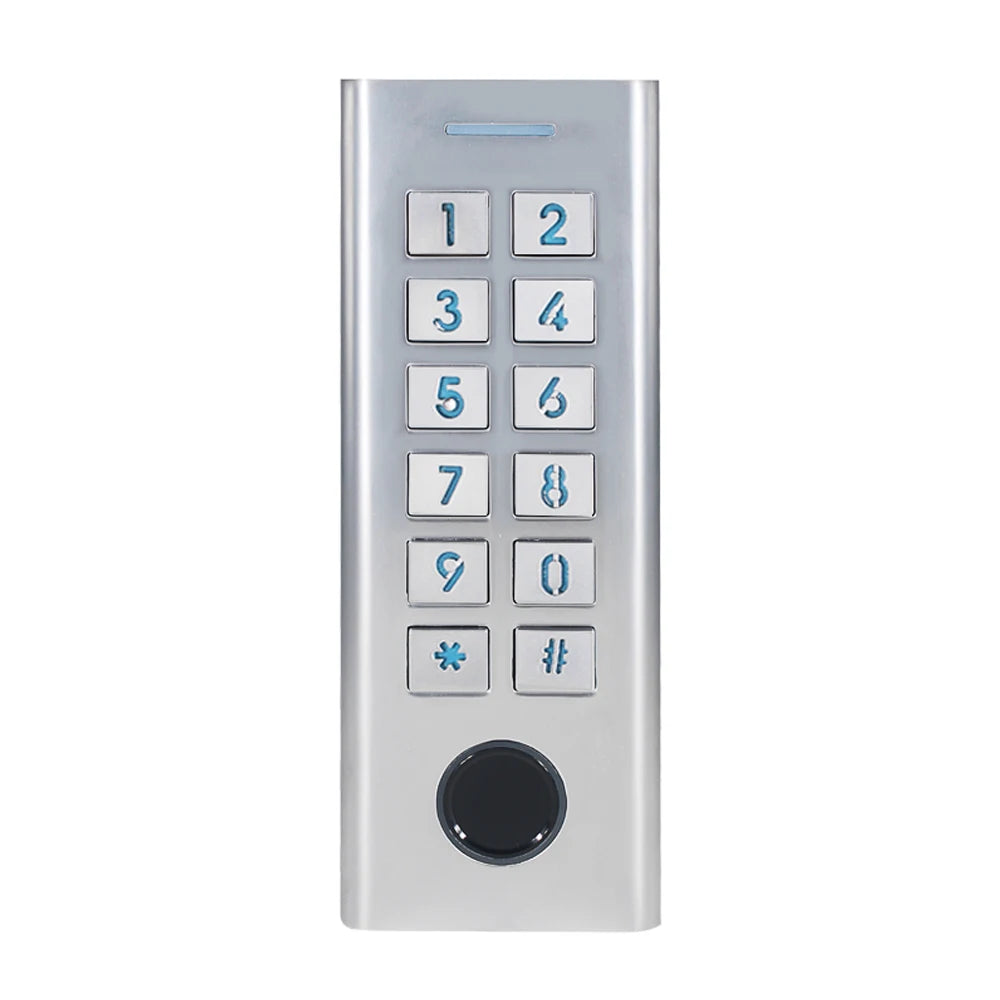

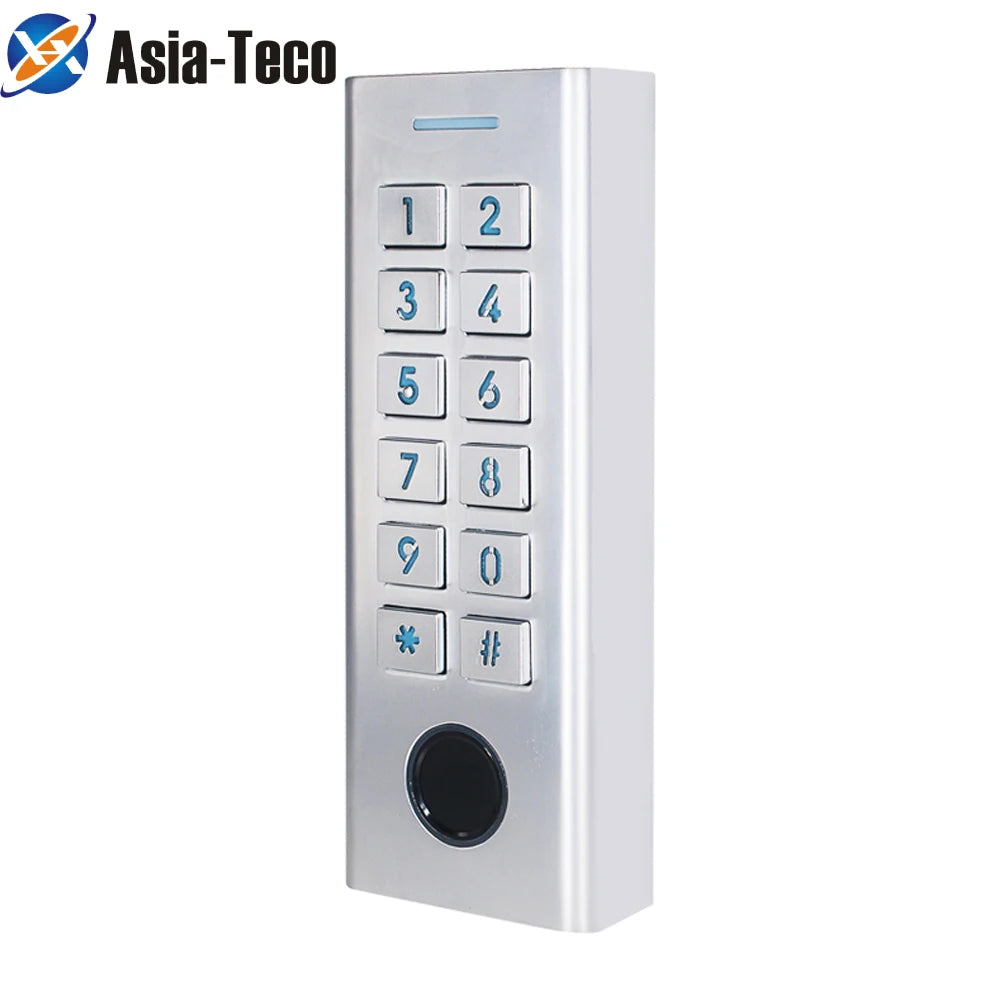

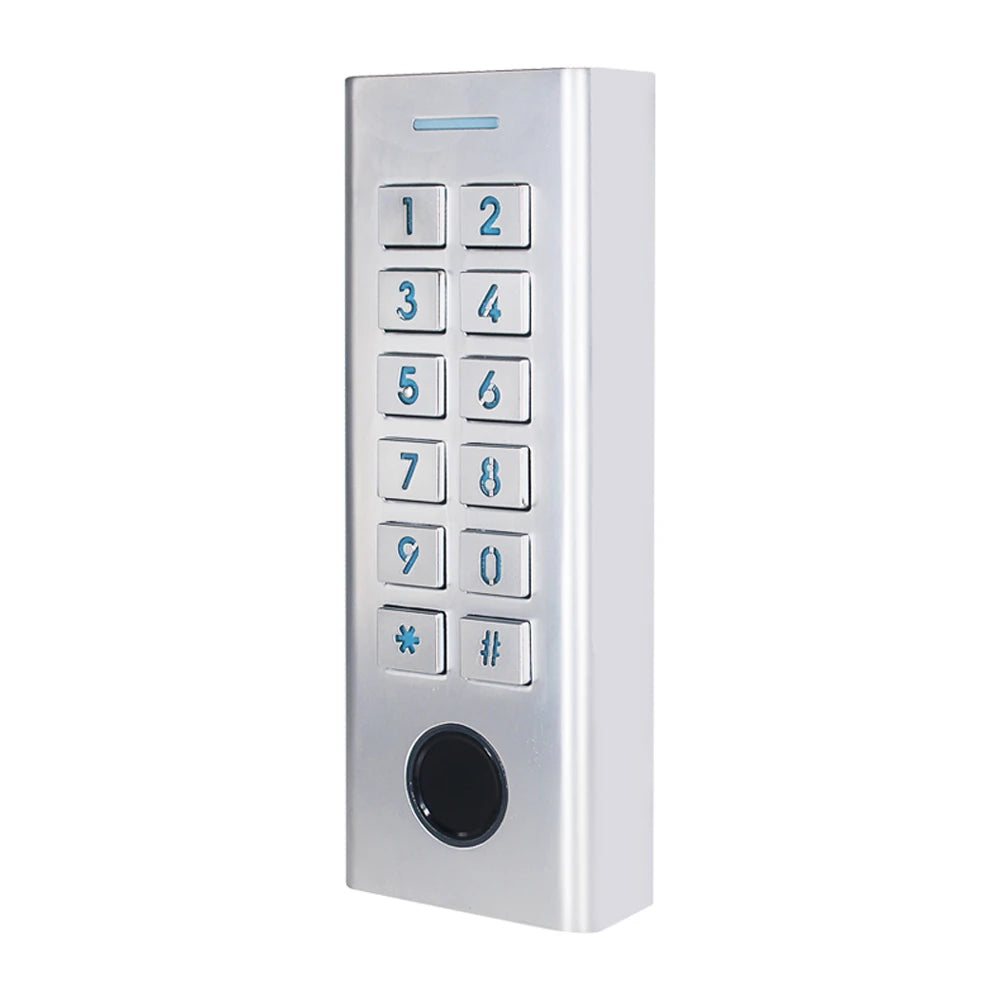

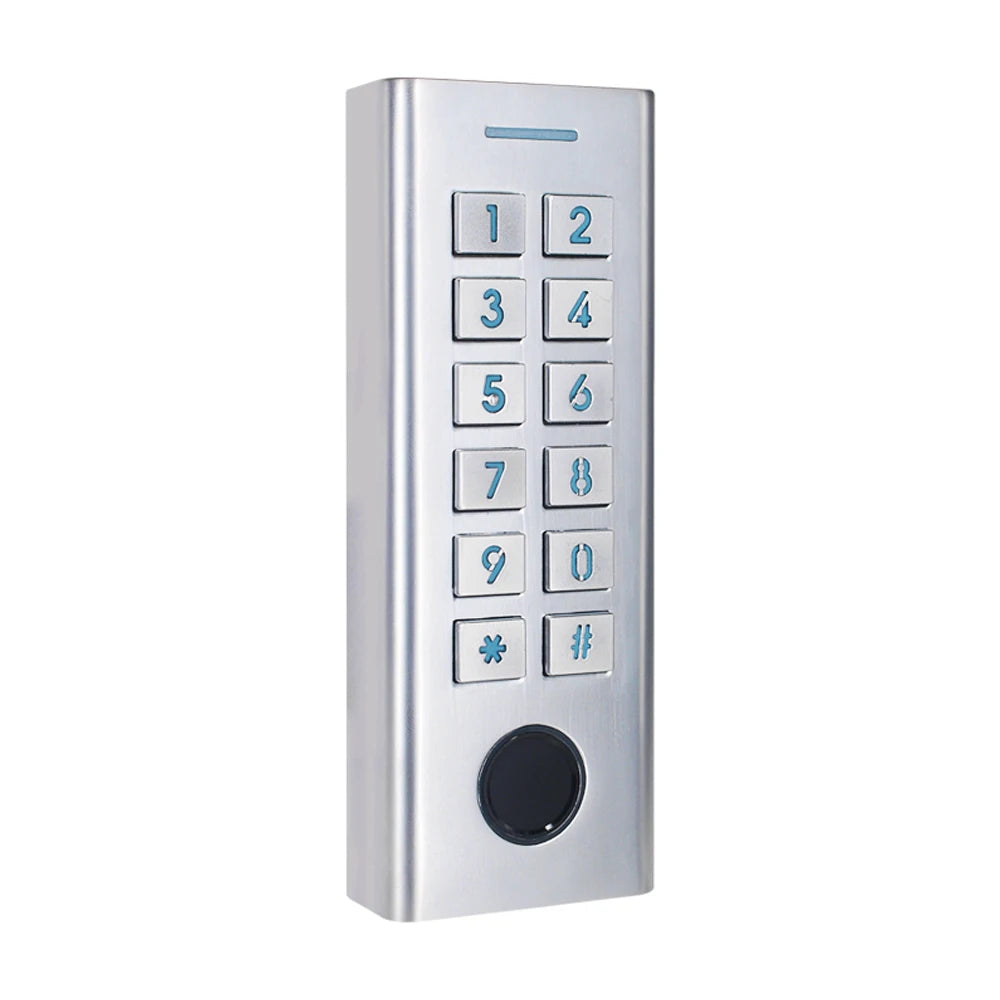

Asia-Teco F608W Metal Fingerprint Access Control Reader — IP66 Waterproof
Take your entry security to the next level with the Asia-Teco F608W Waterproof Fingerprint & PIN Door Access Control Reader. Built from rugged zinc-alloy with a powder-coat finish, this all-in-one unit combines a high-precision capacitive fingerprint sensor, PIN keypad, and relay output into a compact, vandal-resistant housing — perfect for homes, offices, warehouses, gates, and any outdoor installation that demands dependable, weather-tough performance.
Why Choose the F608W?
- IP66 Weatherproof Rated — Fully dust-tight and protected against powerful water jets, making it ideal for exposed outdoor entrances in all climates.
- 1,000-User Capacity — Supports up to 100 fingerprint users, 890 PIN users, and 10 visitor codes — enough for large households, commercial premises, or multi-tenant buildings.
- Fast <1-Second Identification — The 500 DPI capacitive fingerprint module delivers near-instant recognition with an ultra-low false-acceptance rate (<0.001%).
- Flexible PIN Options — Programmable 4–6 digit PINs ensure each user can set a code they remember comfortably.
- Anti-Vandal Metal Construction — Zinc-alloy body with powder-coat finish resists tampering and stands up to everyday wear and tear.
- Integrated Alarm & Buzzer — Built-in alarm output and audible buzzer provide instant alerts for unauthorised access attempts.
- Multi-Colour LED Status Display — At-a-glance feedback confirms access granted, access denied, or system status with clearly coded LED indicators.
- Adjustable Relay Timings — Lock relay output is adjustable from 0–99 seconds; alarm output from 0–3 minutes — configure to your exact requirements.
- Fail-Safe Security Mode — Supports Fail Safe with Signal for reliable operation even in unexpected power scenarios.
- Wide Operating Range — Functions flawlessly from -30°C to 60°C (-22°F to 140°F) and 20%–90% relative humidity.
Full Specifications
| Model | F608W (SF6) |
| User Capacity | 1,000 total (100 Fingerprint + 890 PIN + 10 Visitor) |
| PIN Length | 4–6 digits |
| Operating Voltage | 12V DC |
| Idle / Active Current | ≤45mA / ≤150mA |
| Fingerprint Sensor | Capacitive, 500 DPI |
| Identification Time | <1 second |
| FAR / FRR | <0.001% / <0.01% |
| Relay Output | 1× (NO, NC, Common) — Lock Load 2A max, Alarm Load 5A max |
| Relay Output Time | 0–99 seconds (default 5s) |
| Alarm Output Time | 0–3 minutes (default 1 min) |

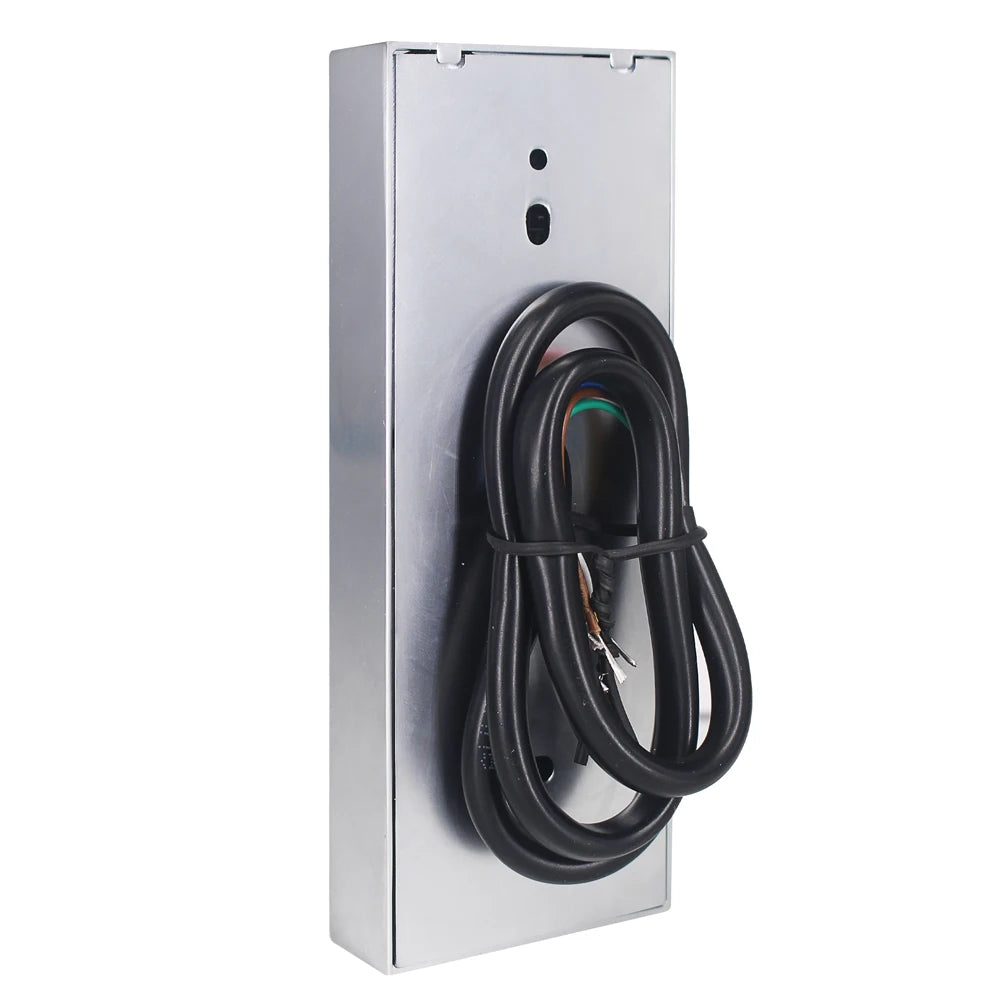

| Wiring | Relay output, exit button, alarm, door contact |
| IP Rating | IP66 |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 20%RH ~ 90%RH |
| Material | Zinc-Alloy, Powder Coat finish |
| Dimensions | 130 × 50 × 25 mm |
| Unit Weight | 136g |
| Shipping Weight | 189g |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Residential front doors, garages, and garden gates
- Office and commercial building entry points
- Warehouses, storage facilities, and server rooms
- Schools, gyms, and multi-unit residential buildings
- Any outdoor installation requiring weather-resistant access control
For general guidance on electronic security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the Asia-Teco F608W fingerprint access control reader truly weatherproof for outdoor use?
A: Yes. The F608W carries an IP66 rating, meaning it is completely dust-tight and protected against high-pressure water jets from any direction. Its zinc-alloy body and powder-coat finish further protect it from physical impact and corrosion, making it a reliable choice for exposed outdoor entrances in a wide range of climates (-30°C to 60°C).
Q: How many users can be enrolled on the F608W access control reader?
A: The F608W supports a total of 1,000 users — up to 100 fingerprint users, 890 PIN users (4–6 digit codes), and 10 visitor codes. This makes it suitable for everything from a small residential gate to a medium-sized commercial facility.
Q: What type of door lock can I connect to this fingerprint reader?
A: The F608W outputs via a single relay (NO, NC, Common) rated at up to 2 amps for lock control, compatible with most electric strikes, magnetic locks, and electric deadbolts. It also includes connections for an exit button, alarm, and door contact sensor. Relay output time is adjustable from 0 to 99 seconds to suit different lock types.
Q: Does the F608W work during a power outage?
A: The reader operates in Fail Safe with Signal mode, which means its behaviour during a power loss event is designed to maintain a defined safe state. We recommend pairing it with an uninterrupted power supply (UPS) or backup battery for critical entry points to ensure continuous operation.
Q: How accurate is the fingerprint recognition on this reader?
A: The 500 DPI capacitive fingerprint module achieves a False Acceptance Rate (FAR) of less than 0.001% and a False Rejection Rate (FRR) of less than 0.01%, with identification completed in under 1 second. These figures represent a high level of biometric accuracy for a standalone access control unit.
