Asia-Teco HF2-BT Bluetooth Fingerprint Access Controller
Take control of who enters your property with the Asia-Teco HF2-BT — a robust, IP66-rated waterproof access controller that combines fingerprint recognition, RFID card reading, PIN keypad, and Bluetooth smartphone access into one sleek, metal unit. Manage up to 1,000 users directly from the Tuya Smart App on your iOS or Android device — no on-site programming required.
Key Features
- 4-in-1 Access Modes: Unlock via Fingerprint, 125KHz RFID Card (EM or Mifare), PIN Code, or Tuya Smartphone App
- IP66 Waterproof & Weatherproof: Designed for outdoor and harsh-environment installations — dust-tight and jet-water resistant
- Rugged Metal Housing: Anti-vandal construction for long-term durability in high-traffic or exposed locations
- Capacitive Touch Keypad: Smooth, responsive capacitive fingerprint sensor with a backlit touch keypad
- Tuya Smart App Integration: Add or delete users, check access/opening records, and manage permissions remotely via iOS or Android

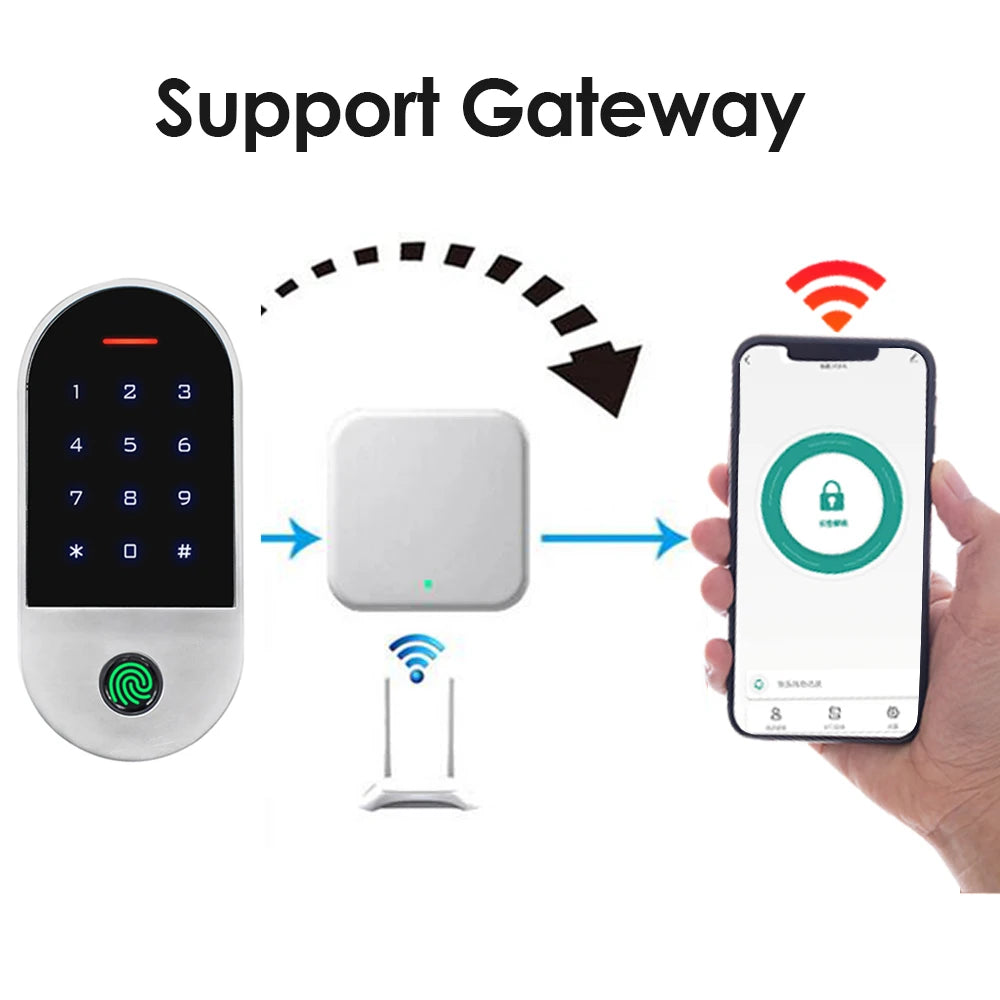

- Gateway Support: Compatible with Tuya-compatible gateways for extended smart-home or commercial automation integration
- Large User Capacity: Supports up to 1,000 total users — 100 fingerprint slots + 888 PIN/Card users + 2 panic users + 10 visitor users
- Wide Operating Temperature: Performs reliably from -30°C to 60°C (-22°F to 140°F)
- Flexible Relay Output: Adjustable relay trigger time (0–99 seconds, default 5 seconds) to suit any electric lock or strike
- Wide Input Voltage: 12–28V AC/DC for versatile installation compatibility
Technical Specifications
| Model | HF2-BT |
| Dimensions | 145 × 68 × 25 mm |
| Operating Voltage | 12–28V AC/DC |
| Idle Current | ≤ 60mA |
| User Capacity | 1,000 (100 Fingerprint + 888 PIN/Card + 2 Panic + 10 Visitor) |
| RFID Frequency | 125KHz (EM Card or Mifare Card) |
| Card Read Range | 2–6 cm |
| Relay Output Time | 0–99 Seconds (default: 5 seconds) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Weatherproof Rating | IP66 |
| App Compatibility | iOS & Android (Tuya Smart) |
| Country of Origin | Made in Mainland China |
Who Is This For?
The HF2-BT is ideal for residential gates, commercial entrances, warehouses, server rooms, gyms, and any location where you need flexible, multi-method access control with remote management capability. Whether you're securing a single door or integrating into a broader smart building system via Tuya Gateway, this controller delivers professional-grade performance.
Learn More About Access Control Standards
For guidance on electronic access control and physical security best practices, visit the NIST Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: What access methods does the Asia-Teco HF2-BT Bluetooth access controller support?
A: The HF2-BT supports four access methods: capacitive fingerprint, 125KHz RFID card (EM or Mifare), PIN code via touch keypad, and Bluetooth smartphone access through the Tuya Smart App on iOS or Android devices.
Q: How many users can be stored on the HF2-BT fingerprint access controller?
A: The HF2-BT supports up to 1,000 total users — including 100 fingerprint users, 888 PIN/card users, 2 panic users, and 10 visitor users. All user management (add/delete) can be done remotely via the Tuya app.
Q: Is the HF2-BT suitable for outdoor installation?
A: Yes. The HF2-BT meets the IP66 waterproof standard (dust-tight and protected against powerful water jets) and operates in temperatures ranging from -30°C to 60°C (-22°F to 140°F), making it an excellent choice for outdoor gates, building entrances, and exposed environments. Its anti-vandal metal housing adds an extra layer of durability.
Q: What voltage does the HF2-BT require, and what locks is it compatible with?
A: The controller accepts a wide input voltage range of 12–28V AC/DC, making it compatible with most standard electric locks, magnetic locks, and electric strikes. The relay output time is fully adjustable from 0 to 99 seconds (factory default: 5 seconds) to match your lock's requirements.
Q: Does the HF2-BT support remote access management through a gateway?
A: Yes. The HF2-BT supports Tuya-compatible gateways, enabling integration into wider smart home or commercial automation ecosystems. Through the gateway, you can remotely monitor access logs, add or remove users, and manage door control from anywhere with an internet connection.
