Asia-Teco IP66 Metal Embedded RFID Access Control Reader – Model EK2
Take command of your door security with the Asia-Teco EK2 — a heavy-duty, weather-resistant standalone keypad and RFID access control system built for demanding indoor and outdoor environments. With a rugged all-metal anti-vandal housing, IP66 waterproof rating, and support for up to 1,000 users, this embedded controller delivers professional-grade door entry management without the complexity.
Made in Mainland China.
Why Choose the EK2 Access Control Reader?
- Triple Door-Opening Modes: Supports Card only, PIN only, or Card + PIN combined — giving you flexible access options for any security environment.
- 1,000 User Capacity: Stores 990 normal users and 10 visitor users for scalable access management.

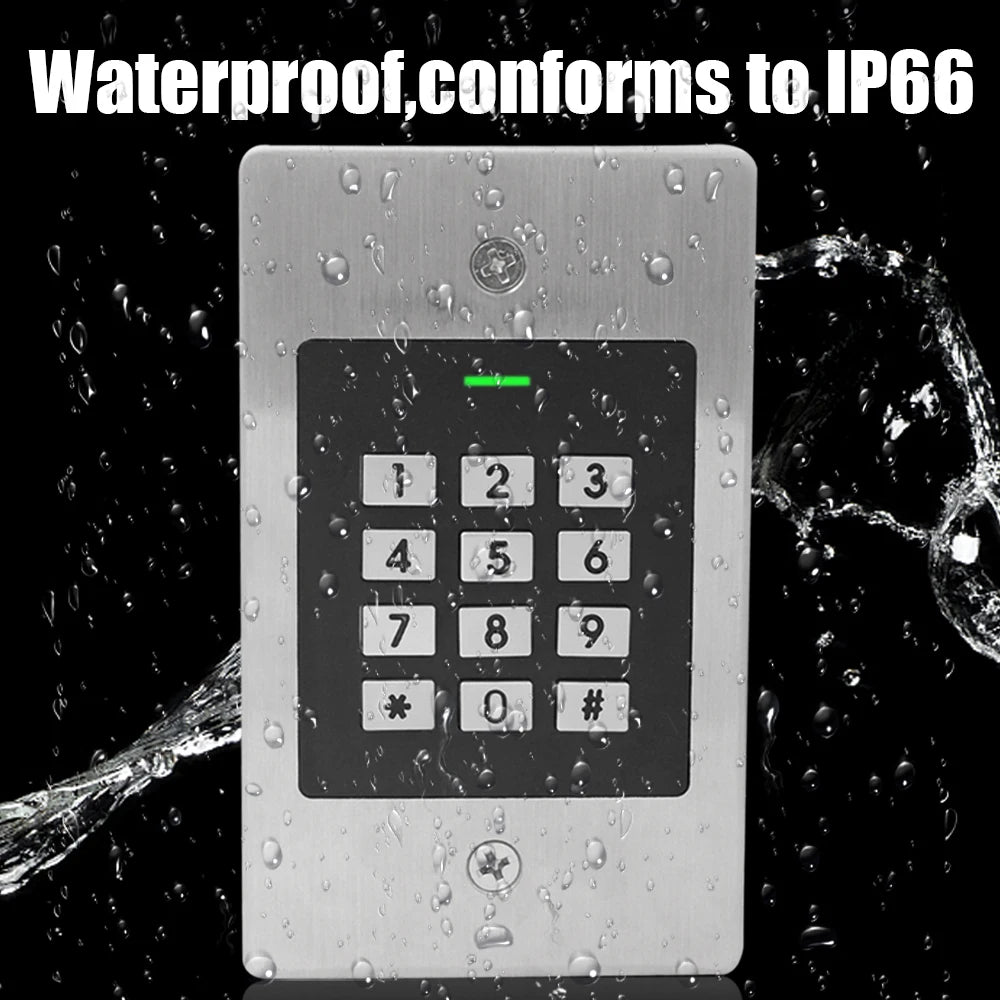

- IP66 Waterproof Rating: Fully protected against powerful water jets — ideal for gates, garages, offices, and outdoor entry points.

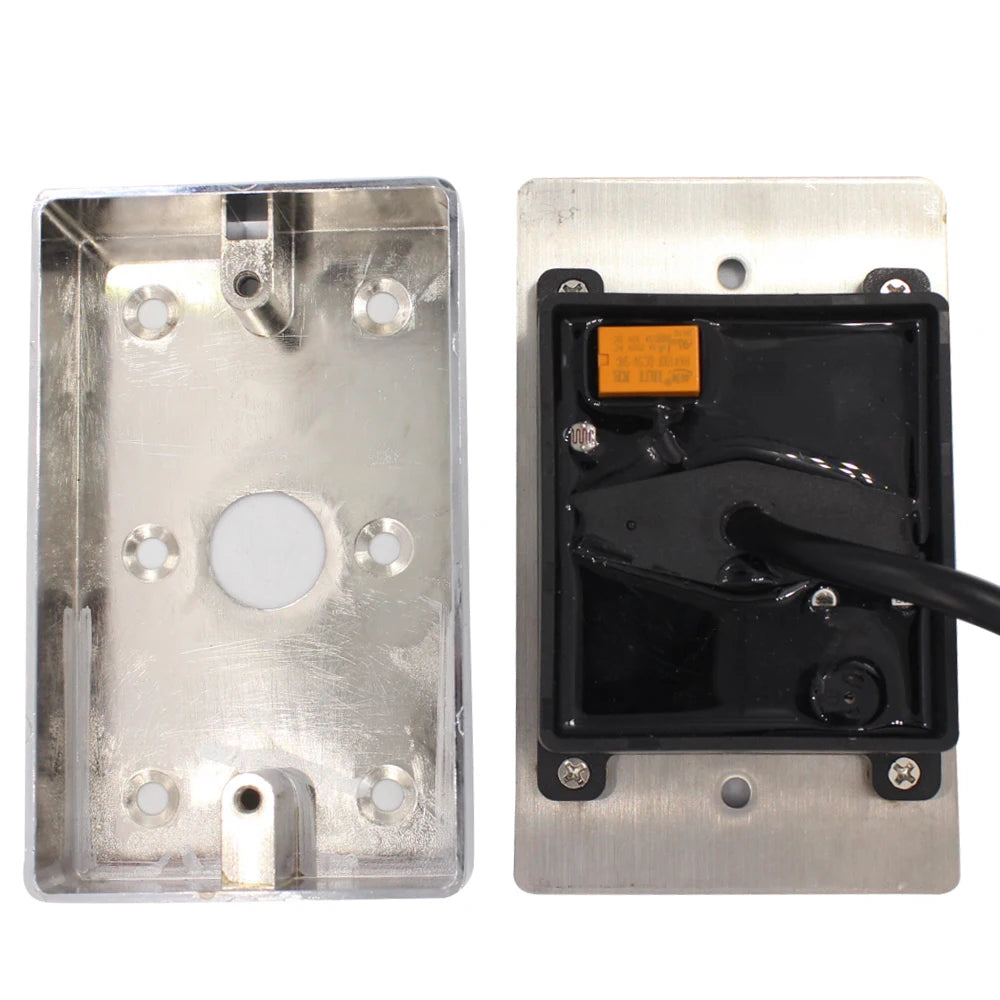

- Anti-Vandal Metal Case: Robust metal construction resists tampering and physical damage, ensuring long-term reliability in high-traffic areas.
- 125KHz EM RFID Technology: Fast and dependable proximity card reading with a 0–6 cm read range.

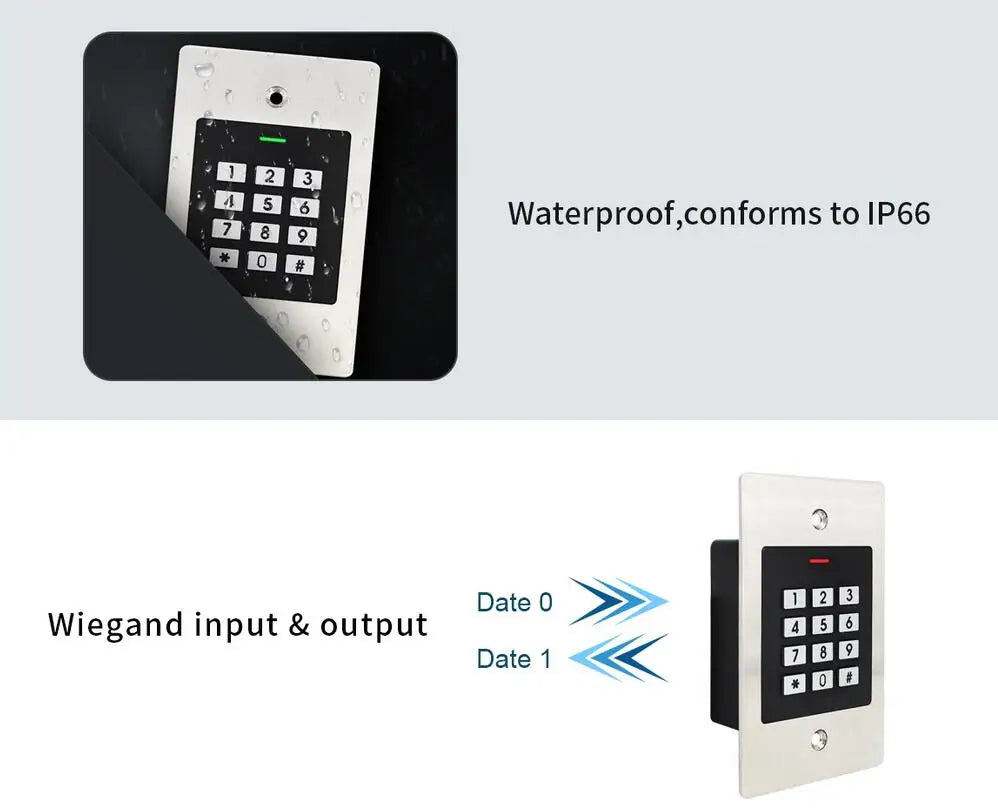

- Wiegand 26/34-Bit I/O: Automatic Wiegand input and output identification lets this unit function as a standalone controller or as a Wiegand reader paired with a separate controller.
- Wide Operating Temperature: Performs reliably from -40°C to 60°C (-40°F to 140°F), making it suitable for extreme climates.

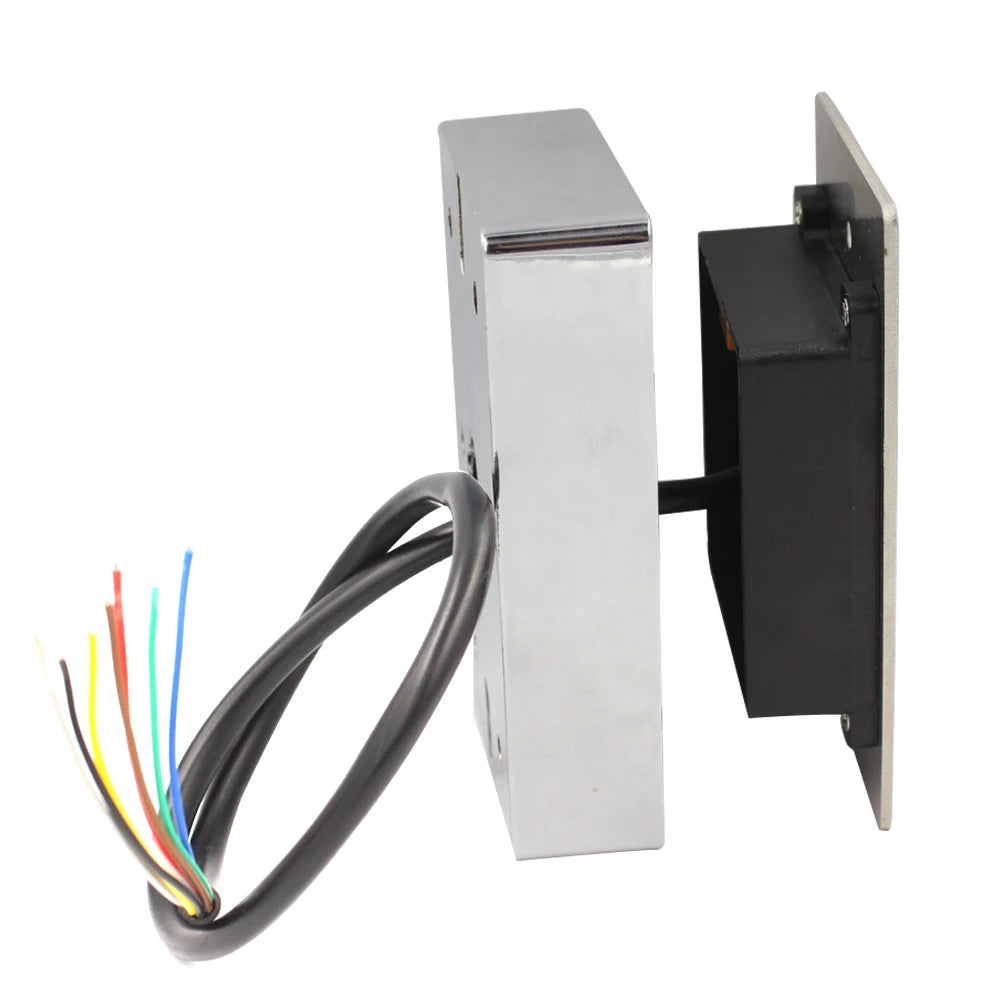

- Embedded Design: Low-profile 115 × 70 × 25 mm form factor installs flush into walls or panels for a clean, professional finish.
Full Technical Specifications
| Model | EK2 |
| Brand | Asia-Teco |
| Operating Voltage | 12–18V DC |
| Active Current | 120 mA |
| Radio Frequency | 125 KHz EM Card |
| Read Range | 0–6 cm |
| User Capacity | 1,000 Cards/PINs (990 Normal + 10 Visitor) |
| Wiegand Output | 26/34-bit (Auto Identification) |
| Waterproof Rating | IP66 |
| Dimensions | 115 × 70 × 25 mm |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Country of Origin | Mainland China |
Ideal Applications
- Office and commercial building entry doors
- Residential gates and garages
- Warehouses and industrial facilities
- Server rooms and restricted-access areas
- Schools, gyms, and community spaces
Safety & Installation Resources
For guidance on electrical safety when installing low-voltage access control systems, refer to the OSHA Electrical Safety Guidelines. Always ensure installation is performed by a qualified technician in compliance with local regulations.
Frequently Asked Questions
Q: Can the EK2 RFID access control reader work as a standalone unit without a separate controller?
A: Yes. The Asia-Teco EK2 can operate as a fully standalone keypad access controller managing up to 1,000 users directly. It also supports Wiegand 26/34-bit output, so it can alternatively function as a card reader connected to a third-party access control panel.
Q: What types of credentials does this access control system support?
A: The EK2 supports three entry modes: RFID proximity card (125KHz EM), PIN keypad entry, or a combined Card + PIN mode for enhanced security. It stores up to 990 standard users and 10 visitor users.
Q: Is the EK2 suitable for outdoor installation in harsh weather conditions?
A: Absolutely. The EK2 carries an IP66 waterproof rating, meaning it is fully protected against strong water jets and dust ingress. Combined with its anti-vandal metal housing and an operating temperature range of -40°C to 60°C, it is well-suited for demanding outdoor environments including gates, parking facilities, and building perimeters.
Q: What voltage is required to power the EK2 access control keypad?
A: The EK2 operates on 12–18V DC with an active current draw of 120 mA, making it compatible with standard access control power supplies commonly used in commercial and residential security installations.
