IP66 Biometric Fingerprint RFID Access Control Reader – 2000 Users

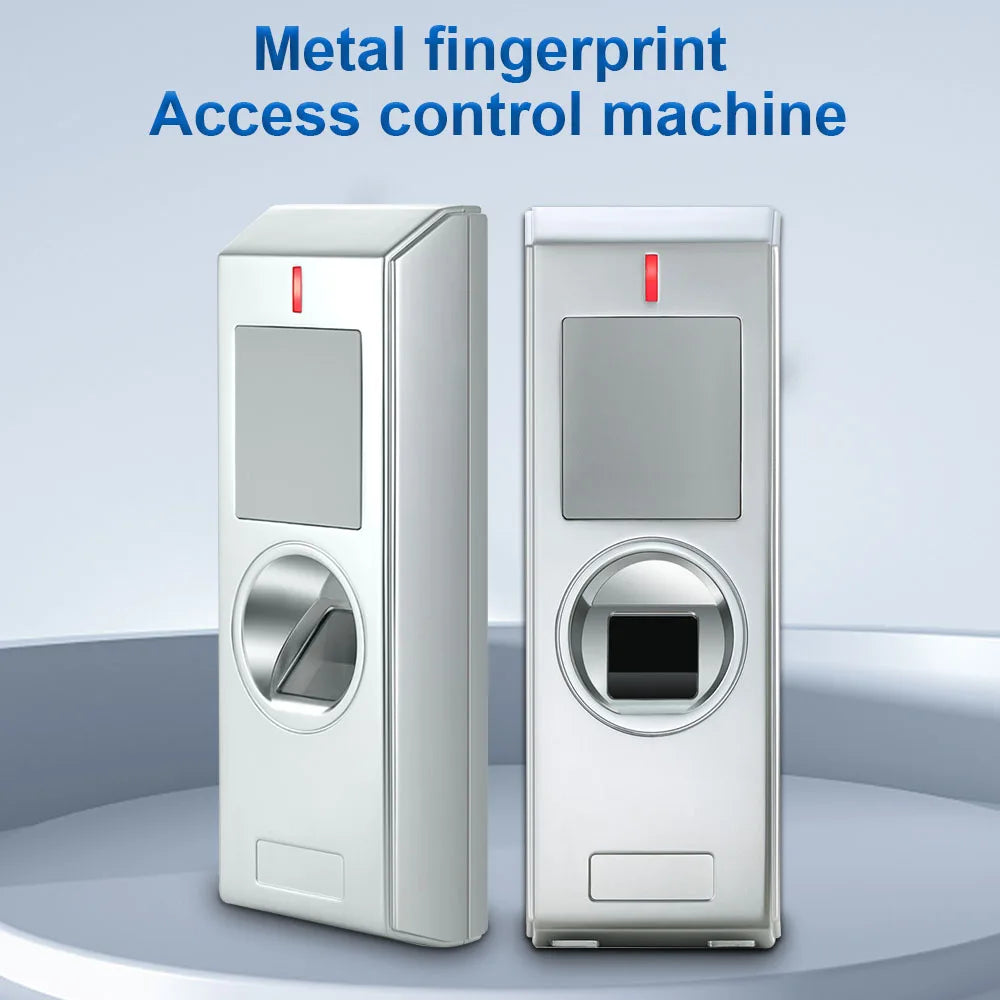

Asia-Teco HF1 IP66 Metal Biometric Fingerprint & RFID Access Control System

Take full control of who enters your property with the Asia-Teco HF1 Standalone Biometric Fingerprint & RFID Access Control Reader. Built from rugged zinc-alloy metal, this IP66-rated device is engineered for demanding outdoor and indoor environments — resisting vandalism, extreme weather, and heavy daily use. With support for up to 1,000 fingerprint users and 2,000 RFID card users, it's an ideal solution for offices, warehouses, schools, industrial facilities, and gated communities.

Key Features & Benefits

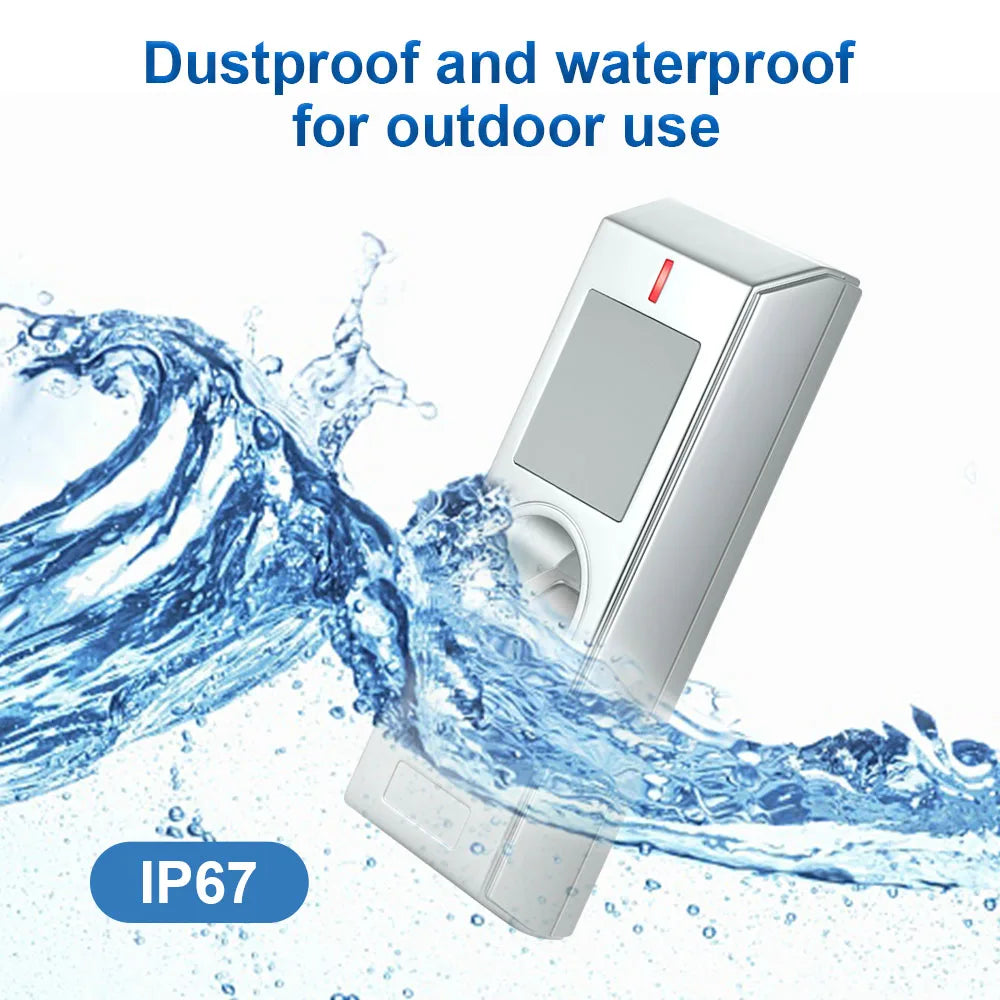

• IP66 Weatherproof Metal Housing: Zinc-alloy construction withstands rain, dust, and impact — built for reliable outdoor installation.
• Dual Authentication Modes: Supports fingerprint recognition, RFID card (EM 125KHz, HID, or Mifare 13.56MHz), and multi-user combinations for flexible access management.

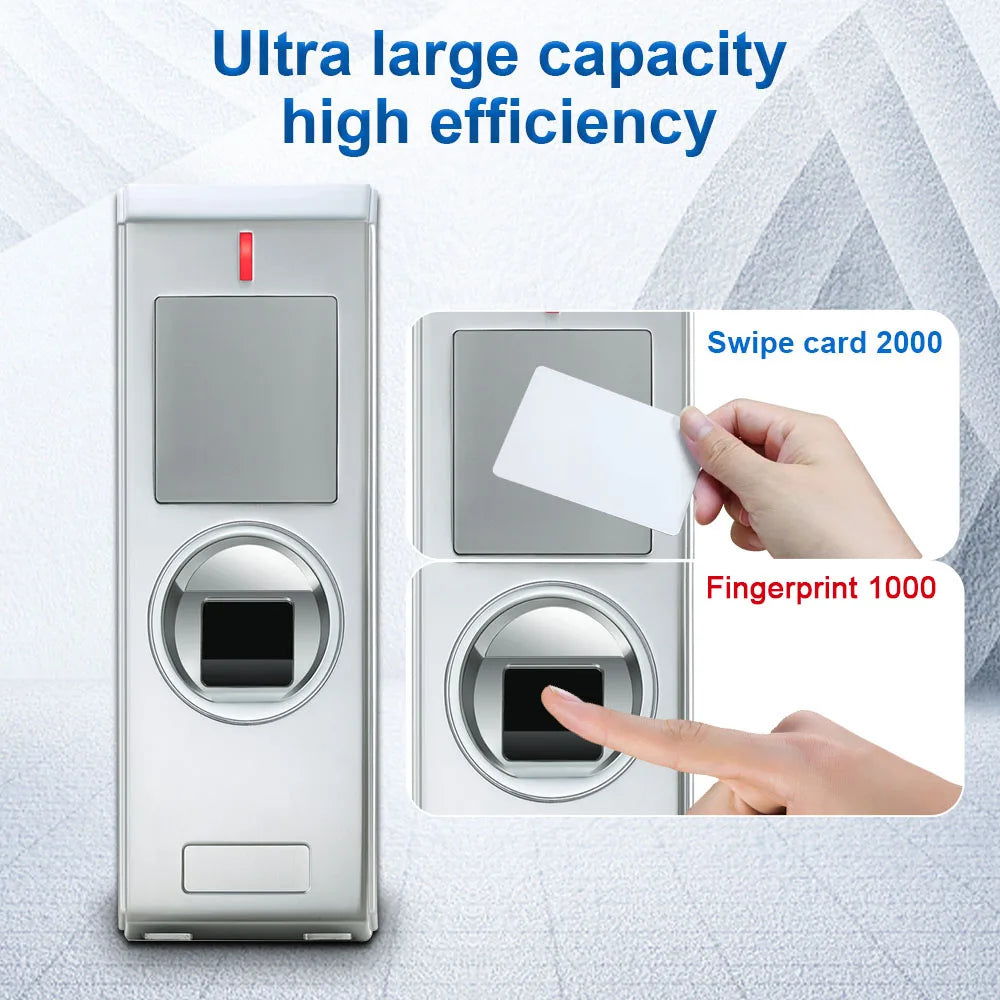

• Large User Capacity: Stores up to 1,000 fingerprint profiles and 2,000 card users — scalable for small to mid-size facilities.
• Fast & Accurate Identification: 500 DPI sensor with a fingerprint search time of ≤1 second, False Accept Rate ≤0.001%, and False Rejection Rate ≤0.1% (Security Level 3).
• Wiegand 26–44 Bit Interface: Compatible with a wide range of access control panels via standard Wiegand input/output.
• Interlock & Time-Zone Control: Link two units for double-door security; configure time-based access permissions and prohibit/permit schedules via admin authority cards or fingerprints.
• Multiple Output Modes: Pulse Mode, Toggle Mode, and Interlock Mode for versatile door controller integration.
• Wide Operating Range: Functions in temperatures from -30°C to +60°C and humidity from 10% to 99% — handles harsh conditions with ease.

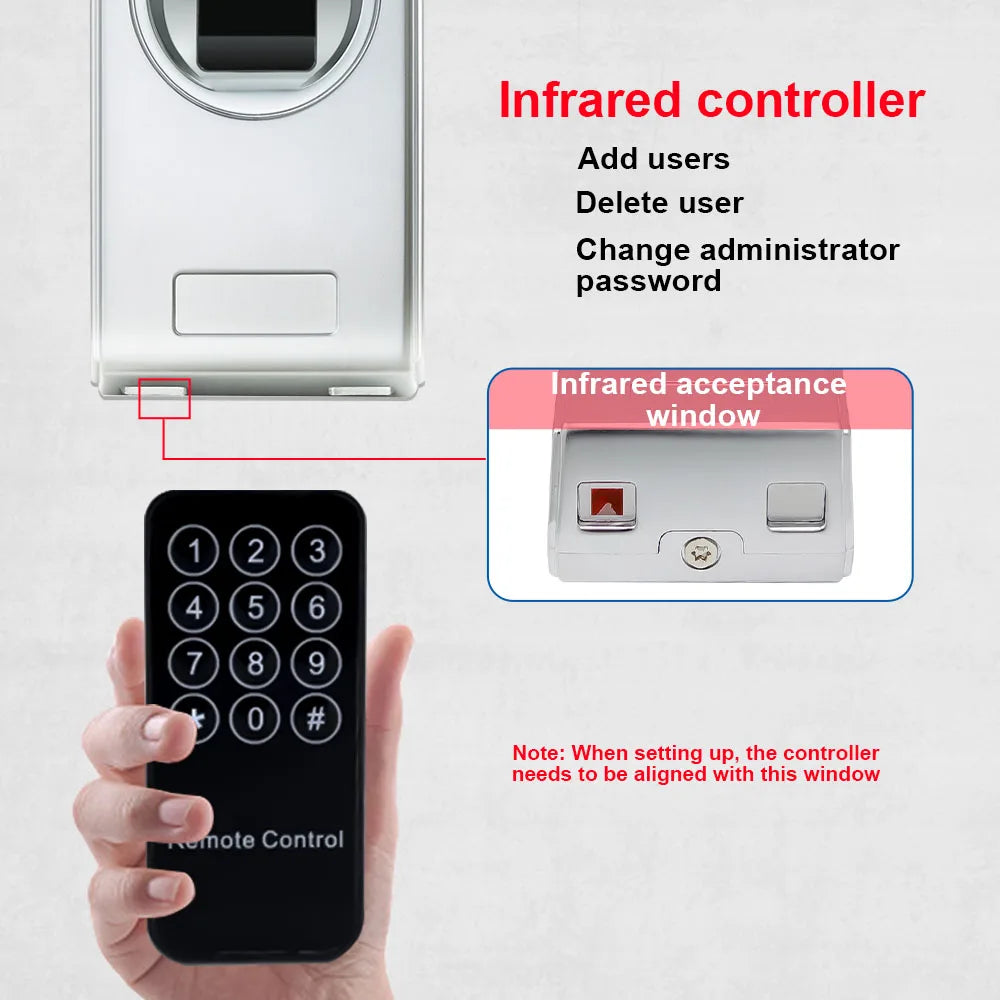

• Remote Programming: Equipped with remote control programming capability for convenient configuration without disassembly.

Technical Specifications

Who Is This For?

The Asia-Teco HF1 is perfectly suited for businesses, property managers, and facility security teams who need a reliable, standalone access control solution without the complexity of a networked system. Whether securing a server room, a warehouse entrance, a gym, or a multi-tenant building, the HF1 delivers professional-grade security in a compact, weather-tough package.

For guidance on physical security best practices, visit the Cybersecurity and Infrastructure Security Agency (CISA) or explore consumer product safety resources at CPSC.gov.

Frequently Asked Questions

Q: Can the Asia-Teco HF1 biometric access control system work outdoors?

A: Yes. The HF1 features an IP66-rated zinc-alloy metal housing that is weatherproof, anti-vandal, and rated for operating temperatures from -30°C to +60°C, making it well suited for outdoor gates, building entrances, and exposed installations.

Q: What RFID card types are compatible with this fingerprint access control reader?

A: The HF1 supports 125KHz EM cards, EM & HID cards, and 13.56MHz Mifare cards (selectable by model: HF1-EM or HF1-MF), giving you flexibility to integrate with your existing card-based access infrastructure.

Q: Does this access control system require a computer or network connection to operate?

A: No. The HF1 is a fully standalone access control unit. It can be configured using admin authority fingerprints or cards and a remote control — no PC or network connection is required for day-to-day operation.

Q: How many users can be stored on the HF1 access control device?

A: The HF1 can store up to 1,000 fingerprint users and up to 2,000 RFID card users, making it suitable for small to medium-sized facilities with a large number of authorized personnel.

Q: What is the Wiegand interface used for on this door access controller?

A: The Wiegand 26–44 bit interface allows the HF1 to communicate with a wide variety of third-party access control panels and door controllers, enabling easy integration into existing security systems as either a reader or a standalone controller.
