IP65 Waterproof Smart Door Lock | Fingerprint Bluetooth TTLock
IP65 Waterproof Smart Door Lock | Fingerprint Bluetooth TTLock
Asia-Teco TTLock Smart Deadbolt – The Ultimate Outdoor Gate Security Lock

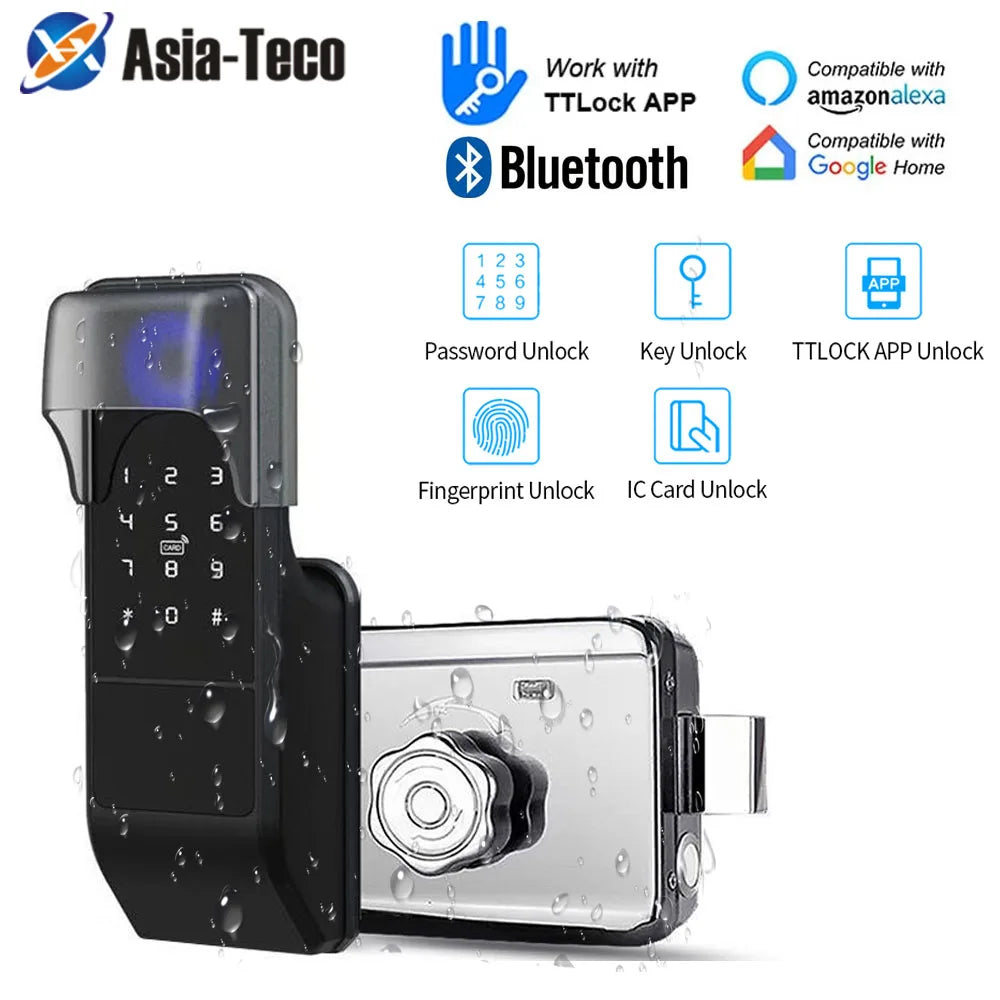

Upgrade your home or business security with the Asia-Teco VD08 IP65 Waterproof Smart Door Lock. Built tough for outdoor gates and exterior doors, this intelligent deadbolt delivers six convenient entry methods in one sleek, brushed aluminium package — fingerprint, Bluetooth app, password, IC card, remote control, and mechanical key. Made in Mainland China.
6 Ways to Unlock — Total Access Flexibility
- Fingerprint: Semiconductor sensor reads your fingerprint in just 1.5 seconds with a false acceptance rate below 0.001%. Stores up to 100 fingerprints.
- TTLock App (Bluetooth & Wi-Fi): Manage your lock from anywhere via Android 4.3+ or iOS 7.0+. Connect a TTLock Gateway (G2 or G3, sold separately) for full remote access.
- Password: 4–8 digit codes with anti-peep virtual password entry — enter random digits before or after your real code to prevent shoulder-surfing. Supports 150 permanent and 150 dynamic passwords.
- 13.56MHz MIFARE IC Card: Up to 200 cards supported. Compatible with standard MIFARE M1 cards.
- Remote Control: Optional remote unlock (remote sold separately).
- Mechanical Key: 3 physical keys included for reliable backup access.
TTLock App — Smart Control at Your Fingertips
- Remote lock/unlock via gateway
- Send temporary passcodes or e-keys to guests remotely
- Manage all passcodes and e-keys in one place
- View detailed access logs and history
- Time-attendance tracking for small businesses
- Sciener Web System compatible for enterprise-level management
Built for Outdoor Durability
- IP65 Waterproof & Weather-Resistant — stands up to rain, humidity, and outdoor conditions
- Wide Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Aluminium Alloy Front Panel + Stainless Steel Rear Panel — robust construction that resists wear and the elements
- Capacitive Acrylic Touch Keypad — smooth, responsive, and easy to clean
- Reversible Handle: Fits both left- and right-opening doors
- Fits Door Thickness: 30–60mm standard; up to 70mm with included hardware. Need more? Contact us and we'll custom-configure the lock cylinder and screws for your door.
Compatible Door Types
Steel, wooden, glass, brass, stainless steel, and more — this smart lock is a versatile fit for nearly any exterior door or gate.
Key Specifications
| Bluetooth | Bluetooth 4.1 BLE |
| Power Supply | 4 × Alkaline AA dry batteries (4.5V–9V range) |
| Low Battery Alert | 4.8V alarm voltage |
| Working Current | <200 mA |
| Standby Current | ~65 µA |
| Protection Level | IP65 |
| Model | VD08 |
| Finish | Brushed Aluminium |
What's in the Box
- 1 × Smart Deadbolt Lock (VD08)
- 3 × Mechanical Keys
- 1 × Lock Cylinder
- 2 × IC Cards
- Screw Accessories
- Product Manual
For guidance on smart home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for helpful consumer safety information.
Frequently Asked Questions
Q: Is this smart door lock truly waterproof for outdoor gate use?
A: Yes. The Asia-Teco VD08 carries an IP65 waterproof rating, making it well-suited for outdoor gates, exterior doors, and covered entry points exposed to rain and varying weather conditions. It operates reliably in temperatures from -20°C to 70°C.
Q: What phones are compatible with the TTLock app for this Bluetooth smart lock?
A: The TTLock app works with Android 4.3 and above, as well as iOS 7.0 and above. For full remote access (locking/unlocking from anywhere), you will need a TTLock Gateway (G2 or G3), which is sold separately.
Q: How many fingerprints, passwords, and IC cards can this lock store?
A: The lock supports up to 100 fingerprints, 150 permanent + 150 dynamic passwords, and up to 200 IC cards — ideal for households, small offices, or rental properties with multiple users.
Q: What happens if the battery runs out on this smart deadbolt?
A: The lock alerts you with a low-battery warning when voltage drops to 4.8V. Even if the battery is fully depleted, you can always gain entry using one of the 3 included mechanical keys, ensuring you're never locked out.
Q: Can this lock be installed on a door thicker than 60mm?
A: The standard configuration supports door thicknesses of 30–60mm, with included hardware supporting up to 70mm. If your door exceeds 70mm, simply contact us with your order and we will custom-configure the lock cylinder and screws to match your exact door thickness.
