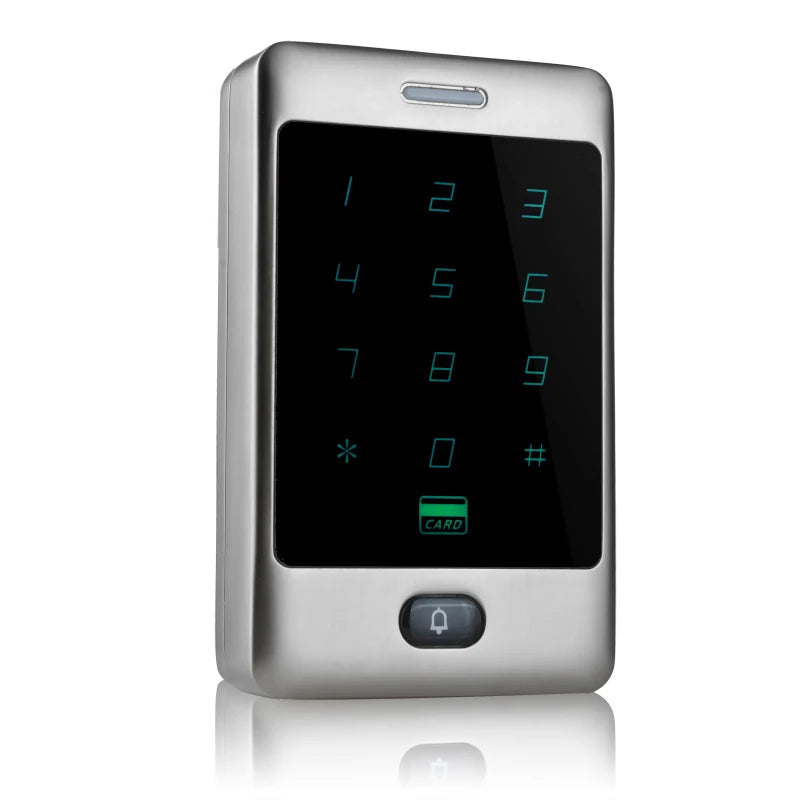

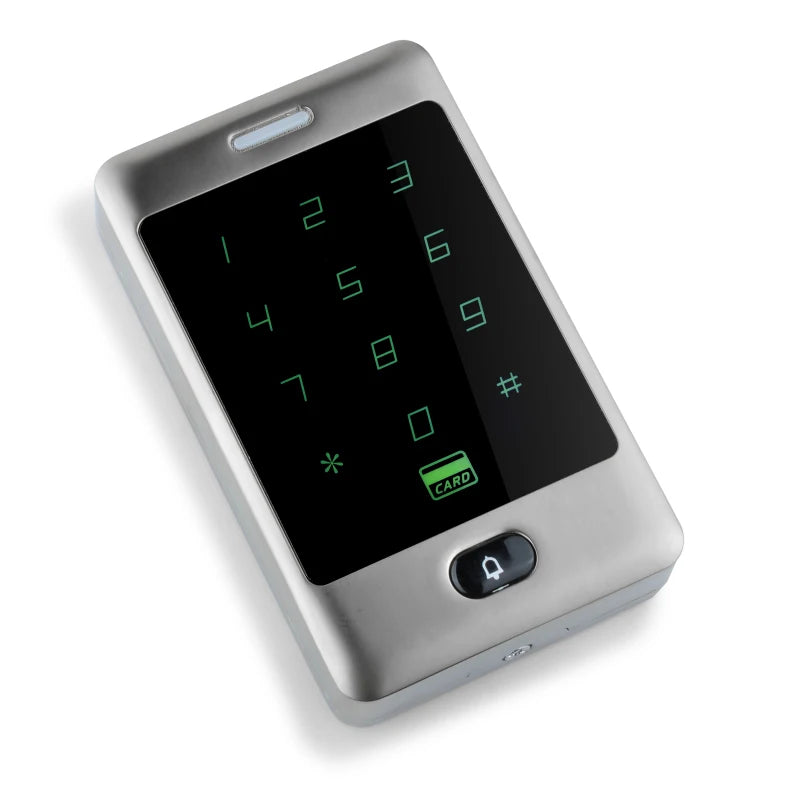

IP65 Waterproof RFID 125KHz Metal Touch Keypad Wiegand Card Reader – Model C30
Upgrade your entry security with the LIHTNE C30 RFID Access Control Keypad — a rugged, all-in-one standalone access controller and card reader built for demanding indoor and outdoor environments. With its IP65-rated waterproof metal housing, backlit touch panel, and support for up to 8,000 user cards, this unit delivers reliable, flexible, and easy-to-manage access control without the need for a connected computer.
Made in Mainland China.
Key Features
- Dual-Mode Operation: Functions as a standalone access controller or as a Wiegand card reader connected to an external controller — maximum flexibility for any installation.
- IP65 Waterproof & Weatherproof: Sealed metal enclosure withstands rain, dust, and humidity (0–95% RH), rated for temperatures from -20°C to 70°C.
- 125 KHz RFID Contactless Technology: Supports EM and compatible proximity cards; reads cards from 5–10 cm for smooth, touchless entry.
- Multiple Access Modes: Authenticate via Card only, Password only, or Card + Password for enhanced security.
- Large User Capacity: Stores up to 8,000 user cards and 1 master password directly in the device memory.
- WG26/34 Input/Output: Compatible with virtually all Wiegand-based access control systems.
- Full Keypad Programming: Configure and manage users, passwords, and settings entirely from the keypad — no PC or software required.
- Tamper Alarm: Built-in tamper detection alerts you if the device is disturbed or removed.
- Doorbell Button: Integrated doorbell function adds convenience for visitor notification.
- Active & Passive Lock Signal Output: Imported dual-point relay supports both fail-safe and fail-secure electric locks.
- Exit Button Support: External release button (exit button) connection for egress control.
- Data Backup & Copy: Compatible units in the same series support access data copy and backup for fast multi-door deployments.
- Backlit Metal Panel: Clear visibility in low-light conditions; premium look and feel.
Technical Specifications
| Model | C30 |
| Working Voltage | DC 12V |
| Unlock Relay | 12VDC / 2A |
| Quiescent Current | ≤ 50mA |
| Card Frequency | 125 KHz (EM / compatible) |
| Card Capacity | 8,000 user cards |
| Read Range | 5 – 10 cm |
| Wiegand Interface | WG26 / WG34 Input & Output |
| Opening Time | 0 – 255 seconds (adjustable) |
| Lock Interface | Relay output (active/passive selectable) |
| Waterproof Rating | IP65 |
| Operating Temperature | -20°C to +70°C |
| Ambient Humidity | 0% – 95% (non-condensing) |
| Dimensions | 150 × 70 × 20 mm |
| Country of Origin | Mainland China |
Who Is This For?
The LIHTNE C30 is ideal for offices, warehouses, server rooms, apartment buildings, garages, gates, and any location where reliable outdoor or indoor access control is required. Its standalone capability means installation is fast and cost-effective even without a central access management system.
For more guidance on electronic access control standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Keycard lock
Frequently Asked Questions
Q: Does the LIHTNE C30 RFID keypad work without being connected to a computer or access control panel?
A: Yes. The C30 operates as a fully standalone access controller — all programming, user card management, and password configuration are done directly from the built-in keypad. No computer or external software is needed. It can also be used as a Wiegand card reader connected to a third-party access control panel if preferred.
Q: What types of RFID cards are compatible with this keypad?
A: The C30 reads 125 KHz EM-format proximity cards and compatible equivalents. It does not support 13.56 MHz smart cards (e.g., MIFARE). The read range is approximately 5–10 cm for reliable, contactless operation.
Q: Is the C30 keypad truly weatherproof for outdoor installation?
A: Absolutely. The C30 carries an IP65 waterproof rating, meaning it is fully protected against dust ingress and low-pressure water jets from any direction. Its operating temperature range of -20°C to +70°C makes it suitable for outdoor use in most climates year-round.
Q: How many users can be stored on the device, and how do I add or remove cards?
A: The device stores up to 8,000 user cards and 1 master password in onboard memory. Users are added or removed directly via the keypad using the programming menu — no tools, PC, or smartphone app are required. A management card can also be set up for simplified card enrollment.
Q: What electric lock types are compatible with the C30?
A: The C30 features an imported dual-point relay output that supports both active (powered) and passive (unpowered) lock signal modes, making it compatible with electric strikes, magnetic locks (maglocks), and electronic deadbolts running on a 12VDC/2A circuit.
