IP65 Waterproof Fingerprint RFID Door Access Control Reader
IP65 Waterproof Fingerprint RFID Door Access Control Reader
IP65 Waterproof Fingerprint & RFID 125kHz Door Access Control System
Secure your home, office, or commercial space with this robust IP65-rated waterproof fingerprint and RFID access control reader. Storing up to 1,000 fingerprints and 2,000 RFID cards, this standalone controller offers fast, reliable entry management without requiring a PC connection — making it ideal for gates, doors, and entrances of all types. Made in Mainland China.
Key Features

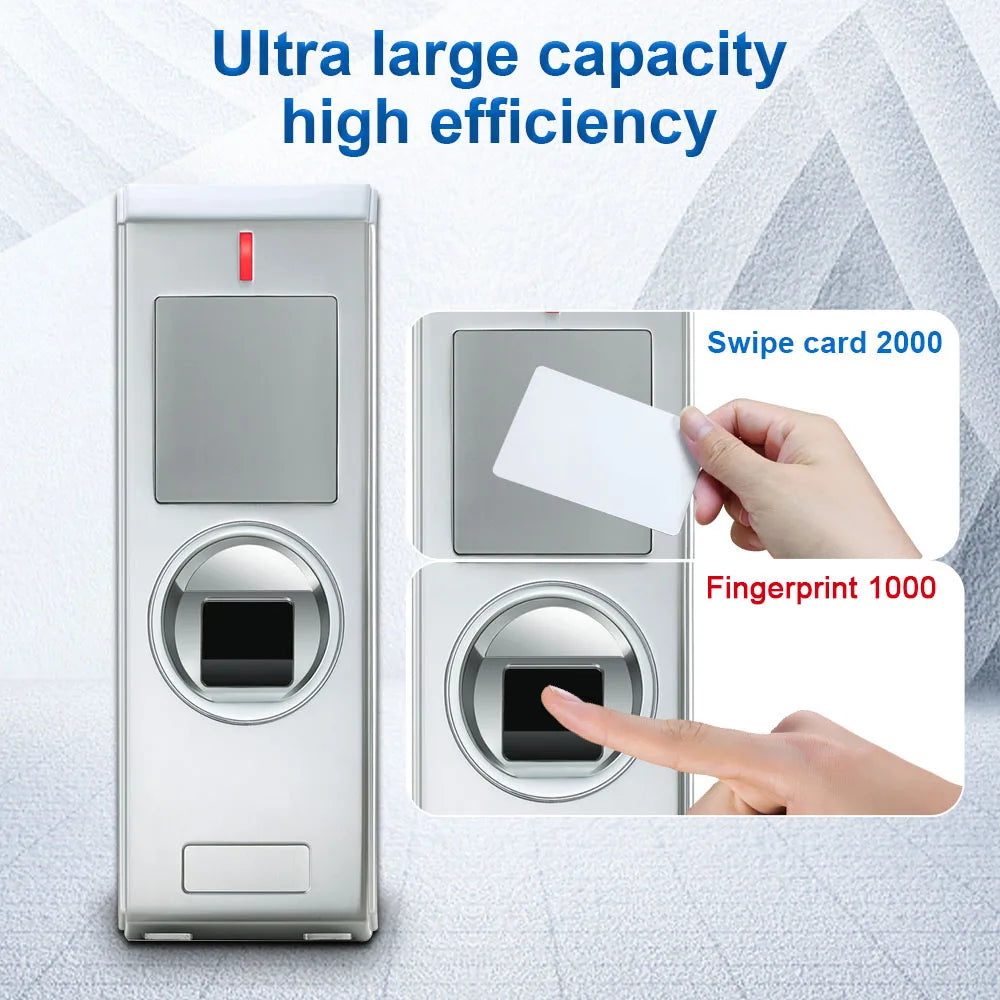

- Large User Capacity: Supports up to 1,000 fingerprints and 2,000 RFID card users in a single device.
- Dual Authentication Modes: Works with 125kHz RFID cards (EM format) or 13.56MHz Mifare cards (MF format) and biometric fingerprint scanning.

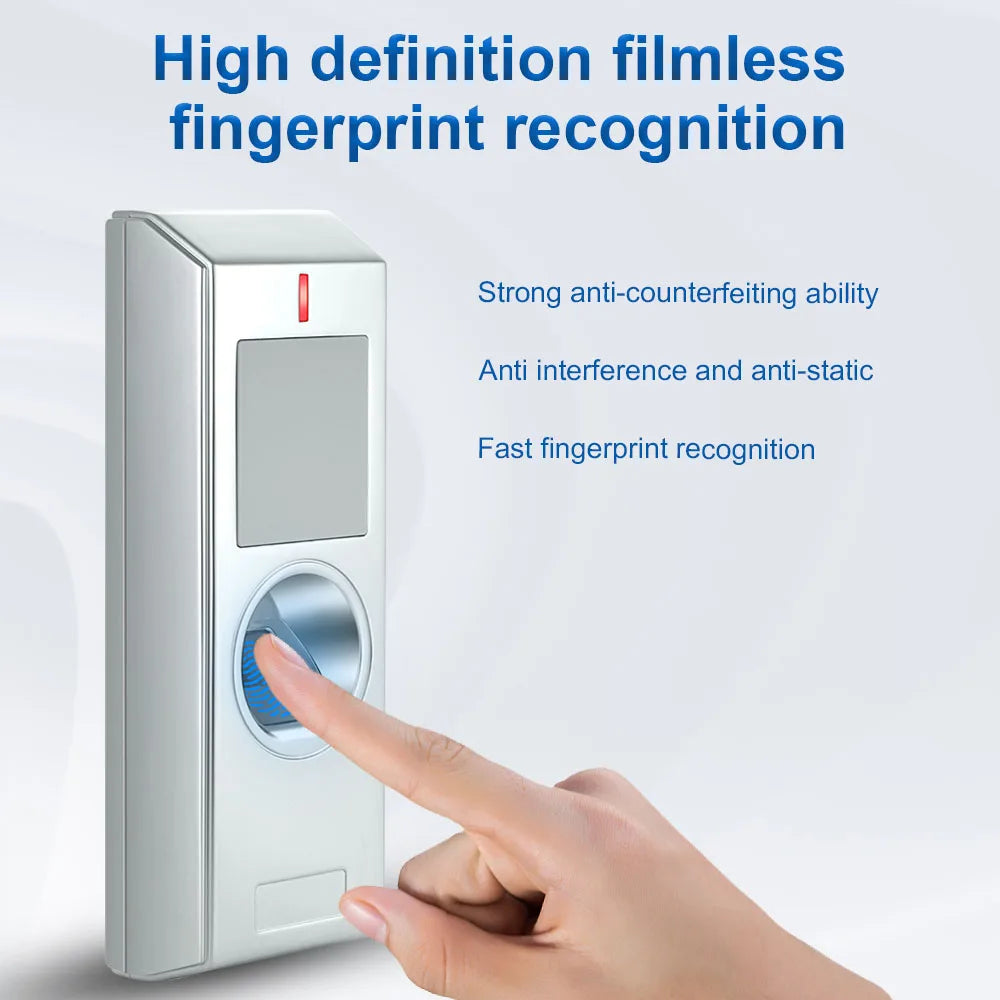

- Ultra-Fast Recognition: Identifies enrolled fingerprints in under 1 second for smooth, uninterrupted access.
- IP65 Weatherproof Rating: Fully dust-tight and protected against water jets — built for both indoor and outdoor installations.

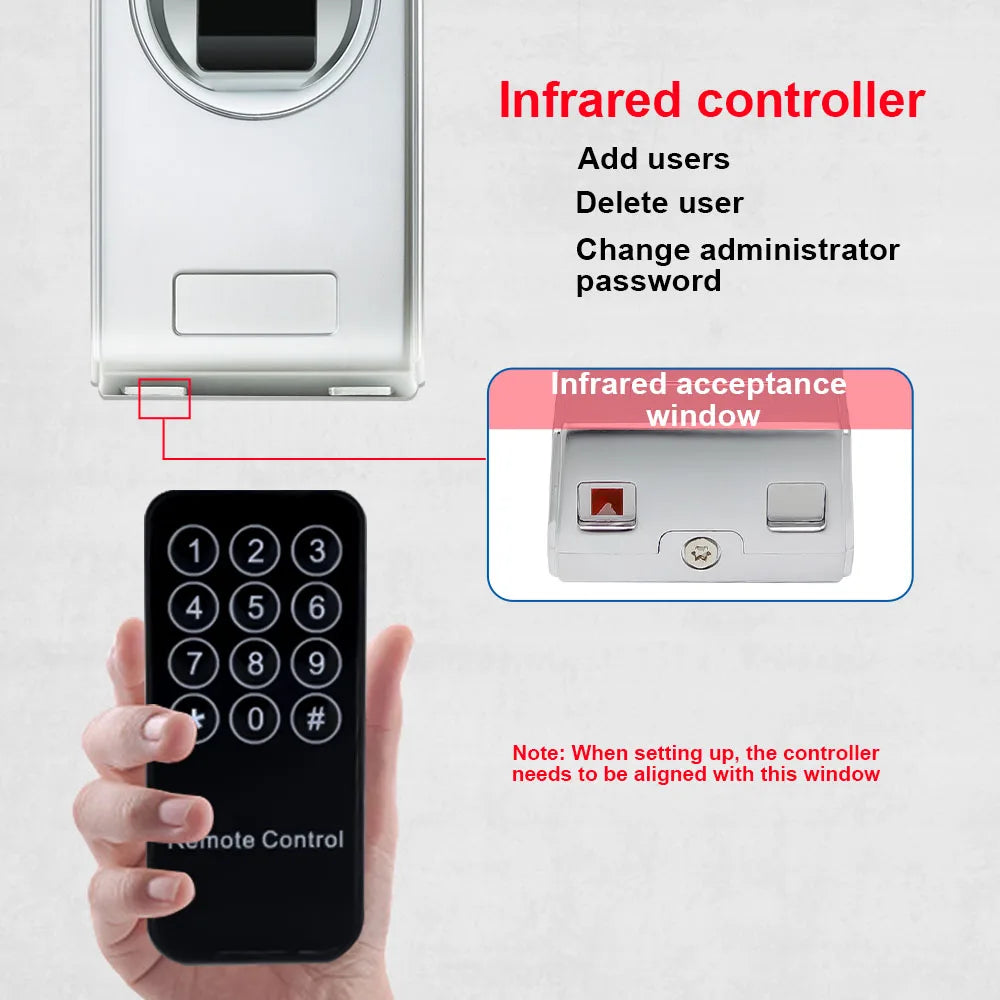

- Standalone Operation: Built-in administrator and remote control functions let you add or delete users directly on the device with no PC required.
- Wiegand WG26/34 Output: Easily integrates with most existing access control panels and third-party systems.
- Tamper Alarm: Built-in tamper detection triggers an audible buzzer alert if unauthorized removal is attempted.
- LED Status Indicators: Red and blue LEDs provide clear visual feedback on access granted or denied status.
- Wide Operating Temperature: Reliable performance from -25°C to 50°C (-13°F to 122°F) for year-round outdoor use.
Technical Specifications
| Fingerprint Capacity | 1,000 |
| RFID Card Capacity | 2,000 |
| Card Read Frequency | 125kHz (EM) / 13.56MHz (Mifare) |
| Wiegand Output | WG26/34 |
| Recognition Speed | Less than 1 second |
| LED Indicators | Red & Blue |
| Alert | Buzzer |
| Operating Temperature | -25°C to 50°C |
| Power Supply | +12V DC |

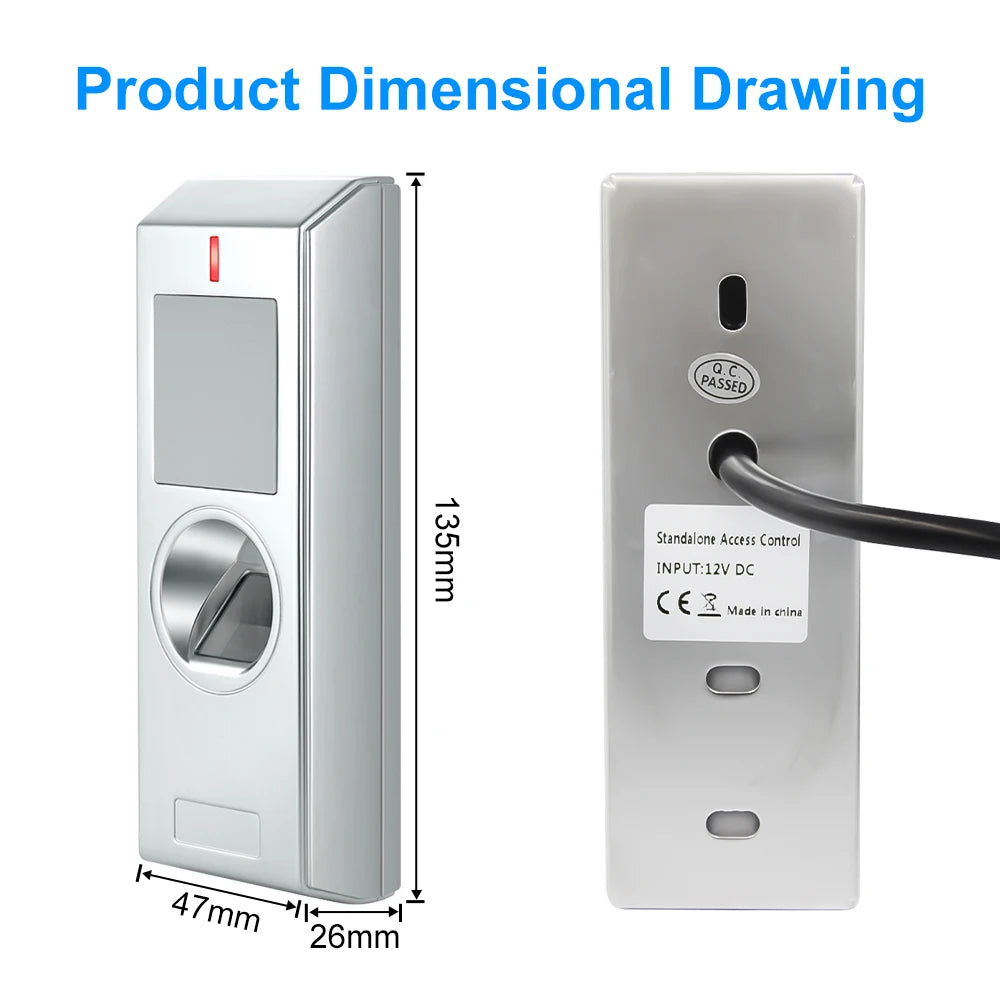

| Dimensions | 134mm × 55mm × 24mm |
| Weight | 0.45 kg |
| Waterproof Rating | IP65 |
| Security Mode | Fail Safe with Signal |
| Model | HF1-EM / HF1-MF |
| Country of Origin | Mainland China |

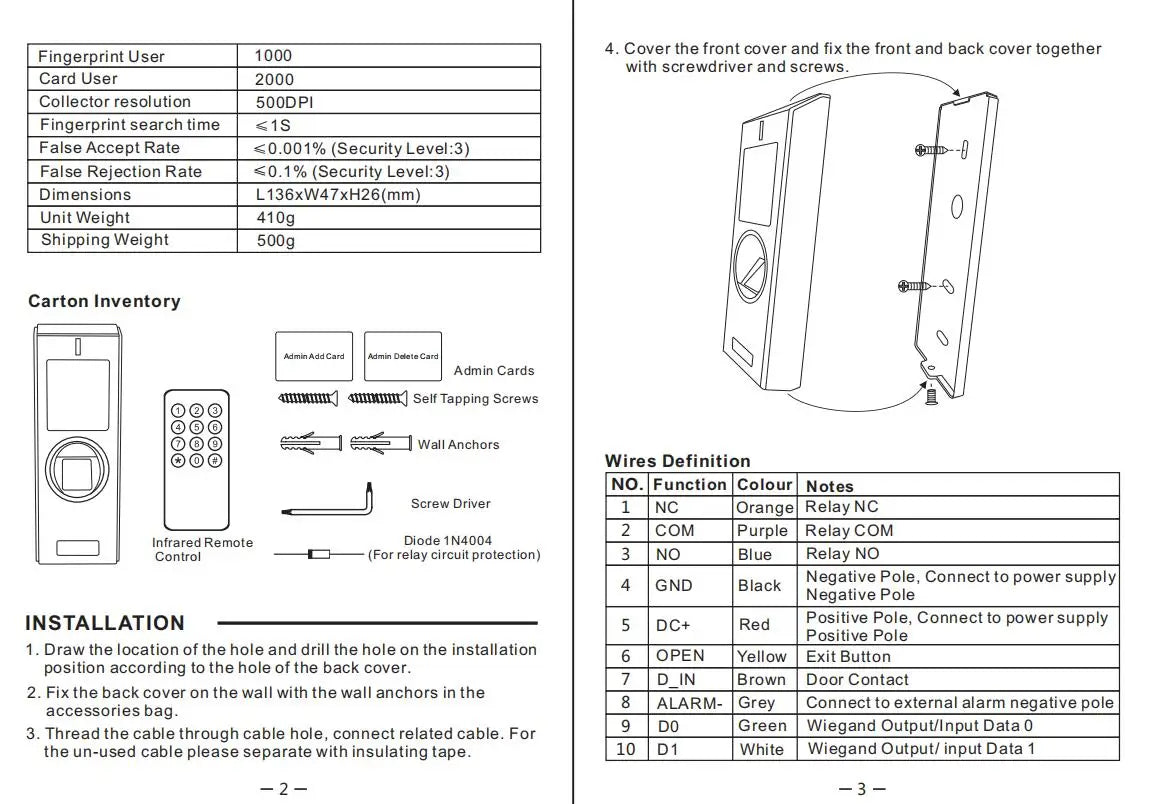

What's in the Box
The unit connects with an electric lock, access power supply, and exit button (sold separately). Wiegand WG26/34 output allows compatibility with virtually all major access control panel brands.
Learn More About Access Control Standards
For guidance on electronic access control security best practices, visit the NIST Identity & Access Management resource center.
Frequently Asked Questions
Q: Is this fingerprint access control reader suitable for outdoor installation?
A: Yes. The IP65 waterproof rating means the reader is fully dust-tight and protected against water jets, making it well-suited for outdoor doors, gates, and covered entry points exposed to rain or humidity.
Q: Does this access control system require a computer or software to manage users?
A: No PC or software is required. The device supports standalone operation — you can enroll, add, or delete fingerprints and RFID card users directly on the unit using the built-in administrator and remote control functions.
Q: What RFID card formats are compatible with this reader?
A: The HF1-EM model reads standard 125kHz EM-format RFID cards, while the HF1-MF model supports 13.56MHz Mifare cards. The reader stores up to 2,000 RFID card users and up to 1,000 fingerprint users.
Q: Can this reader integrate with my existing access control panel?
A: Yes. The Wiegand WG26/34 output is compatible with the vast majority of commercial and residential access control panel brands, making this reader easy to add to an existing system.
