IP65 Waterproof Dual-Frequency RFID Card Reader – Wiegand 26/34 Output
Upgrade your access control system with this robust, weatherproof RFID slave reader from Asia-Teco. Designed to work seamlessly with access control panels and boards, this dual-frequency reader supports both 125 KHz (EM ID) and 13.56 MHz (IC) card formats — giving you flexibility for a wide range of credential types. With IP65-rated waterproofing and a durable black housing, it's built to perform reliably in indoor and outdoor environments alike.
Please Note: This is a slave reader intended for use with a compatible access control board or panel. It cannot operate as a standalone unit and does not have onboard user storage or registration capability.
Key Features
- Dual Frequency: Reads both 125 KHz (EM ID) and 13.56 MHz (IC/RFID) cards for broad compatibility
- IP65 Weatherproof: Fully protected against dust ingress and low-pressure water jets — ideal for outdoor entryways, gates, and covered installations
- Wiegand 26/34 Output: Industry-standard WG26/WG34 interface integrates effortlessly with the majority of access control panels and systems
- LED Status Indicator: Built-in LED light display provides clear, instant feedback on card read status
- Low Power Consumption: Energy-efficient design for extended service life and reduced operating costs
- Enhanced Security: Strong encryption-ready card reading supports secure access environments
- Model: LR002DC | Color: Black
Technical Specifications
| Brand | Asia-Teco |
| Model | LR002DC |
| Card Frequency | 125 KHz + 13.56 MHz (Dual Frequency) |
| Output Protocol | Wiegand 26 / Wiegand 34 |
| Waterproof Rating | IP65 |
| LED Indicator | Yes |
| Color | Black |
| Compatible Use | Slave reader — requires access control panel/board |
| Country of Origin | Made in China |
What's in the Box?

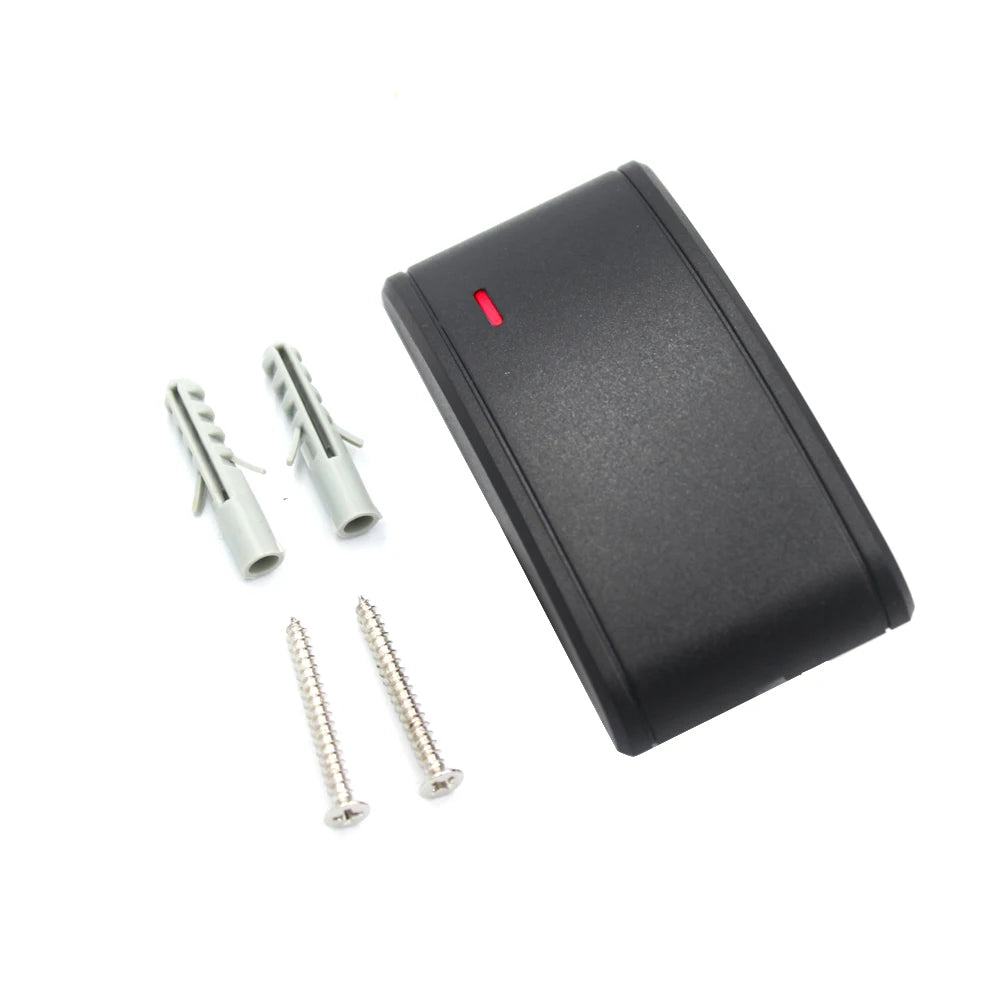

- 1 × IP65 Waterproof Dual-Frequency RFID Card Reader (LR002DC)
Installation Tip
This RFID reader is a slave/peripheral device and must be connected to a compatible Wiegand-input access control board or panel to function. Ensure your access control system supports WG26 or WG34 input before purchasing.
For guidance on best practices in physical access control systems, refer to the Cybersecurity and Infrastructure Security Agency (CISA) or the NIST guidelines on physical access control credentials.
Frequently Asked Questions
Q: Can this RFID card reader work on its own without an access control panel?
A: No. The Asia-Teco LR002DC is a slave reader and must be connected to a compatible access control board or panel with a Wiegand input. It does not have onboard user storage and cannot register or manage users independently.
Q: What card types are compatible with this dual-frequency RFID reader?
A: This reader supports both 125 KHz EM ID cards and 13.56 MHz IC/RFID cards, making it compatible with a wide range of common access control credentials used in residential, commercial, and industrial settings.
Q: Is this RFID reader suitable for outdoor installation?
A: Yes. The IP65 waterproof rating means the reader is fully protected against dust and withstands low-pressure water jets, making it suitable for outdoor entryways, building facades, gate systems, and other exposed locations.
Q: What is the output protocol of this reader, and is it compatible with most access panels?
A: This reader outputs via the Wiegand 26 (WG26) and Wiegand 34 (WG34) protocols — the most widely adopted standard in the access control industry. It is compatible with the vast majority of commercial and residential access control panels that accept Wiegand input.
