IP65 Waterproof NFC RFID Access Control Slave Reader – Dual Band, LED Backlit Glass Panel

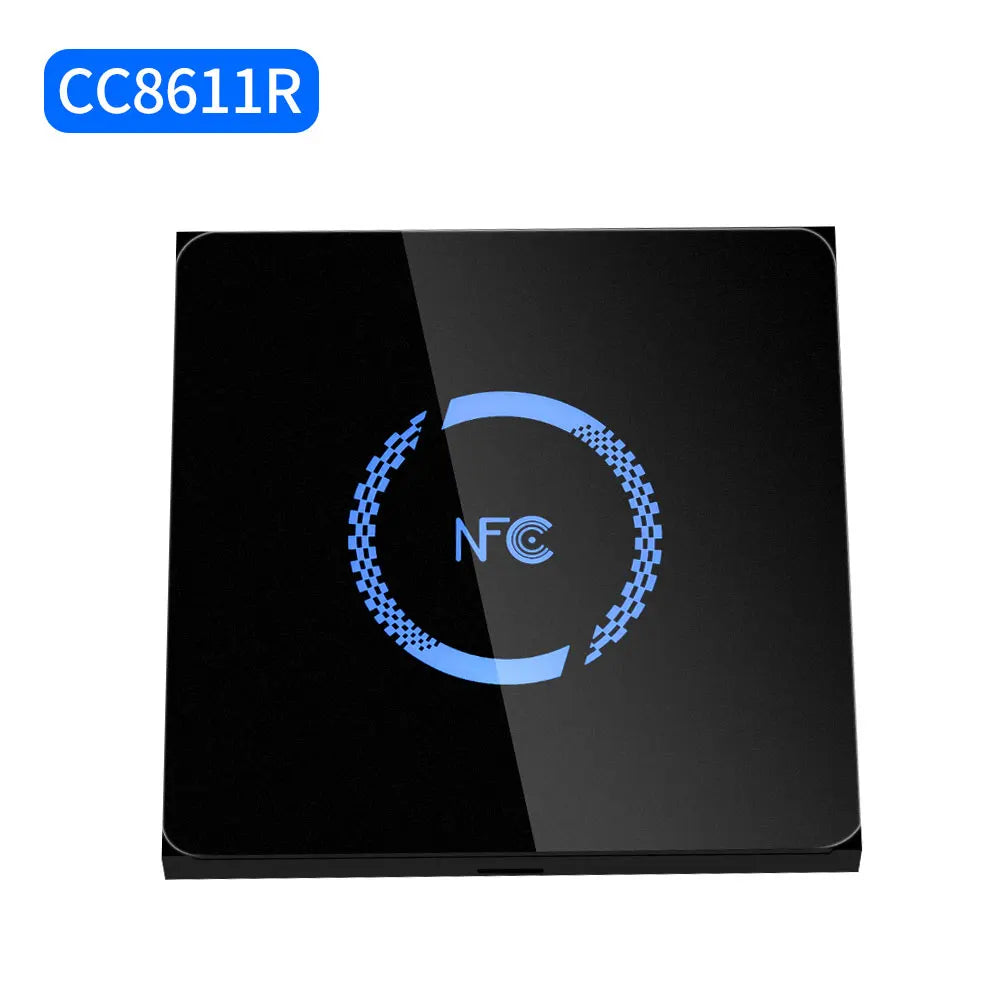

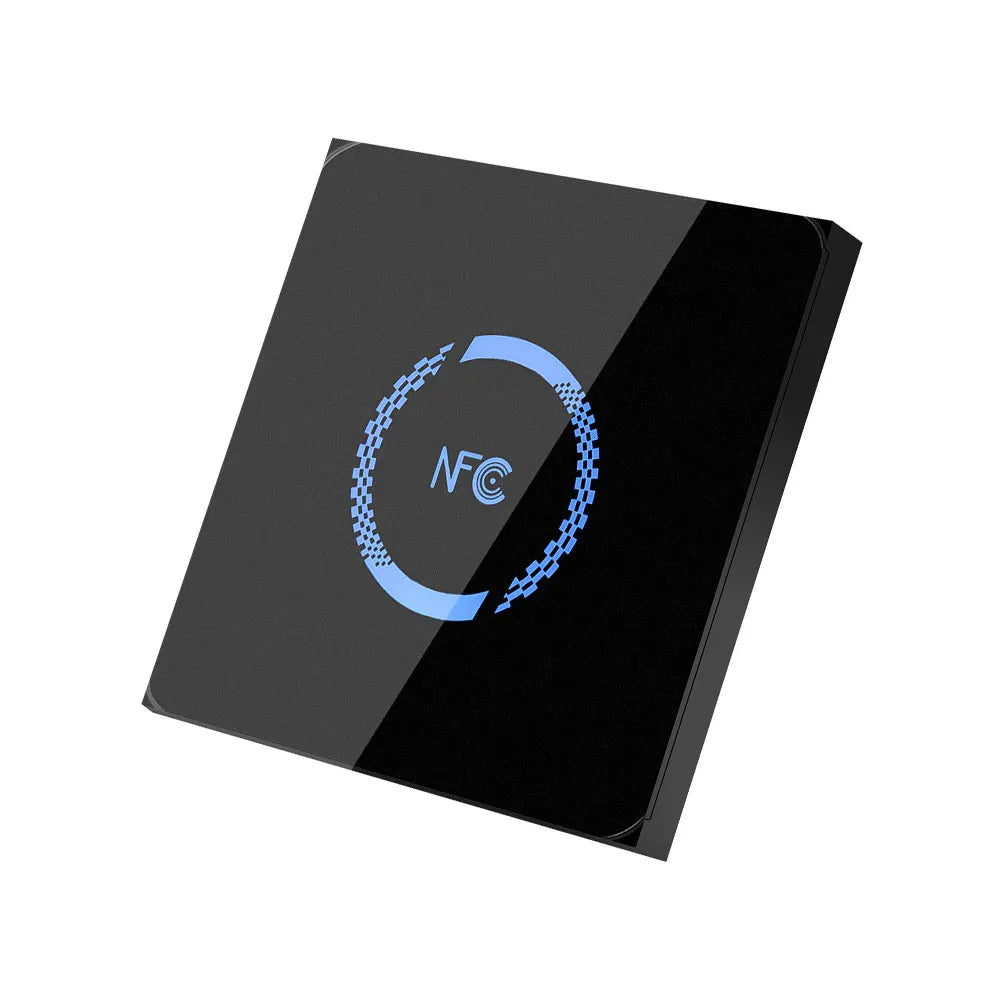

The Asia-Teco CC8611R/CC86R NFC RFID Access Control Reader is a professional-grade, dual-band contactless card reader built for demanding environments. Featuring an elegant LED backlit glass panel in carbon black, this reader supports both 125kHz EM low-frequency cards and 13.56MHz M1 IC (S50/S70/1K) cards — giving you maximum flexibility for modern access control installations. Made in Mainland China.
Why Choose This RFID Reader?

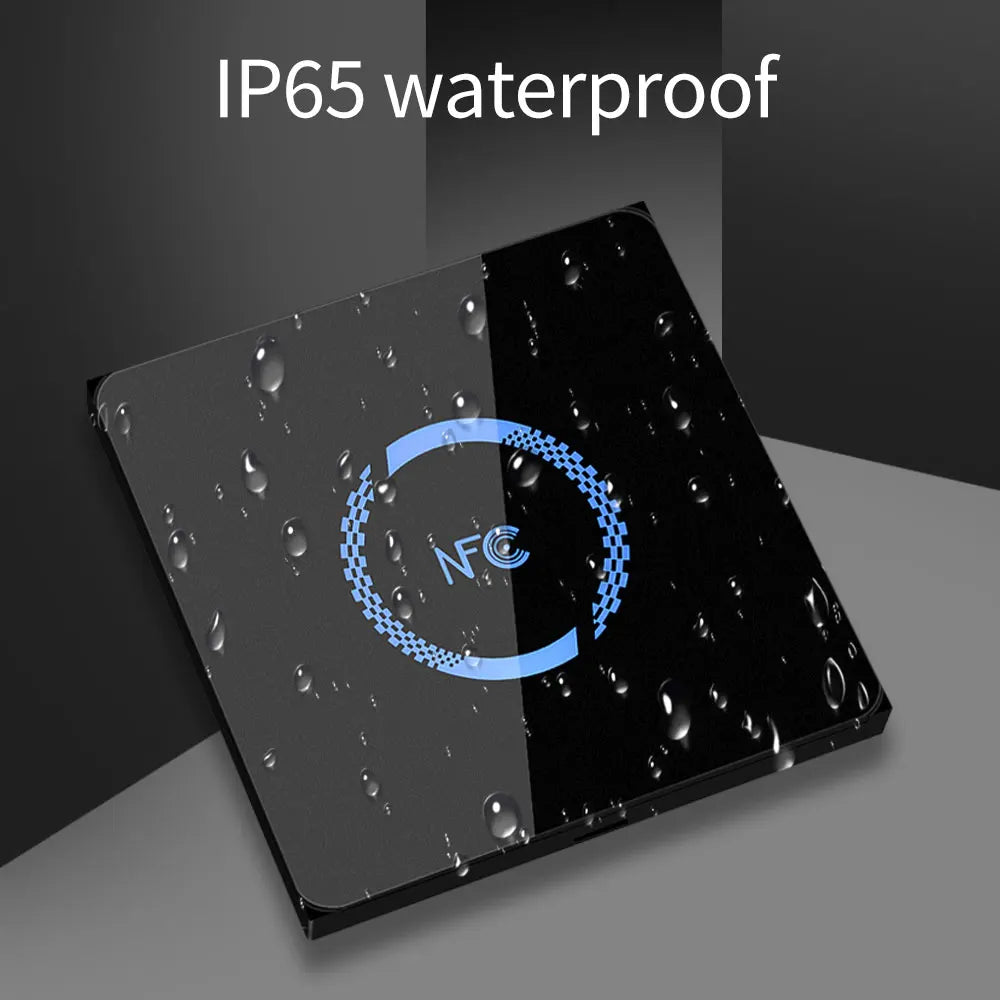

- IP65 Waterproof & Weatherproof: Fully sealed with epoxy resin fill, rated for 0–100% humidity — perfect for indoor and outdoor mounting.
- Metal Surface Compatible: Engineered to be mounted directly on metal surfaces without signal degradation.

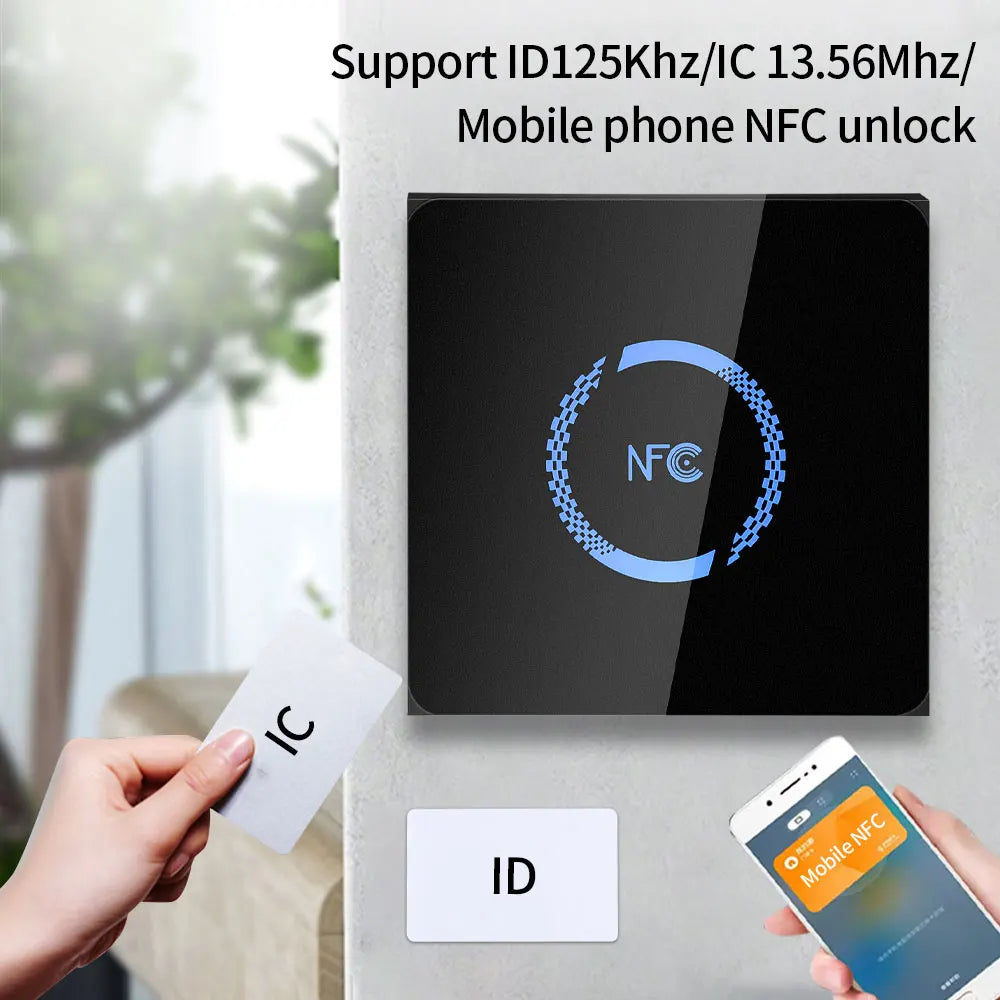

- Dual-Band Technology: Reads both 125kHz EM cards and 13.56MHz M1 IC cards in a single compact unit — no need for separate readers.
- Anti-Copy Card Security: Built-in Sniper IC copy-card detection to safeguard your access control system against cloned credentials.
- Flexible Communication Protocols: Supports Wiegand 26/34, RS485, and optional BLE 4.0 for versatile integration with existing access control panels.
- Wide Operating Temperature Range: Functions reliably from -40°C to +75°C — ideal for harsh climates and industrial environments.
- Low Power Consumption: Static current of just 30mA (max <50mA), designed for energy-efficient 24/7 operation.
- Gicard Security Access Control Solution Compatible: Integrates seamlessly with Gicard security platforms for enterprise-level deployments.
Technical Specifications
| Brand | Asia-Teco |
| Model | CC8611R / CC86R |
| Power Supply | DC 6V–15V (±5%) |
| Current Draw | Static 30mA, Max <50mA |
| Communication | Wiegand 26/34, RS485; Optional BLE 4.0 |
| Supported Protocols | EM 125kHz low-frequency, ISO14443A/B (13.56MHz) |
| Card Types | M1 IC 1K (S50/S70), EM cards |
| Protection Class | IP65 (epoxy resin filled) |
| Humidity | 0–100% (fully waterproof) |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Dimensions | 86 × 86 × 8.6mm |
| Color | Carbon Black |
| UART Baud Rate | 9600 Bit/s (TTL level output) |
| Country of Origin | Made in Mainland China |
How It Works
The reader output defaults to Wiegand 26. To switch to Wiegand 34, simply connect the FOR pin to GND. In UART mode, the serial output baud rate is 9600 Bit/s with TTL-level output (a level converter is required for PC connection). This makes integration straightforward for technicians and system integrators alike.
For further guidance on physical access control systems and security best practices, refer to the Cybersecurity and Infrastructure Security Agency (CISA) and the NIST Cybersecurity Resources.
Frequently Asked Questions
Q: What card types does this NFC RFID access control reader support?
A: This dual-band reader supports both 125kHz EM low-frequency cards and 13.56MHz M1 IC cards including Mifare S50, S70, and 1K formats. This broad compatibility makes it suitable for a wide variety of access control environments without requiring multiple readers.
Q: Can this RFID reader be mounted on a metal surface?
A: Yes. The Asia-Teco CC8611R/CC86R is specifically engineered for direct mounting on metal surfaces, making it ideal for metal doors, gates, server racks, and industrial enclosures without compromising its reading performance.
Q: Is this reader suitable for outdoor installation?
A: Absolutely. With an IP65 waterproof rating, epoxy resin sealing, and an operating temperature range of -40°C to +75°C, this reader is built to withstand outdoor environments including rain, dust, humidity, and extreme temperatures year-round.
Q: What communication protocols does the CC8611R support?
A: The reader supports Wiegand 26/34 and RS485 protocols, with an optional BLE 4.0 interface. Wiegand 26 is the default output; switching to Wiegand 34 is done by connecting the FOR pin to GND. This flexibility ensures compatibility with most access control panels on the market.
Q: How does the anti-copy card feature work?
A: The built-in Sniper IC copy-card detection technology identifies and blocks cloned or duplicated access cards, adding an important layer of security to your access control system and helping prevent unauthorized entry.
