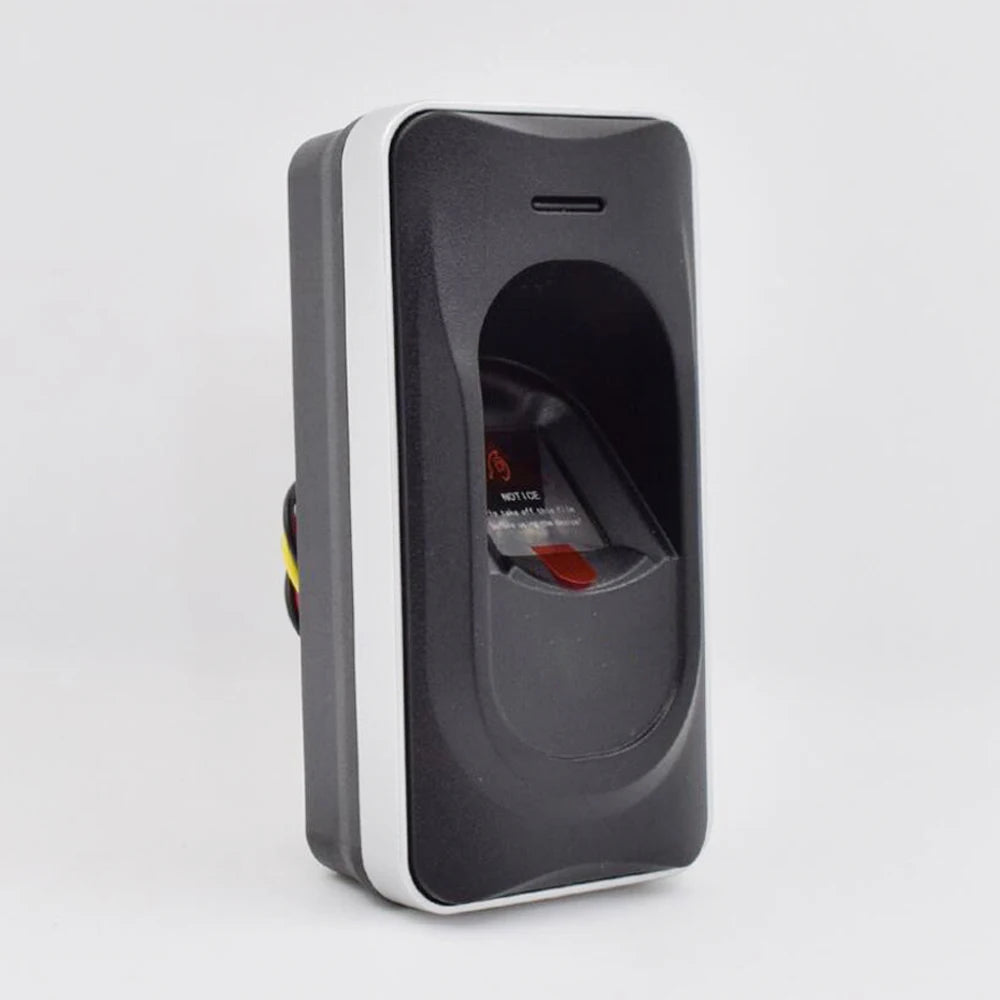

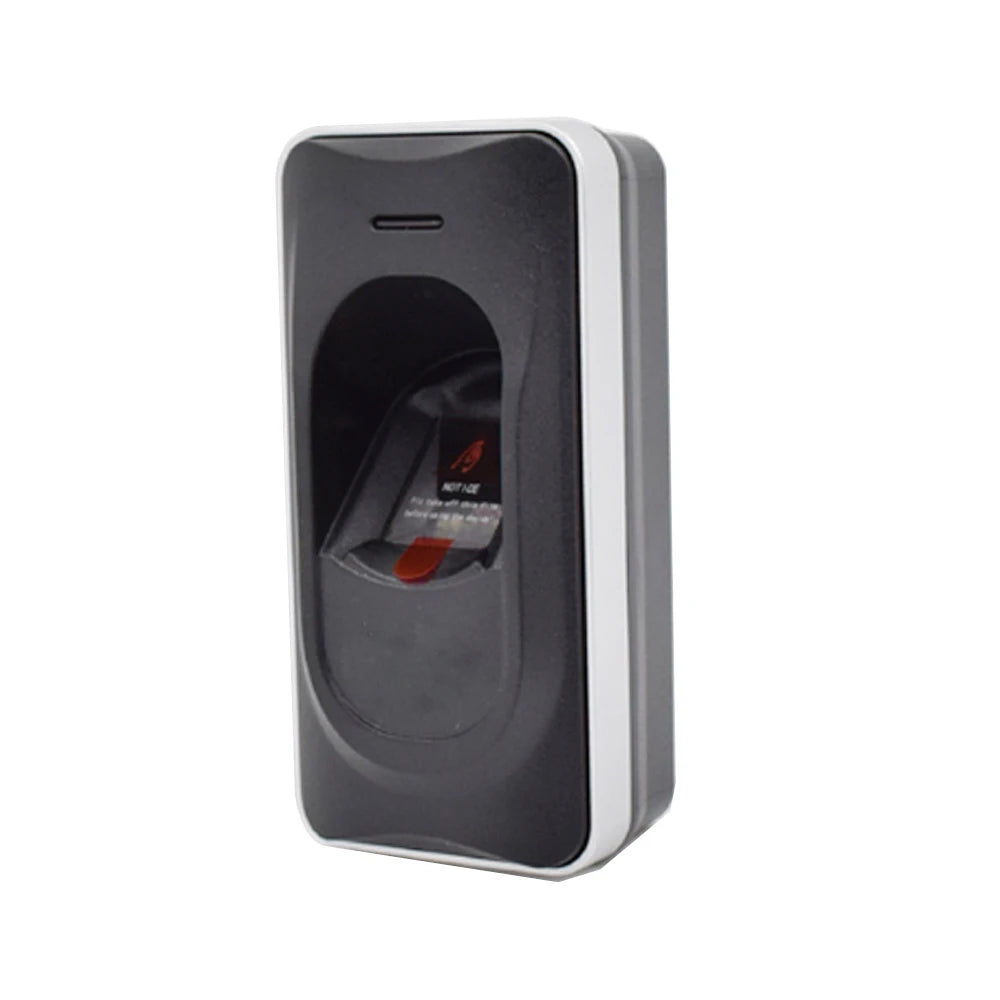

Asia-Teco F1200 Fingerprint Access Control Reader with RS485 & RFID
The Asia-Teco F1200 is a rugged, weatherproof fingerprint access control reader designed for both indoor and outdoor installations. Featuring a compact form factor, RS485 communication, and a built-in ID card (RFID) module, this reader integrates seamlessly with biometric access control panels and standalone controllers. Its IP65-rated enclosure ensures dependable performance in challenging environments, from rain-exposed entryways to industrial facilities.
Key Features
- Dual Authentication: Supports fingerprint biometric verification and RFID card (ID Card module standard; MF Card module optional) for flexible access control.
- RS485 Communication: Reliable RS485 interface enables long-distance, noise-resistant data transfer to compatible biometric access control panels and controllers.

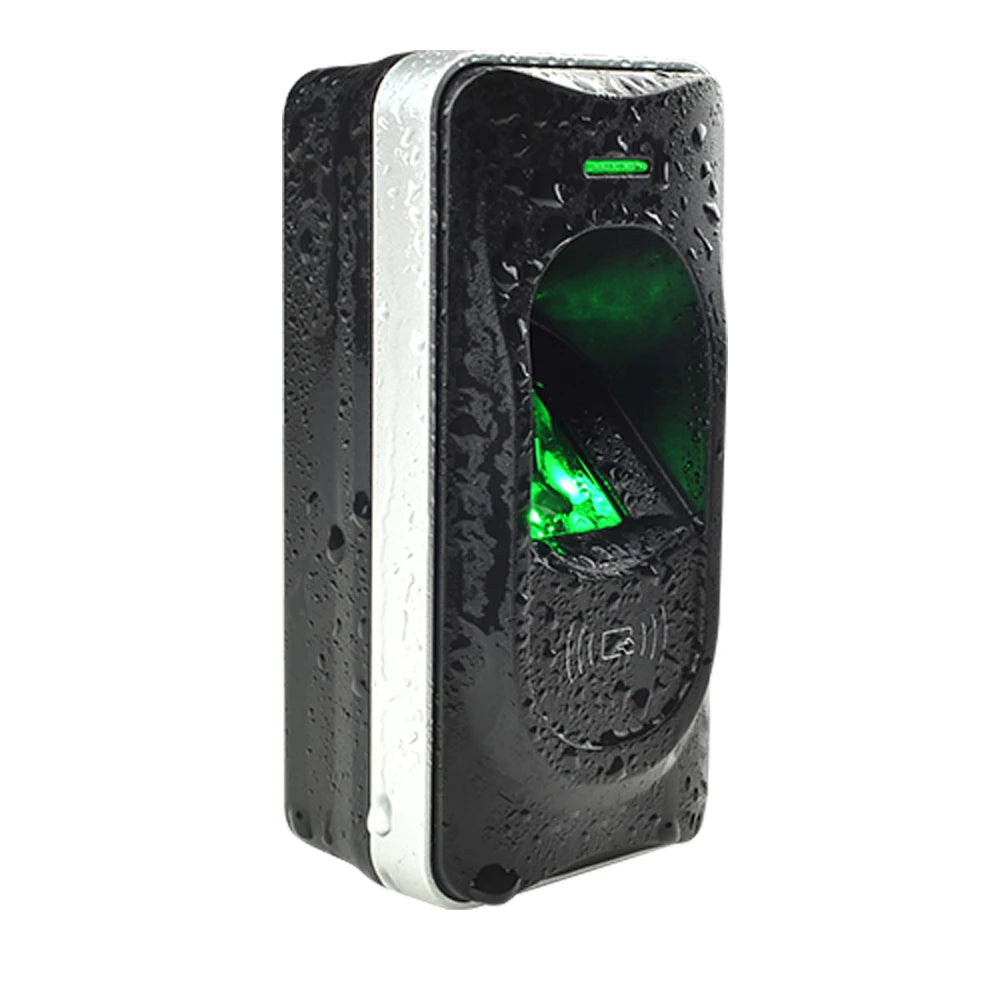

- IP65 Weather Protection: Dust-tight and water-resistant construction makes this reader suitable for outdoor entrances, gates, and covered walkways.
- Fail Safe Security Mode: Defaults to an unlocked state in the event of power loss, ensuring safe egress and compliance with safety requirements.
- 324 MHz CPU: Fast processing for quick fingerprint capture and template transfer to the connected access control panel.
- Audible Buzzer Prompt: Provides clear audio feedback for successful or unsuccessful authentication attempts.
- Wide Operating Temperature: Rated for 0°C to 45°C, suitable for a broad range of climate conditions.
- Compact Design: Slim profile (50 × 102 × 37.3 mm) fits standard door frames and mounting backplates.
Technical Specifications
| Model | F1200 |
| CPU | 324 MHz |
| Sensor | Small-sized fingerprint sensor |
| Communication Interface | RS485 |
| Standard Card Module | ID Card (RFID) |
| Optional Card Module | MF Card (Mifare) |
| Voice Prompt | Buzzer |
| Working Voltage | 12V DC |
| Working Temperature | 0°C – 45°C |
| Dimensions (W × H × D) | 50 × 102 × 37.3 mm |
| Protection Grade | IP65 |
| Security Mode | Fail Safe |
| Country of Origin | Made in Mainland China |

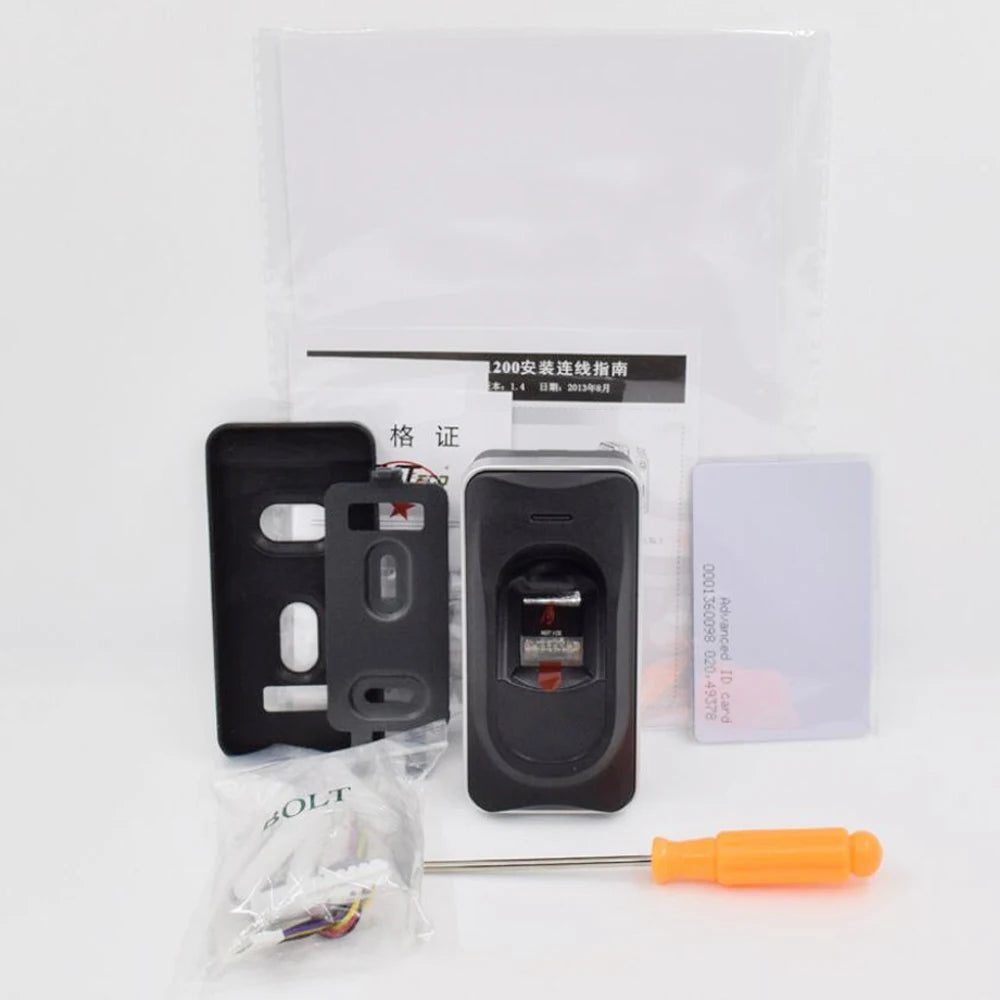

What's Included
- 1 × Asia-Teco F1200 Fingerprint & RFID Access Control Reader

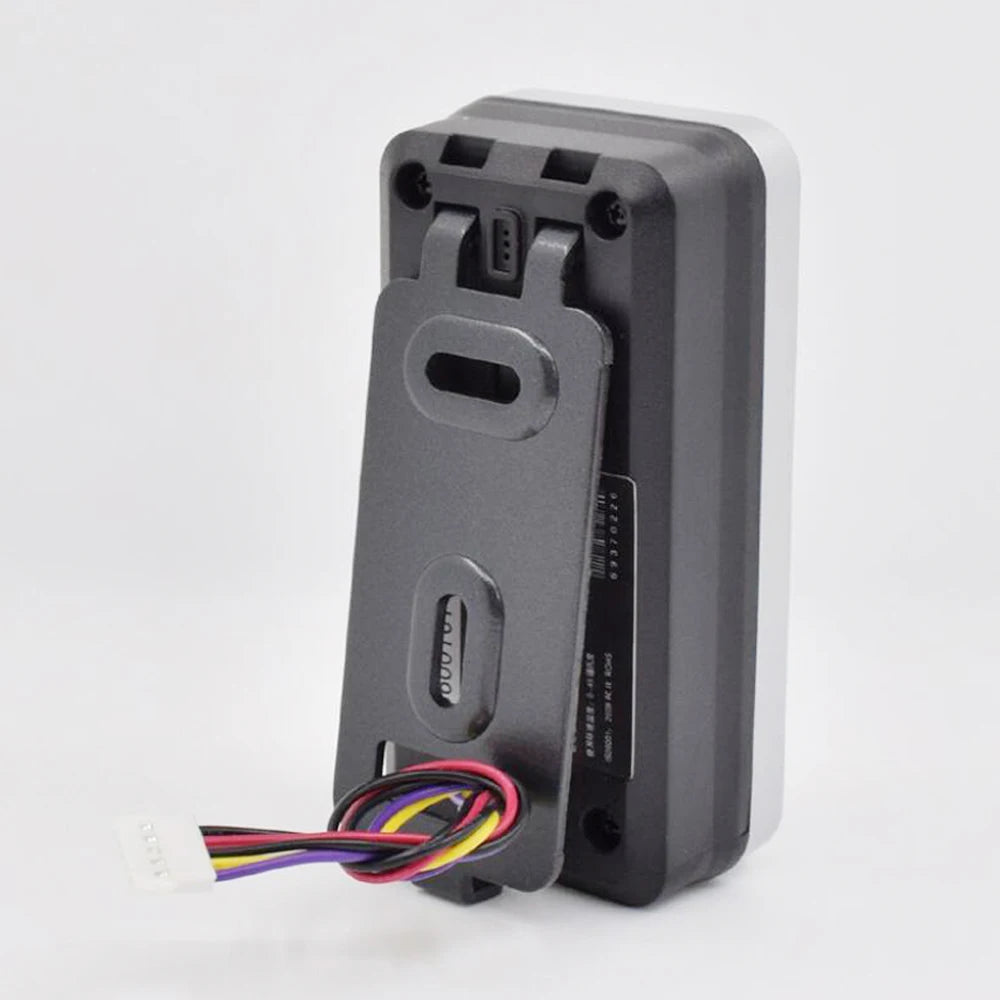

- Mounting hardware
Ideal Applications
- Office building entry points
- Outdoor gates and parking barriers
- Industrial facilities and warehouses
- Schools, gyms, and multi-tenant residential buildings
For guidance on physical access control standards and best practices, refer to the NIST Guidelines for Physical Access Control Systems.
Frequently Asked Questions
Q: Is the Asia-Teco F1200 fingerprint reader truly weatherproof for outdoor use?
A: Yes. The F1200 carries an IP65 protection rating, meaning it is fully dust-tight and protected against water jets from any direction. This makes it well-suited for outdoor door frames, covered entryways, and exposed mounting locations where rain or dust exposure is a concern.
Q: What access control panels is the F1200 RS485 fingerprint reader compatible with?
A: The F1200 uses a standard RS485 communication interface and is compatible with a wide range of biometric access control panels and standalone controllers — including inbio series controllers, F8 series, and other RS485-based systems. Always verify RS485 protocol compatibility with your specific control panel before installation.
Q: Can this reader use both fingerprint and RFID card authentication?
A: Yes. The F1200 supports dual-mode authentication. The ID Card (RFID) module is included as standard, allowing users to authenticate via fingerprint biometrics or by presenting a compatible RFID card. An optional MF Card (Mifare) module can also be configured for added versatility.
Q: What does "Fail Safe" security mode mean on the F1200?
A: Fail Safe mode means that in the event of a power failure, the connected lock or access device defaults to an unlocked (open) state. This is a critical safety feature that ensures people can exit a secured area freely during an emergency or power outage.
