Infrared Touchless Exit Button for Door Access Control Systems
Upgrade your entry and exit points with the Metal Backlight Infrared Touchless Exit Switch — a sleek, hygienic, and highly reliable no-touch door release solution designed for commercial, industrial, and residential access control systems. Simply wave your hand within the sensor range and the door releases instantly — no physical contact required.
Key Features

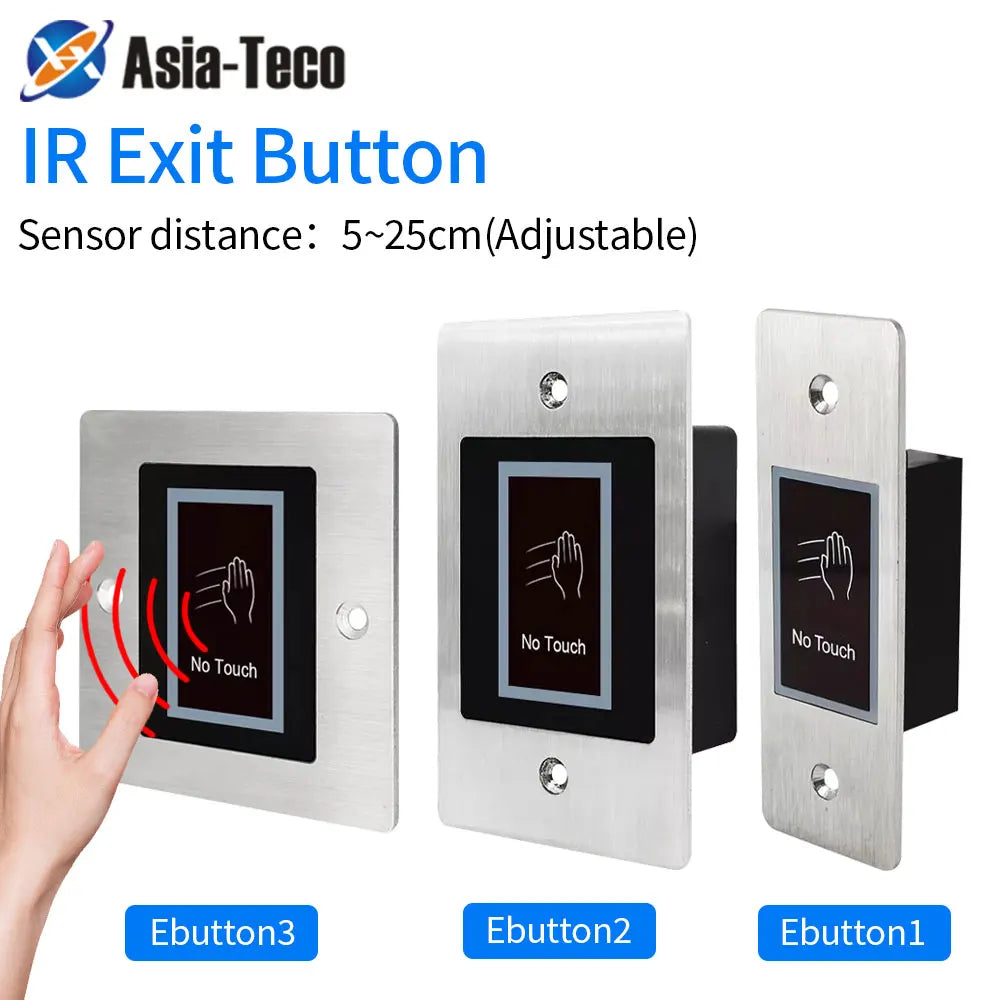

- Touchless Infrared Sensing: 940 nm infrared sensor with an adjustable detection range of 3–25 cm for precise, hands-free activation every time.
- Durable Metal Construction: Stainless steel face plate with a zinc alloy standard structure and plexiglass panel inlay — built to withstand heavy daily use.

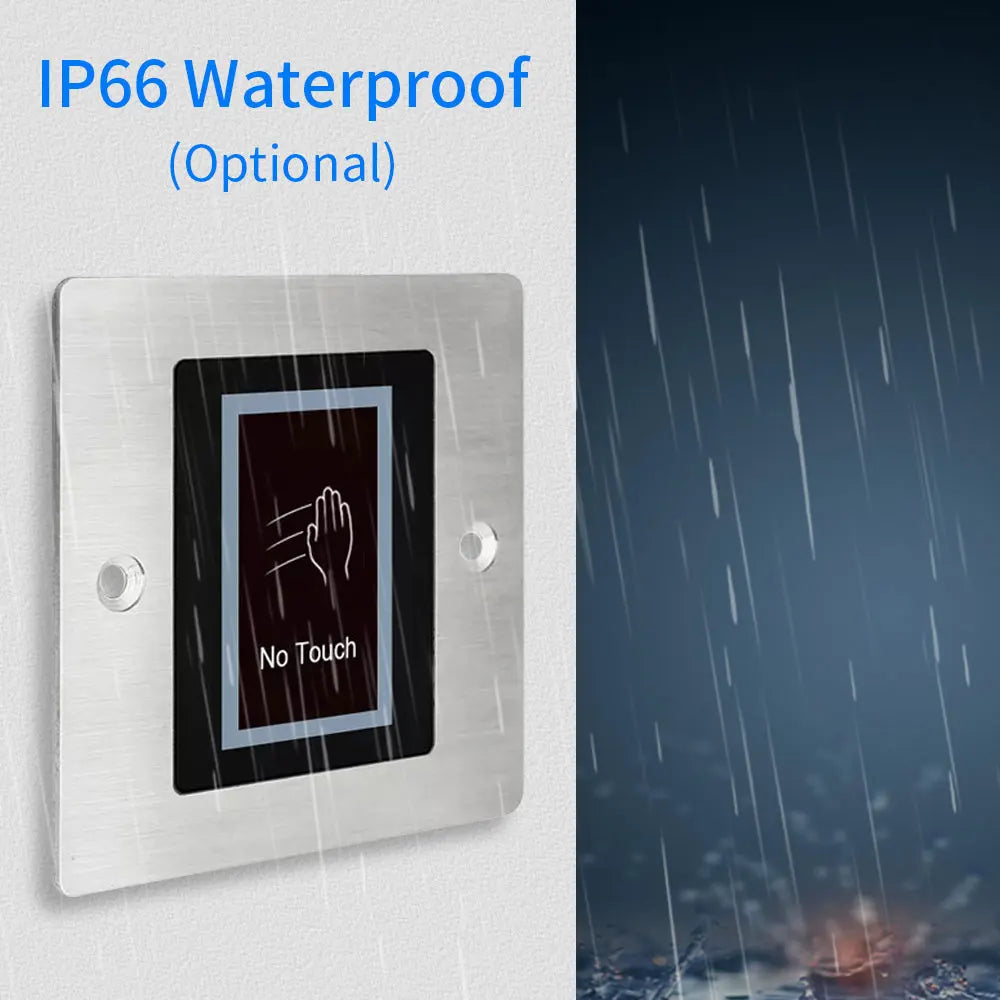

- IP54 Waterproof Rating: The front panel is fully waterproof, making it suitable for indoor and outdoor installations (note: the embedded rear panel is not sealed with waterproof glue in the standard version).

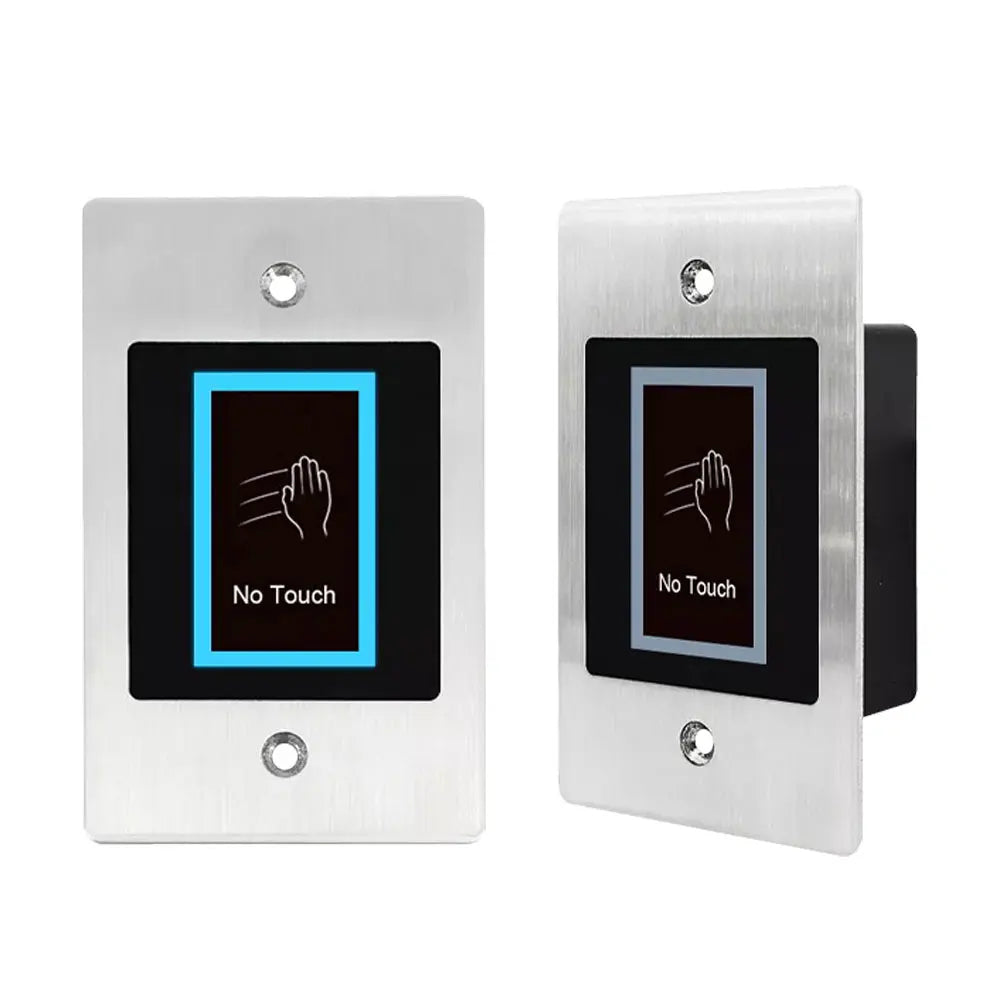

- Backlit LED Indicators: Blue LED for standby status; Red LED when the sensor is actively triggered — easy to read at a glance in any lighting condition.

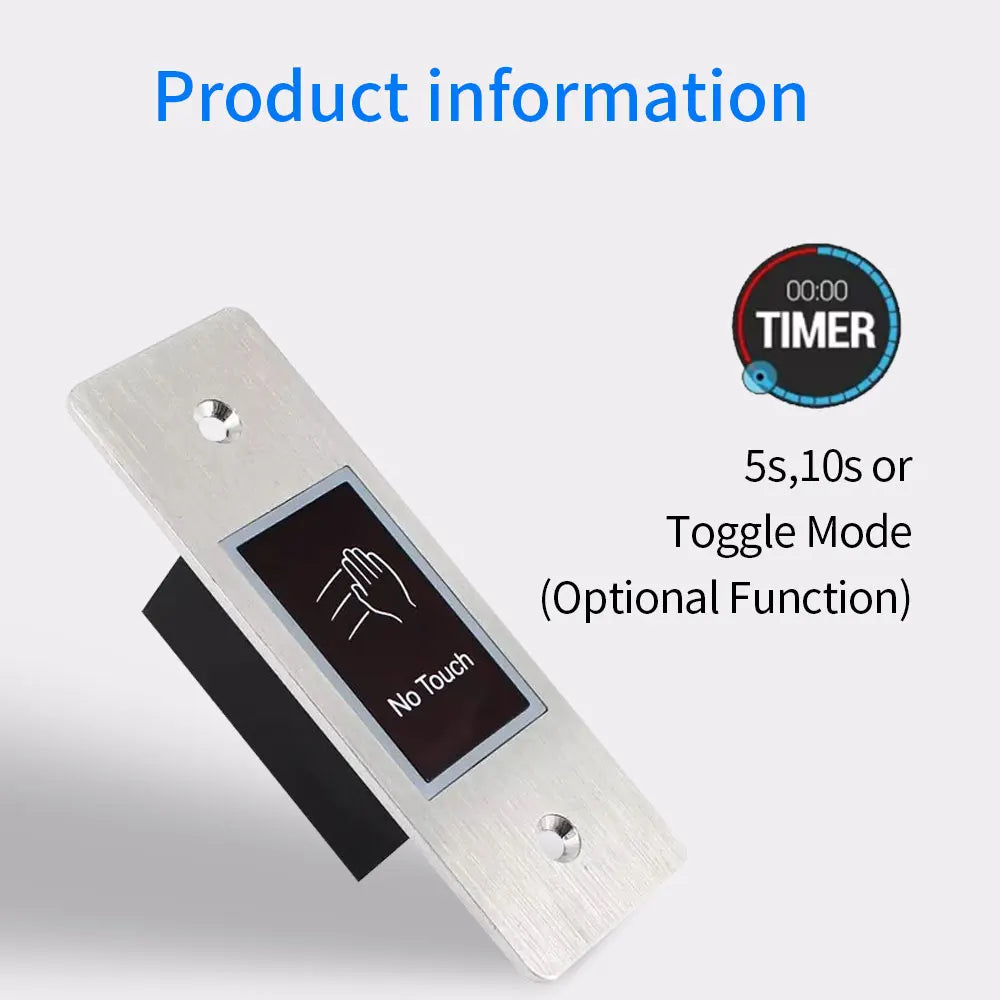

- Flexible Timer Delay Options: Choose from Toggle Mode, 5-second, or 10-second timed relay output to suit your access control workflow.
- Wide Compatibility: Output contacts include NO / NC / COM / 12V+ / GND, compatible with most standard electric strike locks, magnetic locks, and access control panels.
- Wide Operating Voltage: Works with 10–24V DC power supplies for easy integration into existing systems.
- Compact Embedded Design: Panel dimensions of 86 × 86 × 25 mm with a 73 mm diameter sensor face — fits standard wall gang boxes for a clean, professional finish.
Technical Specifications
| Operating Voltage | 10–24V DC |
| Working Current | ≤25 mA |
| Idle Current | ≤15 mA |
| Current Rating | 3A 12V DC MAX |
| Infrared Wavelength | 940 nm |
| Sensor Distance | 3–25 cm (Adjustable) |
| Timer Delay | 5s / 10s / Toggle Mode |
| Output Contact | NO / NC / COM / 12V+ / GND |
| Waterproof Rating | IP54 (Front Panel) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 0%–86% |
| Panel Material | Plexiglass |
| Body Material | Stainless Steel / Zinc Alloy |
| Dimensions | 86 × 86 × 25 mm / Ø 73 mm, Thickness 20 mm |
| Unit Weight | 128 g |
| Country of Origin | Made in Mainland China |
Ideal Applications
This touchless exit button is perfect for offices, hospitals, schools, retail stores, warehouses, apartment buildings, and any location where hygienic, hands-free door access is a priority. Its robust stainless steel build and IP54 waterproof front panel make it equally at home in demanding outdoor or semi-outdoor environments.
Learn More About Access Control Safety Standards
For guidance on physical security standards and safe building access practices, visit the U.S. Occupational Safety and Health Administration (OSHA), which provides resources on workplace safety and building security requirements.
Frequently Asked Questions
Q: What is the detection range of this infrared touchless exit button?
A: The infrared sensor has an adjustable detection distance of 3–25 cm. You can fine-tune the sensitivity to your specific door or installation environment, minimizing accidental triggers while ensuring reliable hands-free activation.
Q: Is this no-touch exit switch compatible with magnetic locks and electric strike locks?
A: Yes. The switch outputs NO / NC / COM / 12V+ / GND contacts and supports 10–24V DC input, making it broadly compatible with most standard magnetic locks, electric strike locks, and access control panels used in commercial and residential systems.
Q: What does the IP54 waterproof rating mean for this exit button?
A: IP54 means the front panel is protected against dust ingress and splashing water from any direction, making it suitable for covered outdoor or semi-outdoor locations such as building entrances and covered parking areas. Note that in the standard version, the rear embedded panel is not sealed with waterproof glue.
Q: How do the timer delay modes work?
A: The switch offers three output modes: a 5-second timed relay, a 10-second timed relay, or Toggle Mode (latching on/off with each trigger). Select the mode that best fits your access control setup — for example, Toggle Mode for a persistent door-open state, or timed modes for auto-closing scenarios.
