Asia-Teco Infrared Touchless Door Exit Release Switch
Upgrade your entry or exit points with the Asia-Teco SI86 Infrared Touchless Door Exit Button — a sleek, hygienic, and reliable access control solution for offices, commercial spaces, and secure facilities. Simply hover your hand within range and the door releases automatically, with no physical contact required.
Made in Mainland China.
Key Features

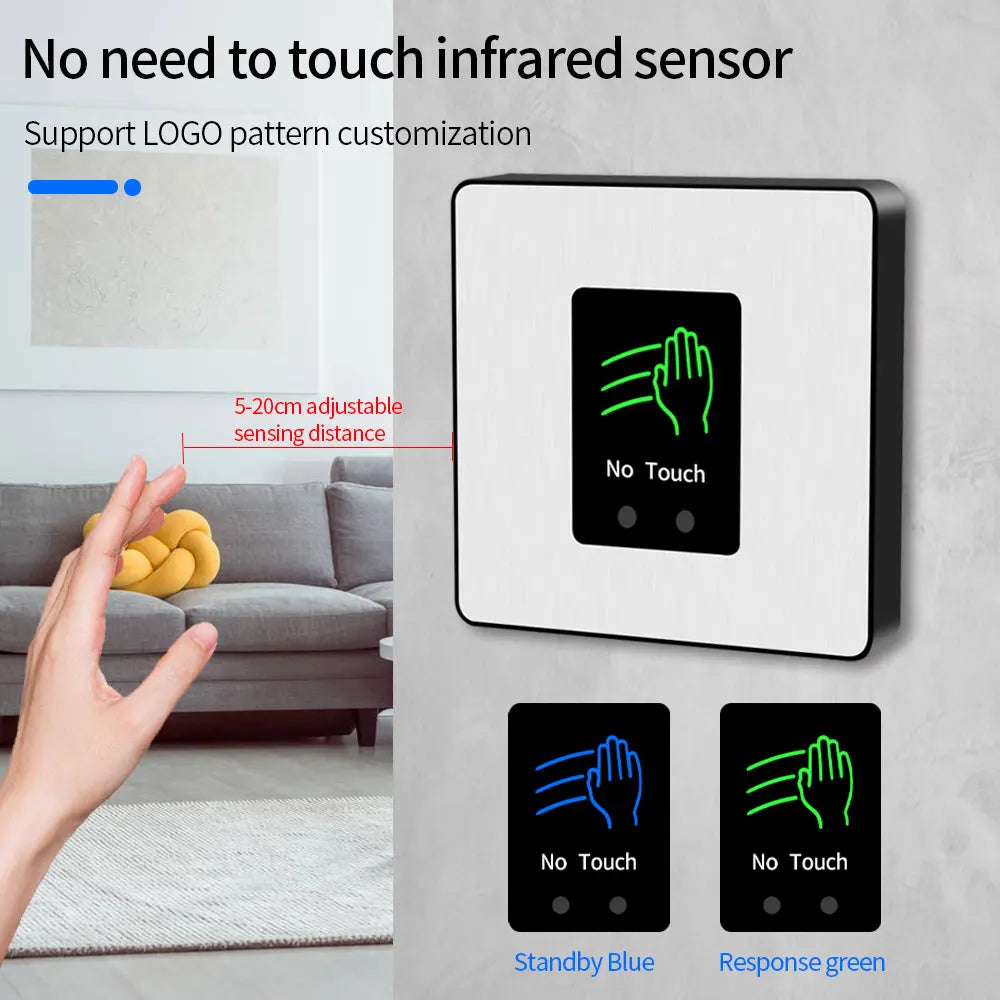

- Touchless Infrared Detection: Adjustable sensing range of 5–25 cm for accurate, hands-free door activation
- Dual Voltage Compatibility: Operates on DC 12V or DC 24V power supplies for flexible installation
- Adjustable Time Delay: 0–30 second configurable delay gives you full control over door open duration
- Universal Output Contacts: NO / NC / COM relay output for compatibility with a wide range of access control systems and electric locks
- Premium Build Quality: Aluminum alloy panel with ABS frame — durable, professional, and corrosion-resistant
- LED Status Indicators: Blue standby light and green response light for instant visual confirmation
- Hygienic & Contactless: Ideal for high-traffic environments where reducing surface contact is a priority
- Model: SI86 | Brand: Asia-Teco
Specifications
| Brand | Asia-Teco |
| Model | SI86 |
| Power Supply | DC 12V or DC 24V |
| Control Distance | 5–25 cm (adjustable) |
| Time Delay | 0–30 seconds (adjustable) |
| Output Contact | NO / NC / COM |
| LED Indicator | Standby: Blue | Response: Green |
| Material | Aluminum alloy panel + ABS frame |
| High-Concern Chemicals | None |
| Origin | Made in China |
Ideal Applications
- Office building entrances and exits
- Hospital and healthcare facility doors
- Retail store access control points
- Warehouses, server rooms, and secure areas
- Any high-traffic door requiring hands-free operation
For guidance on access control and building security standards, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant product safety information.
Frequently Asked Questions
Q: What voltage does the Asia-Teco SI86 touchless door exit button support?
A: The SI86 infrared touchless exit button supports both DC 12V and DC 24V power supplies, making it compatible with the vast majority of standard access control systems and electric door lock setups.
Q: How far away does my hand need to be to trigger the infrared sensor?
A: The sensing distance is fully adjustable between 5 cm and 25 cm, allowing you to fine-tune the detection range to suit your specific door and usage environment.
Q: Can this exit button work with both normally open (NO) and normally closed (NC) electric locks?
A: Yes. The SI86 provides NO, NC, and COM relay output contacts, so it is fully compatible with both normally open and normally closed electric locks and magnetic locks used in access control systems.
Q: Is the time delay adjustable on this touchless door release switch?
A: Absolutely. The time delay can be configured anywhere from 0 to 30 seconds, giving you complete control over how long the door remains unlocked after the sensor is triggered.
