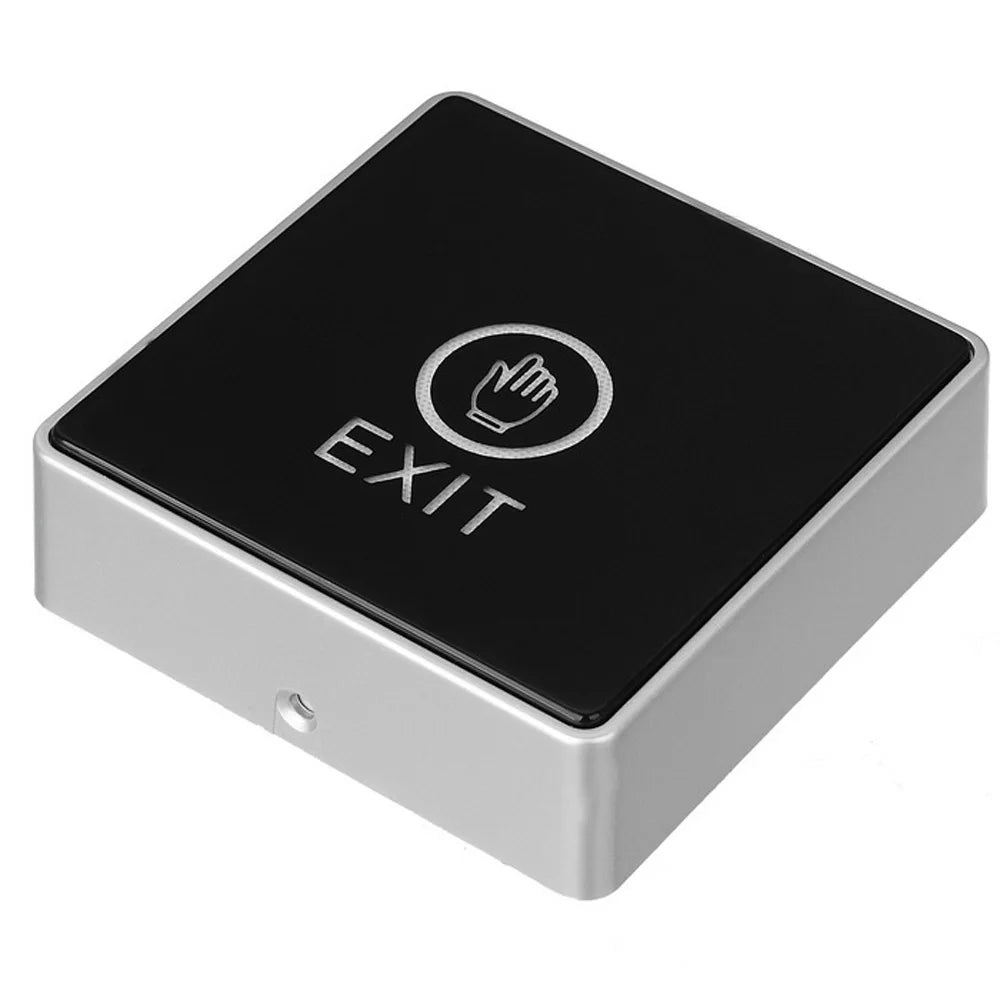

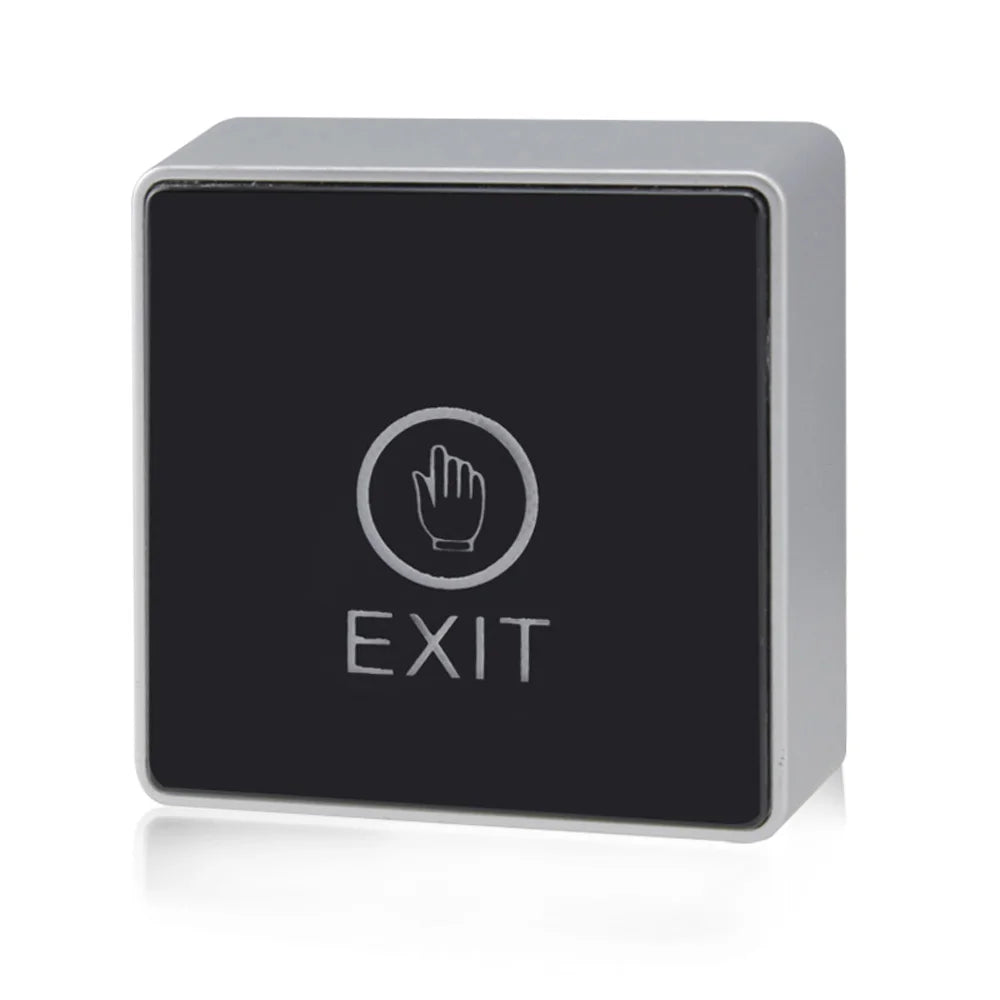

Asia-Teco 86mm Contactless Touch Exit Button – Door Release Switch for Access Control Systems
Upgrade your access control setup with this sleek, contactless infrared touch exit button from Asia-Teco. Designed for seamless integration into offices, commercial buildings, cabinets, and gate frames, this 86×86mm switch lets occupants exit securely with a simple touch — no physical pressing required. The tri-color LED indicator keeps you informed of the system status at a glance, even in low-light environments.
How It Works
On standby, the backlight glows blue, making the switch easy to locate in dim conditions. The moment you touch the panel, the backlight switches to red, signaling door release activation. When power is disconnected, a white LED confirms the power-off state. It's a brilliantly intuitive, hygienic solution for high-traffic doorways.
Key Features
- 🔵 Tri-Color LED Indicator — Blue (standby), Red (activated), White (power off) for instant status feedback
- 🖐️ Contactless Infrared Touch Trigger — Hygienic, no-press operation ideal for busy environments
- 🏗️ 86×86mm Standard Size — Fits standard wall boxes for easy installation
- 🔒 Compatible with NO & NC Electric/Magnetic Locks — Versatile relay output (NO, NC, COM)
- ⚡ DC 12V Operation — Stable, low-voltage power for reliable performance
- 🌡️ Wide Operating Range — Performs from -20°C to +50°C; humidity up to 95%
- 🔁 500,000 Mechanical Life Cycles — Built for long-term, high-frequency use
- 🧱 Organic Glass Face Plate — Durable, polished finish that complements modern interiors
Specifications
| Working Voltage | DC 12V |
| Electrical Performance | 3A @ 12VDC |
| Output Contact | NO, NC, COM |
| Trigger Type | Touch (Infrared Contactless) |
| Face Plate Material | Organic Glass |
| Product Size | 86 × 86mm (Panel); 86L × 50W × 20T mm (Unit) |
| Net Weight | 0.1 kg |
| Operating Temperature | -20°C to +50°C |
| Humidity | 0–95% (Relative Humidity) |
| Mechanical Life | 500,000 cycles |
| Color | Black |
| Country of Origin | Made in Mainland China |

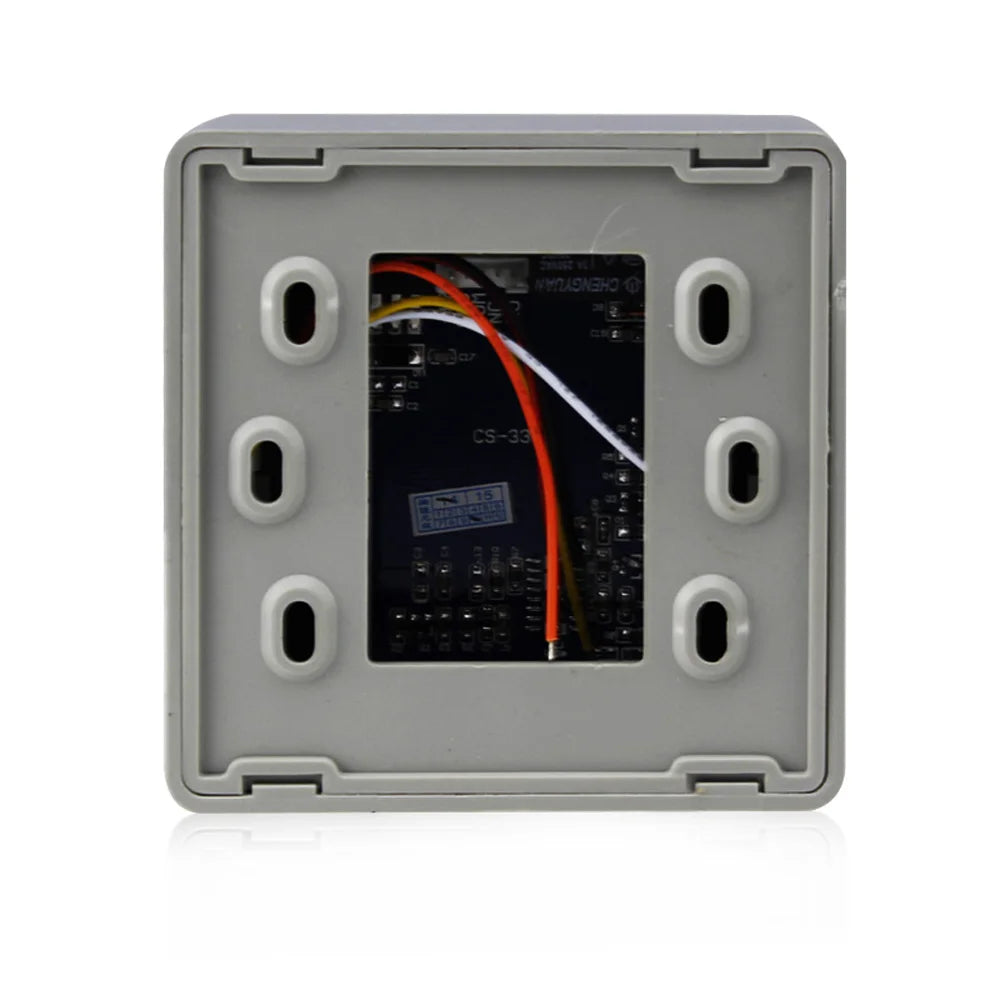

Wiring Guide
- Red wire: +12VDC
- Black wire: GND (Ground)
- Green wire: NO (Normally Open)
- White wire: NC (Normally Closed)
- Yellow wire: COM (Relay Common)
Applications
Ideal for use in office doors, security gates, cabinet locks, window latches, and safe boxes — anywhere an access control system with electric or magnetic locks is installed.
For guidance on best practices in electronic access control and building security systems, refer to resources available at the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage does the Asia-Teco touch exit button require?
A: This door release switch operates on DC 12V with an electrical performance rating of 3A @ 12VDC. Ensure you connect it to a stable 12V DC power supply for reliable operation.
Q: Is this exit button compatible with both NO and NC electric locks?
A: Yes. The switch provides NO (Normally Open), NC (Normally Closed), and COM (Common/Relay) output contacts, making it compatible with a wide range of electric and magnetic locks used in standard access control systems.
Q: What does each LED color indicate on this touch exit switch?
A: The LED indicator changes color based on the operating state: White = Power Off; Blue = Power On / Standby; Red = Activated (touch detected, door release triggered). This makes it easy to verify system status at any time.
Q: Can this switch be installed in outdoor or humid environments?
A: This switch supports an operating humidity range of 0–95% relative humidity and a temperature range of -20°C to +50°C, making it suitable for a variety of indoor environments. For outdoor use, consider additional weatherproofing enclosures to ensure longevity.
