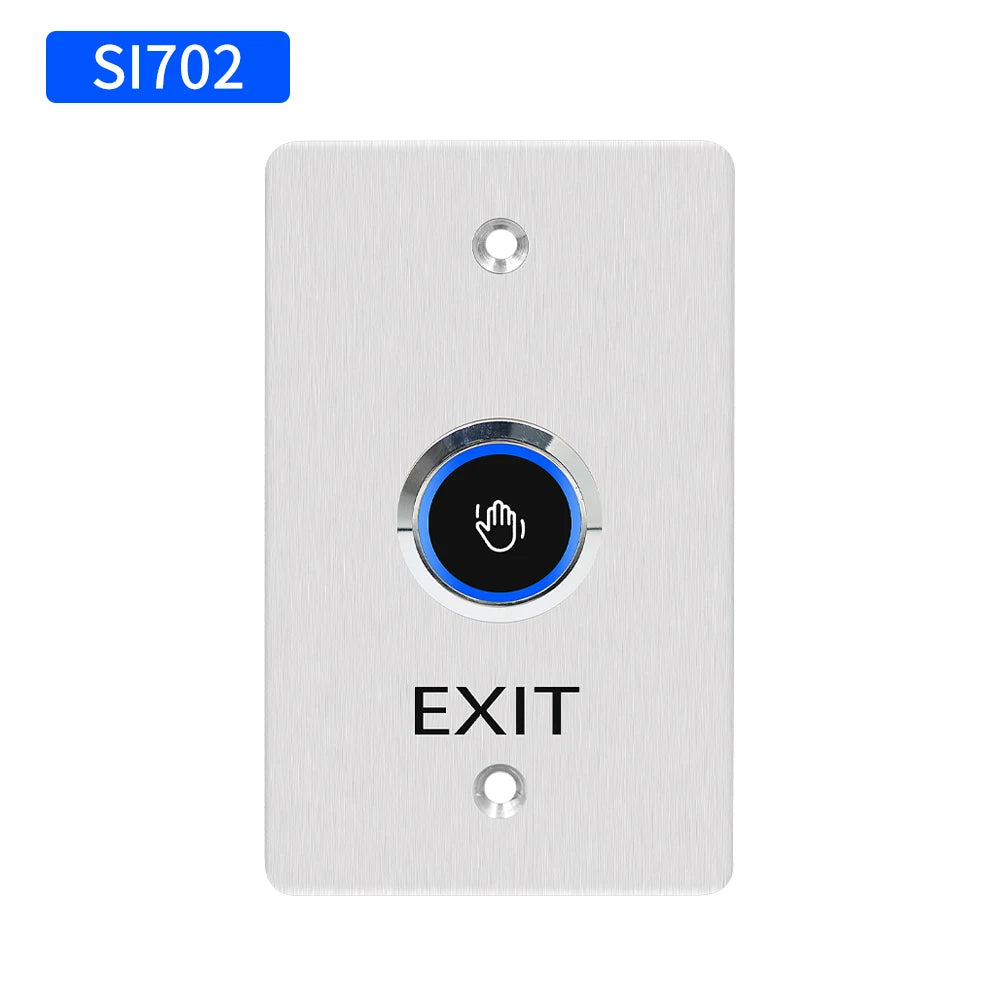

Asia-Teco Infrared No-Touch Exit Switch — Contactless Access Control
Upgrade your door access system with this Asia-Teco Infrared No-Touch Exit Switch — a sleek, hygienic, and reliable sensor-based exit button designed for modern access control installations. Simply wave your hand near the sensor and the door unlocks automatically — no physical contact required. Built from premium 304 stainless steel with a brushed finish, it looks professional in any commercial or residential setting. Made in Mainland China.
How It Works
The infrared sensor detects hand proximity and triggers the internal circuit, momentarily short-circuiting the power controller to activate the connected electric lock. Once the sensor cycle completes, the door lock re-engages automatically — delivering a smooth, hands-free open-and-close sequence every time.
Key Features
- Completely contactless operation — infrared induction technology activates the door without any button press
- Wide voltage compatibility — supports DC 12V–24V power supplies for flexible installation
- LED indicator light — built-in LED provides clear visual confirmation of activation status

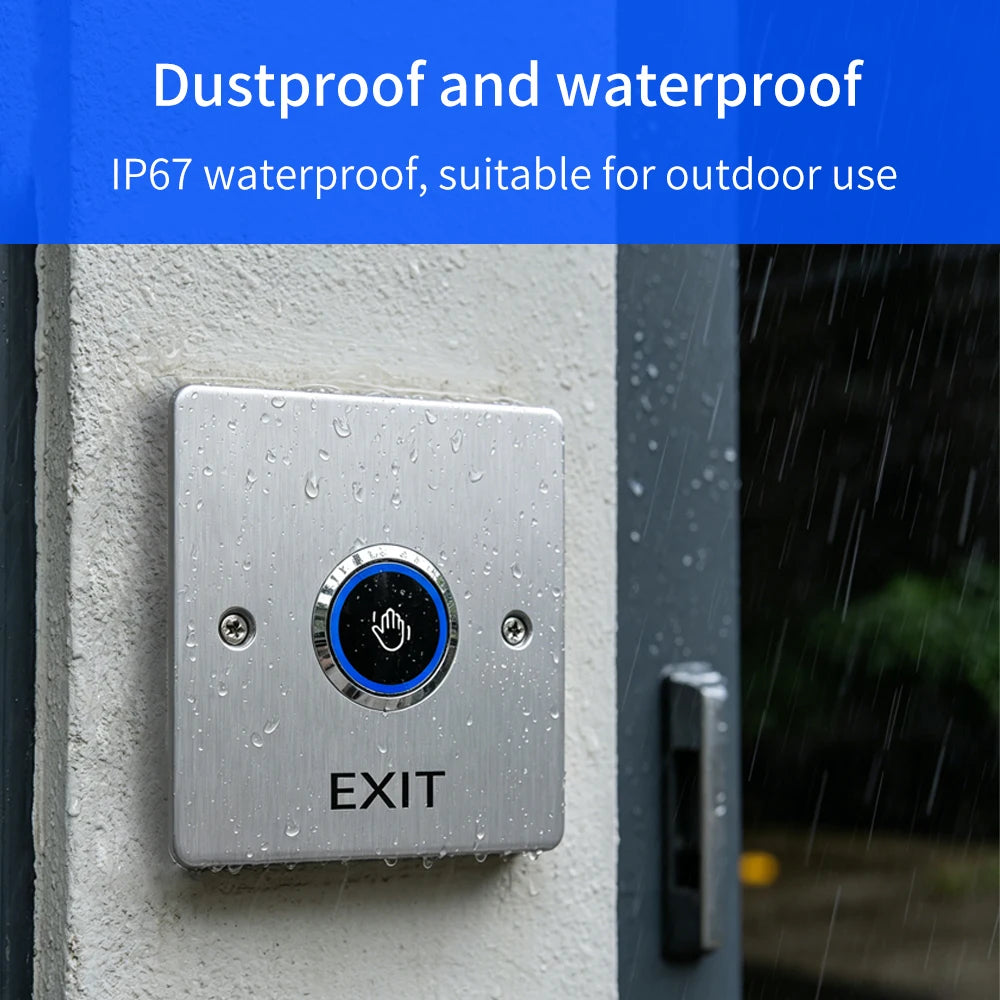

- Waterproof construction — suitable for indoor and covered outdoor entrances
- Heavy-duty stainless steel panel — 1.8 mm thick 304 stainless steel brushed finish resists corrosion and wear
- Hygienic & low-maintenance — ideal for high-traffic areas such as offices, hospitals, clinics, and public buildings

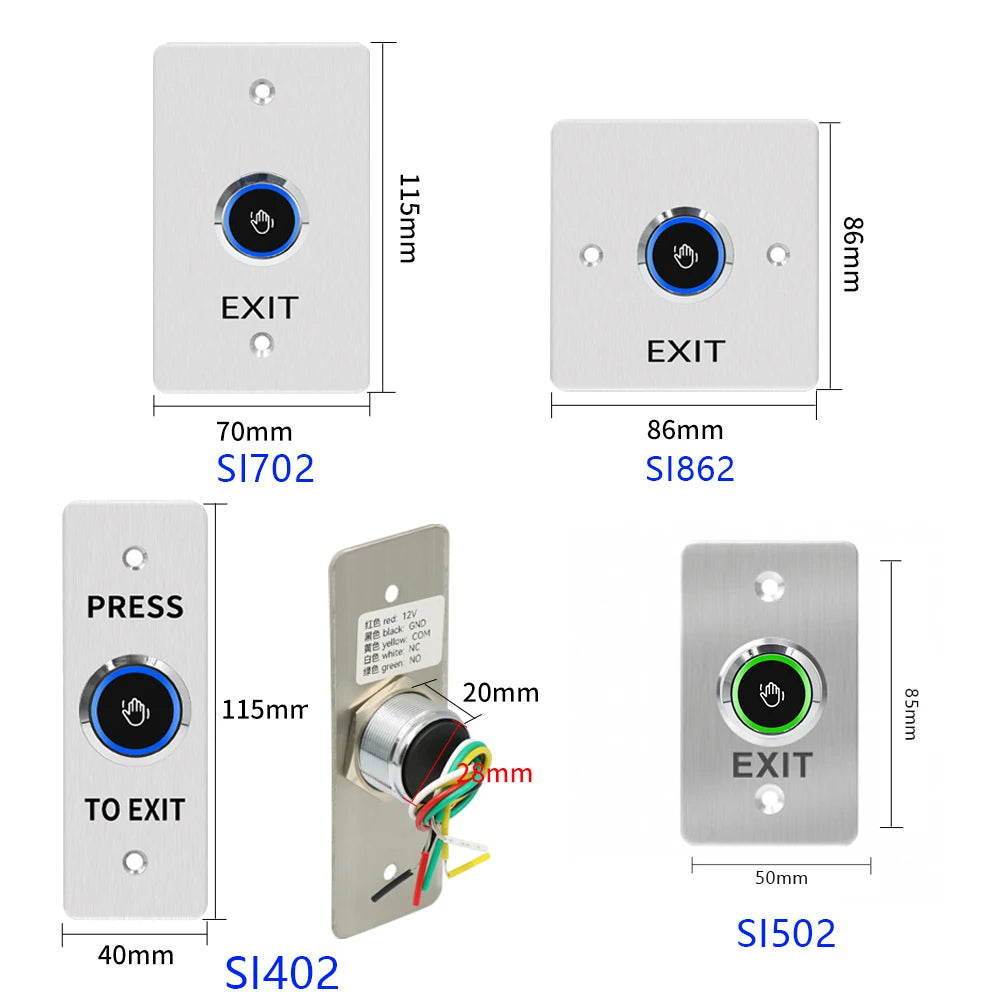

- Multiple model options — available in models SI402, SI502, SI702, and SI862 to suit various installation needs
- Easy integration — compatible with most standard electric locks and access control systems
Specifications
| Specification | Details |
|---|---|
| Brand | Asia-Teco |
| Model Numbers | SI402 / SI502 / SI702 / SI862 |
| Operating Voltage | DC 12V – 24V |
| Panel Material | 1.8 mm 304 Stainless Steel (Brushed) |
| Sensor Type | Infrared Induction |
| Indicator | LED |
| Waterproof | Yes |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Office buildings and corporate entrances
- Medical facilities, clinics, and hospitals
- Hotels and hospitality venues
- Retail stores and shopping centers
- Residential smart home access points
- Public restrooms and high-traffic corridors
Safety & Installation Resources
For best practices on electrical safety when installing access control wiring, refer to OSHA's Electrical Safety Guidelines. For general consumer product safety information, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage does this infrared no-touch exit switch require?
A: This Asia-Teco infrared exit switch is compatible with DC 12V to 24V power supplies, making it flexible for most standard access control systems and electric lock setups.
Q: Is the no-touch exit switch suitable for outdoor use?
A: Yes. The switch features a waterproof design and a durable 1.8 mm thick 304 stainless steel brushed panel, making it suitable for covered outdoor entrances and high-humidity environments.
Q: What types of door locks is this sensor exit switch compatible with?
A: This sensor exit switch is designed to work with most standard electric locks — including magnetic locks and electric strike locks — commonly used in commercial and residential access control installations. Always verify voltage compatibility with your specific lock system before installation.
Q: How does the contactless infrared sensor detect a hand?
A: The built-in infrared sensor emits and detects infrared signals. When a hand is brought within detection range, the sensor triggers the internal circuit, activating the connected electric lock to release the door — all without any physical touch.
