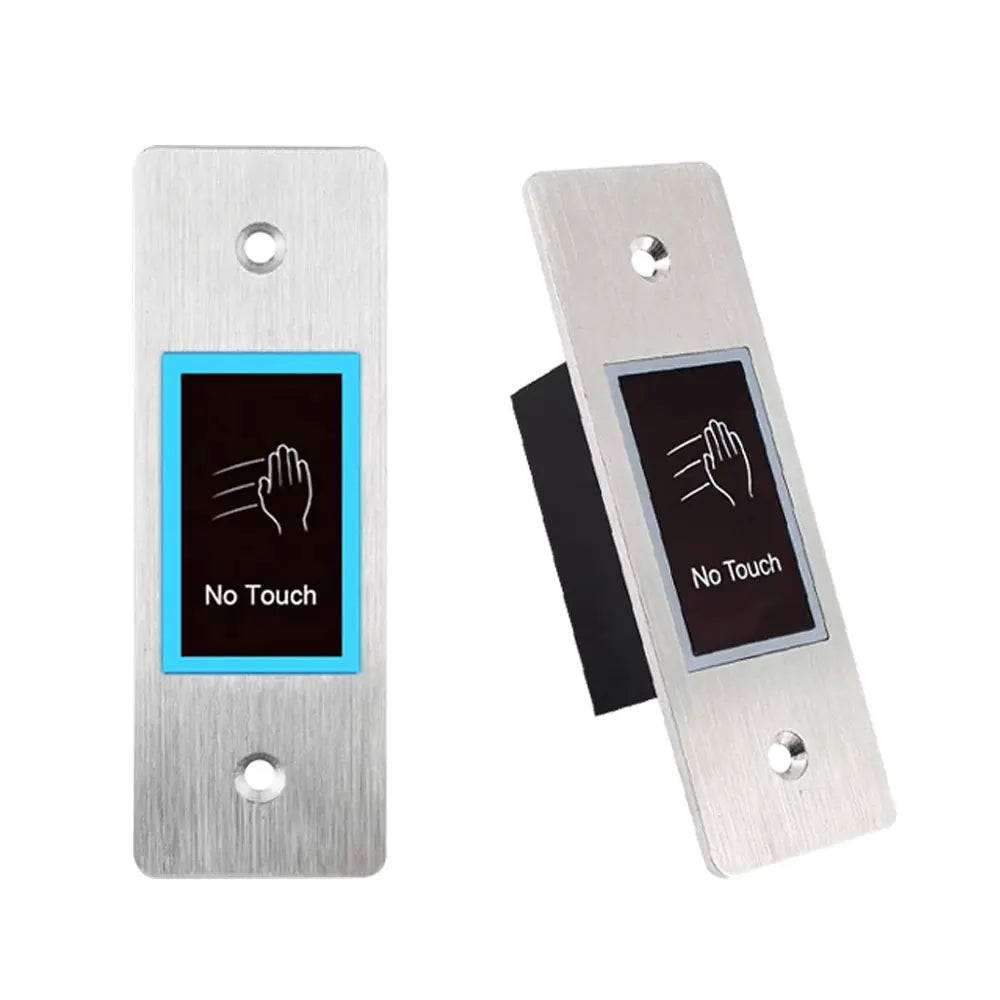

Infrared No-Touch Exit Button – IP54 Touchless Door Access Switch

Asia-Teco Infrared No-Touch Exit Button – Touchless Door Access Control

Upgrade your entryway with the Asia-Teco Infrared No-Touch Exit Switch — a hygienic, hands-free door release button engineered for modern access control systems. Simply wave your hand within range and the sensor triggers instantly, opening gates, doors, or barriers without any physical contact. Ideal for offices, hospitals, warehouses, retail entrances, and any high-traffic environment where hygiene and convenience matter.

Why Choose This Touchless Exit Button?

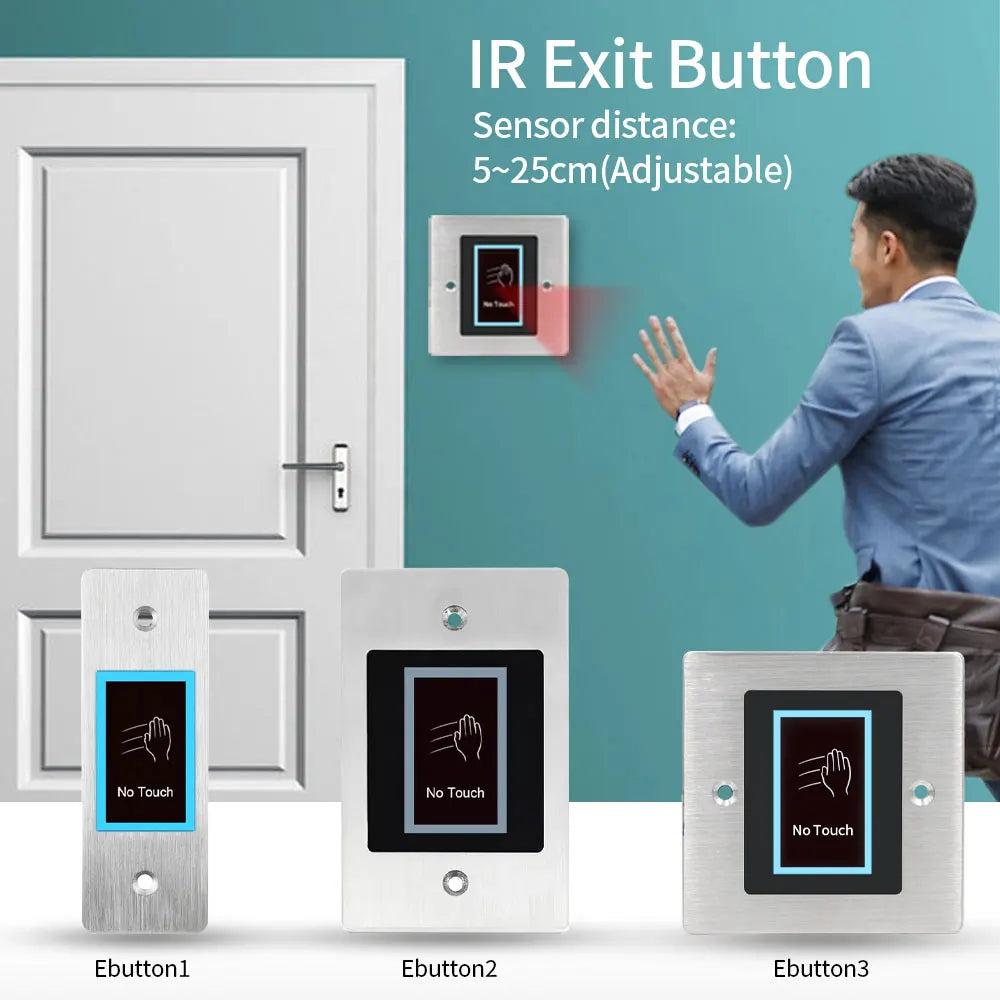

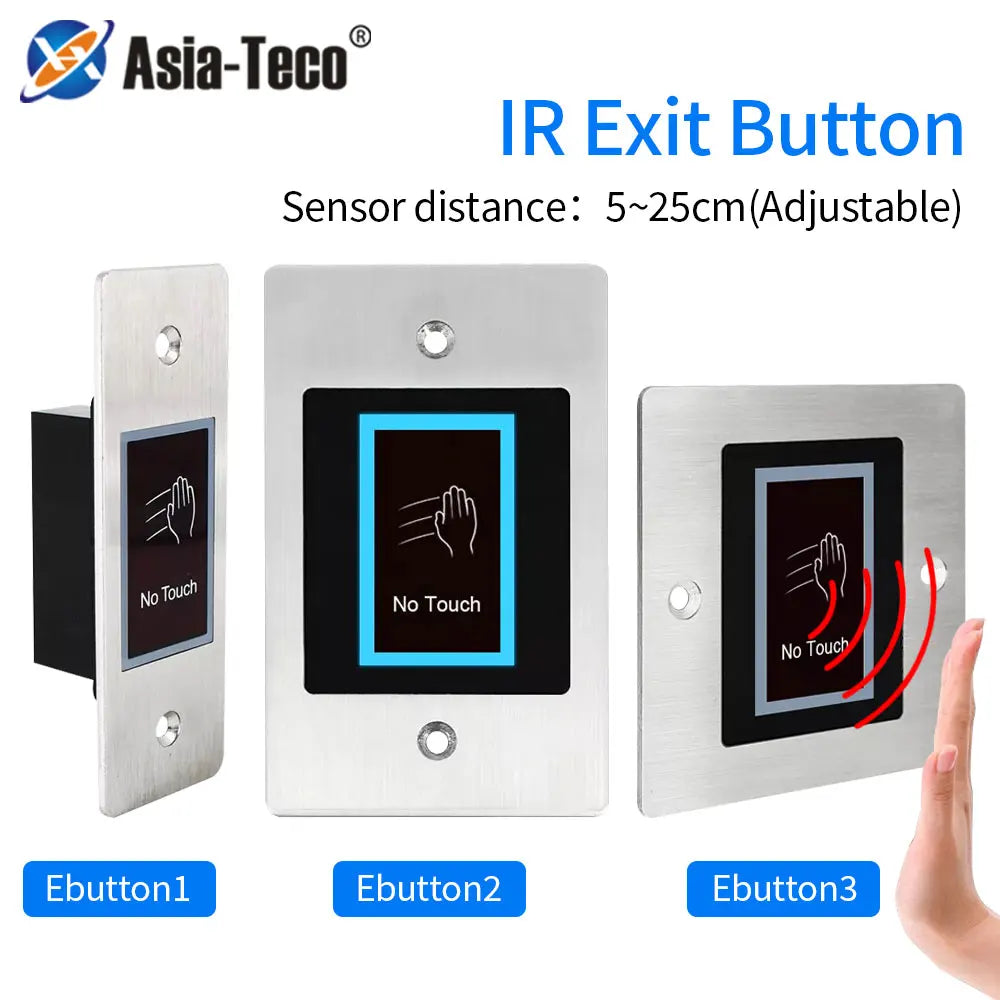

• Completely Hands-Free Operation: 940 nm infrared sensor detects motion at 3–25 cm (adjustable), triggering the door release without touching any surface.
• IP54 Waterproof Rating: The front panel is fully sealed against dust and water splashes — suitable for both indoor and outdoor installations.

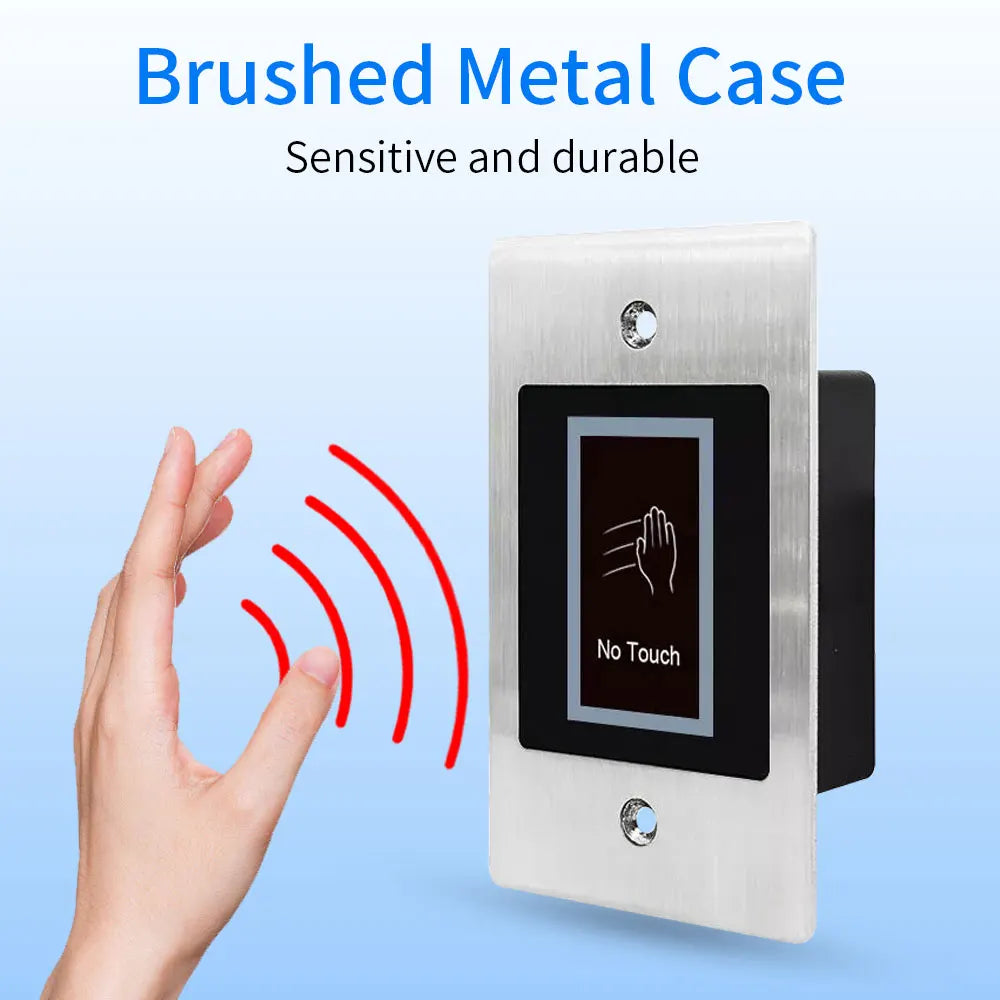

• Durable Construction: Stainless steel faceplate with a zinc alloy standard structure and plexiglass panel for long-lasting performance in demanding environments.
• Embedded Flush-Mount Design: Sleek, low-profile embedded installation (86 × 86 × 25 mm) blends seamlessly into walls and door frames.
• Flexible Output Contacts: NO / NC / COM / 12V+ / GND output makes this switch compatible with virtually any door controller or access control panel.

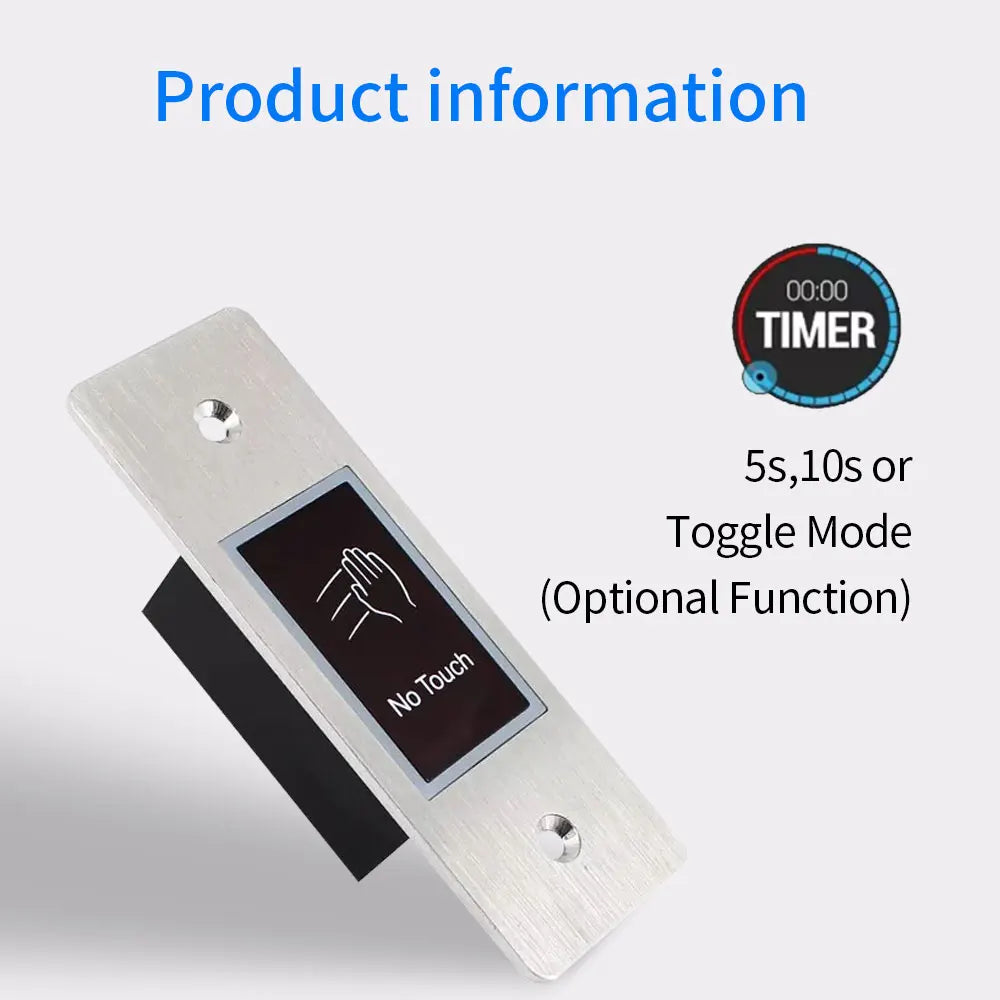

• Adjustable Timer Delay: Choose from Toggle Mode, 5-second, or 10-second timer delay to suit your specific access control setup.
• Clear LED Status Indicators: Blue LED = standby / ready; Red LED = active/triggered — instant visual confirmation at a glance.
• Wide Operating Voltage: Accepts 10–24V DC input, making it compatible with a broad range of control panels and power supplies.
• Low Power Consumption: Idle current ≤15 mA; working current ≤25 mA — energy-efficient 24/7 operation.

Technical Specifications

Made in Mainland China.

What's in the Box?

• 1 × Asia-Teco Infrared No-Touch Exit Button (Ebutton)
• Mounting hardware included

Helpful Resources

For best practices on workplace safety and building access control, visit the U.S. Occupational Safety and Health Administration (OSHA) for guidance on maintaining safe, accessible work environments.

Frequently Asked Questions

Q: What is the detection range of this infrared no-touch exit button?

A: The infrared sensor has an adjustable detection range of 3 to 25 cm. You can tune the sensitivity to your specific installation environment to avoid accidental triggers or missed detections.

Q: Is this touchless exit button suitable for outdoor use?

A: Yes. The front panel carries an IP54 waterproof rating, protecting it against dust ingress and water splashes from any direction. It is rated for operating temperatures from -10°C to +55°C, making it suitable for most outdoor access points. Note: the embedded rear panel is not sealed with waterproof glue, so the surrounding wall cavity should be protected if exposed to heavy moisture.

Q: What door access control systems is this exit button compatible with?

A: This exit button provides NO (Normally Open), NC (Normally Closed), COM, 12V+, and GND output contacts, which are standard connections compatible with the vast majority of door access controllers, electric strikes, magnetic locks, and gate openers on the market.

Q: Can I adjust the timer delay on this infrared exit switch?

A: Absolutely. The Ebutton supports three timer delay modes: a 5-second delay, a 10-second delay, and a Toggle Mode (latching), so you can configure the relay hold time to match your specific door hardware requirements.

Q: What do the LED indicator lights mean?

A: The blue LED indicates the device is in standby/ready mode. When the sensor is triggered and the relay is active, the LED switches to red, giving you instant visual confirmation that the door release signal has been sent.
