Infrared Contactless Door Exit Button with Backlight & LED Indicator
Upgrade your access control system with this smart, touch-free door release switch. Featuring infrared contactless sensing technology, this exit button lets users open doors without any physical contact — ideal for high-traffic entrances, offices, clinics, and secure facilities. The sleek ABS housing, built-in backlight, and dual-color LED indicator make it both functional and professional-looking.
Key Features
- Contactless Infrared Activation: Hands-free door release — simply wave your hand near the sensor to trigger the switch, minimizing surface contact.
- Dual-Color LED Indicator: Blue LED for standby mode; Green LED when triggered — easy at-a-glance status for any installation.
- Long Mechanical Life: Rated for over 500,000 activations, ensuring reliable performance for years in demanding environments.
- Wide Temperature Range: Operates from -20°C to 55°C (-4°F to 131°F), suitable for indoor and controlled outdoor applications.
- Flexible Output Contacts: NO / NC / COM output options for seamless integration with virtually any access control panel or electric lock.
- Universal Power Input: Compatible with AC/DC 12V power supply for easy installation.

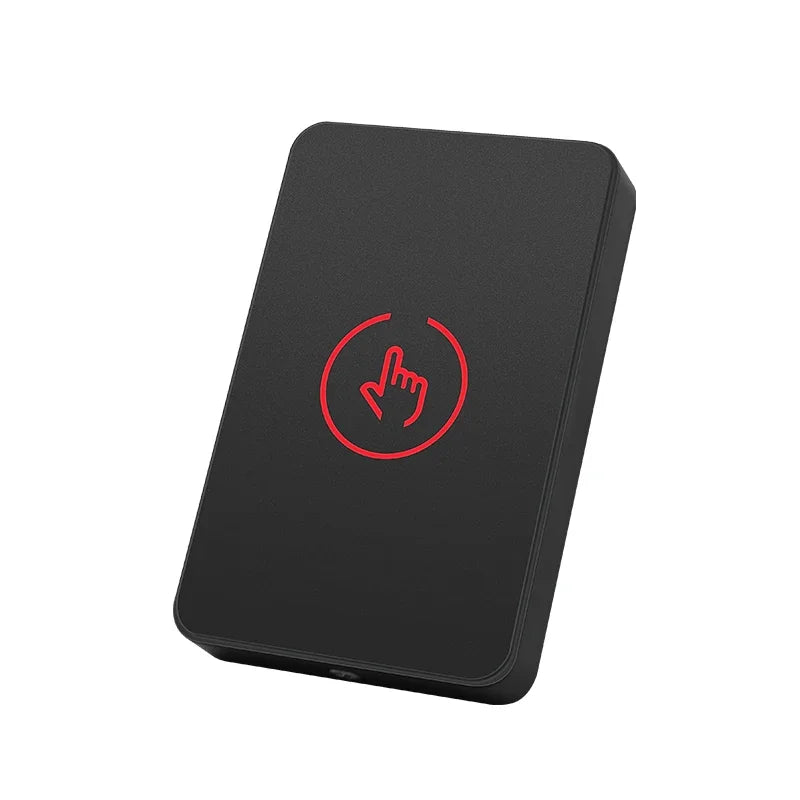

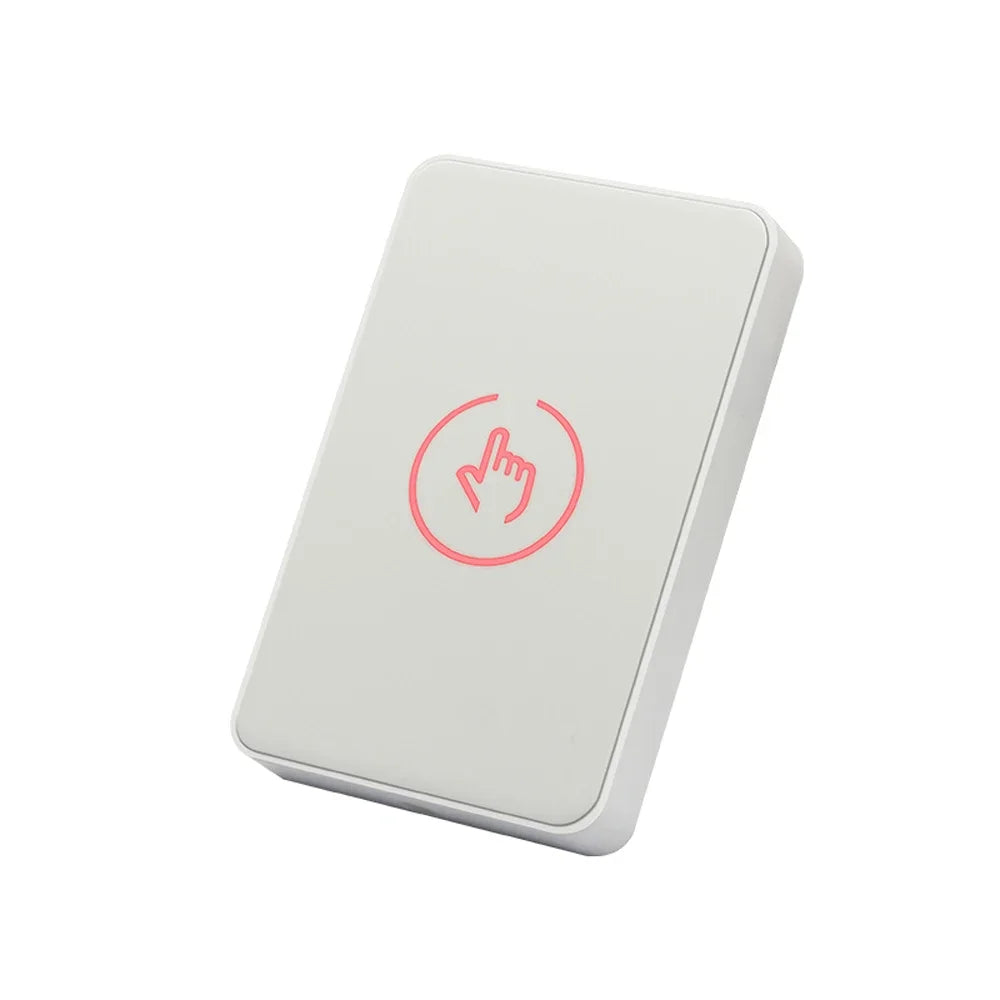

- Square & Rectangle Options: Available in two form factors — Square (approx. 86 × 86 × 21 mm) or Rectangle (approx. 86 × 56 × 21 mm) — to suit your mounting needs.
- Durable ABS Construction: Lightweight yet robust housing built to withstand daily use.
- Humidity Tolerance: Suitable for environments with relative humidity up to 95% (non-condensing).
Specifications
- Model: C5 / C6
- Power Supply: AC/DC 12V
- Output Contact: NO / NC / COM
- Operating Temperature: -20°C ~ 55°C
- Suitable Humidity: Less than 95%
- Mechanical Life: 500,000+ activations
- Square Dimensions: 86(W) × 86(H) × 21(D) mm / 3.4 × 3.4 × 0.8 in
- Rectangle Dimensions: 86(W) × 56(H) × 21(D) mm / 3.4 × 2.2 × 0.8 in
- Material: ABS
- Country of Origin: Made in Mainland China
Ideal Applications
This infrared exit button is perfectly suited for offices, warehouses, retail stores, hospitals, apartment buildings, and any facility requiring a hygienic, touch-free door release solution within an existing access control setup.
For more information on best practices for access control and building security, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is this door exit button compatible with most access control systems?
A: Yes. The infrared contactless door exit button features NO / NC / COM output contacts, making it compatible with the vast majority of access control panels, electromagnetic locks, and electric strike locks on the market. Simply connect it to your existing 12V power supply and access control panel.
Q: Does the infrared sensor require physical touch to activate?
A: No — that's the key benefit. The built-in infrared sensor detects hand proximity without requiring any physical contact with the switch surface. Just wave your hand in front of the sensor and the door release is triggered instantly, making it ideal for hygienic, hands-free environments.
Q: What do the LED indicator colors mean?
A: The LED provides clear visual status feedback: a Blue LED indicates the button is in standby mode and ready for use, while a Green LED lights up when the sensor has been triggered and the door release is activated.
Q: Can this exit button be installed outdoors?
A: This button is designed for indoor use or controlled environments. It supports humidity up to 95% and an operating temperature range of -20°C to 55°C, making it suitable for covered entryways, vestibules, and climate-controlled facilities. For fully exposed outdoor installations, we recommend verifying weatherproofing requirements with a qualified installer.
