Asia-Teco Infrared Sensor Switch – Contactless Door Release Exit Button

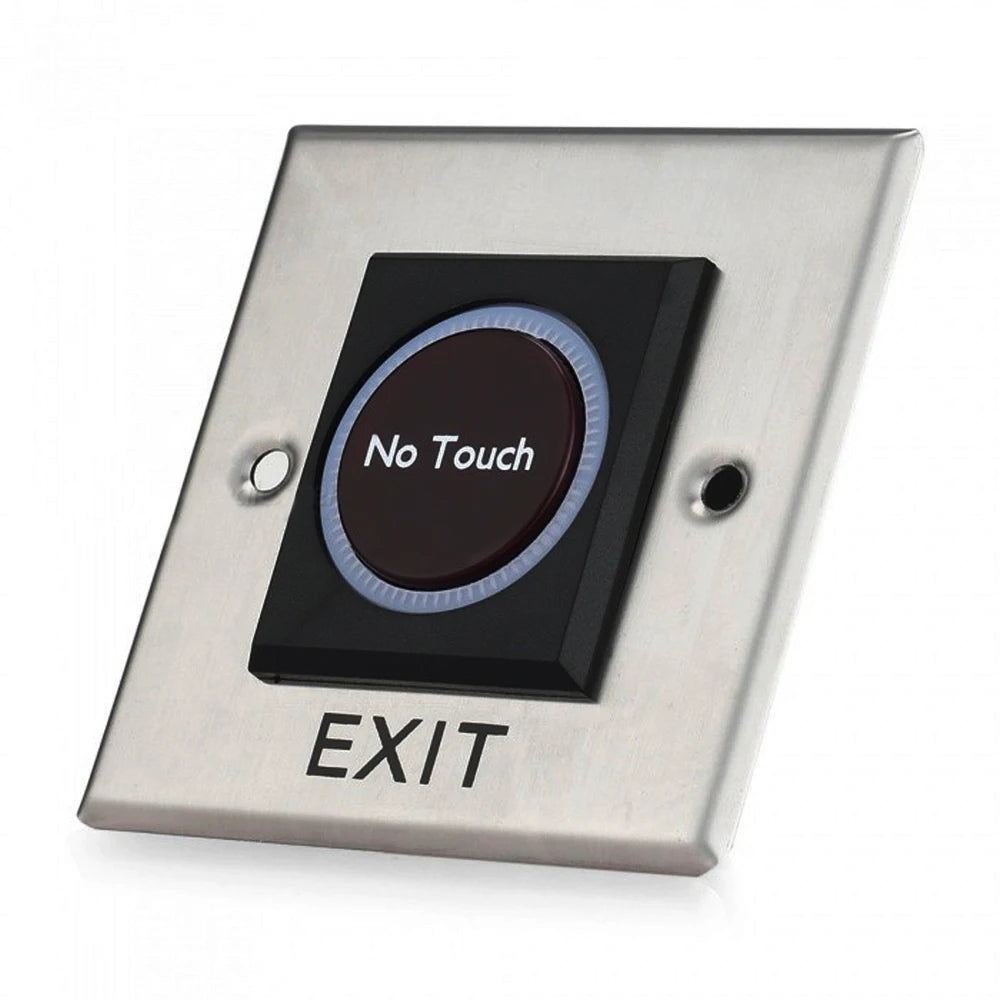

Upgrade your access control system with the Asia-Teco GH80A Infrared Sensor Switch — a sleek, no-touch exit button designed for doors, gates, and automated entry systems. Using advanced infrared detection technology, this switch triggers instantly when a hand or object comes within 10 cm, keeping entrances hygienic and easy to use for everyone. Made in Mainland China.

Why Choose the Asia-Teco GH80A?

• Completely Contactless: Infrared sensing activates the door release without any physical touch, promoting cleaner, more hygienic access points in offices, clinics, warehouses, and public buildings.
• Instant Response: The sensor reacts quickly and reliably within a 10 cm detection range, ensuring smooth and efficient door operation every time.

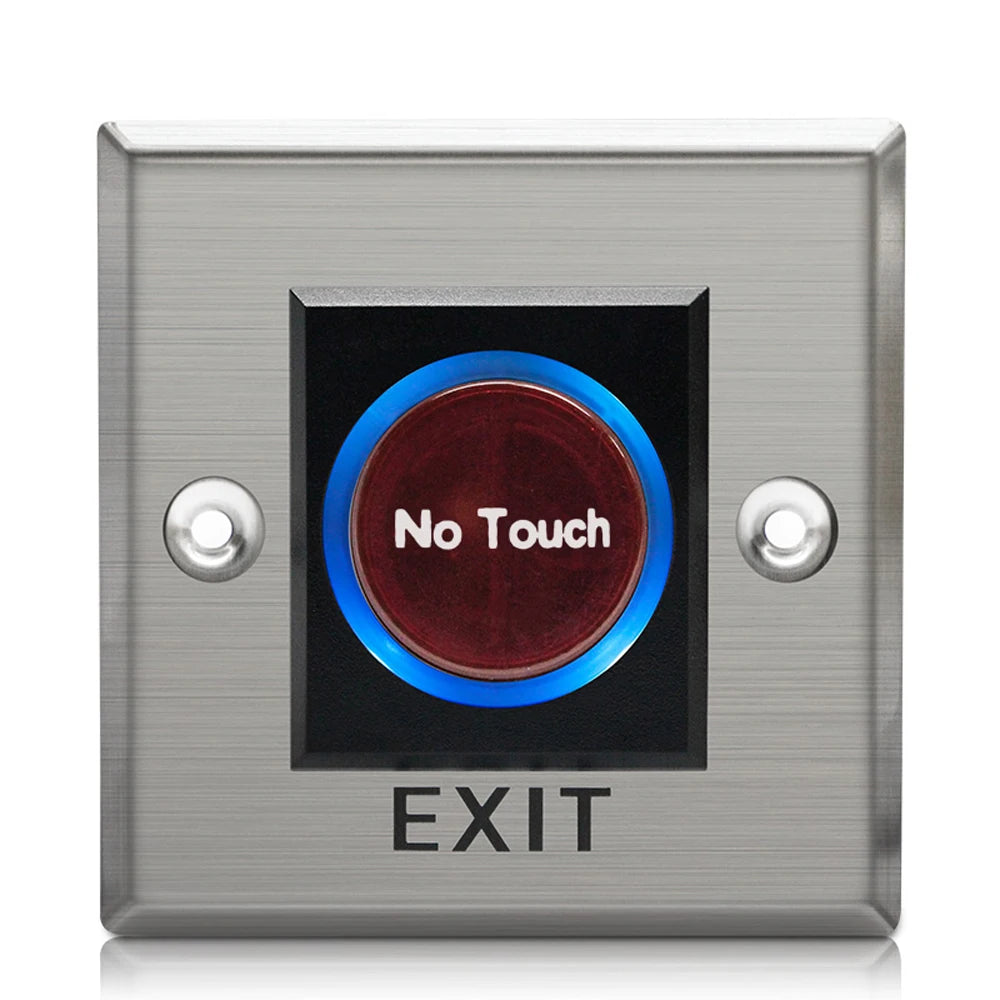

• Dual LED Status Indicator: Blue LED glows during standby; Red LED activates when a visitor or hand is detected — so you always know the system is working.
• IP-55 Industrial Protection: Rated IP-55, this switch is resistant to dust and water jets, making it suitable for both indoor and outdoor installations.
• Durable Stainless Steel Construction: The 86 × 86 mm brushed silver stainless steel faceplate is built to withstand heavy daily use in commercial and industrial environments.
• Wide Compatibility: Works seamlessly with access control panels, electric strikes, magnetic locks, and automated gate systems. Operates on DC 12V power.
• Wide Operating Temperature Range: Reliable from -20°C to 50°C (-4°F to 122°F), suitable for use in demanding environments.

Specifications

What's in the Box

• 1 × Infrared Sensor Switch (GH80A)
• 1 × 5-Pin Wiring Cable

Ideal Applications

This contactless exit button is perfect for offices, hospitals, schools, warehouses, retail stores, apartment buildings, and anywhere that benefits from hands-free door access. It integrates effortlessly with most standard access control systems including electric door strikes and magnetic lock controllers.

For more guidance on access control and electronic security standards, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.

Frequently Asked Questions

Q: What is the detection range of the infrared sensor exit button?

A: The Asia-Teco GH80A infrared sensor switch detects motion within 10 cm (approximately 4 inches). Simply wave your hand near the faceplate and the door release is triggered instantly — no physical contact required.

Q: What voltage does this contactless exit button require?

A: The switch operates on DC 12V, which is the standard voltage used by most access control panels and power supplies. The contact rating is 3A at AC 120V or DC 30V, making it compatible with a wide range of electric locks and door release systems.

Q: Can this infrared door release button be used outdoors?

A: Yes. With an IP-55 protection rating, the GH80A is resistant to dust ingress and water jets, making it suitable for outdoor installations such as gates, garage entrances, and covered building entry points. It also operates reliably across a wide temperature range of -20°C to 50°C.

Q: How do the LED indicators work on this exit button?

A: The GH80A features a dual LED status display: the blue LED illuminates during normal standby operation, indicating the sensor is active and ready. When a hand or object is detected within range, the red LED activates to confirm the trigger event and door release signal has been sent.

Q: Is this switch compatible with standard access control systems?

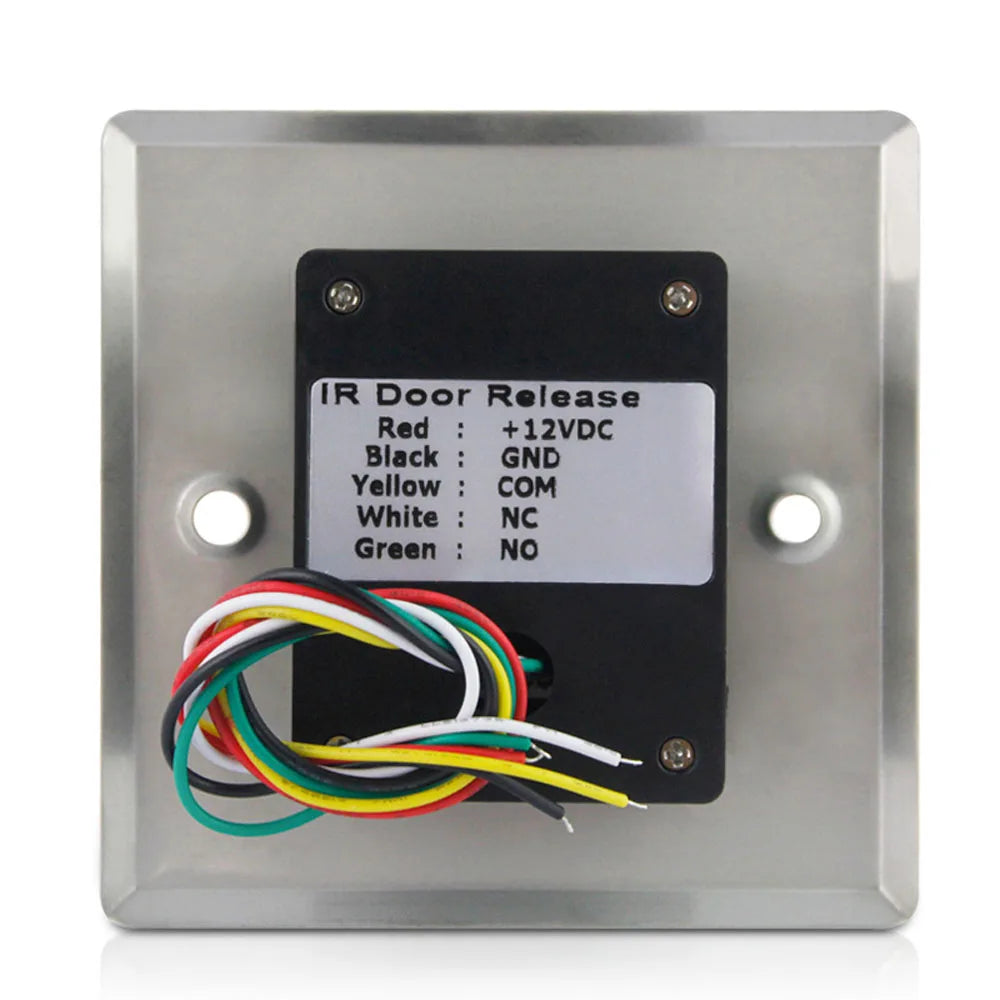

A: Yes. The Asia-Teco GH80A is designed to integrate with most standard access control systems, including electromagnetic locks, electric door strikes, and automated gate controllers. It comes with a 5-pin cable for straightforward wiring to your existing setup.
