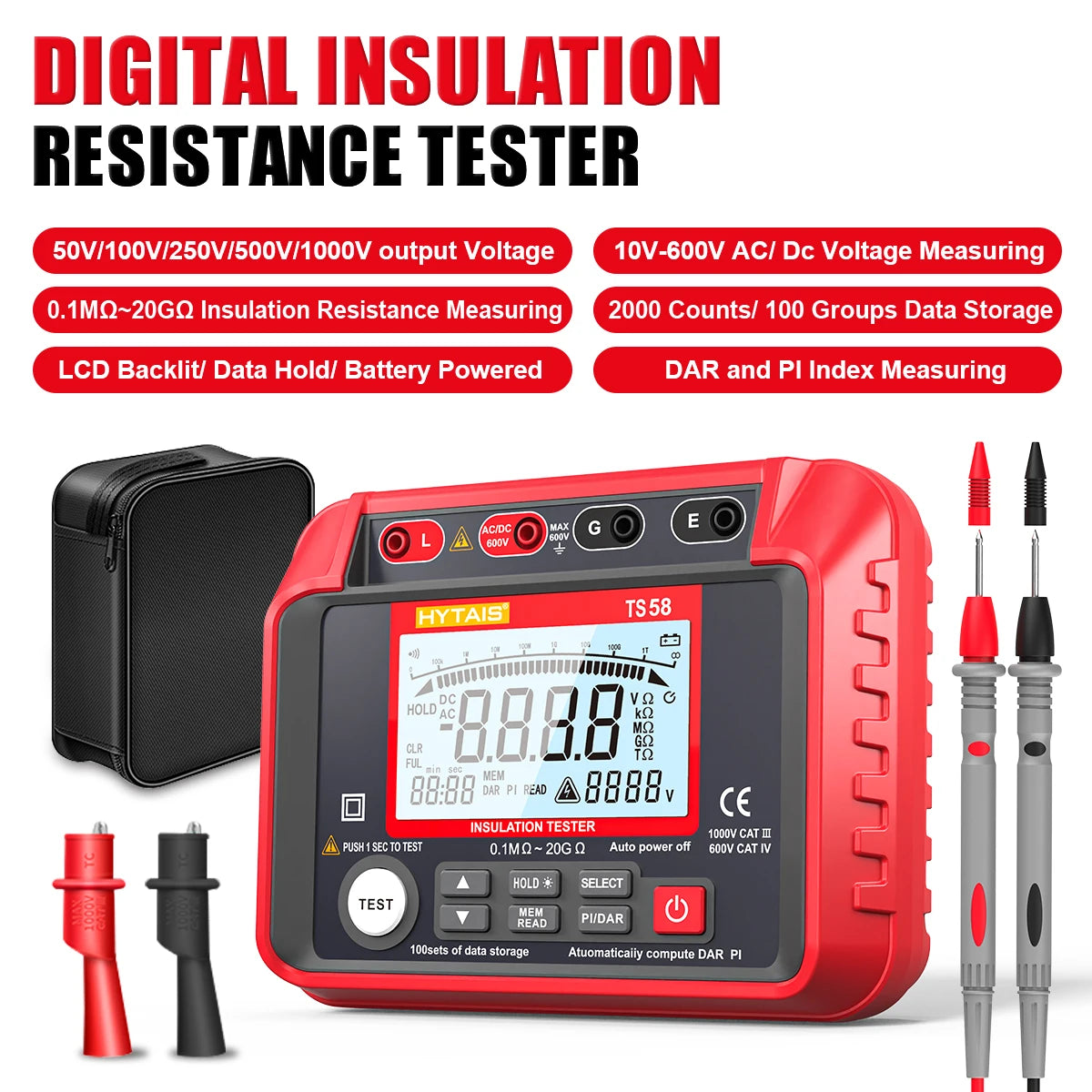

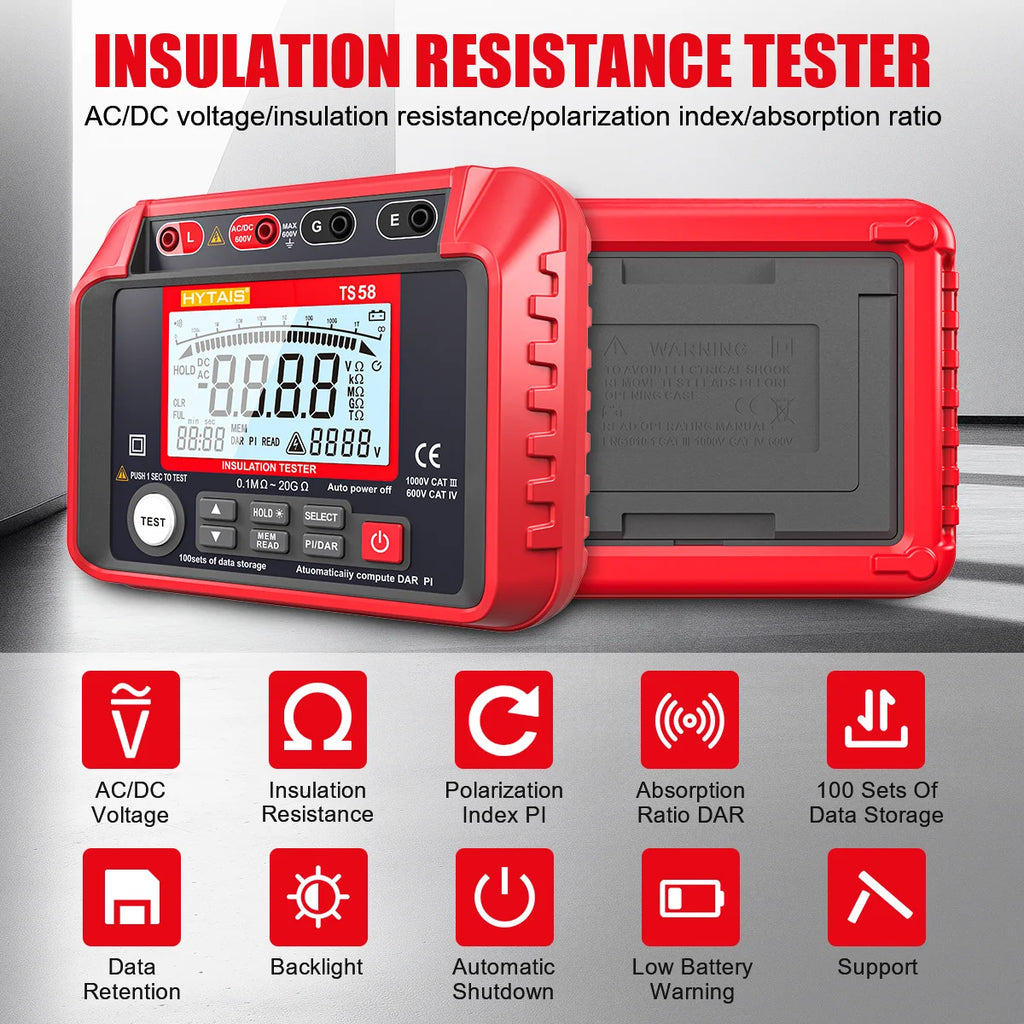

HYTAIS TS58 Digital Megohmmeter — Professional Insulation Resistance Tester
The HYTAIS TS58 Digital Megohmmeter is a precision-engineered insulation resistance tester built for electricians, engineers, and maintenance professionals who demand accuracy and reliability. With an output voltage range of 50V–1000V, a resistance measurement range of 0.1MΩ–20GΩ, and a built-in 100-group data storage, the TS58 replaces bulky mechanical instruments with a compact, rugged, and fully digital solution. Made in Mainland China.
Key Features
- Wide Output Voltage Range: Selectable test voltages at 50V, 100V, 250V, 500V, and 1000V via full key switching — no manual knobs required.
- High-Range Resistance Measurement: Accurately measures insulation resistance from 0.1MΩ up to 20GΩ with ±10% accuracy.
- AC/DC Voltage Testing: Measures AC and DC voltages from 10V to 600V; AC voltage frequency range 40Hz–70Hz.

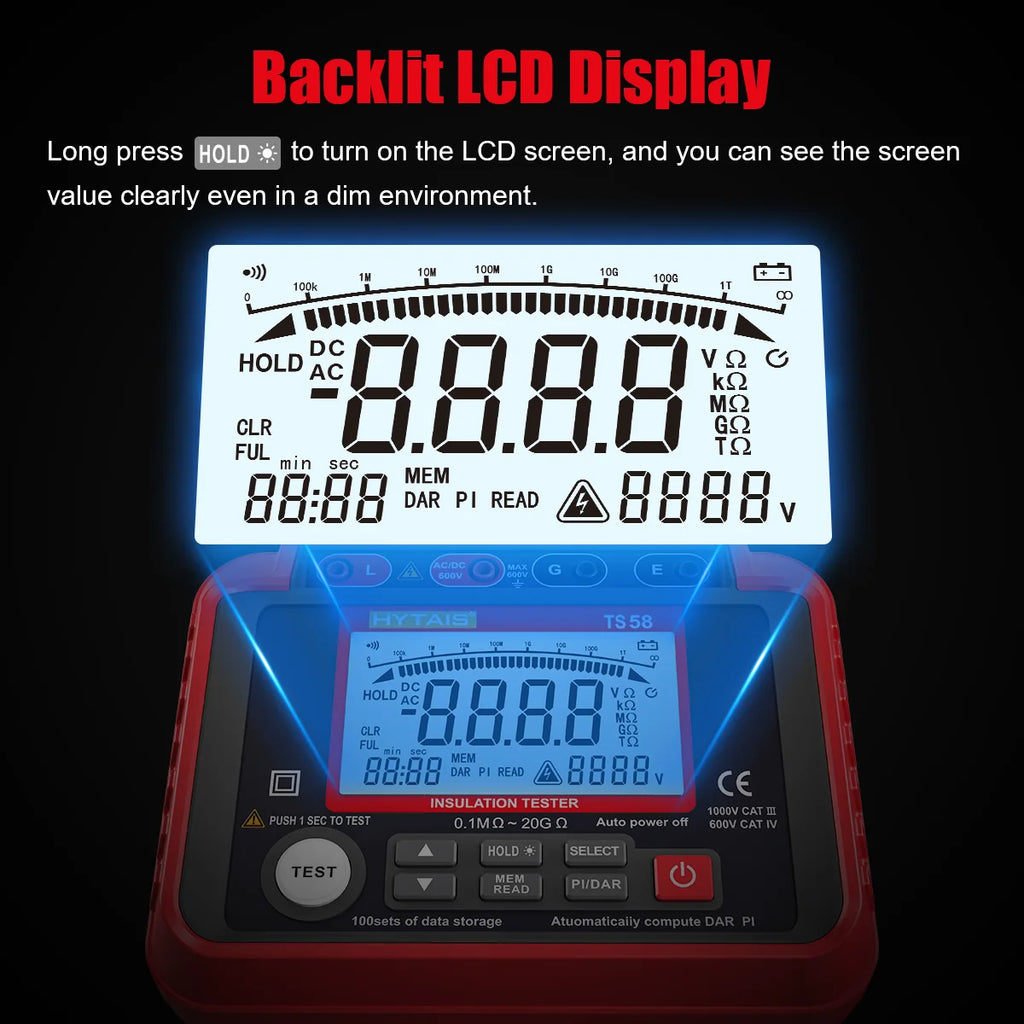

- HD Backlit LCD Display: Large, high-definition backlit screen for clear readings even in dimly lit or outdoor environments.

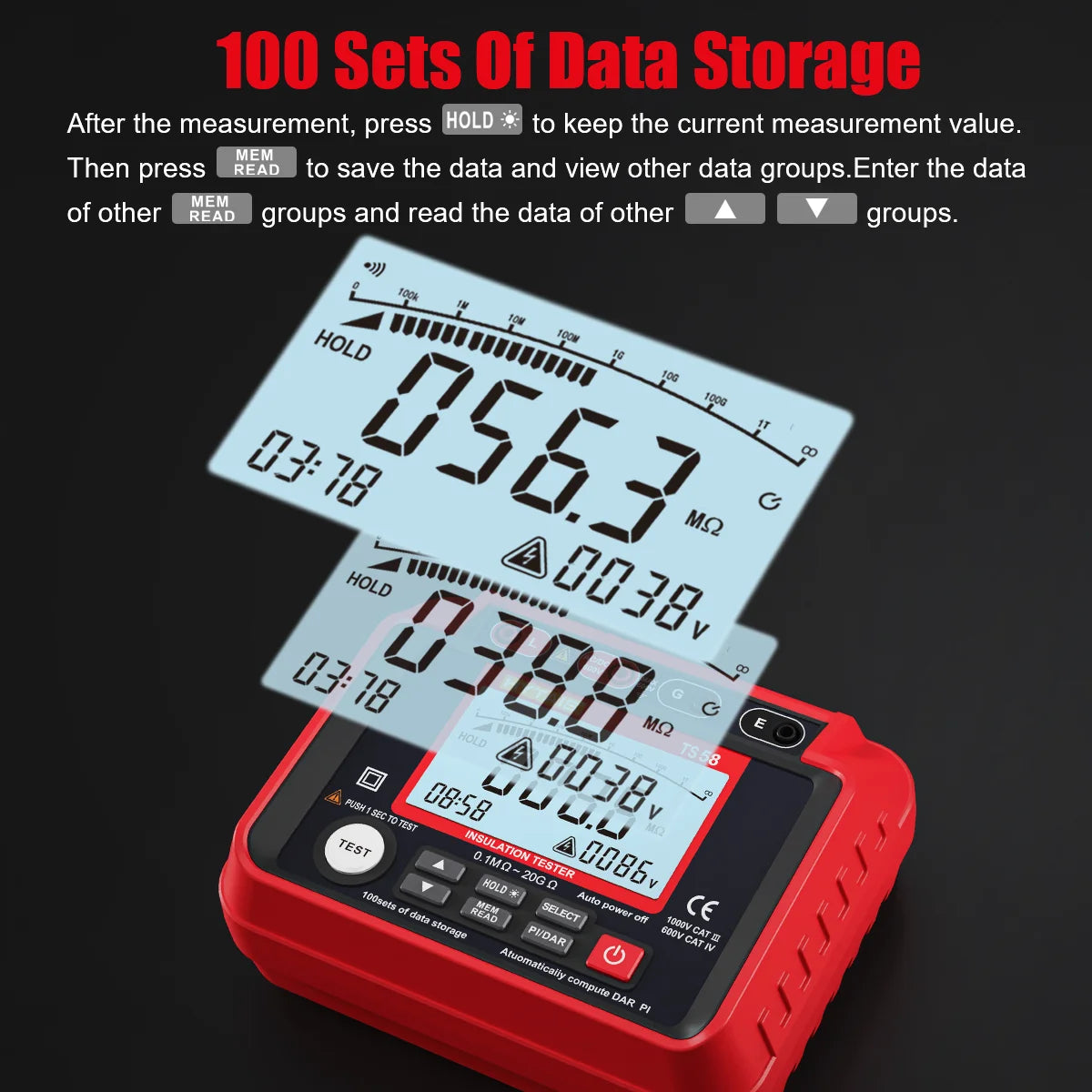

- 100-Group Data Storage: Store up to 100 sets of measurement results for record-keeping, reporting, and field analysis.
- Automatic Discharge Function: Safely discharges capacitive loads after testing, protecting both the operator and the equipment under test.
- Complete Protection Circuit: Voltage counter-attack protection and output short-circuit protection for confident, worry-free operation.
- Low Battery Indicator: On-screen low battery warning ensures you're never caught off guard in the field.
- Dust & Moisture-Proof Structure: Rugged, field-ready design suitable for outdoor electrical testing environments.
- IEC1010-1 Safety Compliant: Double-insulation design with short-circuit current less than 1.8mA; CE, FCC, RoHS, and UL certified.

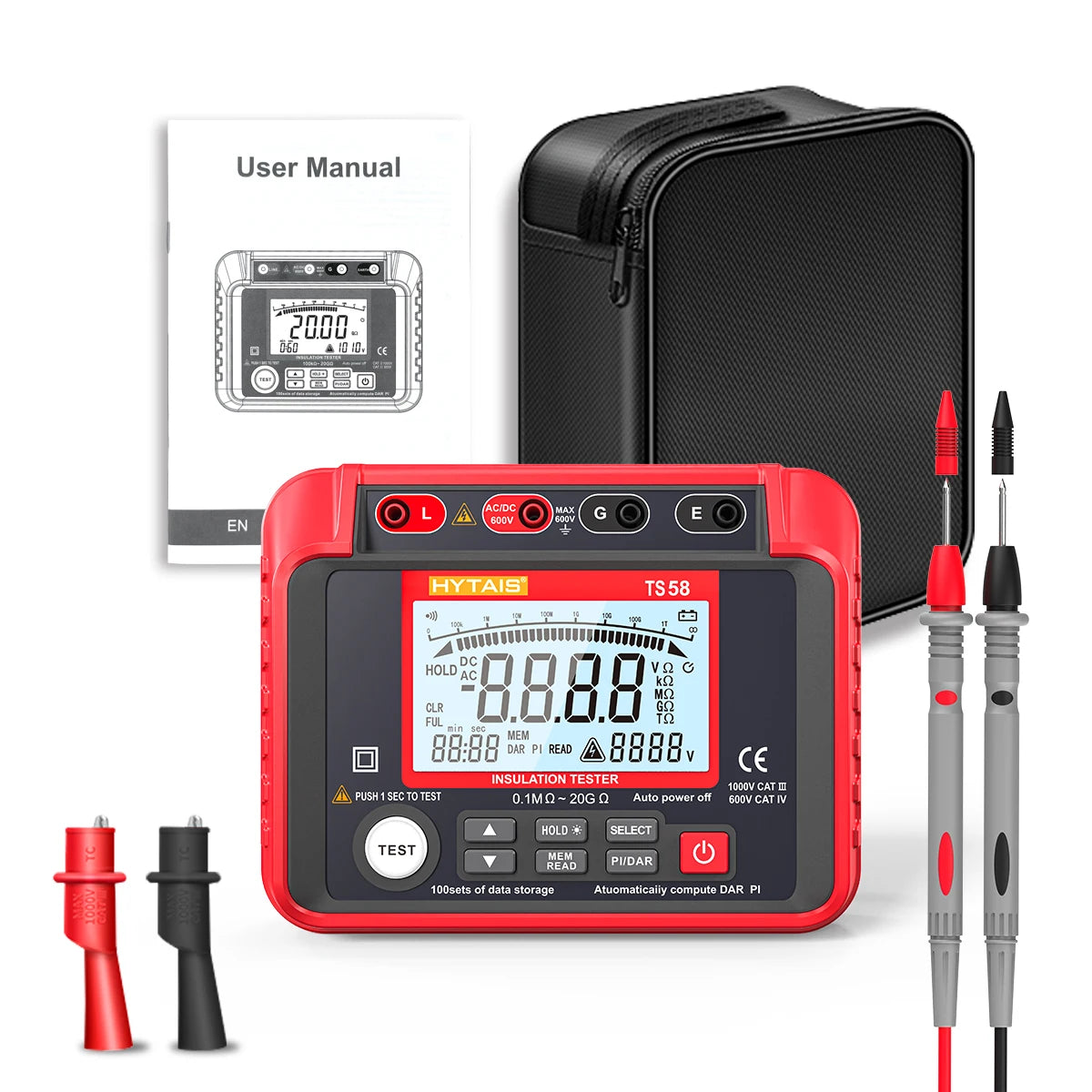

- Portable Carrying Bag Included: Comes with a convenient carry bag for safe transport and storage.
- Battery Powered: Runs on 8 × AA 1.5V batteries (not included) — ideal for remote and outdoor use.
Technical Specifications
| Model | HYTAIS TS58 |
| Output Voltage Range | 50V, 100V, 250V, 500V, 1000V |
| Resistance Measurement Range | 0.1MΩ – 20GΩ |
| AC/DC Voltage Range | 10V – 600V |
| Accuracy | ±10% |
| Display | HD Backlit LCD (Digital) |
| Data Storage | 100 Groups |
| Short-Circuit Current | < 1.8mA |
| Withstanding Voltage | AC 2KV, 50Hz, 1 minute |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | ≤ 85% RH |
| Storage Temperature | -10°C – +50°C |
| Storage Humidity | < 75% RH |
| Dimensions | 180 × 140 × 70 mm |
| Power Supply | 8 × AA 1.5V (not included) |
| Certifications | CE, FCC, RoHS, UL |
| Country of Origin | Made in Mainland China |
Applications
The HYTAIS TS58 is ideal for testing insulation integrity in a wide variety of electrical equipment, including:
- Transformers and mutual inductors
- Electric motors and generators
- Power cables and surge arresters
- Switches and circuit breakers
- Power capacitors and electrical appliances
- Industrial and commercial electrical installations
Perfect for maintenance, repair, testing, and calibration of electrical systems in industrial, commercial, and field environments.
Safety & Usage Warnings
- Discontinue use if the instrument is damaged or bare metal parts are exposed.
- Do not press function buttons while test leads are connected and the circuit is live — exit measurement mode before changing test functions.
- Do not replace batteries while the instrument is wet; ensure it is completely dry before use or storage.
- Always confirm test leads are securely connected before measuring.
- Turn the instrument off before opening the battery compartment.
- Do not use abrasive cleaners or solvents on the housing; clean with a soft damp cloth only.
Care & Storage
When storing the TS58 for extended periods, remove the batteries to prevent electrolyte leakage. Store in a clean, dry, well-ventilated location free from dust and corrosive gases, within the storage temperature range of -10°C to +50°C and relative humidity below 75% RH.
For more information on electrical safety standards and best practices, visit the OSHA Electrical Safety Resource.
Frequently Asked Questions
Q: What output voltages does the HYTAIS TS58 Megohmmeter support?
A: The TS58 supports five selectable output test voltages: 50V, 100V, 250V, 500V, and 1000V, covering a wide range of insulation testing requirements for motors, cables, transformers, and other electrical equipment.
Q: Does the HYTAIS TS58 insulation resistance tester come with batteries?
A: No, batteries are not included. The TS58 requires 8 × AA 1.5V batteries (purchased separately) to operate. This battery-powered design makes it fully portable and suitable for outdoor and remote field testing.
Q: How many measurements can the TS58 store, and how is data retrieved?
A: The TS58 features onboard data storage for up to 100 groups of measurement results. This allows technicians to record readings during field inspections and review them later for documentation, reporting, or trend analysis directly from the instrument's HD backlit LCD display.
Q: Is the HYTAIS TS58 safe to use on energized circuits?
A: The TS58 is designed for insulation resistance testing and AC/DC voltage measurement only. It complies with IEC1010-1 safety standards and features double insulation, short-circuit protection, and voltage counter-attack protection. Always follow proper electrical safety procedures. For energized circuit work, consult applicable safety guidelines such as those published by OSHA.
Q: What is the resistance measurement range of the TS58 Megohmmeter?
A: The HYTAIS TS58 measures insulation resistance from 0.1MΩ up to 20GΩ, making it suitable for testing high-quality insulation in modern electrical equipment including large transformers, generators, power cables, and industrial electrical systems.
