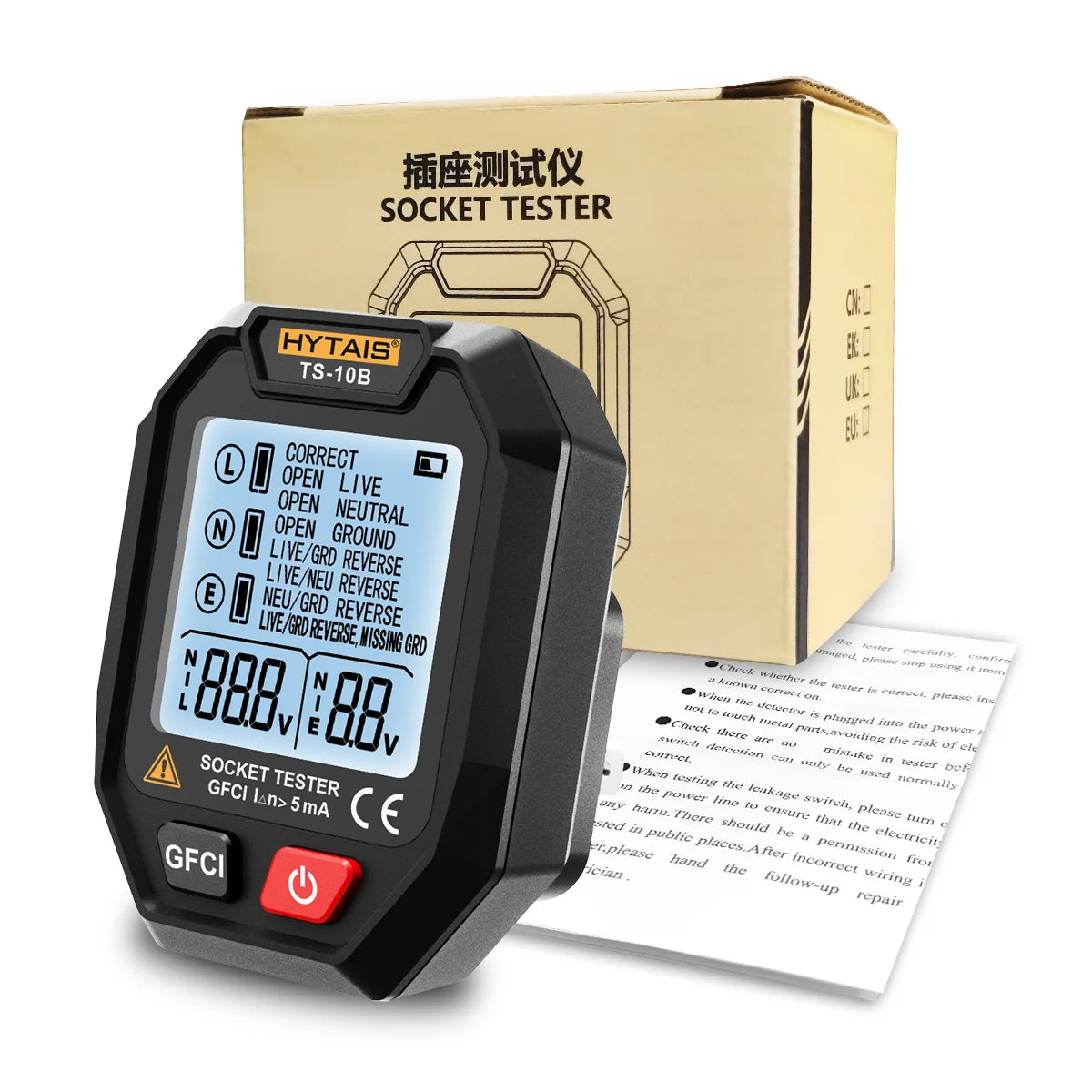

HYTAIS TS-10B Outlet Tester & Socket Detector with Backlit LCD Display
Take the guesswork out of electrical safety with the HYTAIS TS-10B Outlet Tester. Whether you're a homeowner, electrician, or DIY enthusiast, this compact battery-powered device lets you instantly verify wiring integrity in standard US and EU sockets — no multimeter or complex setup required. Simply plug it in, press the power button, and let the smart chip do the rest.

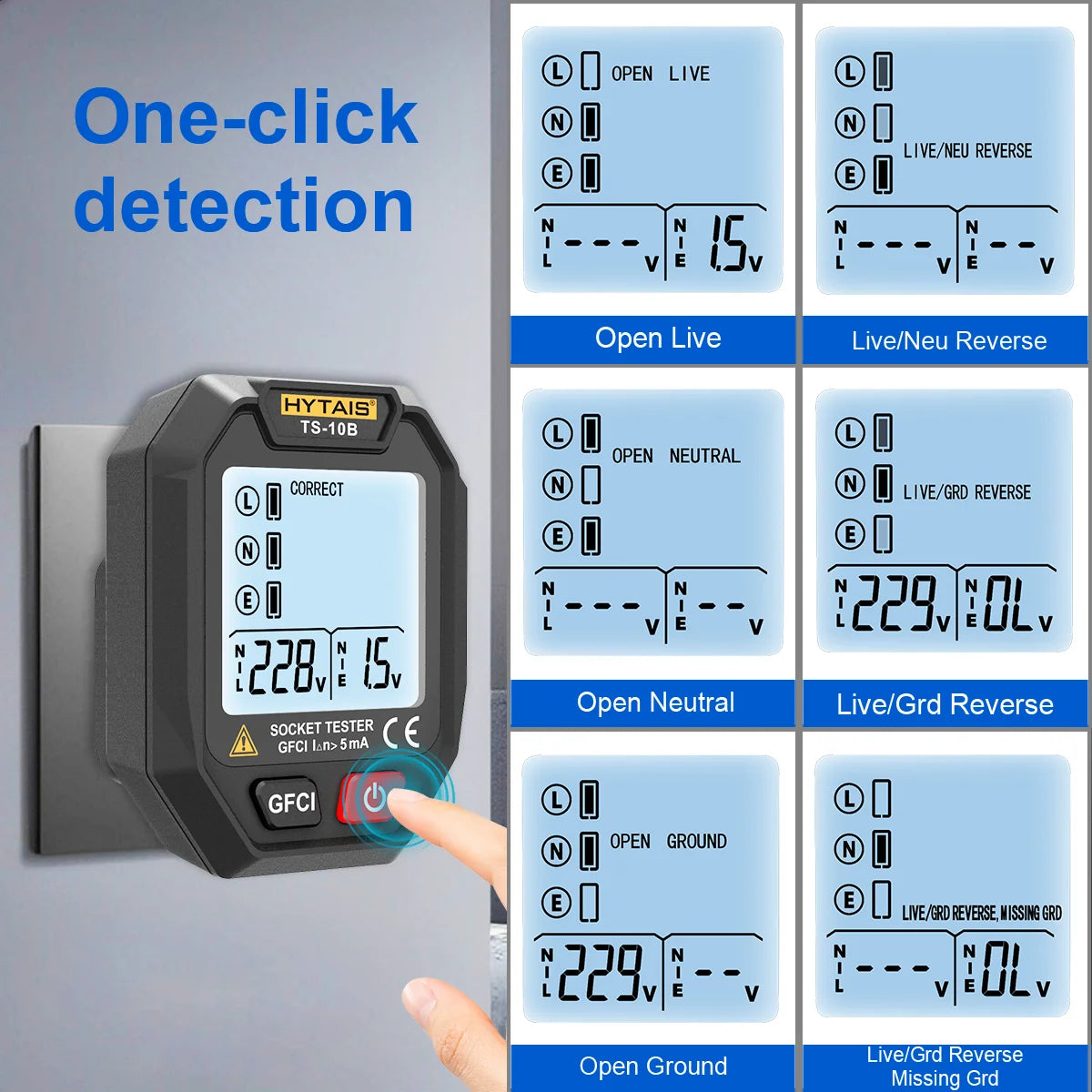

Identify 6 Common Wiring Issues in Seconds
The TS-10B automatically detects and displays six wiring faults that can pose serious electrical hazards:

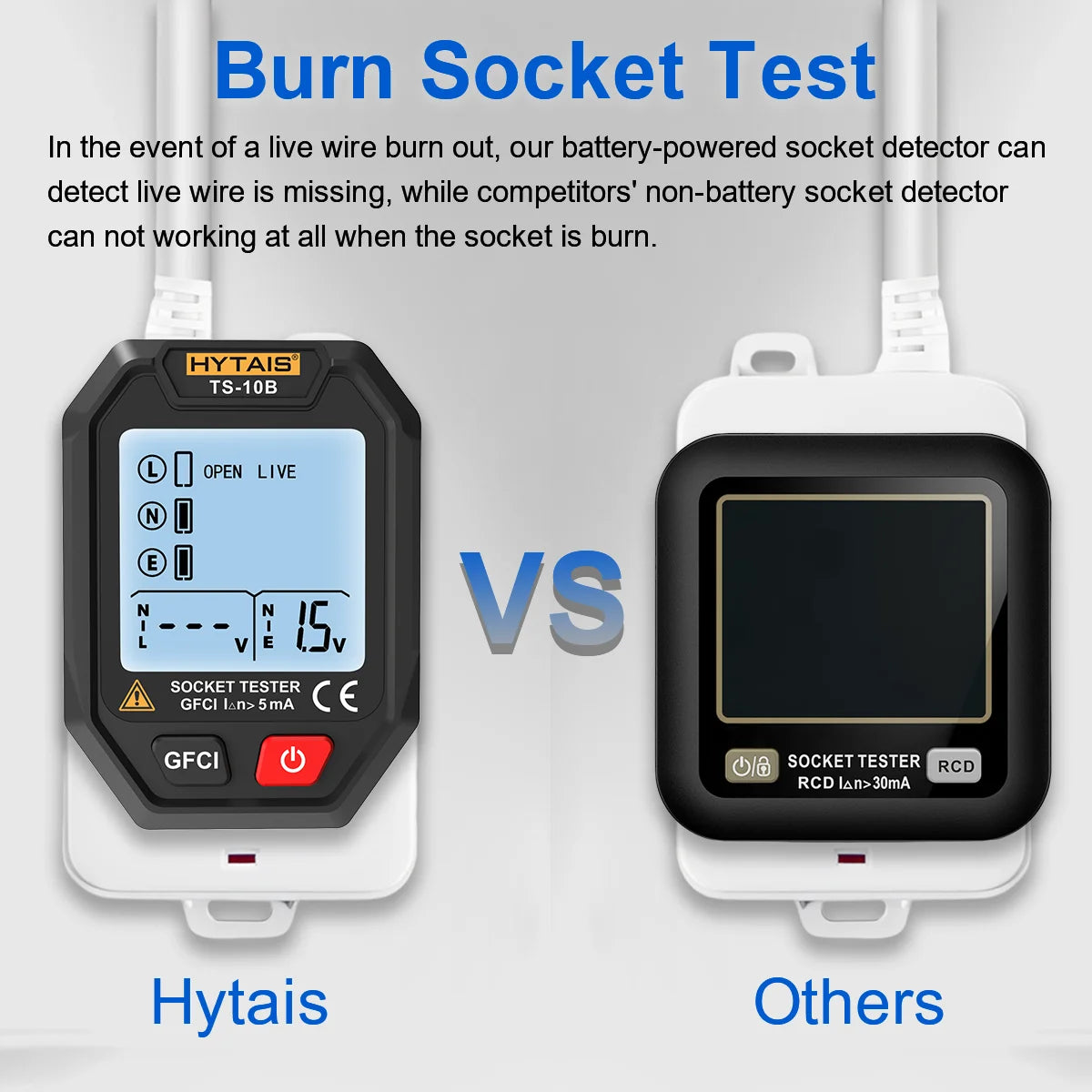

- Open Live – No live wire detected
- Live/Neutral Reverse – Live and neutral wires swapped
- Open Neutral – Neutral wire missing or disconnected
- Live/Ground Reverse – Live and ground wires swapped
- Open Ground – Ground wire absent
- Missing Ground – Ground connection not present
Backlit LCD Screen for Any Environment
The clear, high-contrast backlit LCD display makes readings easy to interpret even in dimly lit rooms, crawl spaces, or electrical panels. No more squinting at tiny indicator lights — the large screen gives you an immediate, unambiguous readout of socket status and voltage.
AC Voltage Measurement (60V–250V)
Accurately measures Live-to-Neutral voltage across a wide range of 60V–250V AC (50–60Hz), making it compatible with standard household circuits in North America, Europe, and beyond. Intelligent line detection helps you troubleshoot potential issues quickly and confidently.
RCD / Leakage Switch Protection Test
Beyond basic wiring checks, the TS-10B can test your RCD (Residual Current Device) — the safety switch designed to trip during a leakage event. Plug in the tester, confirm correct wiring on the display, then press the RCD test button. If the switch trips, your protection circuit is functioning correctly. If it doesn't, you know it needs attention.
- RCD Working Voltage: 45V–250V
- RCD Leakage Current: >30mA @ 220V | >7mA @ 110V
Smart Chip & Overload Protection
A built-in intelligent chip continuously monitors the circuit and prevents the tester from burning out during measurement — giving you a durable, reliable tool that stands up to regular professional use.
Key Specifications
- Model: TS-10B (TS10B)
- Brand: HYTAIS

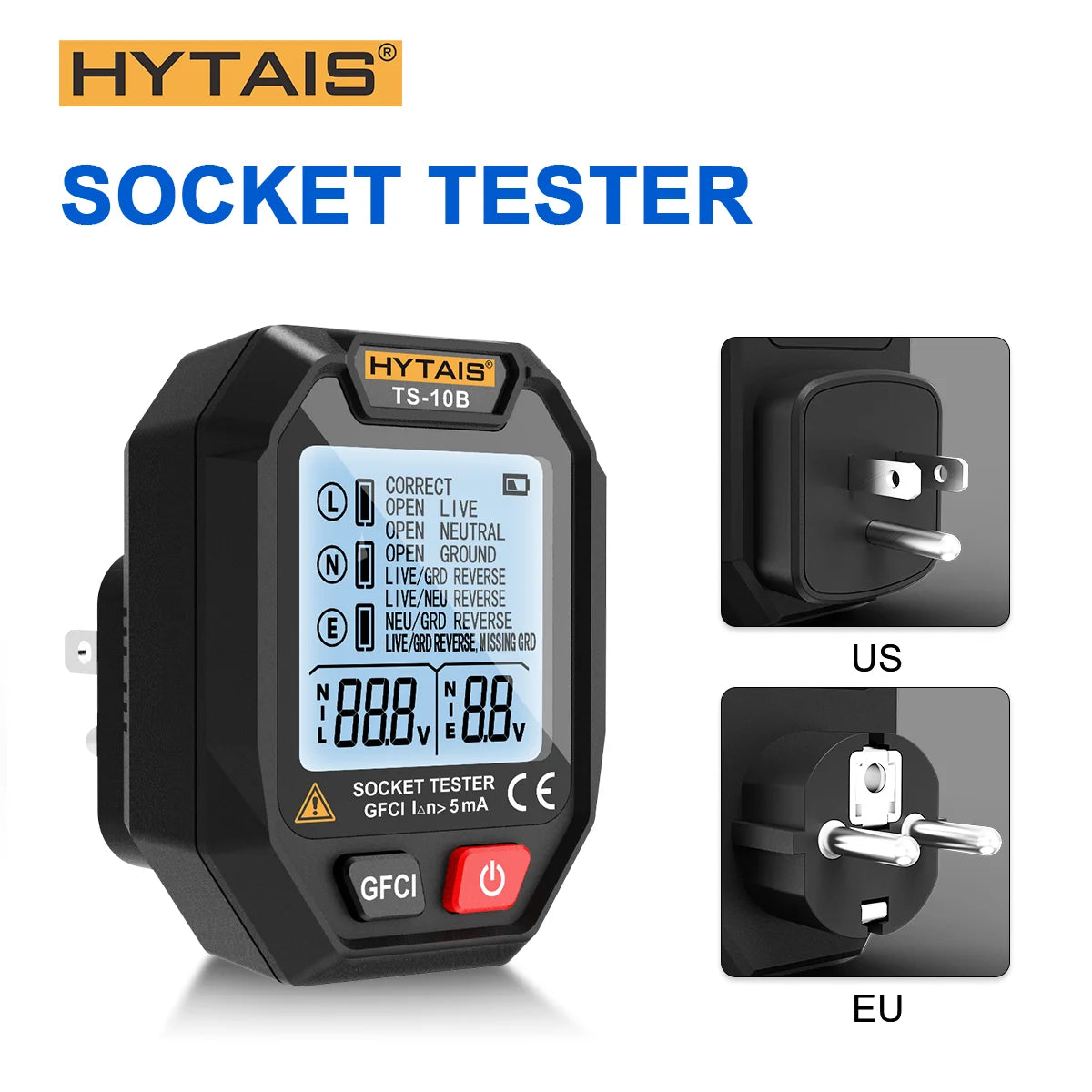

- Compatibility: US & EU plug types
- Measurement Range (L-N): 60V–250V AC (50–60Hz)
- Input Voltage: >50VAC / 75VDC
- Power: 2 × AAA 1.5V batteries (not included)
- Display: Backlit LCD
- Operating Temperature: 0°C–40°C, Humidity 20%–70%
- Storage Temperature: 10°C–50°C, Humidity 20%–80%
- Certifications: CE, RoHS, UL
- Country of Origin: Made in Mainland China
What's in the Box?
- 1 × HYTAIS TS-10B Outlet Tester
- Note: AAA batteries are NOT included.
Learn More About Electrical Safety
For guidelines on home electrical safety and understanding circuit protection devices, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: What plug types does the HYTAIS TS-10B outlet tester support?
A: The TS-10B supports both US (Type A/B) and EU (Type C/F) plug types, making it a versatile socket tester for use across North America and Europe.
Q: Do I need a battery to use the TS-10B outlet tester?
A: Yes. The TS-10B is powered by 2 × AAA 1.5V batteries, which are NOT included in the package. You will need to supply your own batteries before first use.
Q: Can this outlet tester check my RCD (Ground Fault) breaker?
A: Yes. The TS-10B includes an integrated RCD leakage switch test function. Once the display confirms correct wiring, pressing the RCD button will trigger any properly functioning residual current device. If the breaker does not trip, it may need inspection or replacement.
Q: How many wiring faults can the TS-10B detect?
A: The tester identifies 6 common wiring problems: Open Live, Live/Neutral Reverse, Open Neutral, Live/Ground Reverse, Open Ground, and Missing Ground — all displayed clearly on the backlit LCD screen.
Q: Is the TS-10B certified for safety?
A: Yes. The HYTAIS TS-10B holds CE, RoHS, and UL certifications, ensuring it meets recognized international electrical safety and environmental standards.
