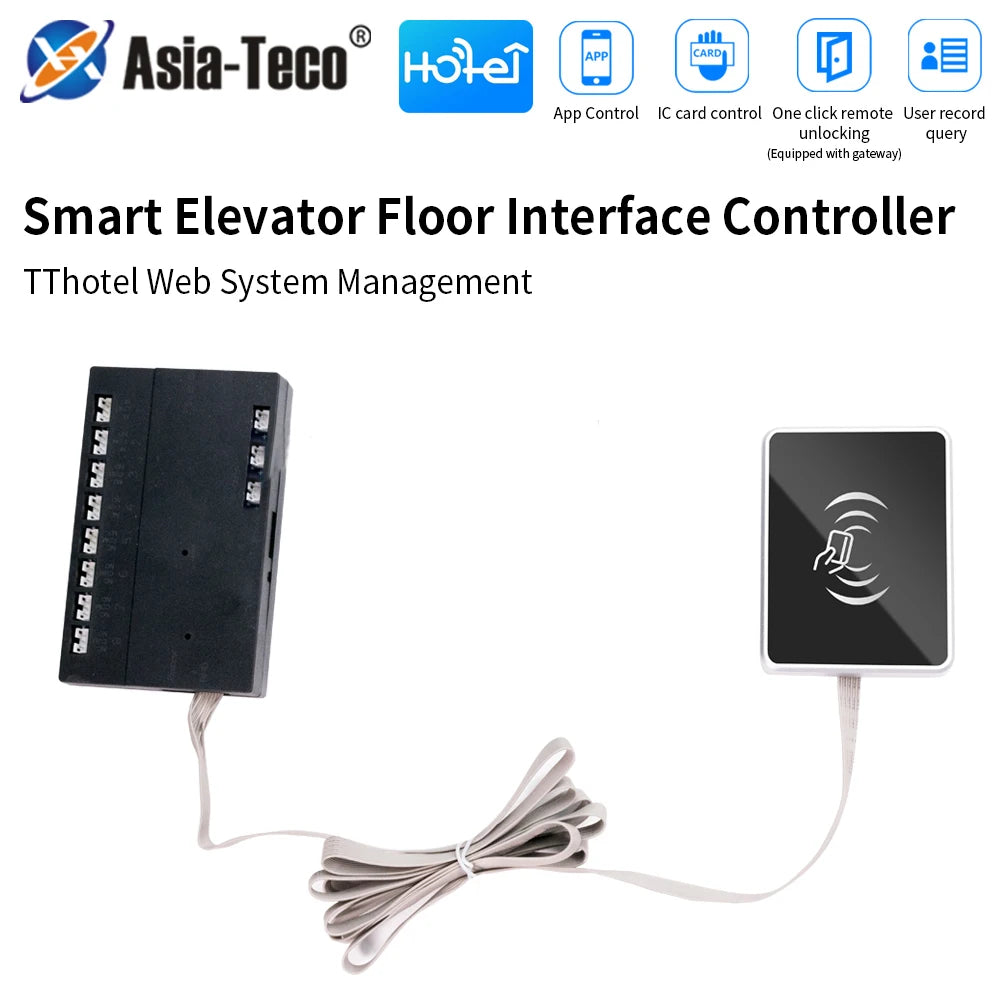

TTHotel Lift Controller – 8-Floor Elevator Car Roof Relay Board with Cascade Interface
Take complete control of your hotel's elevator access with the TTHotel Lift Controller (Model: LC2 / SN-261). Designed for modern hospitality properties, this smart elevator access system combines a robust relay board with a cascade interface board, supporting up to 8 floors (expandable to 64 floors on request). Manage everything from a web dashboard, desktop software, or mobile app — giving staff and guests a seamless, secure experience.
What Is TTHotel?
TTHotel is a lightweight cloud-based Property Management System (PMS) built specifically for hotels. It follows the OWASP security standard and has received certification from a recognized security organization. The platform supports multiple languages including English, Chinese, French, Russian, and Greek, making it a trusted choice for properties worldwide.
Multiple Access Methods
- Bluetooth (BLE 4.1): Unlock via smartphone app using low-energy Bluetooth technology
- IC Card (M1 S50): Traditional keycard access with up to 1,000 card capacity
- Passcode: PIN-based entry option
- Fingerprint: Biometric access support
- Remote e-Key: Send digital keys remotely, set validity periods, and freeze/unfreeze access instantly
- QR Code: Quick scan-to-access for guests
Smart Management Software
The TTHotel platform offers dedicated software for both hotel staff and guests:
- Staff: Web-based dashboard + desktop software + mobile app (Android 4.3 / iOS 7.0+)
- Guests: Dedicated mobile app for self-service access
Key Management Features
- Check-in / Check-out management and room status tracking
- Occupancy statistics and reporting
- Staff role and permission management
- Access records and audit log management (local storage: 2,000 operation logs)
- Full device management: locks, lift controllers, energy savers, gateways, and card encoders
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LC2 / SN-261 |
| Master Chip | Nordic 51802 |
| Bluetooth Standard | BLE 4.1 |
| Card Type | M1 S50 |
| Card Capacity | 1,000 cards |
| Local Log Storage | 2,000 entries |
| Operating Temperature | -20°C to 70°C |
| Power Supply | DC 9V–16V |
| Standby Current | 10 mA |
| Working Current | <400 mA (8 floors: <120 mA; 64 floors: <1A) |
| Certification | CE |
| Floors Supported | Up to 8 (this configuration); expandable to 64 floors |
| Unlock Methods | App (BLE), IC Card, QR Code, Remote e-Key |

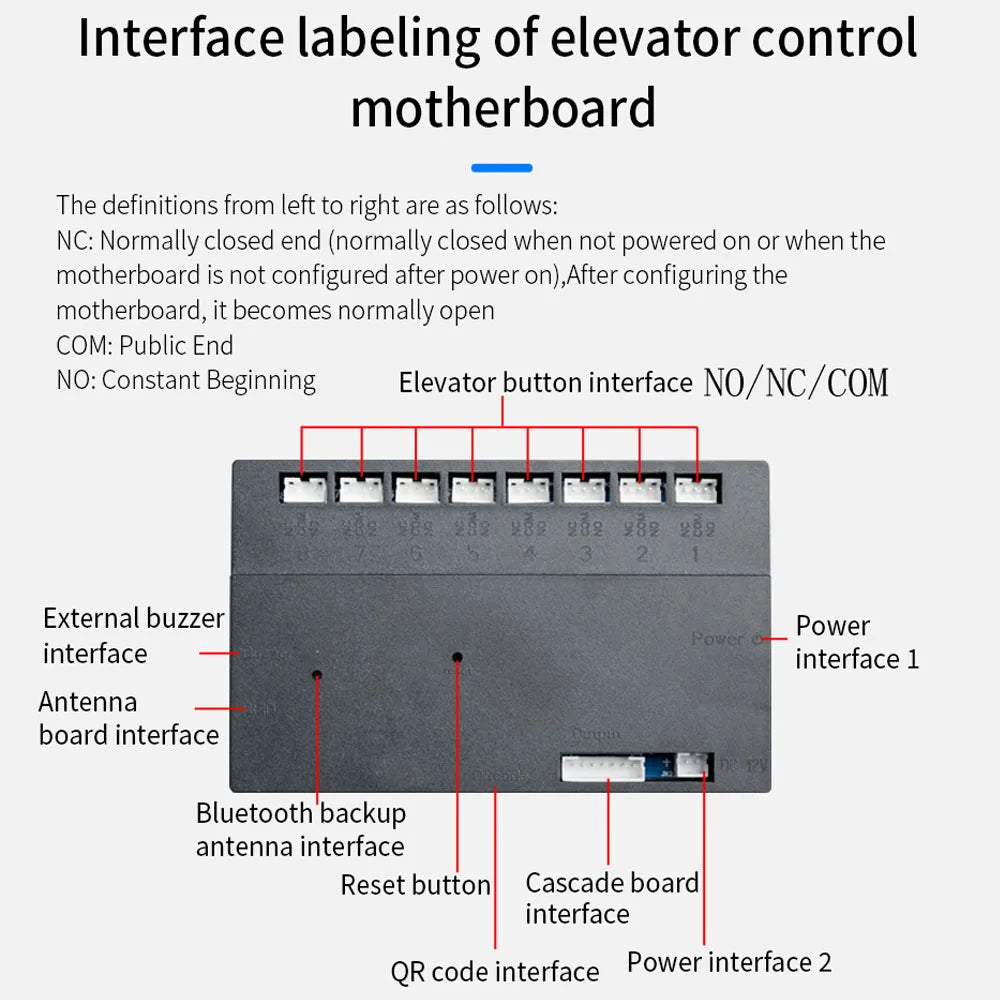

| Interfaces | Cascaded input/output, elevator button, card-swiping antenna, QR code port, cascade board, power, antenna board, external buzzer, Bluetooth backup antenna |
| Compatible Mobile OS | Android 4.3+ / iOS 7.0+ |
| Country of Origin | Made in Mainland China |

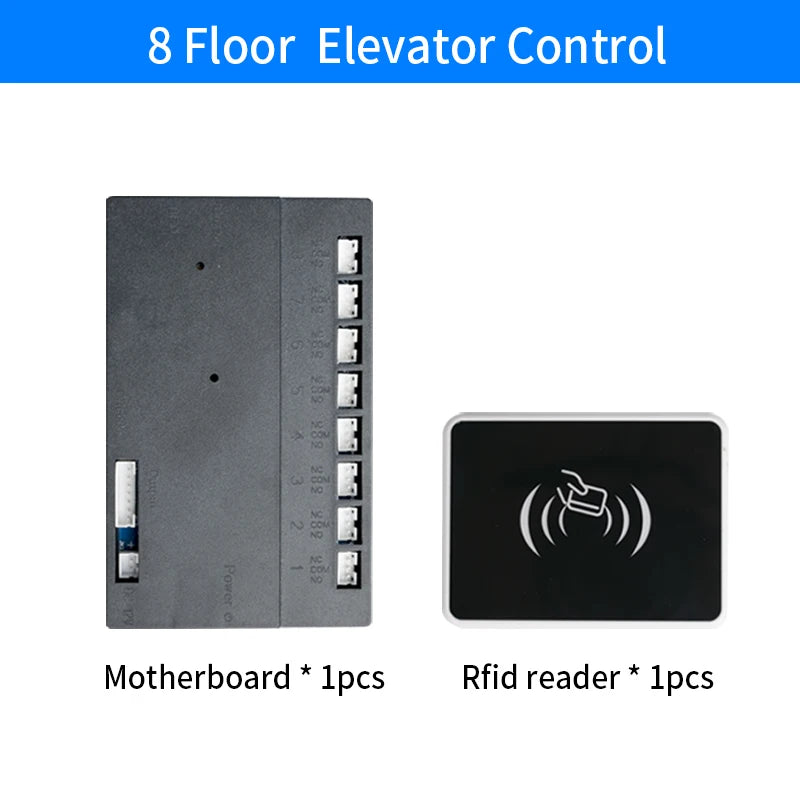

Note: This listing covers the 8-floor configuration. For 16 to 64 floor support, please contact our customer service team.
Why Choose This Lift Controller?
- ✅ Cloud-based PMS integration for real-time management
- ✅ CE certified for safety and compliance
- ✅ Wide operating temperature range — reliable in diverse climates
- ✅ Scalable cascade architecture — grow from 8 to 64 floors
- ✅ Multi-language support for international hotel operations
- ✅ Low standby power consumption for energy efficiency
For more information on smart building access control standards, visit the NIST Cybersecurity Resources.
Frequently Asked Questions
Q: How many floors does this hotel lift controller support?
A: This specific configuration supports up to 8 floors. The system is expandable and can support up to 64 floors through additional cascade interface boards. Please contact customer service if you need a configuration for 16 to 64 floors.
Q: What mobile operating systems are compatible with the TTHotel app?
A: The TTHotel app is compatible with Android 4.3 and above as well as iOS 7.0 and above, making it suitable for a wide range of smartphones used by both hotel staff and guests.
Q: Can hotel staff manage the elevator access remotely?
A: Yes. Using the TTHotel web dashboard or staff app, hotel administrators can send e-Keys remotely, set validity periods, freeze or unfreeze access credentials, and monitor all elevator access logs — all in real time from any location.
Q: What access methods does this lift controller support?
A: The controller supports multiple access methods including Bluetooth (BLE 4.1) via app, M1 S50 IC keycard, QR code, passcode, fingerprint, and remote e-Key delivery, offering flexible options for different guest and operational needs.
Q: What is the power requirement for this elevator relay board?
A: The lift controller operates on DC power with a voltage range of 9V to 16V. Standby current is just 10 mA, and working current is under 120 mA for the 8-floor configuration, ensuring energy-efficient operation.
