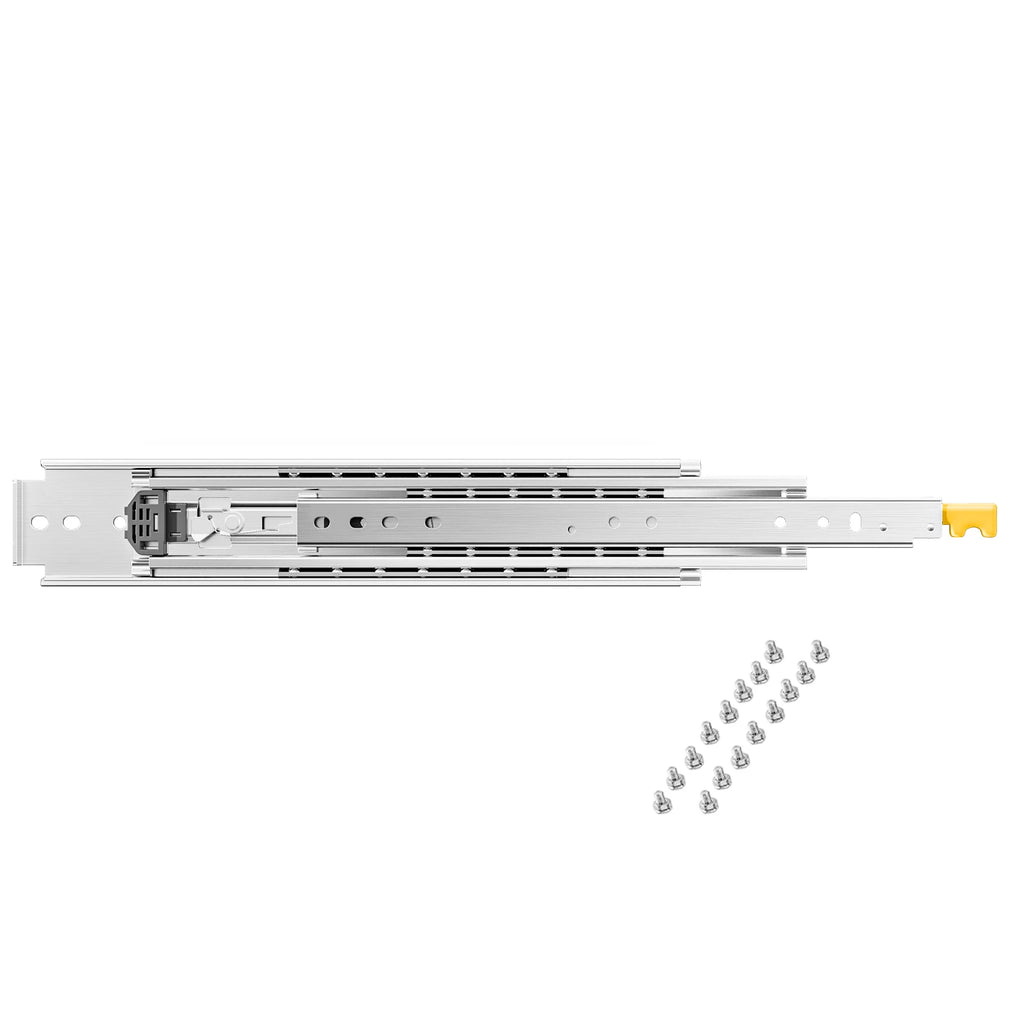

500 lb Heavy-Duty Full Extension Locking Drawer Slides (1 Pair, 18")
Upgrade your storage game with these industrial-grade, full extension ball bearing drawer slides. Engineered for demanding applications — RVs, trucks, SUVs, workshop cabinets, shelving units, and vending machines — this pair delivers a rock-solid 500 lb load capacity with smooth, quiet operation every time.
Key Features
- 500 lb / 226.8 kg Load Capacity: Built from 0.77 in (19.5 mm) thick, high-hardness steel, these slides handle serious weight whether fully extended or closed. The galvanized finish provides long-lasting rust and wear resistance.
- Dual-Lock Design: A double-lock mechanism secures the drawer in place with a simple press — keeping contents firmly in position even on rough terrain. Far more secure than single-lock or no-lock alternatives.
- Smooth & Quiet Operation: Double-row ball bearings ensure effortless opening and closing. Nylon cushioning on the center slide minimizes noise and eliminates unwanted bounce.
- 3-Fold Full Extension: The 3-section telescoping design allows complete access to the full depth of your drawer — no more reaching into dark corners.
- Side Mount Rail: Easy side-mount installation compatible with most standard drawers and cabinets. Suitable drawer length: 18.5 in / 470 mm.
- CE Certified: Meets CE safety and quality standards for added confidence.
Specifications
| Extension Length | 18 in / 457 mm |
| Product Dimensions | 19 x 3 x 0.77 in / 490 x 76 x 19.5 mm |
| Suitable Drawer Length | 18.5 in / 470 mm |
| Load Capacity | 500 lbs / 226.8 kg (at full extension) |
| Net Weight (pair) | 9.85 lbs / 4.47 kg |
| Material | High-hardness galvanized steel |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Applications
These slides are perfectly suited for:
- Recreational vehicles (RVs), pickup trucks & SUVs
- Workshop tool cabinets & industrial storage
- Kitchen & garage cabinetry
- Shelving units & vending machines
- DIY and metalworking projects

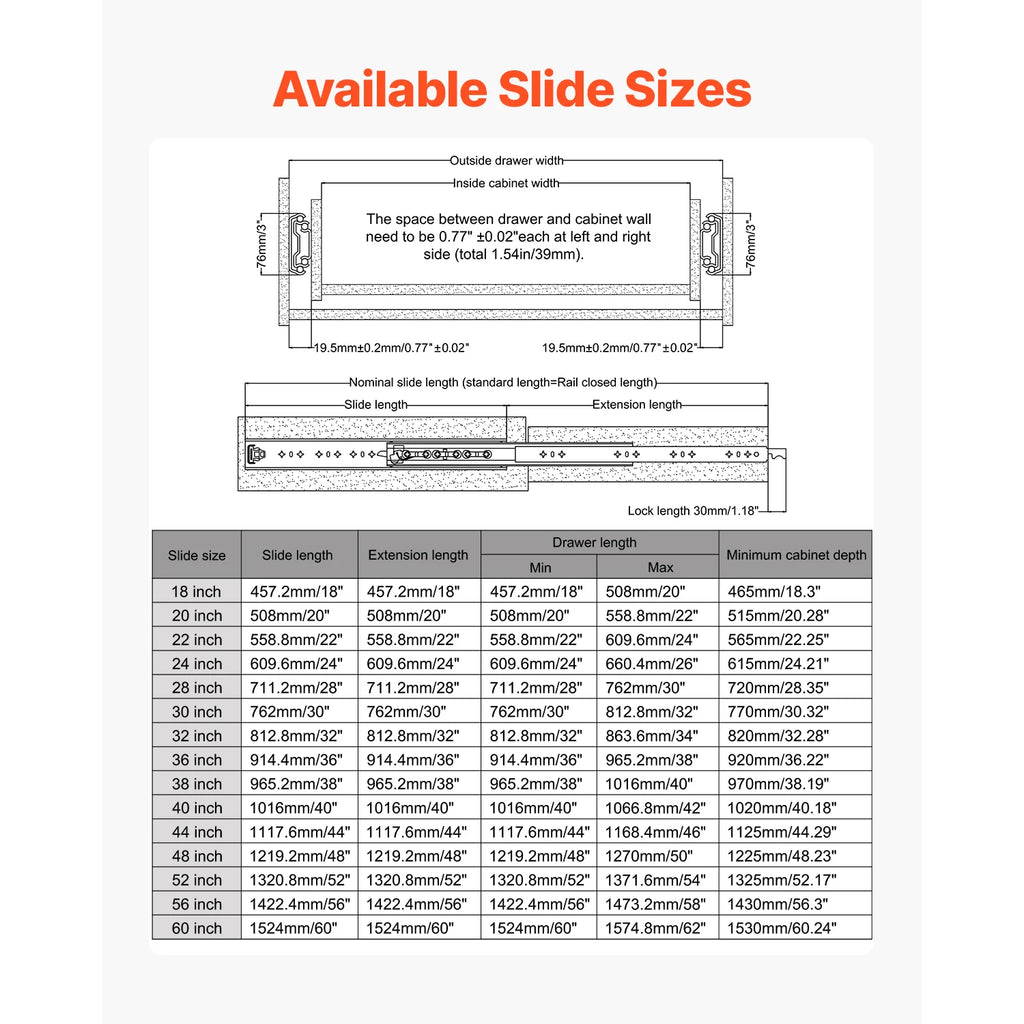

Sizing Tip
Always measure the depth of your drawer (excluding frame boards) before ordering. The slide length must be greater than the drawer depth — never equal to or less than it. Refer to the product images for a detailed size selection guide.
For general tool and hardware safety best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the load capacity of these heavy-duty drawer slides when fully extended?
A: These full extension drawer slides maintain a 500 lb (226.8 kg) load capacity even when completely extended, making them one of the strongest options available for RV, truck, and industrial cabinet applications.
Q: How does the dual-lock mechanism work on these locking drawer slides?
A: The double-lock design engages automatically at the fully open and fully closed positions with a simple press. This secures the drawer firmly in both states, preventing accidental movement — especially useful on vehicles traveling over uneven surfaces.
Q: Are these drawer slides compatible with standard kitchen or garage cabinets?
A: Yes. These 18-inch side-mount drawer slides are compatible with most standard drawers and cabinets with a suitable drawer length of approximately 18.5 in / 470 mm. Always measure your drawer depth (excluding frame boards) before purchase to ensure the correct fit.
Q: What makes these ball bearing drawer slides quiet during operation?
A: The slides feature double-row ball bearings for smooth gliding action, plus nylon cushioning on the center section that absorbs impact and significantly reduces operational noise — no rattling or bouncing.
