Heavy Duty 1800kg Electric Sliding Gate Motor Opener – 6m Rack
Heavy Duty 1800kg Electric Sliding Gate Motor Opener – 6m Rack
Heavy Duty Electric Sliding Gate Motor – Up to 1800kg Capacity
Automate and secure your driveway or property entrance with this powerful heavy-duty electric sliding gate motor (Model KMP202). Engineered to handle gates weighing up to 1,800 kg, this CE-certified gate opener delivers smooth, reliable, and quiet operation for residential and commercial applications alike. Made in China.
Choose the Kit That Fits Your Needs
Six kit configurations are available so you only pay for what you need:

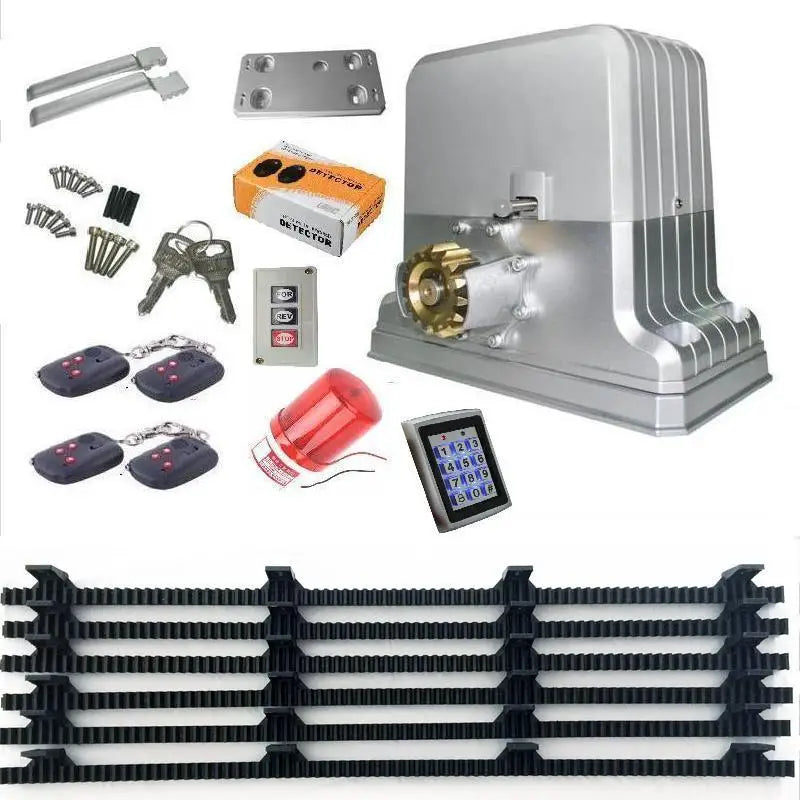

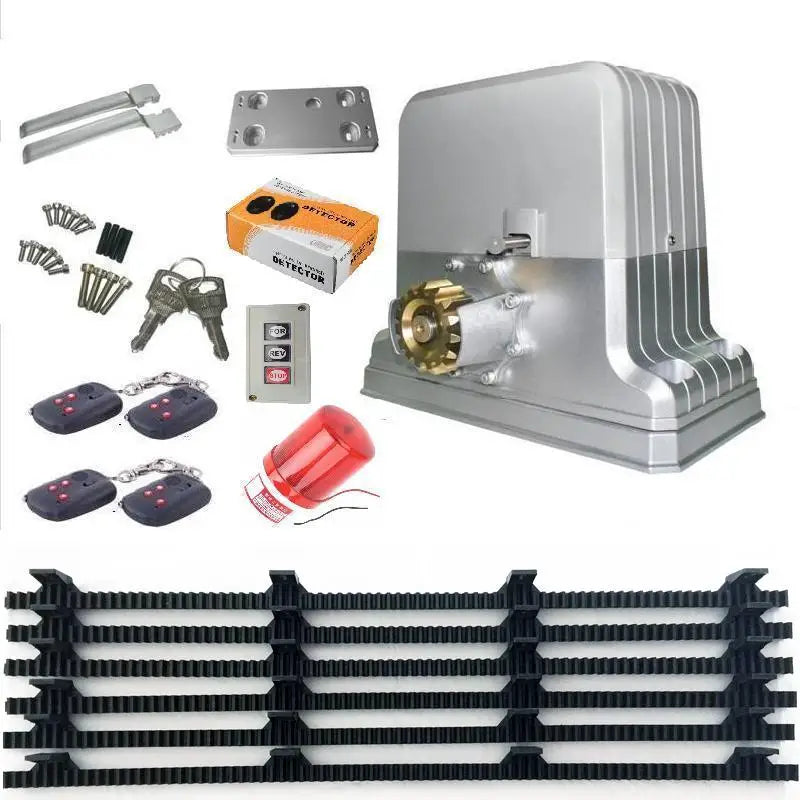

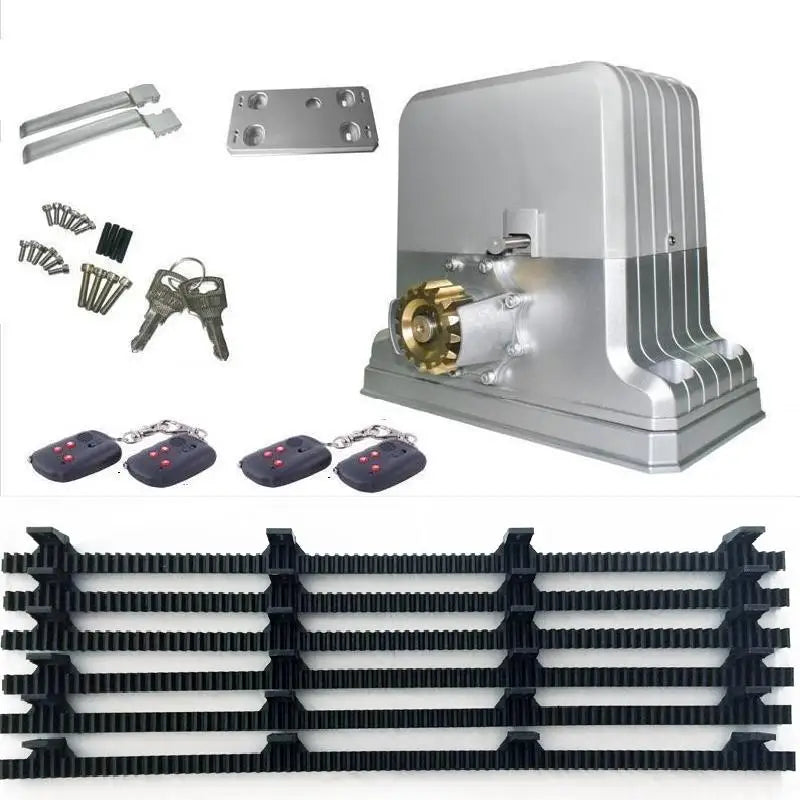

- Kit 1: Motor + 4 Remote Controls + 6m Nylon Rack
- Kit 2: Motor + 4 Remote Controls + 6m Nylon Rack + 1 Photocell
- Kit 3: Motor + 4 Remote Controls + 6m Nylon Rack + 1 Photocell + 1 Alarm Lamp
- Kit 4: Motor + 4 Remote Controls + 6m Nylon Rack + 1 Photocell + 1 Alarm Lamp + 1 Push Button
- Kit 5: Motor + 4 Remote Controls + 6m Nylon Rack + 1 Photocell + 1 Alarm Lamp + 1 Push Button + 1 Wireless Keypad
- Kit 6: Motor + 4 Remote Controls + 6m Nylon Rack + 1 Photocell + 1 Alarm Lamp + 1 Push Button + 1 Wireless Keypad + 1 GSM Remote Control Opener (2G)
Optional GSM module and RFID keypad available — contact us for details. Default delivery voltage is AC 220V. If you require AC 110V, please contact the seller before ordering.
Key Technical Specifications
| Specification | Detail |
|---|---|
| Model | KMP202 |
| Max Gate Weight | Up to 1,800 kg |
| Motor Power | 350W |
| Voltage | 220V ± 10% / 110V ± 10% |
| Frequency | 50/60 Hz |
| Torque | 35 Nm |
| Travel Speed | 11 m/min – 13.2 m/min |
| Remote Range | > 30 m |
| Working Temperature | -40°C to +55°C |
| Relative Humidity | ≤ 90% |
| Housing Material | Die-Cast Aluminum Alloy |
| Certification | CE |
| Security Mode | Fail Secure with Signal |
| Manual Release | Yes |
| Approx. Product Weight | ~10.2 kg |
Smart Features for Smooth, Safe Operation
- ✅ Electronic Soft Start & Stop – Gentle acceleration and deceleration extends gate lifespan
- ✅ Obstacle Reversal – Automatically reverses when an obstruction is detected, with adjustable sensitivity
- ✅ Infrared Photocell Socket – Supports safety photocell beam for added protection
- ✅ Alarm Light Socket – Easily connect a warning lamp for visual alerts
- ✅ Delay Auto-Close – Gate closes automatically after a set interval
- ✅ Integrated Electromechanical Design – Compact, robust build for long-term outdoor use
- ✅ Automatic Warm-Up – Ensures reliable startup in cold climates down to -40°C
- ✅ Bus-Mastering – Supports multiple operation modes for flexible installation
- ✅ Wired & Wireless Control – Operate via remote, keypad, push button, or optional GSM/RFID
Battery & Import Note
In certain countries, battery importation is restricted by government policy. Remote control batteries will be removed prior to shipping upon buyer confirmation — please contact us if this applies to your location.
Safety & Security Resources
For guidance on safe installation of automated gate systems, refer to the U.S. Consumer Product Safety Commission (CPSC) for relevant safety standards and product safety information.
Frequently Asked Questions
Q: What is the maximum gate weight this electric sliding gate motor can handle?
A: This heavy-duty sliding gate motor (Model KMP202) is rated to operate gates weighing up to 1,800 kg, making it suitable for large residential and commercial sliding gates.
Q: Can I use this automatic gate opener with a 110V power supply?
A: Yes. The motor supports both 220V ± 10% and 110V ± 10% power supplies. However, the default delivery voltage is AC 220V. If you require the 110V version, please contact the seller before placing your order to ensure the correct configuration is shipped.
Q: What accessories are included with the kit, and can I add GSM or RFID control?
A: There are six kit options ranging from a basic motor + 4 remote controls + 6m nylon rack (Kit 1) up to a full kit with photocell, alarm lamp, push button, wireless keypad, and GSM remote opener (Kit 6). An optional RFID keypad is also available — contact the seller for customization and upgrade options.
Q: Does this sliding gate opener work in extreme temperatures?
A: Yes. The KMP202 is designed for a working temperature range of -40°C to +55°C, including an automatic warm-up function that ensures dependable performance in very cold conditions.
Q: Is manual operation possible in case of a power outage?
A: Absolutely. This gate motor includes a manual release mechanism, allowing the gate to be operated by hand in the event of a power failure, ensuring you are never locked in or out.
